RN-053.3SP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > RN-053.3SP

Preview

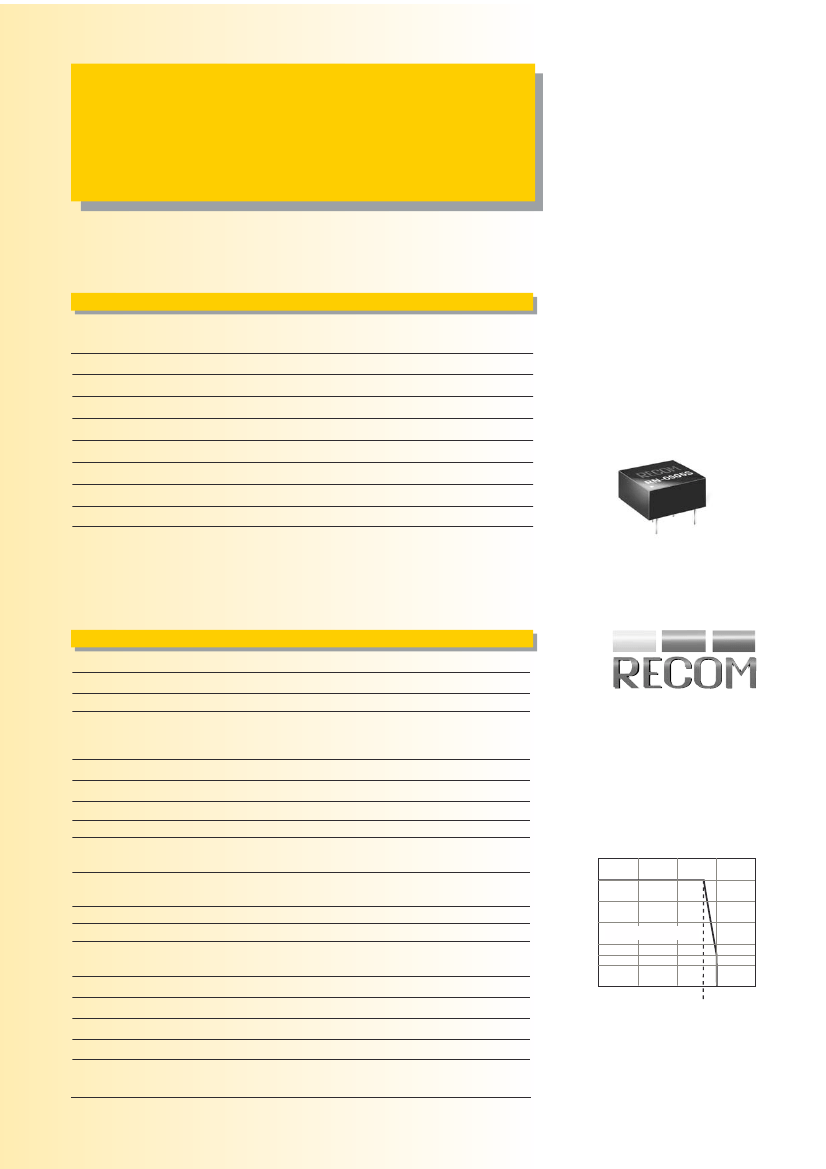

RN-053.3SP: Description1.25 watt dip8 single output; File Size87KB，3 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/

Download Datasheet View All

RN-053.3SP Overview

1.25 watt dip8 single output

Preview

Download Datasheet

View All

Features

Unregulated

Converters

●

Custom Solutions Available

1kVDC & 2kVDC Isolation

No External Components Required

Optional Continuous Short Circuit Protected

UL94V-0 Package Material

No Heatsink Required

Efficiency to 85%

ECONOLINE

DC/DC-Converter

Series

1.25 Watt

DIP8

Single Output

Selection Guide

Part

Number

DIP 8

RN-xx3.3S

RN-xx05S

RN-xx07S

RN-xx09S

RN-xx12S

RN-xx15S

(2kV)

(H)

Input

Voltage

(VDC)

3.3, 5, 9, 12, 15, 24

Output

Voltage

(VDC)

3.3

Output

Current

(mA)

378

250

180

140

104

Efficiency

(%)

70-72

72-75

75-80

79-82

80-84

80-85

RN-xx24S

(H)

3.3, 5, 9, 12, 15, 24

xx = Input Voltage

* add Suffix “P” for Continuous Short Circuit Protection, e.g. RN-0505S/P, RN-0505S/HP

EN-60950-1 Certified

Specifications

(Core Operating Area)

Input Voltage Range

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation

(10% to 100% full load)

Output Ripple and Noise (20MHz limited)

Operating Frequency

Efficiency at Full Load

No Load Power Consumption

Isolation Voltage

Rated Working Voltage

Isolation Voltage

Rated Working Voltage

Isolation Capacitance

Isolation Resistance

Short Circuit Protection

P-Suffix

Operating Temperature Range (free air convection)

Storage Temperature Range

Relative Humidity

Package Weight

MTBF (+25°C)

(+85°C)

H-Suffix

3.3V output types

5V output type

9V, 12V, 15V, 24V output types

±10%

±5%

1.2%/1% of Vin typ.

20% max.

15% max.

10% max.

75mVp-p max.

50kHz min. / 100kHz typ. / 105kHz max.

70% min. / 75% typ.

106mW min. / 153mW typ. / 210mW max.

(tested for 1 second)

1000VDC min.

(long term isolation)

see Application Notes

(tested for 1 second)

(long term isolation)

2000VDC min.

see Application Notes

30pF min. / 95pF max.

10 GΩ min.

1 Second

Continuous

-40°C to +85°C (see Graph)

-55°C to +125°C

95% RH

1.9g

Detailed Information see

Application Notes chapter "MTBF"

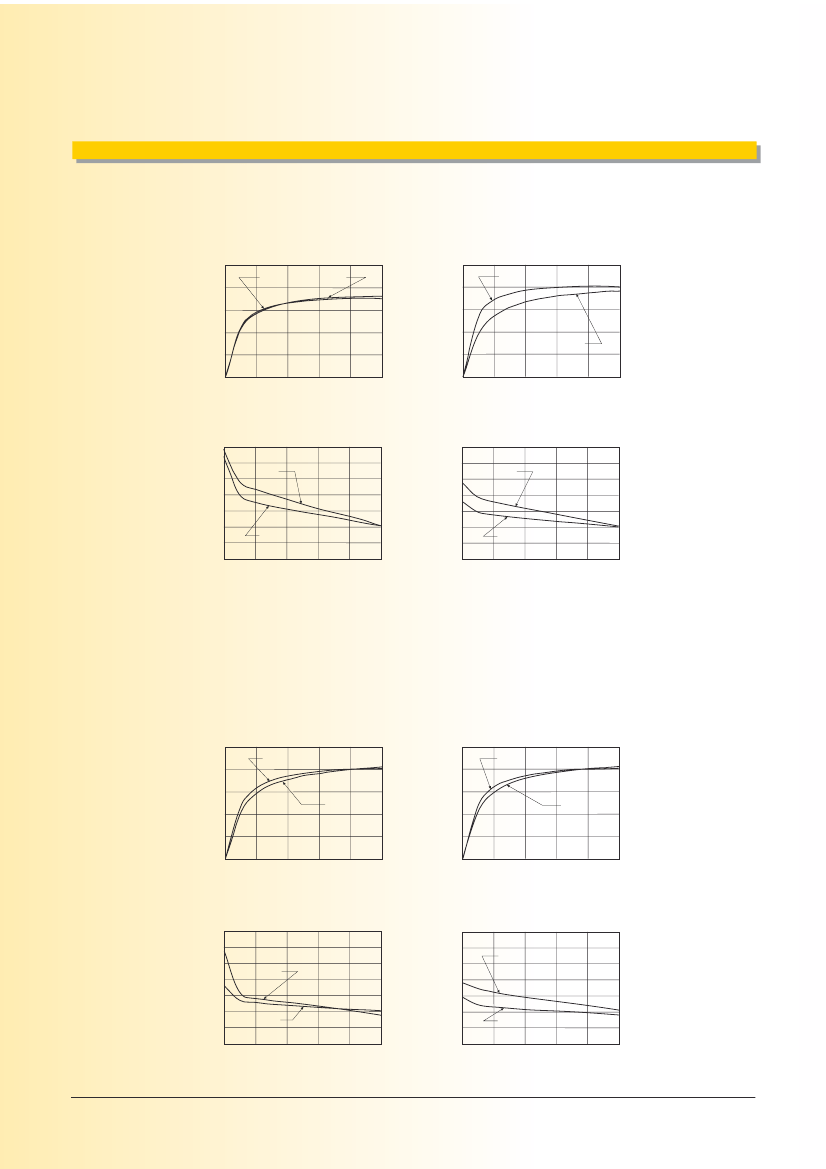

Derating-Graph

(Ambient Temperature)

100

Output Power (%)

Safe Operating Area

Operating Temperature °C

-40

100

150

}

using MIL-HDBK 217F

July-2006

955 x 10

hours

132 x 10

hours

www.recom-international.com
