EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-100-002
REV:
2.0
3.68*6.22mm Rectangular Legend LED Lamps
MODEL NO :
1003GD
ECN :
█
Package
Page:
1/4
█
Features :
●
Choice of various viewing angles
●
Availablc on table and reel
●
Reliable and rubust
Pb free
●
The product itself will remain within RoHS
compliant version.
●
Dimensions:
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness.
●
The LED lamps are available with
different colors, light intensities,
epoxy colors, etc.
█
Applications :
●
TV set
●
Monitor
●
Telephone
●
Computer
PART NO
Material
1003GD
GaP
█
Notes :
1.All dimensions are in millimeters.
2.An epoxy meniscus may extend about
1.5mm(0.059") down to the lead.
Chip
Emitted Color
Green
Green Diffused
Lens Color
OFFICE : NO. 25,Lane 76,Sec.3, Chung Yang Rd., Tucheng 236, Taipei, Taiwan, R.O.C.
TEL
FAX
: 886-2-2267-2000,2267-9936
: 886-2-2267-6244,22676189,22676306
http://www.everlight.com
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-100-002
REV:
2.0
3.68*6.22mm Rectangular Legend LED Lamps
MODEL NO :
1003GD
ECN :
Page:
2/4
█
Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Peak Forward
Current(Duty 1/10 @
1KHZ)
Reverse Voltage
Symbol
If
Topr
Tstg
Tsol
Pd
If(Peak)
Vr
Rating
30
-40 to +85
-40 to +100
260 ± 5
100
160
www.DataSheet4U.com
Unit
mA
℃
℃
℃
mW
mA
V
5
█
Electronic Optical Characteristics :
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
λp
λd
△λ
Vf
Ir
MIN.
1.0
/
/
/
/
1.7
/
TYP.
4.0
100
565
570
30
2.1
/
MAX.
/
/
/
/
/
2.4
10
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
If= 10 mA
If= 20 mA
If= 20 mA
If= 20 mA
If= 20 mA
If= 20 mA
Vr= 5 V
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-100-002
REV:
2.0
3.68*6.22mm Rectangular Legend LED Lamps
MODEL NO :
1003GD
ECN :
Page:
3/4
█

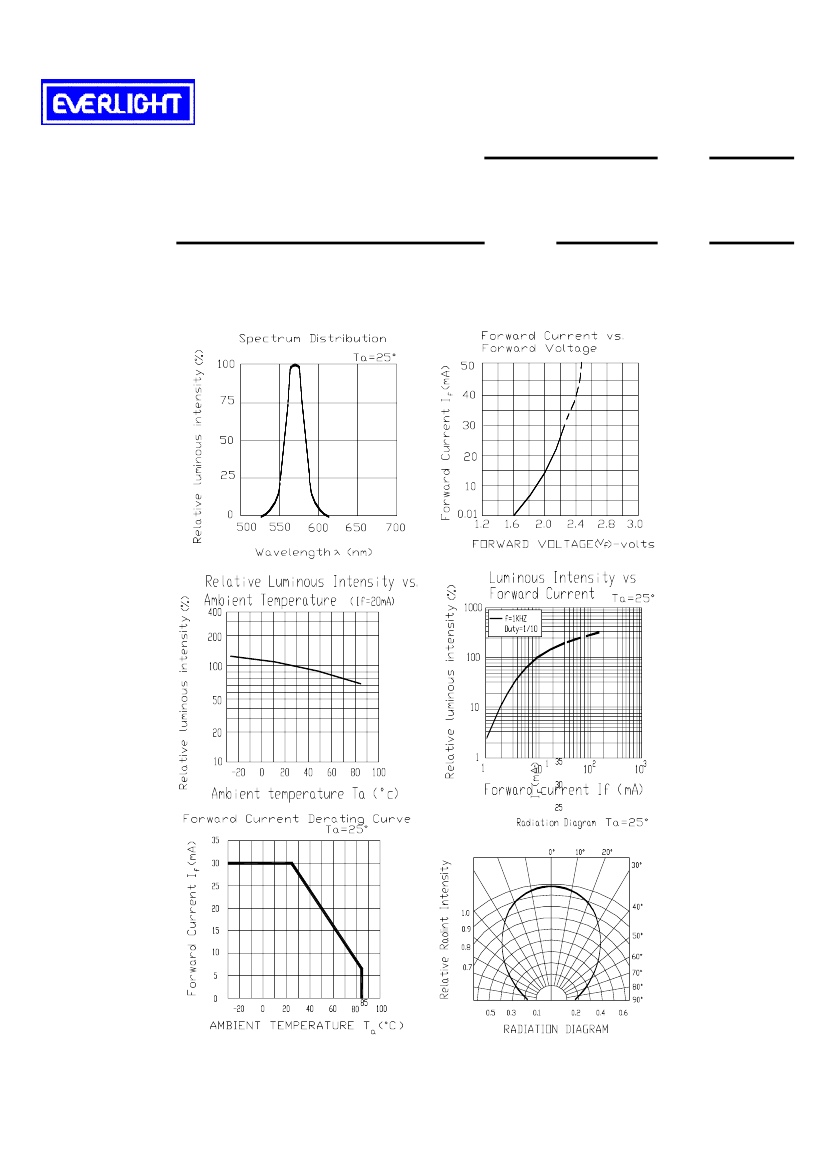

Typical Electro-Optical Characteristic Curves
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-100-002
REV:
2.0
3.68*6.22mm Rectangular Legend LED Lamps
MODEL NO :
1003GD
ECN :
Page:
4/4
█
Reliability test item and condition
No
1
Item
Solder Heat
Test Conditions
TEMP : 260℃ ± 5
℃
H : +85℃ 30min
∫
5 min
L : -55℃ 30min
H : +100℃ 5min
∫
10 sec
L : -10℃ 5min
TEMP : 100℃
Test
Hours/Cycle
5 SEC
Sample Size Ac/Re
76 PCS
0/1
2
Temperature Cycle
50 CYCLE
76 PCS
0/1
3
Thermal Shock
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
High Temperature /
High Humidity
50 CYCLE
76 PCS
0/1
4
1000 HRS
76 PCS
0/1
5
TEMP : -55℃
1000 HRS
76 PCS
0/1
6
If = 20 mA
1000 HRS
76 PCS
0/1
7
85℃/85% RH
1000 HRS
76 PCS
0/1
