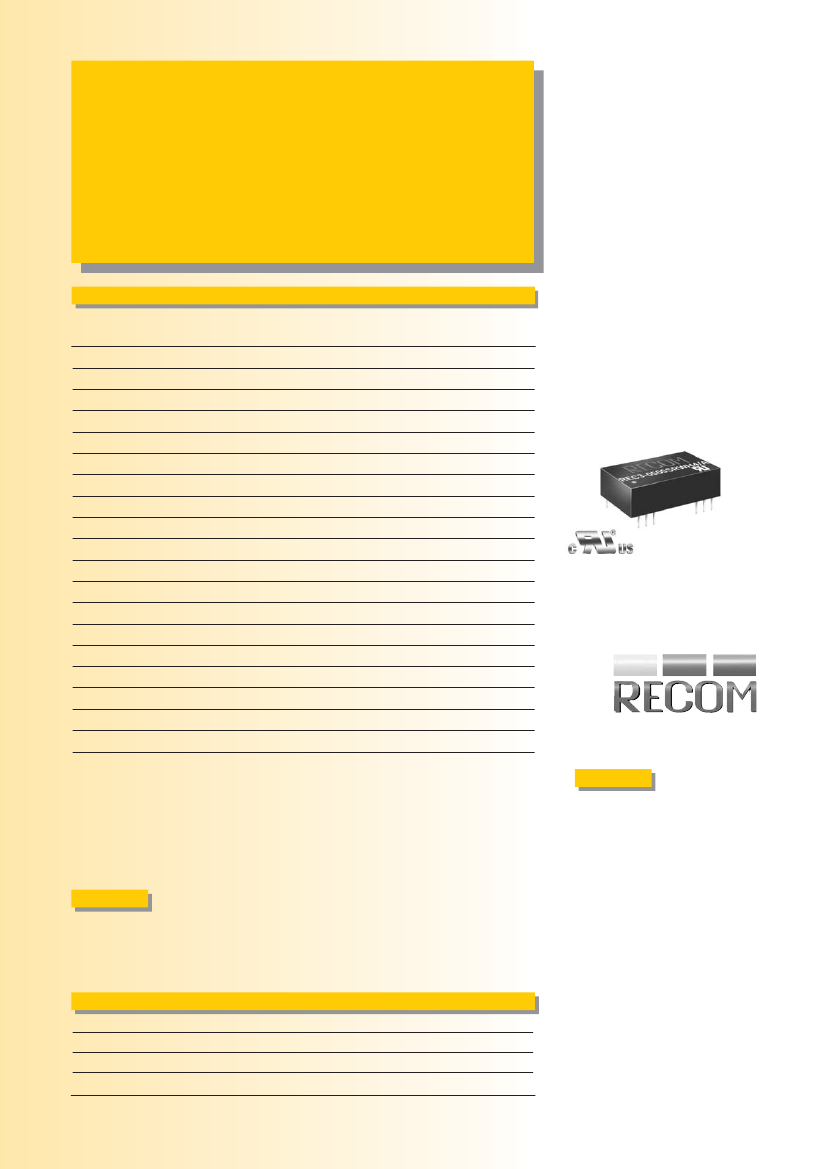

Features
Regulated
Converters
●
●
●
●
●
●
●
●
●
●
UL-60950-1 / CSA C22.2 certified
3W DIP Package
4kVDC
&
6kVDC Isolation
Regulated Output
Continuous Short Circuit Protection
Auto-Restarting
Wide Input 2:1
&
4:1
UL94V-0 Package Material
Cost Effective
100% Burned In
Efficiency to 86%
ECONOLINE
DC/DC-Converter
REC3-
S_DRW(Z)
/H4,H6
Series
66-76
71-79
74-83
75-85
75-86
74-83
81-84
75-85
75-86
77-79
78-80
80-83
83-85
83-85
77-80
81-84
83-85
83-85
Selection Guide
Part
Number
DIP24 (SMD)
REC3-xx3.3SRW (H4/H6)
REC3-xx05SRW (H4/H6)
REC3-xx09SRW (H4/H6)
REC3-xx12SRW (H4/H6)
REC3-xx15SRW (H4/H6)
REC3-xx05DRW (H4/H6)
REC3-xx09DRW (H4/H6)
REC3-xx12DRW (H4/H6)
REC3-xx15DRW (H4/H6)
REC3-xx3.3SRWZ (H4/H6)
REC3-xx05SRWZ (H4/H6)
REC3-xx09SRWZ (H4/H6)
REC3-xx12SRWZ (H4/H6)
REC3-xx15SRWZ (H4/H6)
REC3-xx05DRWZ (H4/H6)
REC3-xx09DRWZ (H4/H6)
REC3-xx12DRWZ (H4/H6)
REC3-xx15DRWZ (H4/H6)
2:1 Input
(REC3-S/DRWH4/H6)
xx = 4.5-9Vin = 05
xx = 9-18Vin = 12
xx = 18-36Vin = 24
xx = 36-72Vin = 48
Input
Voltage
(VDC)
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
4.5 - 9, 9 - 18, 18 - 36, 36 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
9 - 36, 18 - 72
Output Max. Cap. Output Efficiency
Voltage Load
Current
(VDC)
(µF)
(mA)
(%)
3.3
5
9
12
15
±5
±9
±12
±15
3.3
5
9
12
15
±5
±9
±12
±15
2200
1000
470
220
120
±470
±220
±100
±68
2200
1000
470
220
120
±470
±220
±100
±68
900
600
330
250
200
±300
±165
±125
±100
900
600
330
250
200
±300
±165
±125
±100
3 Watt
DIP24
&
SMD
Single
&
Dual
Output
EN-60950-1 Certified
UL-60950-1 Certified
EN-60601-1 Certified
Description
4:1 Input
* add suffix /H4 for 4kVDC isolation or /H6
(REC3-S/DRWZ(H4/H6)) for 6kVDC isolation
xx = 9-36Vin = 24
* add suffix "/A" or "/C" for Pinning, see next page
xx = 18-72Vin = 48
“B” Pinning is NOT available for this series !
* add suffix "/M" for metal case
* add suffix "/SMD" for SMD package
e.g. REC3-2412SRW/H4/AM =
4kVDC isol. / Pinout "A" / metal case
Notes :
1. If the options "/M" for metal case and
"/SMD" for SMD pinout are combined, the
maximum allowed isolation voltage is 2kVDC
because of the shorter distances between
pins and the metal case, so only available
SMD-option in metal-case is "/H2".
DIP-24 through-hole case and SMD-plastic
case are not affected and offer the full isola-
tion barriers of 4kVDC for "/H4" option and
6kVDC for "/H6".
This series offers high isolation of 4kVDC (= option "H4") or 6kVDC (= option "H6") making it ideal for medi-
cal applications and other sophisticated industrial applications. Packaging can be either DIP-24 non-conduc-
tive plastic or 5-side-shielded DIP24 metal case (= option "M") as well as DIP24-SMD case (= option "SMD").
For all the above variants, 2 industry-standard pinouts
(= option "A" or "C") are available.
Specifications
(Core Operating Area)
Input Voltage Range
Output Voltage Accuracy
Line Regulation (HL-LL)
2:1 & 4:1
±2% max.
±0.4% max.
continued on next page
www.recom-international.com
14-February-2007
111
ECONOLINE
DC/DC-Converter
Specifications
(Core Operating Area)
Load Regulation (for output load current change from 20% to 100%)
Output Ripple and Noise (0,1µF capacitor on output, 20MHz BW)
Switching Frequency at Full Load
2:1 Input types
and nominal Input Voltage
4:1 Input types
Input Filter
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
Rated Working Voltage
Isolation Voltage
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
Operating Temperature Range
(free air convection)
Storage Temperature Range
Relative Humidity
Case Material
Thermal Impedance
Package Weight
MTBF (+25°C)
(+85°C)
Natural convection
using MIL-HDBK 217F
using MIL-HDBK 217F
5V input types
others
H4 types
(see note)
H6 types
(see note)
(tested for 1 second)
(long term isolation)
(tested for 1 second)
(long term isolation)
2:1 Input types
4:1 Input types
REC3-S_DRW(Z)
/H4,H6 Series
±0.6% max.
50mVp-p max.
90kHz min. / 150kHz max.
120kHz min. / 180kHz max.
Pi Network
see above
Output Power (%)
Derating-Graph
(Ambient Temperature)
120
100
80
60
50
40
20
0
-40
Vin = 5V
300mW max.
4000VDC min.
see Application Notes
6000VDC min.
see Application Notes
20pF min. / 60pF max.
40pF min. / 80pF max.
1 GΩ min.
Continuous, Auto Restart
-40°C to +80°C (see Graph)
-40°C to +85°C (see Graph)
Safe Operating Area
100
50 75
125
80 105
Operating Temperature (°C)
0
25
Output Power (%)
-55°C to +125°C
95% RH
Non-Conductive Plastic
20°C/W for metal case
13g
1043 x 10 hours
186 x 10
3
hours
3
}
Detailed Information see
Application Notes chapter "MTBF"
120
100
80
60
50
40
20
0
-40
Safe Operating Area
0
25
50 75
100
85 105
125
Operating Temperature (°C)

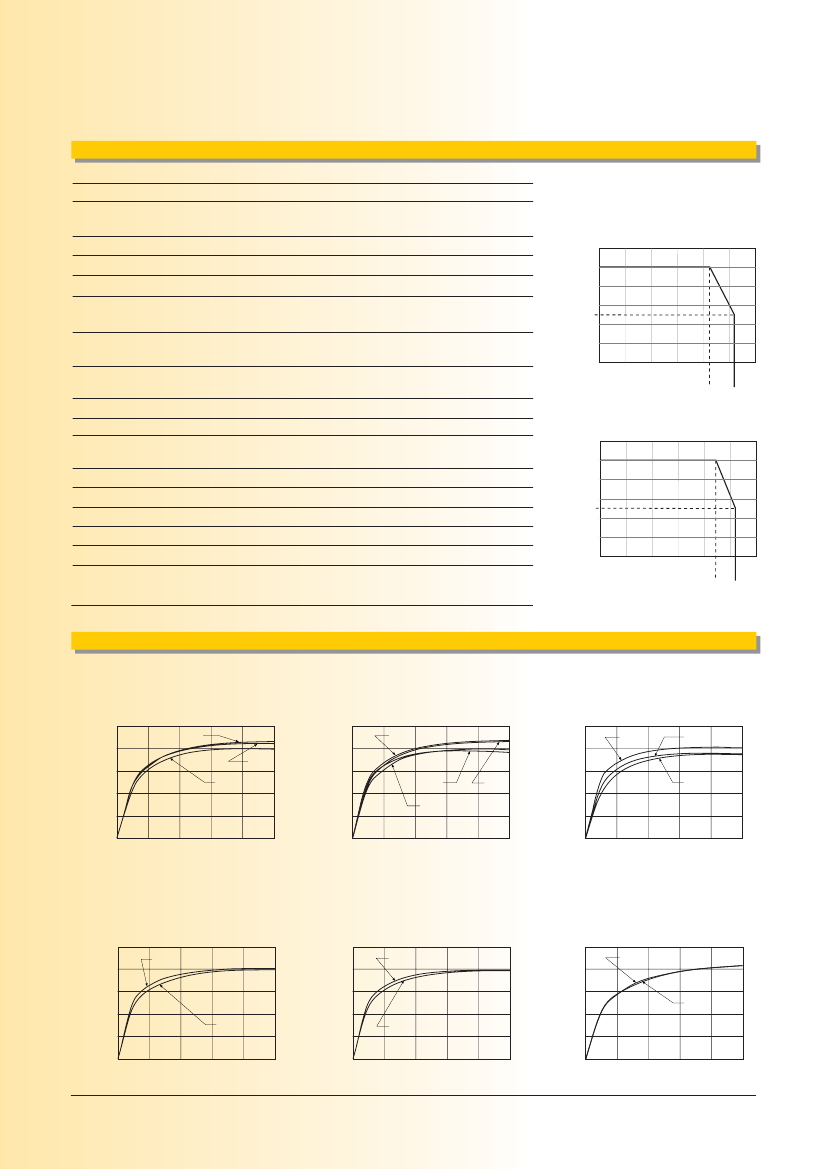

Typical Characteristics
Single 2:1 Input Single 2:1 Input
Efficiency / Load
100
80
60
40
Dual 2:1 Input
Efficiency / Load
100
80
60
Efficiency / Load
2415
2409
2405
Efficiency %
100
80
60
40
20
0
2418
1212D
0512D
1205
4805
2424
Efficiency %
40
20
0
0515D
Efficiency %
20
0
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
Single 4:1 Input
Efficiency / Load
100
80
60
40
Single 4:1 Input
Efficiency / Load
100
80
60
Dual 4:1 Input
Efficiency / Load
100
80
60
2405/
H4
4805/
H4
2412D/
H4
Efficiency %
Efficiency %
20
0
20
0
Efficiency %
243.3/
H4
40
483.3/
H4
40
20
0
2415D/
H4
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
112
14-February-2007
www.recom-international.com
ECONOLINE
DC/DC-Converter
Package Style and Pinning (mm) DIP 24 , Wide Input 2:1 & 4:1
Package A
32.00
10.20
3.81
4.60
0.51
20.30
REC3-S_DRW(Z)
/H4,H6Series
3rd angle
projection
Pin Connections
Pin #
15.24
2
3
9
11
14
16
22
23
14
Top View
Single
–Vin
–Vin
NC
NC
+Vout
–Vout
+Vin
+Vin
Dual
–Vin
–Vin
Com
–Vout
+Vout
Com
+Vin
+Vin
Recommended Footprint Details
1.00 ø+0.15/0
2 3
Bottom View
23 22
16
9
11
2.54
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
2.54
Package C
32.00
10.20
3.81
2.06
0.51
20.30
Pin Connections
Pin #
15.24
1
2
10
11
12
13
15
23
24
15
13
Top View
Single
+Vin
+Vin
NC
NC
–Vout
+Vout
NC
–Vin
–Vin
Dual
+Vin
+Vin
Com
Com
NC
–Vout
+Vout
–Vin
–Vin
Recommended Footprint Details
1.00 ø+0.15/0
1 2
Bottom View
24 23
10 11 12
2.54
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
2.54
Mechanical drawings of DIP24 SMD case
32.00
31.40
11.20
10.90
3.81
6.35
20.30
25.40
19.90
2.54
All unused pins are
NC (No Connection).
SMD pin connections
follow standard
package pinning.
1.54
2.03
Recommended Footprint Details
Pin area
0.1 x 0.50
1 2 3 4 5
0.50
9 10 11 12
2.54
23.40
Bottom View
24 23 22 21 20
16 15 14 13
26.67
24.64
1
Tol.: ± 0.35 mm
Top View
11 x 2.54
27.94
for all packages incl.SMD case the length of plastic case is 31,8mm, length of metal case 32.0mm
www.recom-international.com
14-February-2007
113
