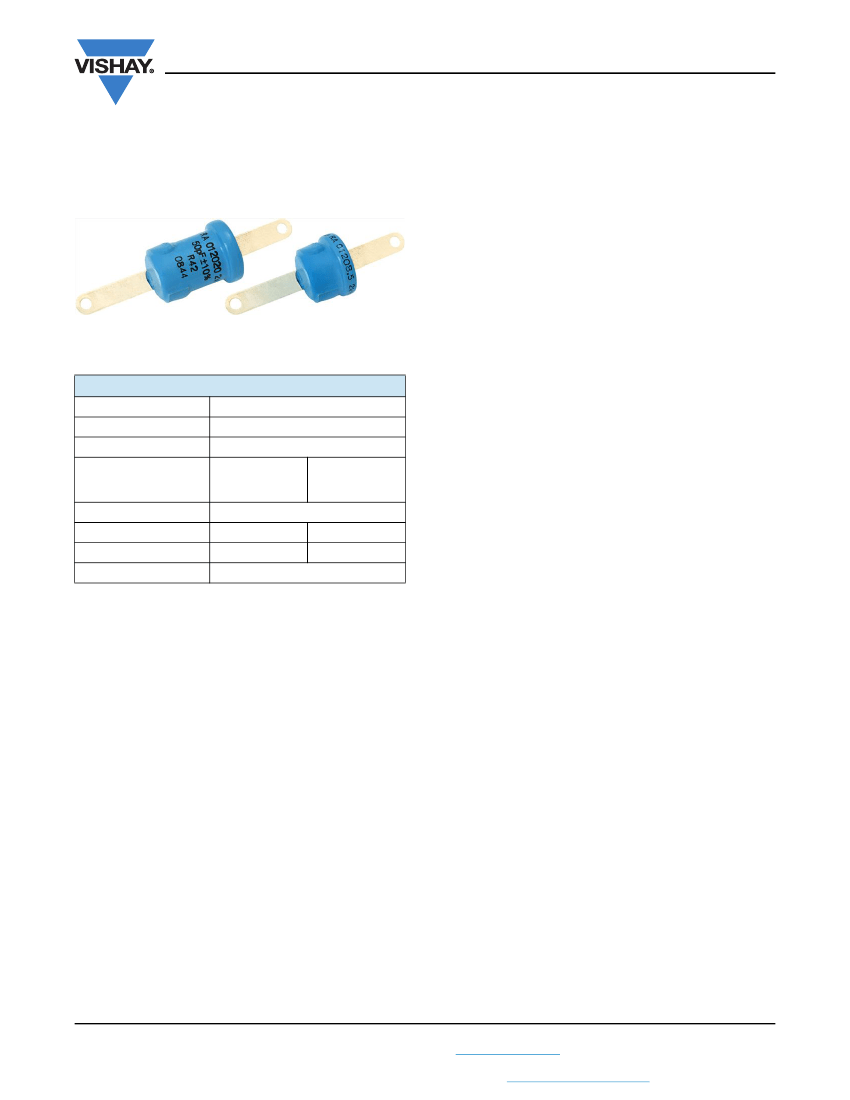

R. 012085, R. 012020
www.vishay.com
Vishay Draloric
RF Power Tubular Capacitors
with Mounting Tags, Class 1 Ceramic
FEATURES
• Small size
• High reliability
• Wide range of capacitance values
APPLICATIONS
• Induction and dielectric heating
• Antenna units
• Filter, bypass, and coupling circuits
CAPACITANCE RANGE
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
3.0
100
Screw terminal
VALUE
1
R7, R42, R85
RA 012085
RE 012085
2000
10
400
RA 012020
RB 012020
RE 012020
3.0 pF to 400 pF
CAPACITANCE TOLERANCE
< 10 pF: ± 2 pF; ± 1 pF; ± 0.5 pF
10 pF: ± 20 %; ± 10 %; ± 5 %
CERAMIC DIELECTRICS
• R7 (TCC + 100 ppm/K)
• R42 (TCC - 250 ppm/K)
• R85 (TCC - 750 ppm/K)
RATED VOLTAGE
MATERIAL
Capacitor elements made from Class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals made from copper/brass, silver plated
2.0 kV
p
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
FINISH
Capacitor body completely protective laquered.
The contoured insulating rim and the ceramic base are
additionally glazed.
DISSIPATION FACTOR
R7:
R42, R85:
Max. 0.07 % (1 MHz)
Max. 0.05 % (1 MHz)
INSULATION RESISTANCE
Min. 100 000 M (at 25 °C)
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo
OPERATING TEMPERATURE RANGE
- 55 °C to + 100 °C
Revision: 27-Mar-13
Document Number: 22110
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
R. 012085, R. 012020
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kVAR)
RATED
CURRENT
(A
RMS
)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
TYPE R. 012085
R#012085BB930##BF1
R#012085BB940##BF1
R#012085BB950##BF1
R7
R#012085BB960##BF1
R#012085BB980##BF1
R#012085BB100##BF1
R#012085BB160##BH1
R#012085BB200##BH1
R42
R#012085BB250##BH1
R#012085BB300##BH1
R#012085BB400##BJ1
R#012085BB500##BJ1
R#012085BB600##BJ1
R#012085BB800##BJ1
R#012085BB101##BJ1
TYPE R. 012020
R#012020BB100##BF1
R#012020BB120##BF1
R#012020BB160##BF1
R7
R#012020BB200##BF1
R#012020BB250##BF1
R#012020BB300##BF1
R#012020BB400##BH1
R#012020BB500##BH1
R42
R#012020BB600##BH1
R#012020BB800##BH1
R#012020BB101##BJ1
R#012020BB121##BJ1
R#012020BB161##BJ1
R#012020BB201##BJ1
R#012020BB251##BJ1
R#012020BB301##BJ1
R#012020BB401##BJ1
R85
60
80
100
120
160
200
250
300
400
1.7
2.0
4.0
20
25
30
40
50
10
12
16
1.4
R85
25
30
40
50
60
80
100
0.8
6.0
8.0
10
16
20
2.0
4.0
3.0
4.0
5.0
0.7
CERAMIC
Notes
• # 2
nd
digit: Code letter of the terminal version A, B, E (RB 012085 is not available)
• ## 14
th
to 15
th
digit: Capacitance tolerance code < 10 pF: ± 2 pF = 15, ± 1 pF = 14, ± 0.5 pF = 13
10 pF: ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed + 100 °C
