KPSE00E14-19SDN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> KPSE00E14-19SDN

Preview

KPSE00E14-19SDN: Descriptionconn rcpt 19pos wall mnt W/skts; CategoryThe connector; File Size244KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

KPSE00E14-19SDN Overview

conn rcpt 19pos wall mnt W/skts

KPSE00E14-19SDN Parametric

Parameter Name	Attribute value
Datasheets

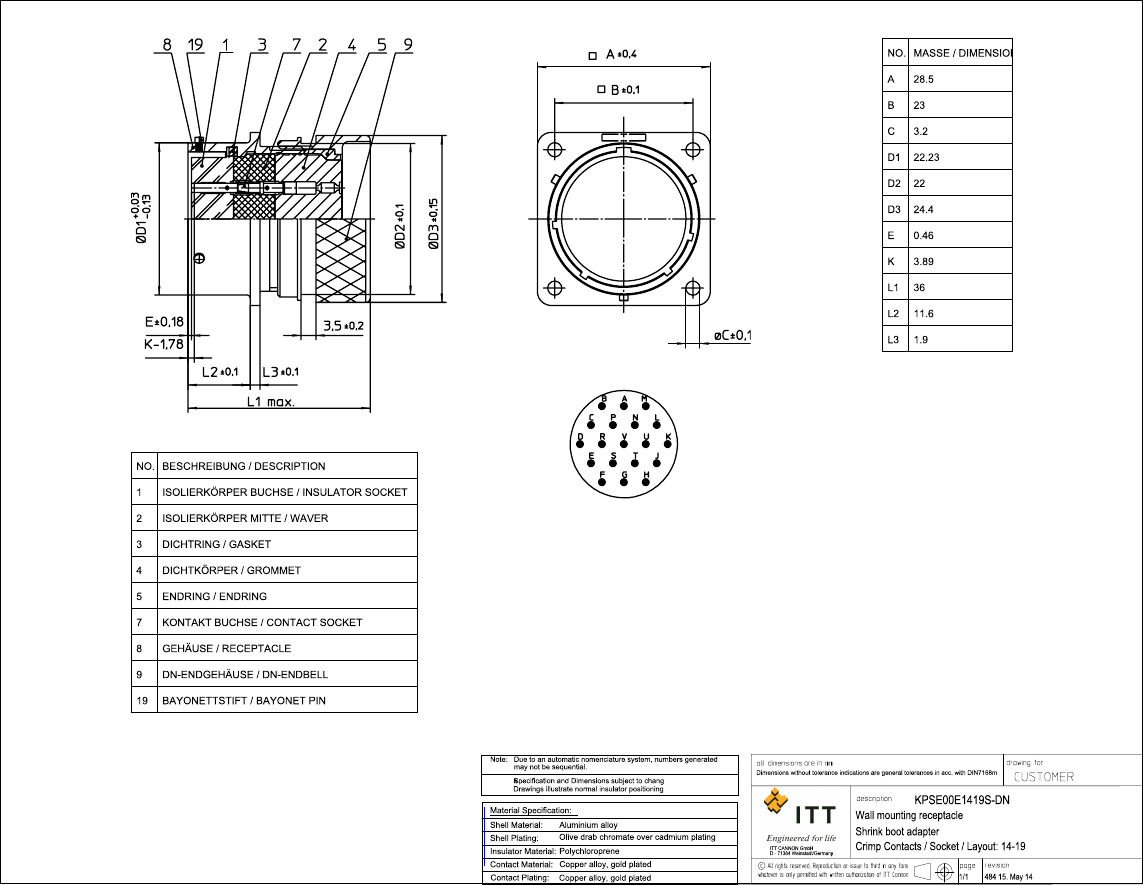

KPSE00E14-19SDN Drawing
Mil-DTL 26482 (KPSE,KPT,MS)
KPT / KPSE / KPTC Catalog
Standard Package	1
Category	Connectors, Interconnects
Family	Circular Connectors
Packaging	Bulk
Connector Type	Receptacle, Female Sockets
Number of Positions	19
Shell Size - Inse	14-19
Shell Size, MIL	-
Mounting Type	Panel Mount, Flange
Terminati	Crim
Fastening Type	Bayonet Lock
Orientati	N (Normal)
Ingress Protecti	Environment Resis
Shell Material, Finish	Aluminum Alloy, Olive Drab Cadmium Plated
Contact Finish	Gold
Features	Shrink Boot Adapte
Contact Finish Thickness	50µin (1.27µm)
Current Rating	7.5A
Voltage - Rated	600VAC, 850VDC
Operating Temperature	-55°C ~ 125°C
Mating Products	KPT08P14-19P-ND - CONN PLUG 19POS INLINE RA PINKPT06P14-19P-ND - CONN PLUG 19POS INLINE PINKPSE08P14-19P-ND - CONN PLUG 19POS INLINE RA PINIKPT06J14-19P-ND - CONN PLUG 19POS INLINE W/PINIKPSE08F14-19P-ND - CONN PLUG 19POS CBL MNT W/PINSIKPSE08E14-19P-ND - CONN PLUG 19POS CBL MNT W/PINSIKPT08F14-19P-ND - CONN PLUG 19POS W/PIN INLINE R/AIKPT08E14-19P-ND - CONN PLUG 19POS W/PIN INLINE R/AIKPSE06F14-19PDX-ND - CONN PLUG 19POS W/PIN INLINEIKPSE6F14-19PDX-ND - CONN PLUG 19POS W/PINIKPSE06F14-19P-ND - CONN PLUG 19POS CBL MNT W/PINSIKPSE06E14-19P-ND - CONN PLUG 19POS CBL MNT W/PINSIKPSE06F14-19PDN-ND - CONN PLUG 19POS INLINE W/PINIKPSE06E14-19PDN-ND - CONN PLUG 19POS CBL MNT W/PINSIKPSE6E14-19PDN-ND - CONN PLUG 19POS CBL MNT W/PINSIKPSE6E14-19PF185-ND - CONN PLUG 19POS CBL MNT W/PINSIKPT06F14-19P-ND - CONN PLUG 19POS W/PIN INLINEIKPTR6E14-19P-ND - CONN PLUG 19POS W/PIN INLINEIKPT06E14-19P-ND - CONN PLUG 19POS INLINE W/PINIKPSE06F14-19PF0-ND - CONN HSG INLINE MNT PLUG 19POSIKPT06E14-19PDN-ND - CONN PLUG 19POS W/PIN INLINEIKPSE06E14-19PF0-ND - CONN HSG INLINE MNT PLUG 19POSIKPSE06E14-19PDNF0-ND - CONN HSG INLINE MNT PLUG 19POS1003-1121-ND - CONN PLUG 19POS INLINE W/PIN
Other Names	IKPSE00E14-19SDNKPSE00E1419SDN
