4606X-104-274FL datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4606X-104-274FL

4606X-104-274FL: DescriptionArray/Network Resistor, Dual Terminator, Metal Glaze/thick Film, 0.2W, 270000ohm, 100V, 1% +/-Tol, -100,100ppm/Cel, 6010,; CategoryPassive components The resistor; File Size262KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4606X-104-274FL Overview

Array/Network Resistor, Dual Terminator, Metal Glaze/thick Film, 0.2W, 270000ohm, 100V, 1% +/-Tol, -100,100ppm/Cel, 6010,

4606X-104-274FL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	902048311
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.25
structure	Conformal
JESD-609 code	e1
Lead length	3.43 mm
lead spacing	2.54 mm
Network Type	Dual Terminator
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.08 mm
Package length	15.19 mm
Package form	SIP
Package width	2.49 mm
method of packing	Bulk
Rated power dissipation(P)	0.2 W
resistance	270000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4600X (104,1%)
size code	6010
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

Features

■

RoHS compliant*)

Low profile is compatible with DIPs

Wide assortment of pin packages

enhances design flexibility

Ammo-pak packaging available

Recommended for rosin flux and solvent

clean or no clean flux processes

■

Marking on contrasting background for

permanent identification

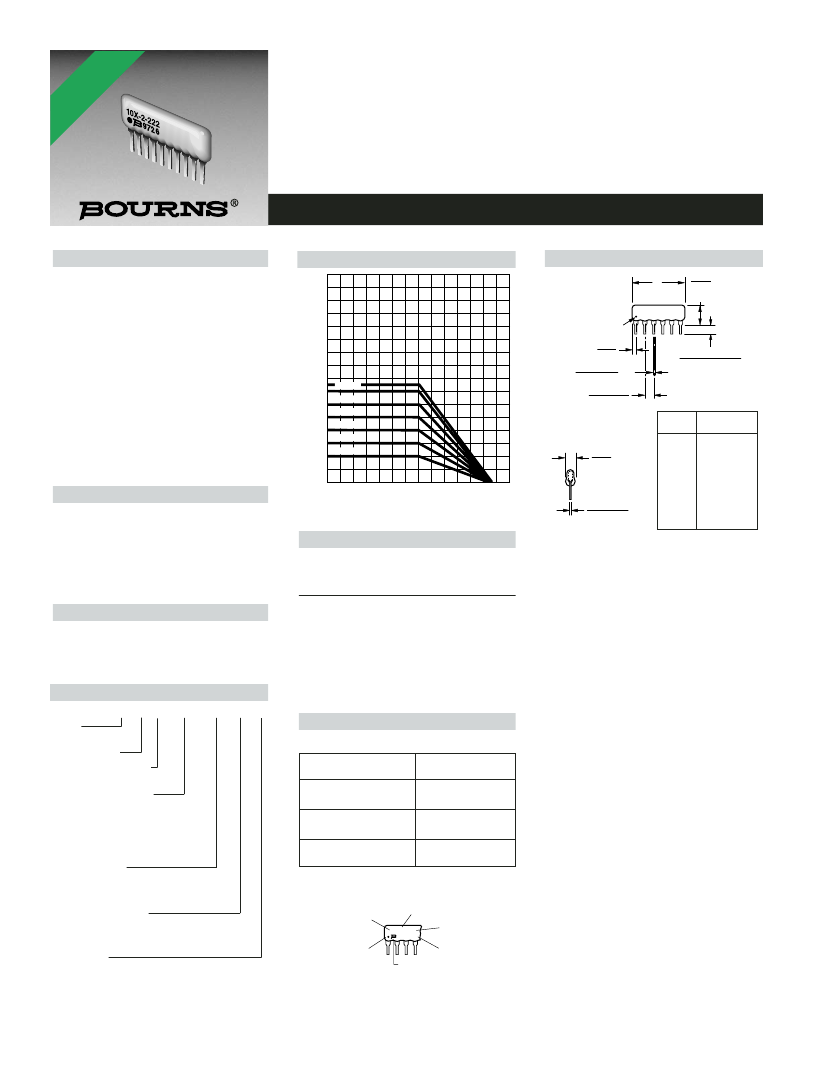

4600X Series - Thick Film Conformal SIPs

Product Characteristics

Resistance Range

......................10 ohms to 10 megohms

Maximum Operating Voltage..........100 V

Temperature Coefficient of Resistance

Ω

to 2.2 MΩ................±100 ppm/°C

below 50

Ω

......................±250 ppm/°C

above 2.2 MΩ..................±250 ppm/°C

TCR Tracking .........................50 ppm/°C

maximum; equal values

Resistor Tolerance ................See circuits

Insulation Resistance

..................10,000 megohms minimum

Dielectric Withstanding Voltage

.............................................200 VRMS

Operating Temperature

.................................-55 °C to +125 °C

Environmental Characteristics

TESTS PER MIL-STD-202.........∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat ....±0.25 %

Terminal Strength.......................±0.25 %

Thermal Shock...........................±0.25 %

Physical Characteristics

Flammability .........Conforms to UL94V-0

Body Material........................Epoxy resin

Standard Packaging

....................Bulk, Ammo-pak available

How To Order

Package Power Temp. Derating Curve

Product Dimensions

MAXIMUM

3.50

3.00

2.50

2.00

4614X

1.50

1.00

.50

4612X

4610X

4608X

4606X

4604X

5.08

(.200)

MAX.

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

WATTS

3.43 +.38/ -.508

(.135 +.015/ -.020)

2.49

MAX.

(.098)

125

AMBIENT TEMPERATURE (

C )

.254

.050

MAX.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

Package Power Ratings (Watts)

Ambient

Temperature

Pkg.

0.50

0.63

0.75

0.88

1.00

1.13

4610X

4611X

4612X

4613X

4614X

Ambient

Temperature

1.25

1.38

1.50

1.63

1.75

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

Pkg.

4604X

4605X

4606X

4607X

4608X

4609X

For Standard Values Used in Capacitors,

Inductors, and Resistors,

click here.

46 06 X - 101 - 222 __ LF

Model

(46 = Conformal SIP)

Number of Pins

Physical Configuration

(X = Thick Film Low Profile)

Electrical Configuration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

• AP1 = Bussed Ammo**

• AP2 = Isolated Ammo**

• AP4 = Dual Ammo**

Resistance Code

• First 2 digits are significant

• Third digit represents the number of

zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 5 megohms)

Terminations

• All electrical configurations EXCEPT 104 & AP4:

LF = Sn/Ag/Cu-plated (RoHS compliant)

• ONLY electrical configurations 104 & AP4:

L = Sn/Ag/Cu-plated (RoHS compliant)

Consult factory for other available options.

**Available for packages with 10 pins or less.

Typical Part Marking

Represents total content. Layout may vary.

Part Number

4606X-101-RC

4608X-102-RC

4610X-104-RC/RC

Part Number

6X-1-RC

8X-2-RC

10X-4-RC/RC

RC = ohmic value, 3-digit resistance code.

NUMBER OF PINS

CIRCUIT

6X-2-222

YYWW

PIN ONE

INDICATOR

RESISTANCE

CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
