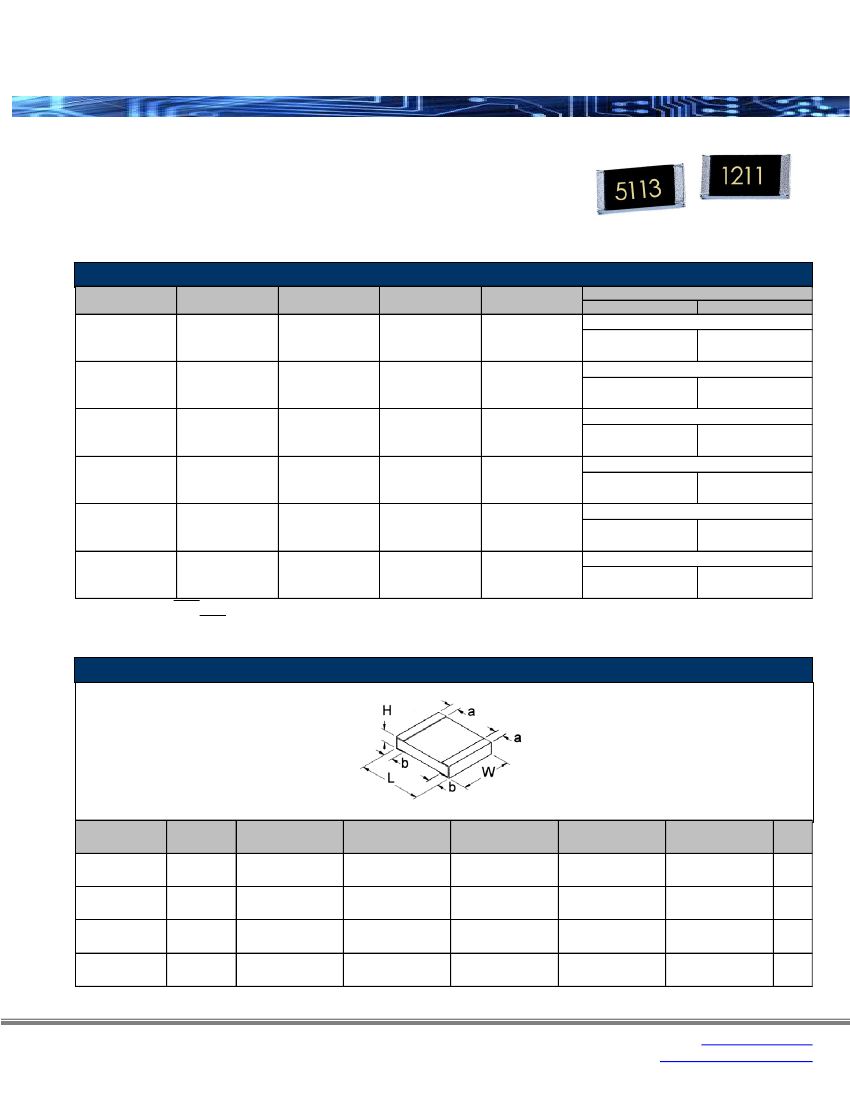

RVC Series
Medium Voltage Thick Film Chip Resistor
Features:
•
•
•
•
•
•
Voltage ratings 2 times or more compared to standard chip resistors
Values up to 100MΩ
Lower resistance values may be available - contact Stackpole
Proportionally higher pulse power capability
RoHS compliant and halogen free
REACH compliant
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications
Type / Code
RVC0402
Power Rating (W)
@ 70ºC
0.063
Max Working
Voltage (V)
100
Max Overload
Voltage (V)
200
TCR (ppm/ºC)
±100
±200
±400
±100
±200
±400
±100
±200
±400
±100
±200
±400
±100
±200
±400
±100
±200
±400
Ohmic Range (Ω) and Tolerance
1%
5%
39K - 1M
1.02M - 10M
1.1M - 20M
22M - 100M
-
56K - 1M
1.02M - 10M
1.1M - 20M
22M - 100M
-
100K - 1M
1.02M - 10M
1.1M - 20M
22M - 100M
-
100K - 1M
1.02M - 10M
1.1M - 20M
22M - 100M
-
51K- 1M
1.02M - 20M
1.1M - 20M
22M - 100M
-
30K - 1M
1.02M - 20M
1.1M - 20M
22M - 100M
-
RVC0603
0.1
200
400
RVC0805
0.125
400
800
RVC1206
0.25
500
1000
RVC2010
0.5
2000
3000
RVC2512
1
3000
4000
Working Voltage =
√ P*R
or maximum working voltage listed above, whichever is lower.
Overload Voltage = 2.5*
√ P*R
or maximum overload voltage listed above, whichever is lower.
Mechanical Specifications
Type / Code
RVC0402
RVC0603
RVC0805
RVC1206
Weight (g)
(1000 pc)
0.620
2.042
4.368
8.947
L
Body Length
0.039 ± 0.002
1.00 ± 0.05
0.063 ± 0.004
1.60 ± 0.10
0.079 ± 0.004
2.00 ± 0.10
0.122 ± 0.004
3.10 ± 0.10
W
Body Width
0.020 ± 0.002
0.50 ± 0.05
0.031 ± 0.004
0.80 ± 0.10
0.049 ± 0.004
1.25 ± 0.10
0.061 ± 0.004
1.55 ± 0.10
H
Body Height
0.014 ± 0.002
0.35 ± 0.05
0.018 ± 0.004
0.45 ± 0.10
0.020 ± 0.004
0.50 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
a
Top Termination
0.008 ± 0.004
0.20 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
0.014 ± 0.008
0.35 ± 0.20
0.020 ± 0.010
0.50 ± 0.25
b
Bottom Termination
0.008 ± 0.004
0.20 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
Unit
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
RVC Series
Medium Voltage Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Mechanical Specifications (cont.)
Type / Code
RVC2010
RVC2512
Weight (g)
(1000 pc)
24.241
39.448
L
Body Length
0.197 ± 0.008
5.00 ± 0.20
0.250 ± 0.008
6.35 ± 0.20
W
Body Width
0.098 ± 0.006
2.50 ± 0.15
0.126 ± 0.006
3.20 ± 0.15
H
Body Height
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
a
Top Termination
0.024 ± 0.010
0.60 ± 0.25
0.024 ± 0.010
0.60 ± 0.25
b
Bottom Termination
0.020 ± 0.008
0.50 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
Unit
inches
mm
inches
mm

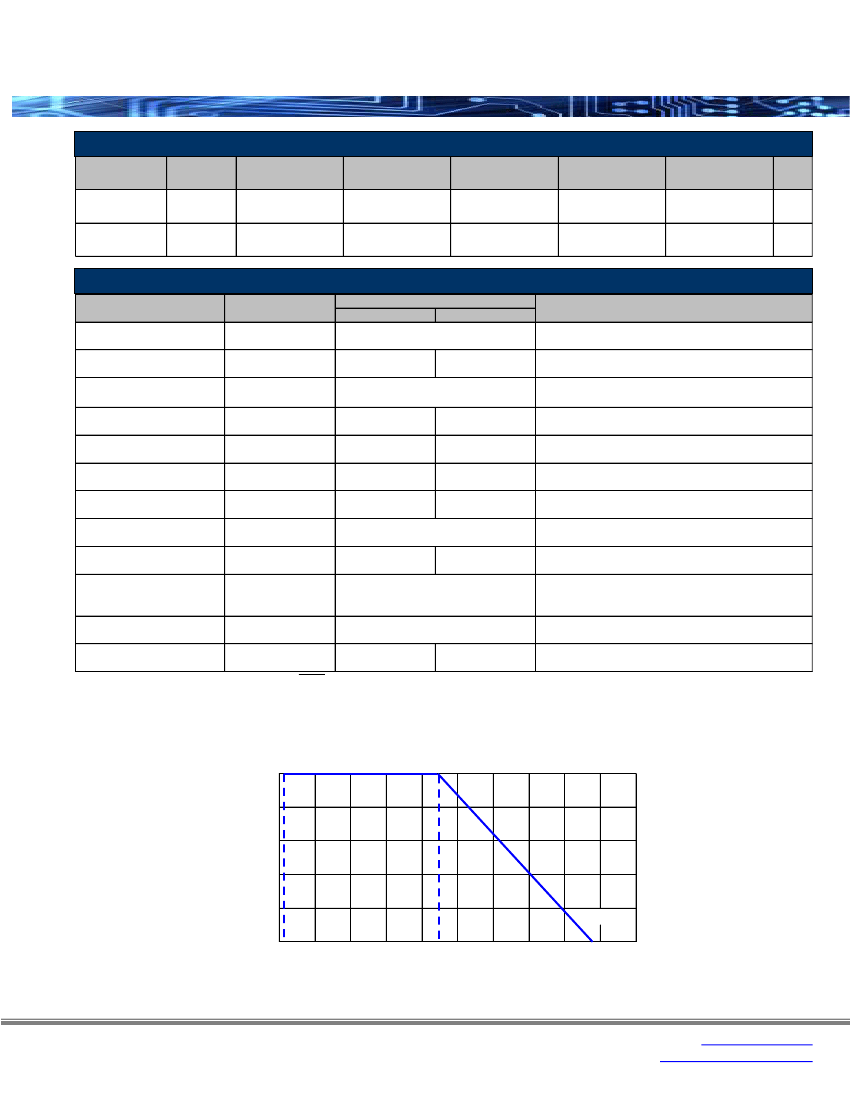

Performance Characteristics
Test
Temperature Coefficient of
Resistance (TCR)
Short Time Overload
Insulation Resistance
Endurance
Damp Heat with Load
Dry Heat
Bending Strength
Solderability
Resistance to
Soldering Heat
Voltage Proof
Leaching
Test Method
JIS-C-5201-1 4.8
IEC-60115-1 4.8
JIS-C-5201-1 4.13
IEC-60115-1 4.13
JIS-C-5201-1 4.6
IEC-60115-1 4.6
JIS-C-5201-1 4.25
IEC-60115-1 4.25.1
JIS-C-5201- 4.24
IEC-60115-1 4.24
JIS-C-5201-1 4.23
IEC-60115-1 4.23.2
JIS-C-5201-1 4.33
IEC-60115-1 4.33
JIS-C-5201-1 4.17
IEC-60115-1 4.17
JIS-C-5201-1 4.18
IEC-60115-1 4.18
JIS-C-5201-1 4.7
IEC-60115-1 4.7
Test Specification
± 1%
± 5%
As specified by
Electrical Specification Table
±(1% + 0.05Ω)
≥
10G
±(2% + 0. 1Ω)
±(2% + 0. 1Ω)
±(1% + 0.05Ω)
±(1% + 0.05Ω)
±(3% + 0.1Ω)
±(3% + 0.1Ω)
±(1.5% + 0.1Ω)
±(1% + 0.05Ω)
±(2% + 0.05Ω)
Test Method
-55°C ~ +125°C, 25°C is the reference temperature
RCWV * 2.5 or Max. Overload Voltage
whichever is lower for 5 seconds
Max. Overload voltage for 1 minute
70ºC ± 2°C, RCWV for 1000 hours with
1.5 hour "ON" and 0.5 hour "OFF"
40ºC ± 2°C, 90% ~ 95% R.H., RCWV for 1000 hours
with 1.5 hour "ON" and 0.5 hour "OFF"
at +155°C for 1000 hours
Bending once for 5 seconds
2010, 2512 sizes: 2 mm; other sizes: 3 mm
245ºC ± 5°C for 3 seconds
260ºC ± 5°C for 10 seconds
0402: 150V for 1 minute
0603: 300V for 1 minute
0805, 1206, 2010, 2512: 500V for 1 minute
260ºC ± 5°C for 30 seconds
-55°C to +155°C, 5 cycles
95% min. coverage
±(0.5% + 0.05Ω)
±(1% + 0.05Ω)
No breakdown or flashover
Individual leaching area
≤
5%
JIS-C-5201-1 4.18
Total leaching area
≤
10%
IEC-60068-2-58 8.2.1
Rapid Change of
JIS-C-5201-1 4.19
±(0.5% + 0.05Ω)
±(1% + 0.05Ω)
Temperature
IEC-60115-1 4.19
RCWV (Rated continuous working voltage) =
√ P*R
or Max. Operating Voltage whichever is lower.
Storage temperature: 25ºC ± 3°C; humidity < 80% RH
Operating temperature range is -55°C to 155°C
Power Derating Curve:
100
Percent Rated Power (%)
-55ºC
70ºC
80
60
40
20
0
-60
155ºC
0
20
40
60
80
100
120
140
160
180
Ambient Temperature (ºC)
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
RVC Series
Medium Voltage Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

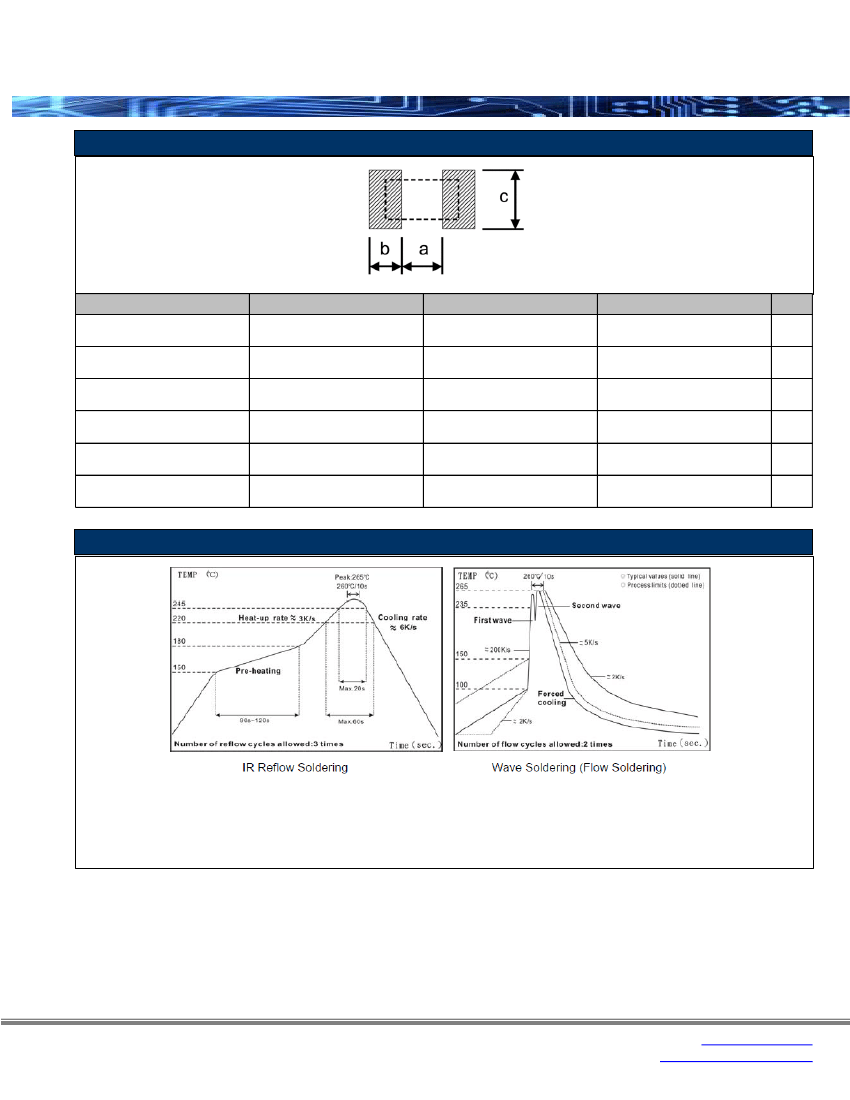

Recommended Pad Layout
Type / Code
RVC0402
RVC0603
RVC0805
RVC1206
RVC2010
RVC2512
a
0.020
0.50
0.035
0.90
0.047
1.20
0.079
2.00
0.150
3.80
0.193
4.90
b
0.018
0.45
0.024
0.60
0.028
0.70
0.035
0.90
0.035
0.90
0.063
1.60
c
0.024
0.60
0.035
0.90
0.051
1.30
0.063
1.60
0.110
2.80
0.138
3.50
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Soldering Conditions
(1) Time of IR reflow soldering at maximum temperature point 260°C: 10 seconds
(2) Time of wave soldering at maximum temperature point 260°C: 10 seconds
(3) Time of soldering iron at maximum temperature point 410°C: 5 seconds
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
RVC Series
Medium Voltage Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

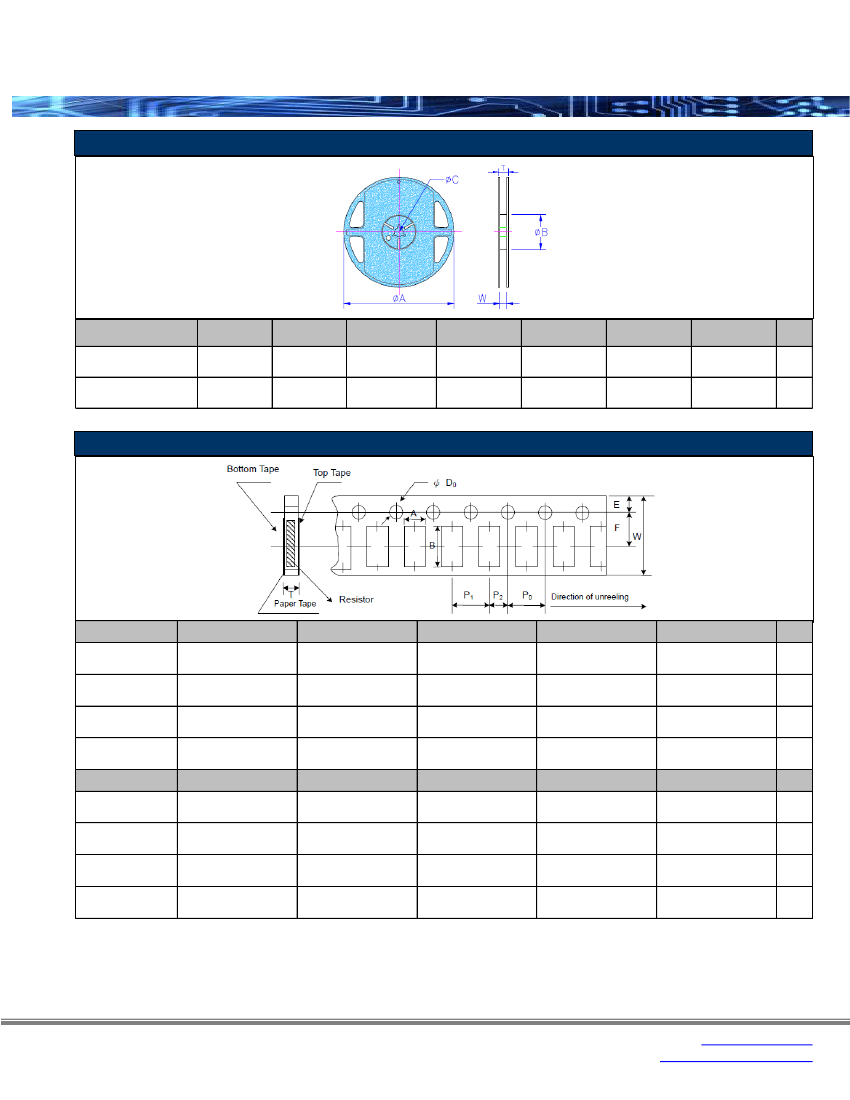

Reel Specifications
Type / Code
RVC0402, RVC0603
RVC0805, RVC1206
RVC2010, RVC2512
Tape Width
(mm)
8 mm
12 mm
Reel Diameter
(inches)
7"
7"
A
7.028 ± 0.059
178.50 ± 1.50
7.028 ± 0.059
178.50 ± 1.50
B
2.362 ± 0.039
60.00 ± 1.00
2.362 ± 0.039
60.00 ± 1.00
C
0.512 ± 0.008
13.00 ± 0.20
0.512 ± 0.020
13.00 ± 0.50
W
0.354 ± 0.020
9.00 ± 0.50
0.512 ± 0.020
13.00 ± 0.50
T
Unit
0.492 ± 0.020 inches
12.50 ± 0.50
mm
0.610 ± 0.020 inches
15.50 ± 0.50
mm
Paper Tape Specifications
Type / Code
RVC0402
RVC0603
RVC0805
RVC1206
Type / Code
RVC0402
RVC0603
RVC0805
RVC1206
0.157
4.00
0.157
4.00
0.157
4.00
0.157
4.00
0.026
0.65
0.043
1.10
0.063
1.60
0.075
1.90
A
±
±
±
±
±
±
±
±
P0
±
±
±
±
±
±
±
±
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.079
2.00
0.157
4.00
0.157
4.00
0.157
4.00
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.045
1.15
0.075
1.90
0.094
2.40
0.138
3.50
B
±
±
±
±
±
±
±
±
P1
±
±
±
±
±
±
±
±
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
0.079
2.00
0.079
2.00
0.079
2.00
0.079
2.00
0.004
0.10
0.004
0.10
0.008
0.20
0.008
0.20
0.315
8.00
0.315
8.00
0.315
8.00
0.315
8.00
W
±
±
±
±
±
±
±
±
P2
±
±
±
±
±
±
±
±
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
0.059
1.50
0.059
1.50
0.059
1.50
0.059
1.50
0.008
0.20
0.008
0.20
0.008
0.20
0.008
0.20
0.069
1.75
0.069
1.75
0.069
1.75
0.069
1.75
E
±
±
±
±
±
±
±
±
D
±
±
±
±
±
±
±
±
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.018
0.45
0.028
0.70
0.031
0.80
0.033
0.85
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.138
3.50
0.138
3.50
0.138
3.50
0.138
3.50
F
±
±
±
±
±
±
±
±
T
±
±
±
±
±
±
±
±
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
Unit
inches
mm
inches
mm
inches
mm
inches
mm
Unit
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
RVC Series
Medium Voltage Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

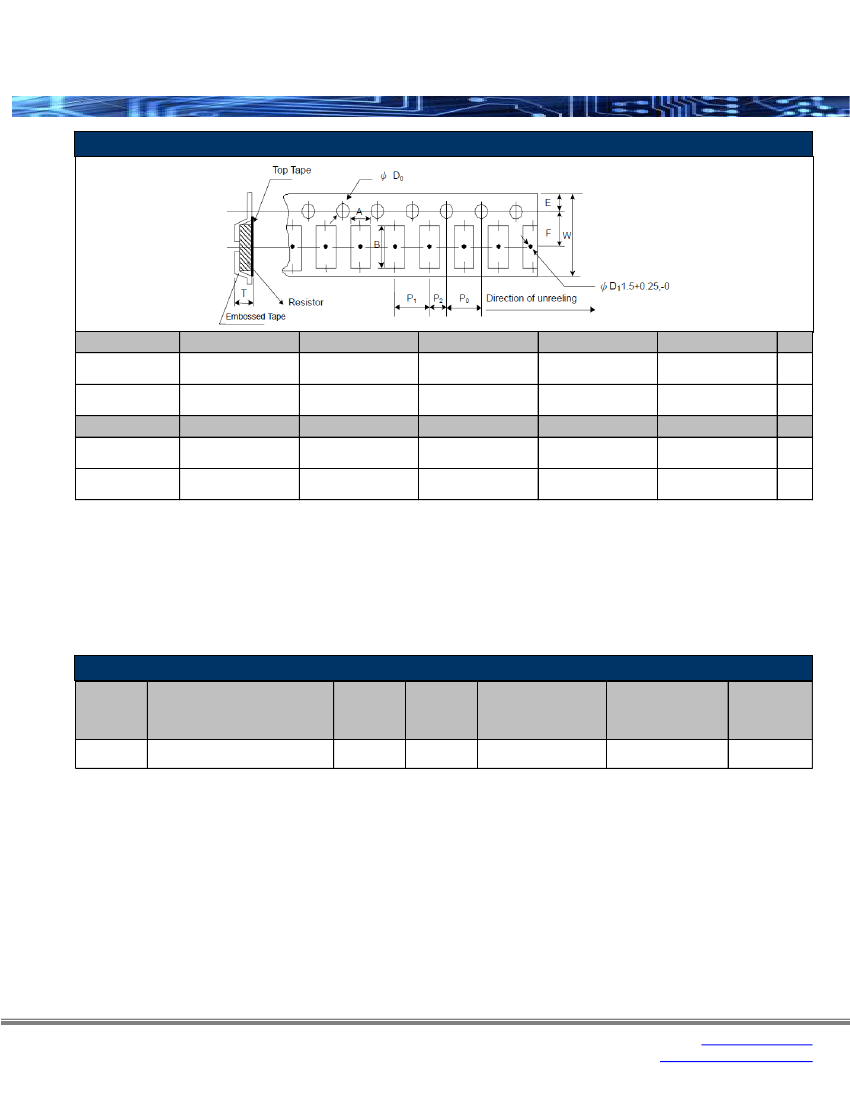

Embossed Plastic Tape Specifications
Type / Code
RVC2010
RVC2512
Type / Code
RVC2010
RVC2512
0.157
4.00
0.157
4.00
0.110
2.80
0.138
3.50
A
±
±
±
±
P0
±
±
±
±
0.004
0.10
0.004
0.10
0.157
4.00
0.157
4.00
0.004
0.10
0.004
0.10
0.217
5.50
0.264
6.70
B
±
±
±
±
P1
±
±
±
±
0.004
0.10
0.004
0.10
0.079
2.00
0.079
2.00
0.004
0.10
0.004
0.10
0.472
12.00
0.472
12.00
W
±
±
±
±
P2
±
±
±
±
0.002
0.05
0.002
0.05
0.059
1.50
0.059
1.50
0.012
0.30
0.012
0.30
0.069
1.75
0.069
1.75
E
±
±
±
±
D
±
±
±
±
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.217
5.50
0.217
5.50
F
±
±
±
±
T
0.047
1.20
0.047
1.20
0.002
0.05
0.002
0.05
Unit
inches
mm
inches
mm
Unit
inches
mm
inches
mm
RoHS Compliance
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various
regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances”
(RoHS 3). As part of this ongoing program, we periodically update this document with the status regarding the availability of our
compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament as
amended by Directive (EU) 2015/863/EU as regards the list of restricted substances.
RoHS Compliance Status
Standard
Product
Series
RVC
Description
Package /
Standard
Termination Series RoHS
Type
Compliant
YES(1)
Lead-Free Termination
Composition
100% Matte Sn over Ni
Lead-Free
Mfg. Effective Date
(Std Product Series)
Jan-03
Lead-Free
Effective Date
Code
(YY/WW)
03/01
Medium Voltage Thick Film
SMD
Surface Mount Chip Resistor
Note (1): RoHS Compliant by means of exemption 7c-I.
“Conflict Metals” Commitment
We at Stackpole Electronics,
Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the
eastern
Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the electronics industry
is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and products we supply do
not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of Dodd-Frank Act regarding
Conflict Minerals.
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
京公网安备 11010802033920号
EEWORLD
