DESCRIPTION
ECN 4323: UPDATE DIMENSIONS AND NOTES
2
REVISIONS
1
DATE
10/26/09
APPROVED
D.FRISIELLO
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
DESCRIPTION
BODY
SHELL
CENTER PIN
INSULATOR
MATERIAL
BRASS
BRASS
BRASS
PTFE
FINISH
GOLD
GOLD
30μ IN
GOLD
-
D
.315 8
HEX
.76 19.2
C
C

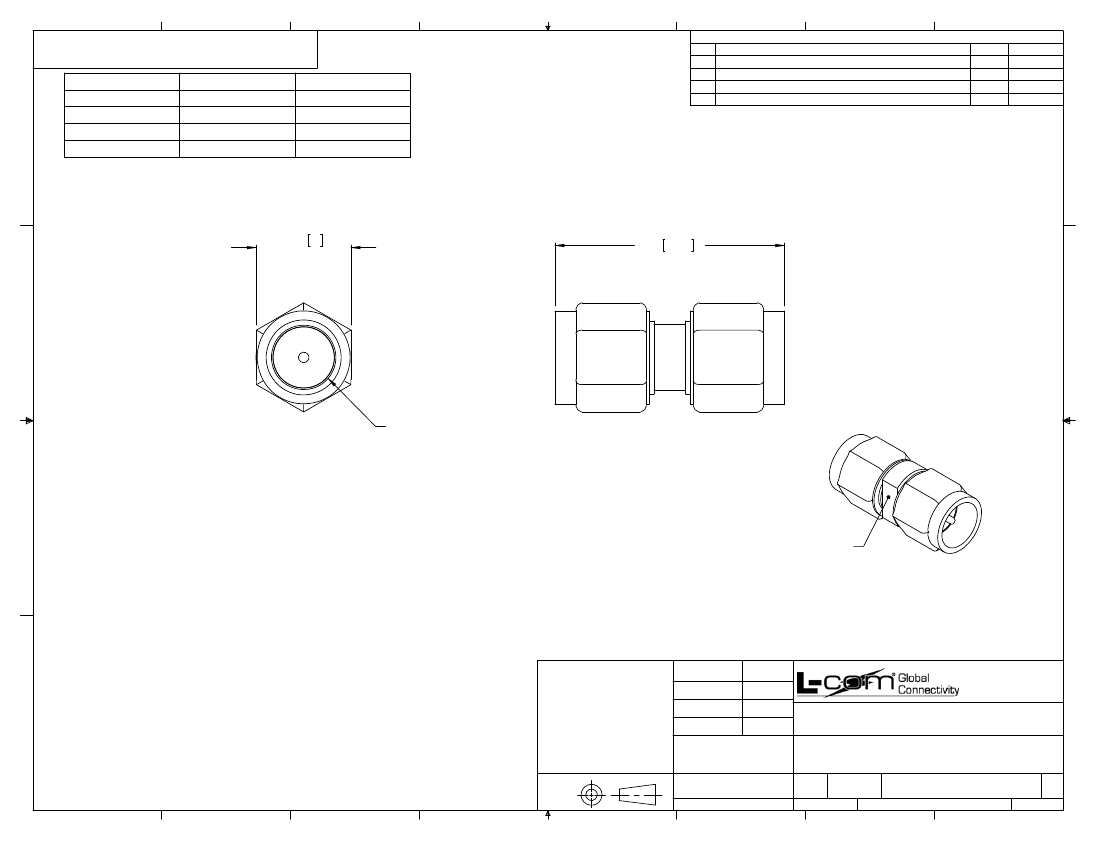

2X SMA PLUG
1/4"-36 UNS
THREAD
B
2X FLAT AREA
.216 [5.5mm]
SPACING
B
NOTES:
ELECTRICAL:
IMPEDANCE: 50 OHM
FREQUENCY RANGE: 0 TO 18 GHz
VSWR: 1.2 MAX.
VOLTAGE RATING: 500 VRMS MAX.
DIELECTRIC WITHSTANDING VOLTAGE: 1000 Vrms MIN.
PACKAGING: COMPONENT SHALL BE INDIVIDUALLY PACKAGED
IN ACCORDANCE WITH L-COM SPECIFICATION PS-0031.
ALL DIMENSIONS ARE FOR REFERENCE ONLY.
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
DIMENSIONAL TOLERANCES:
.X = ±.1
.XX = ±.03
.XXX = ±.005
ANGULAR TOLERANCES:
ALL = ± 1°
PROJECTION
APPROVALS
DRAWN BY
DATE
06/05/2001
06/05/2001
06/05/2001
PRODUCT DESCRIPTION
CATEGORY
C.MCCORMICK
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
A
D.PARHAM
APPROVED BY
R.CARRICK
COAXIAL
ADAPTOR SMA M/SMA M
SIZE
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
REF
A
43321
2
FSCM NO.
DWG. NO.
BA22.SLDDRW
BA22
1
REV.
E
SCALE: NONE
CAD FILE:
SHEET 1 OF 1
