1RS1R-35-G-SMT: DescriptionBoard Connector, 35 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric View All

1RS1R-35-G-SMT Overview

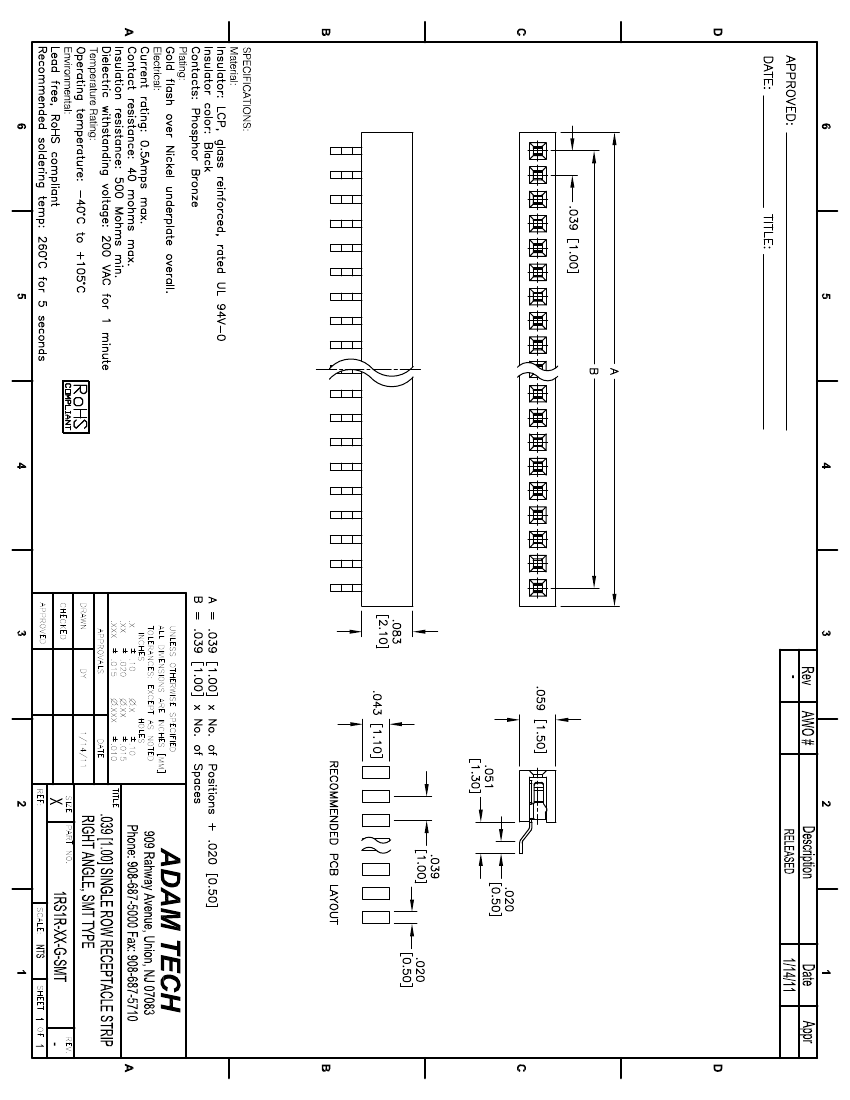

Board Connector, 35 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305015564
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.059 inch
subject depth	0.114 inch
body length	1.385 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Manufacturer's serial number	1RS1
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	35
