SWT-M-22-A3-B15-T52-GG-HW datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> SWT-M-22-A3-B15-T52-GG-HW

Preview

SWT-M-22-A3-B15-T52-GG-HW: DescriptionToggle Switch,; CategoryMechanical and electronic products switch; File Size141KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

SWT-M-22-A3-B15-T52-GG-HW Overview

Toggle Switch,

SWT-M-22-A3-B15-T52-GG-HW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145121233947
Reach Compliance Code	unknown
ECCN code	EAR99
Executor completed	CHROME
Actuator length	0.55 inch
Actuator material	BRASS
Actuator type	HIGH TYPE
body width	11.43 mm
body height	8.89 mm
Body length or diameter	12.7 mm
Nozzle length	0.297 inch
Casing type	1/4-40
Center contact plating	GOLD
Contact function	ON-(ON)
Contact resistance	0.01 mΩ
Maximum contact voltage (DC)	20 V
Dielectric withstand voltage	1000VRMS V
End contact plating	GOLD
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au)
Terminal material	BRASS
Termination type	WIRE WRAP

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

15

B

C

D

1/4 inch nuts

Locking Ring

E

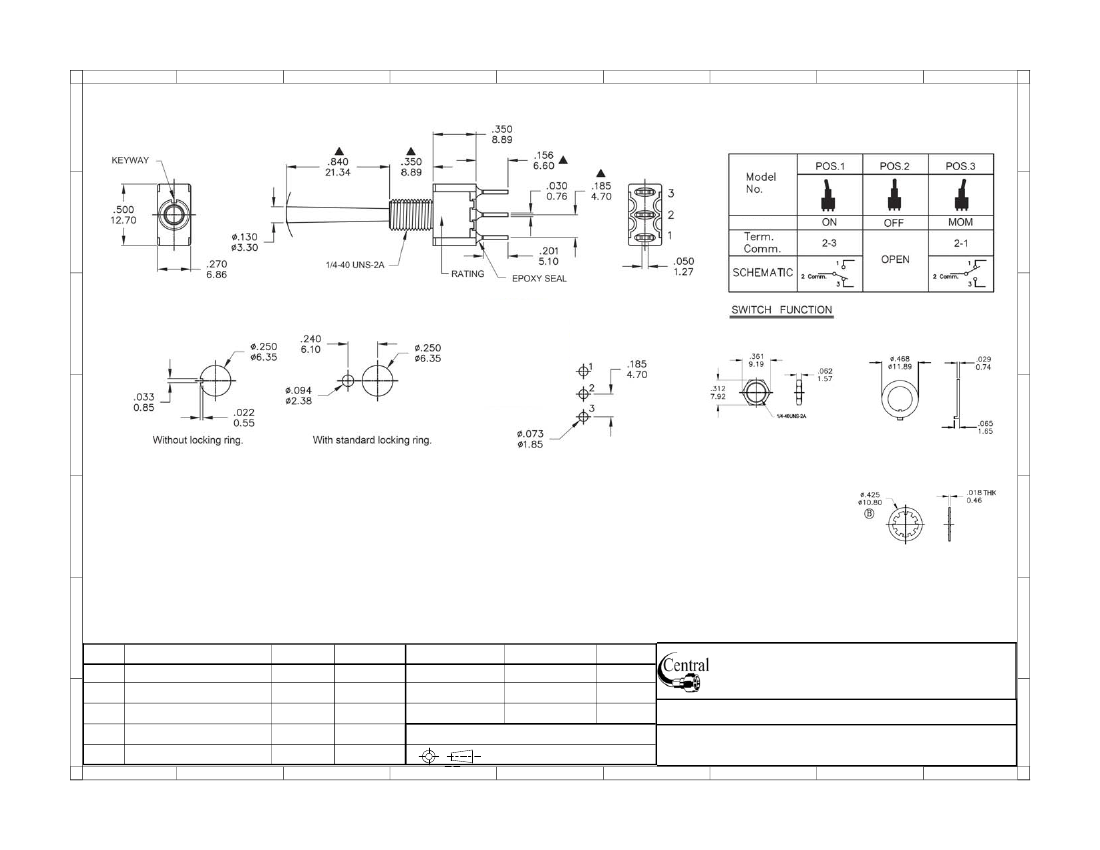

SPECIFICATIONS

Mechanical Life:

Contact Resistance:

40000 make-and-break cycles

10mΩ max. initial @ 2-4VDC

100mA for both silver and gold plated contacts

Insulation Resistance: 1000MΩ min.

Withstanding:

1000 Vrms min. @ sea level

Operating Temp:

-30°C to 85°C

MATERIALS

Case:

Actuator:

Bushing:

Housing:

Terminal:

Dially phthalate (DAP) UL94V-0

Brass, Chrome Plated

Nickel Plated

Stainless Steel

Brass

E

Locking Washer

F

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/30/10

08/30/10 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

SWT-M-15-A5-B1-T2-SS-E-HW

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Miniature toggle switch, M-15 Type

1

2

3

4
