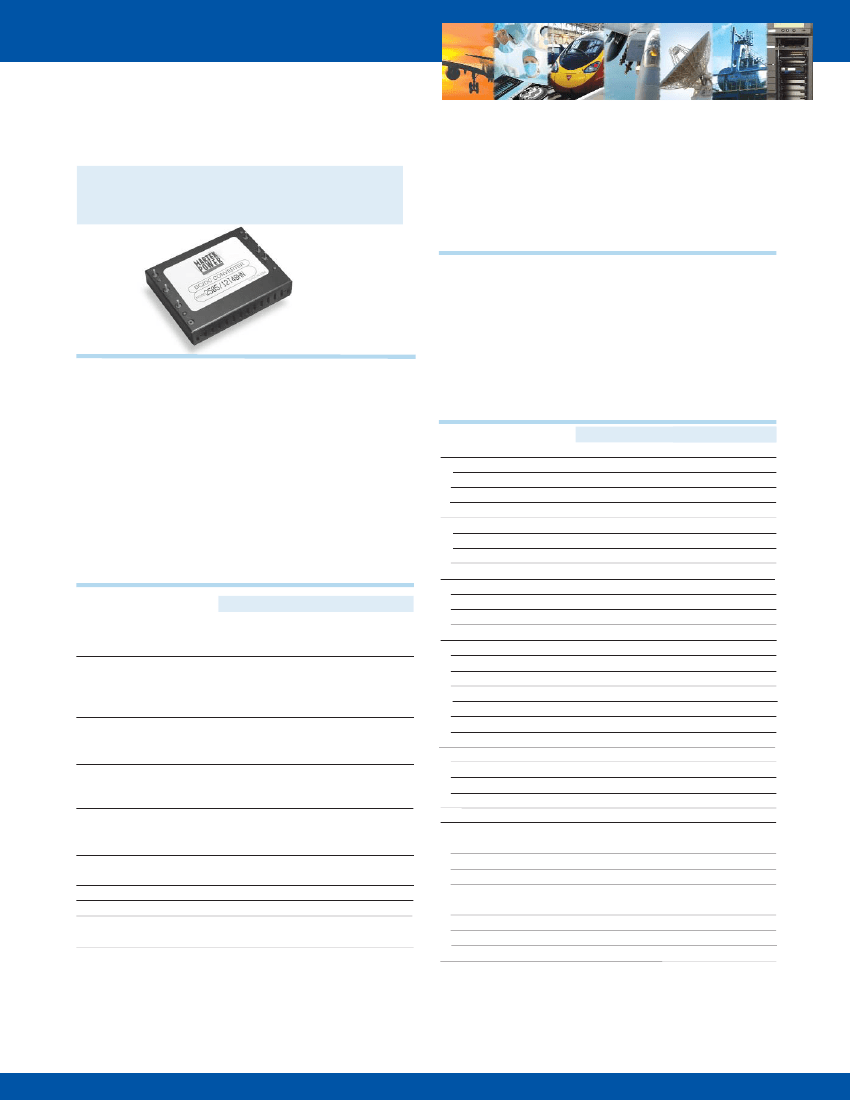

2500 HN series
Triple Output
DC/DC Converter
F
EATURES
•
•
•
•
•
•
Up to 85% Efficiency
Triple Output, 25 watt converter
Available in 12, 24 and 48 VDC Inputs
Industry Standard 2” X 2” X 0.4” Package
Over Voltage, Over Temperature and Short Circuit
Protection
The 2500HN (high-density, non-encapsulated), triple output
power modules are 25 watt DC/DC converters available in a
triple output configuration providing both digital and analog
outputs in a compact, industry standard 2" X 2" X 0.4" package.
These 400kHz, switching converters are available in 12, 24 and
48 VDC inputs making them one of the most versatile product
lines in the market with efficiencies up to 85%. Advanced
surface mount construction allows these converters to
achieve outstanding thermal performance eliminating the need
for thermal potting compounds and thereby enhancing
manufacturing efficiency to reduce costs.
I
NPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Units/Comments
Input Voltage
12 VDC Input Models
9
24 VDC Input Models
18
48 VDC Input Models
36
Over Voltage Shutdown
12 VDC Input Models
24 VDC Input Models
48 VDC Input Models
Full Load Input Current
12 VDC Input Models
24 VDC Input Models
48 VDC Input Models
Efficiency by Model
2505/12T12HN
2505/15T12HN
2505/12T24HN
2505/15T24HN
2505/12T48HN
2505/15T48HN
Switching Frequency
360
Remote Shut Down
0
Off
3.5
On
Input - Output Capacitance
Isolation Voltage
12 VDC & 24VDCInput Models
750
Input to Output
750
Input to Baseplate
750
Output to Baseplate
48 VDC Input Models
1100
Input to Output
1100
Input to Baseplate
750
Output to Baseplate
100
Isolation Resistance
12
24
48
18
36
75
18.9
37.8
78.8
2660
1310
650
83
83
84
84
85
85
400 440
VDC
VDC
VDC
VDC
VDC
VDC
mA
mA
mA
%; FL Nominal Line
%; FL Nominal Line
%; FL Nominal Line
%; FL Nominal Line
%; FL Nominal Line
%; FL Nominal Line
kHz; Factory set
O
UTPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Output Voltage Set Point:
Main
Auxiliary
Total Band Error:
Main
Auxiliary
Line Regulation:
Load Regulation:
V1
V2 and V3
Ripple/Noise
Main
Auxiliary
Output Voltage and Current
Temperature Coefficient
Short Circuit Protection
Overvoltage Protection
±1
±3
-2
-5
±0.5
% Output voltage
%measured at min.
+2 line and full load
+5 and, max. line and
min. load
% Output voltage
measured from
min. input line to max.
% Output voltage
measured from FL
to min load
mV; p-p measured
@ 20 MHz bandwidth
Refer to model
selection chart
% Output Voltage
Continuous
% Output Voltage;
Clamp Type
±1
±5
100
1%
±0.02
130
0.80 VDC;Referenced to input
input ( - )
pF
2000
VDC
VDC
VDC
VDC
VDC
VDC
MOHms
Martek Power reserves the right to change specifications without notice.
>> B-185
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
M
ODEL
S
ELECTION
C
HART
Input Output Min. Nominal Max
Voltage Voltage Output Output Output
(VDC) (VDC) Current Current Current
(mA)
(mA)*
(mA)
3000
4000
12
5
300
±412
±500
±12
±41
3000
4000
12
5
300
±333
±500
±15
±33
3000
4000
24
5
300
±412
±500
±12
±41
3000
4000
24
5
300
±333
±500
±15
±33
3000
4000
48
5
300
±41
±412
±500
±12
300
3000
4000
48
5
±33
±333
±500
±15
G
ENERAL
C
HARACTERISTICS
Min Typ Max Unit/Comments
+105 °C measured
Operating Temperature Range -40
at baseplate
+125 ° C
Storage Temperature Range -55
+120 ° C
Over Temperature Shutdown +110
30 Grams
Weight
Size
2” X 2” X 0.4”
Case Material
Black coated
aluminum
Agency Approvals
UL/CUL1950
2505/12T12HN
2505/15T12HN
2505/12T24HN
2505/15T24HN
2505/12T48HN
2505/15T48HN
* Total output power may not exceed 25 watts.
O
UTLINE
D

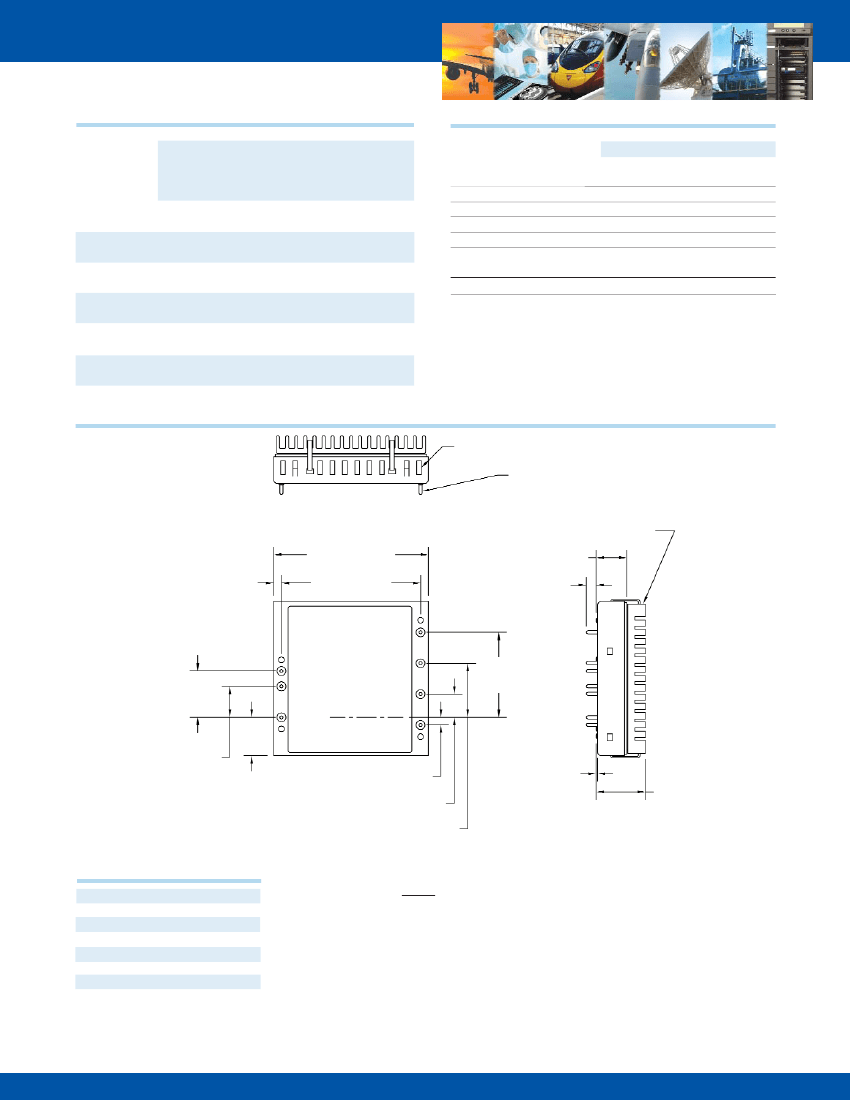

RAWING
SLOTS ARE TYPICAL FOR THIS SIDE AND
FAR SIDE ONLY
.040
±.002
SIDE VIEW
2.00 SQUARE
(50.8)
1.800 (TYP)
(45.72)
8
4
3
.50
(12.7)
1
7
6
5
0.100
(2.54)
0.300
BOTTOM VIEW
(7.62)
0.700
(17.78)
(1.02 ±0.05)
DIA. PIN TYP.
HEATSINK OPTIONAL
0.40
(10.2)
0.125 (TYP)
(3.18)
0.10 TYP.
(2.5)
.600
(15.24)
1.100
(27.94)
0.400
(10.16)
0.020 (TYP)
(0.51)
.64
(16.26)
P
IN
O
UT
C
HART
Pins
1
3
4
5
6
7
8
FUNCTION
REMOTE ON/OFF
- Vin
+ Vin
- V3out
COMMON
+ V1out
+V2out
Notes:
1. Unless otherwise specified dimensions are in inches (mm).
2. Controlling dimension in inch.
3. Tolerances
Inches
mm
X.XX = ±0.02
X.X = ±0.5
X.XXX= ±0.010
X.XX = ±0.25
All specifications are typical at nominal input, nominal load and 25
°
C unless otherwise specified.
External, low ESR, 10 microfarad (minimum) capacitor across output is recommended for operation.
>> B-186
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
H
OW
T
O
O
RDER
H
OW TO
O
RDER
25 05 /XX T XX HN- H - Y
Wattage
Output Voltage
XX = ± 12 / ±15
ROHS (omit for
standard)
OPTION (omit for standard)
(-H = Heatsink, external)
Hi-Density, Non-Encap
Triple Output
Input Voltage
H Options: To add external heatsink mounted on the baseplate of the converter please
add a “- H” . Heatsink is provided to improve thermal performance (see derating curves).
Y Options: To order a ROHS compliant converter (either with or without heatsink) add a
“-Y” .
D

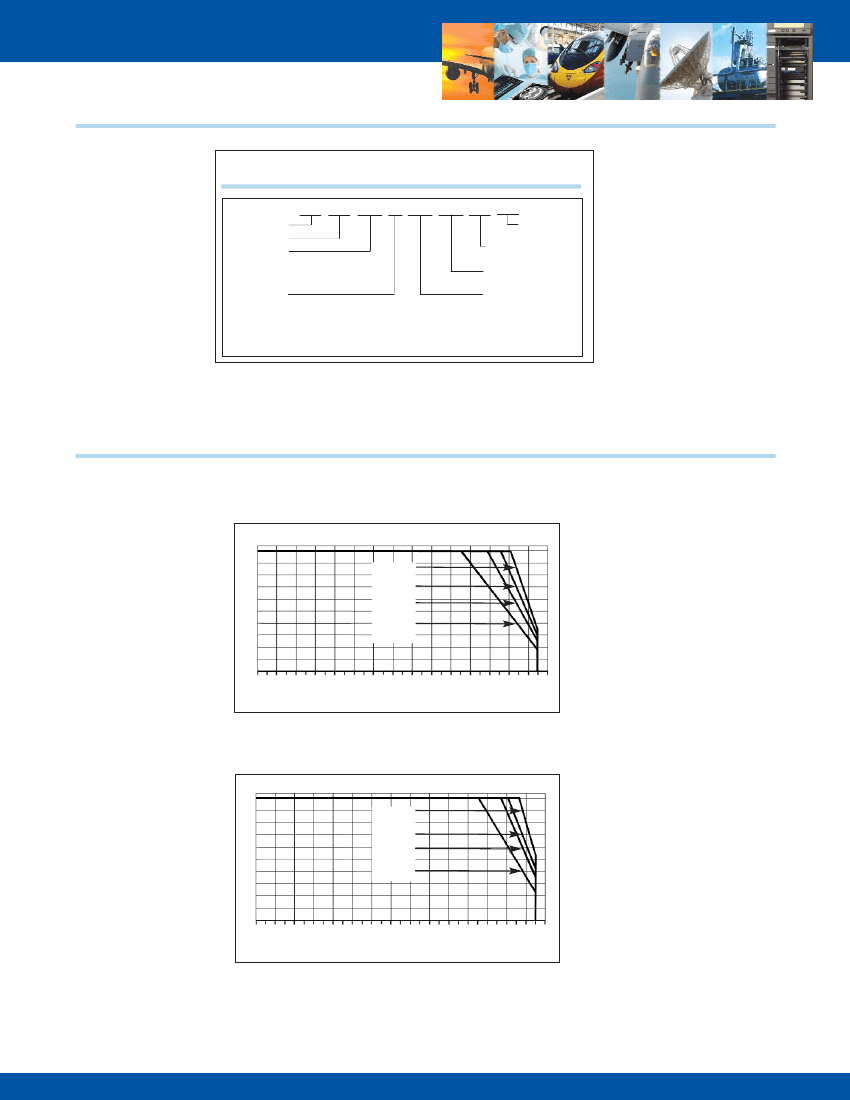

ERATING
C
URVES
MODEL 2500HN Triple (Without heatsink)
Pout %
100
90
80
70
60
50
40
30
20
10
0
-40 -30 -20 -10
400LFM
200LFM
100LFM
Natural
Convection
0
10
20
30
40
50
60 70
80
90 100 110
TEMPERATURE
°
C
MODEL 2500HN Triple (With heatsink)
Pout %
100
90
80
70
60
50
40
30
20
10
0
-40 -30 -20 -10
400LFM
200LFM
100LFM
Natural
Convection
0
10
20 30
40
50 60 70
80
90 100 110
TEMPERATURE
°
C
>> B-187
1111 Knox Street
Torrance
CA 90502
USA
