40344R: DescriptionData Line Filter, 2 Function(s), 0.7A, SMD, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size88KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

40344R Overview

Data Line Filter, 2 Function(s), 0.7A, SMD, 4 PIN

40344R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Maximum DC resistance	0.32 Ω
filter type	DATA LINE FILTER
high	5.6 mm
inductance	4700 µH
length	10.15 mm
Manufacturer's serial number	40344R
Installation type	SURFACE MOUNT
Number of functions	2
physical size	L10.15XB8.76XH5.6 (mm)/L0.4XB0.345XH0.22 (inch)
Rated current	0.7 A
width	8.76 mm
Base Number Matches	1

Preview

Download Datasheet

View All

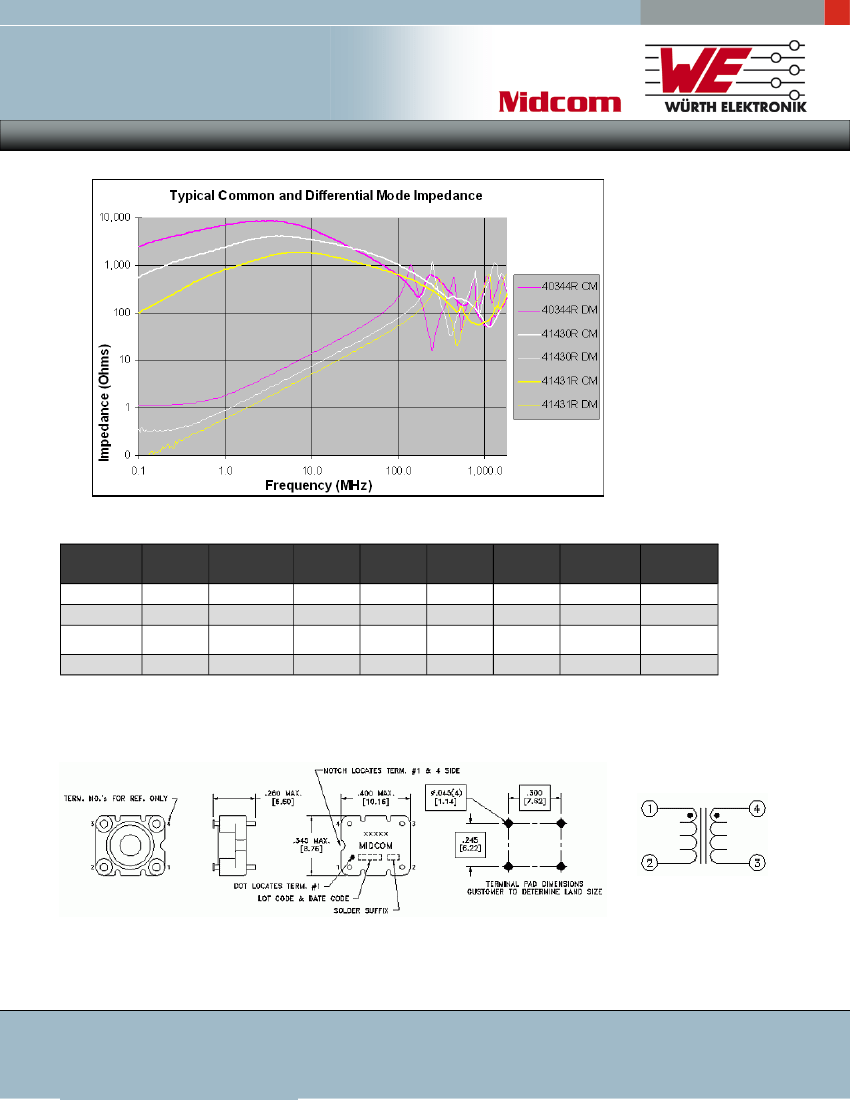

more than you expect

Lunar Series

Common Mode Chokes

Common ModeChokes

Features



Low Profile

Small size

Excellent EMI reduction

Surface mount design

Good isolation

Part Num‐ Port Con‐ Inductance L Current I

Number

Pin Style

ber

fig

(uH)

(mADC)

of Pins

41431R‐LF3 SINGLE

165

3000

SMD

4

41430R‐LF3 SINGLE

1000

SMD

4

40344R

SINGLE

4700

700

SMD

4

40344R‐LF3 SINGLE

RoHS

YES

NO

YES

Mechanical Schematic

1

Mechanical 1

Schematic 1

Wurth Electronics Midcom, Inc.

121 Airport Drive—PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ 605.886.4486

T: 605.886.4385

www.we-online.com ~ email: sales@midcom-inc.com

F: 605.886.4486

www.we-online.com/midcom

midcom@we-online.com

26-Apr-10

1/1

40344R Related Products

	40344R	40344R-LF3	41431R-LF3	41430R-LF3
Description	Data Line Filter, 2 Function(s), 0.7A, SMD, 4 PIN	Data Line Filter, 2 Function(s), 0.7A, ROHS COMPLIANT, SMD, 4 PIN	Data Line Filter, 2 Function(s), 3A, ROHS COMPLIANT, SMD, 4 PIN	Data Line Filter, 2 Function(s), 1A, ROHS COMPLIANT, SMD, 4 PIN
Is it lead-free?	Contains lead	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	5.6 mm	5.6 mm	5.6 mm	5.6 mm
inductance	4700 µH	4700 µH	165 µH	1000 µH
length	10.15 mm	10.15 mm	10.15 mm	10.15 mm
Manufacturer's serial number	40344R	40344R-LF3	41431R-LF3	41430R-LF3
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	2
physical size	L10.15XB8.76XH5.6 (mm)/L0.4XB0.345XH0.22 (inch)	L10.15XB8.76XH5.6 (mm)/L0.4XB0.345XH0.22 (inch)	L10.15XB8.76XH5.6 (mm)/L0.4XB0.345XH0.22 (inch)	L10.15XB8.76XH5.6 (mm)/L0.4XB0.345XH0.22 (inch)
Rated current	0.7 A	0.7 A	3 A	1 A
width	8.76 mm	8.76 mm	8.76 mm	8.76 mm
Base Number Matches	1	1	1	1
