HD64570CP10 datasheet, PDF - EEWORLD Datasheet

HD64570CP10: DescriptionSerial I/O Controller, 2 Channel(s), 0.8875MBps, MOS, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size136KB，4 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

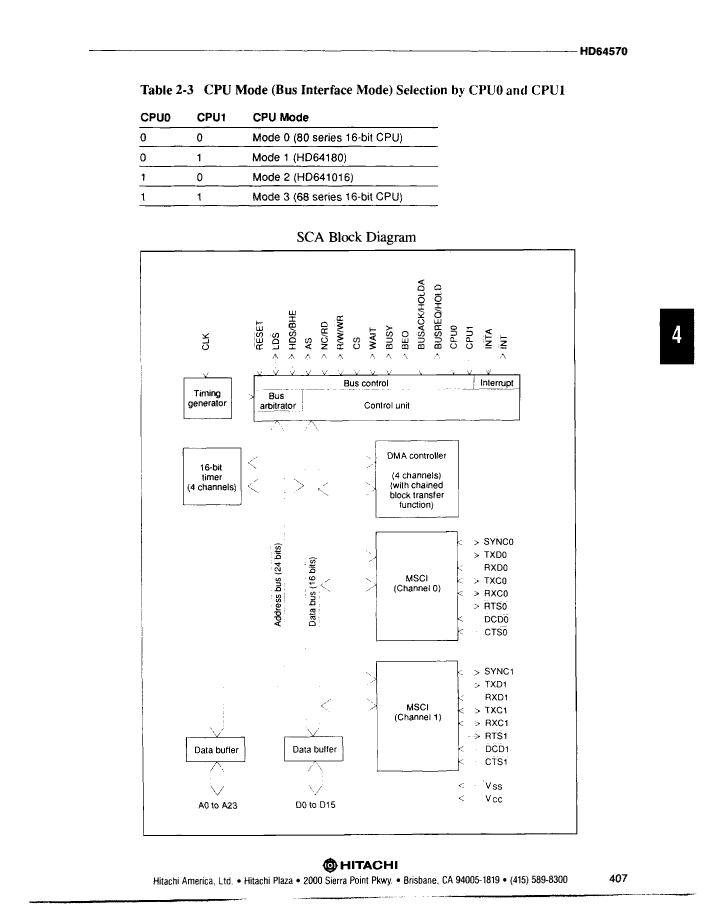

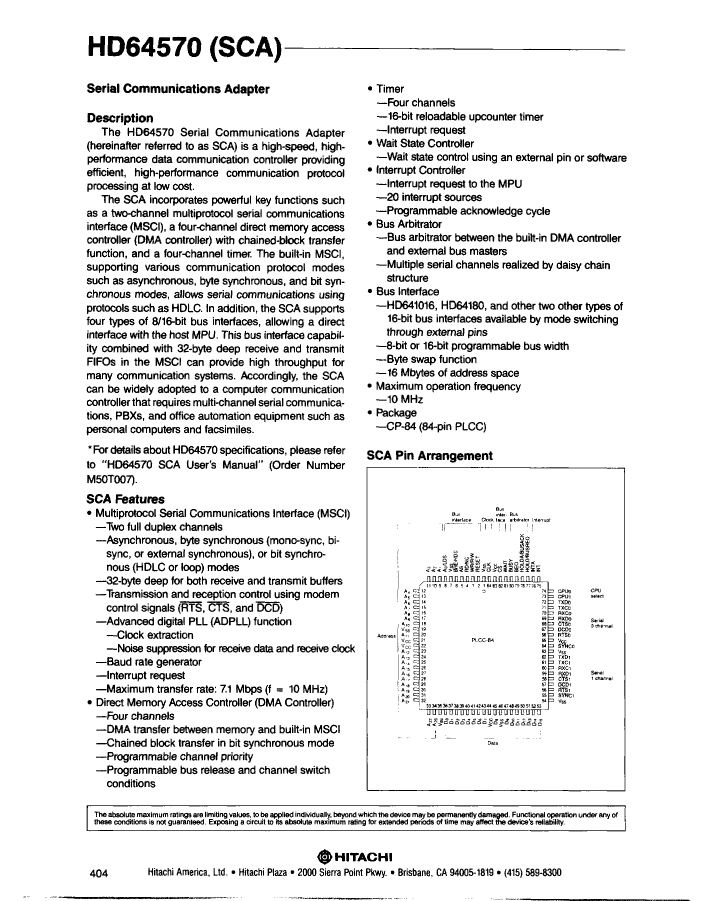

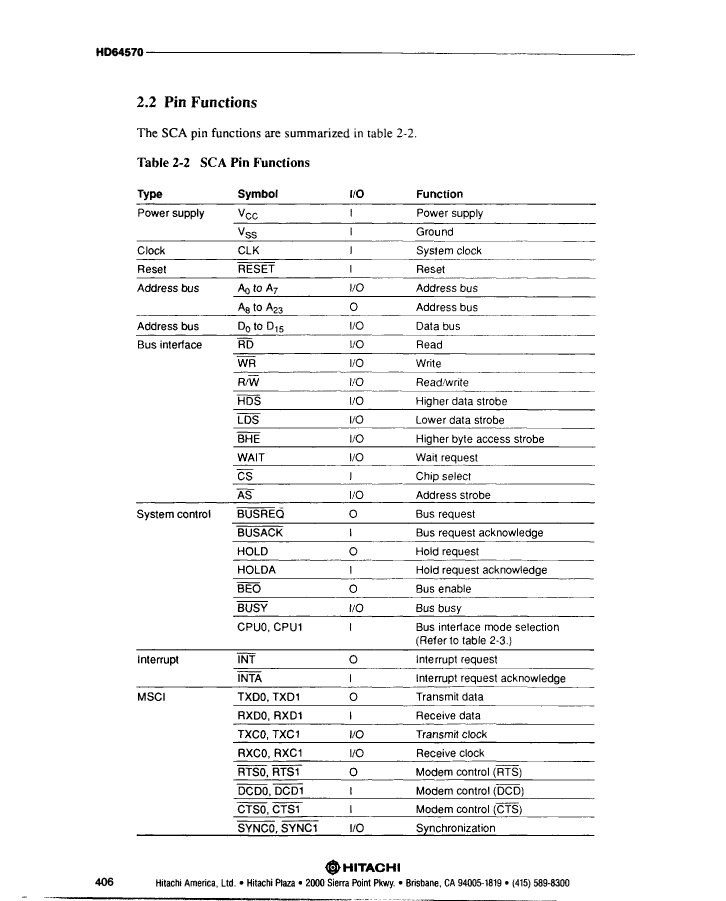

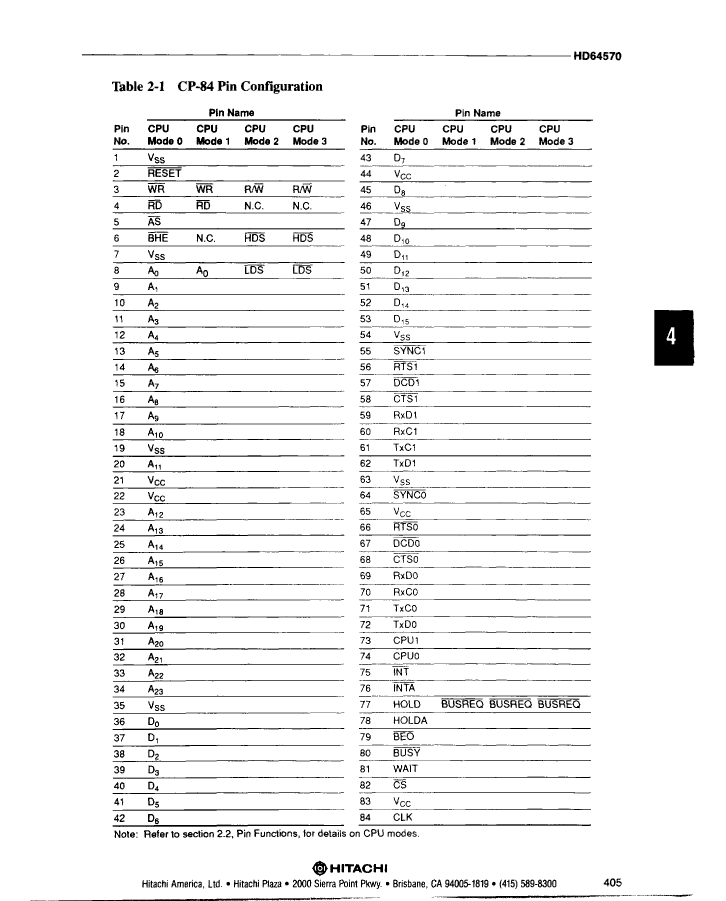

HD64570CP10 Overview

Serial I/O Controller, 2 Channel(s), 0.8875MBps, MOS, PQCC84, PLASTIC, LCC-84

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	84
Reach Compliance Code	unknow
Address bus width	24
boundary scan	NO
Bus compatibility	HD641016; HD64180
maximum clock frequency	10 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.8875 MBps
External data bus width	16
JESD-30 code	S-PQCC-J84
length	29.28 mm
low power mode	NO
Number of DMA channels	4
Number of I/O lines
Number of serial I/Os	2
Number of terminals	84
On-chip data RAM width
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.6 mm
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.28 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

	HD64570CP10
Description	Serial I/O Controller, 2 Channel(s), 0.8875MBps, MOS, PQCC84, PLASTIC, LCC-84
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	84
Reach Compliance Code	unknow
Address bus width	24
boundary scan	NO
Bus compatibility	HD641016; HD64180
maximum clock frequency	10 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.8875 MBps
External data bus width	16
JESD-30 code	S-PQCC-J84
length	29.28 mm
low power mode	NO
Number of DMA channels	4
Number of serial I/Os	2
Number of terminals	84
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.6 mm
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.28 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1
