HR24-8APR-4S(78) datasheet, PDF

Datasheet> All Categories > The connector> HR24-8APR-4S(78)

HR24-8APR-4S(78): Descriptionconn plug 4pos jam nut skt; CategoryThe connector; File Size468KB，14 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

HR24-8APR-4S(78) Overview

conn plug 4pos jam nut skt

HR24-8APR-4S(78) Parametric

Parameter Name	Attribute value
Datasheets

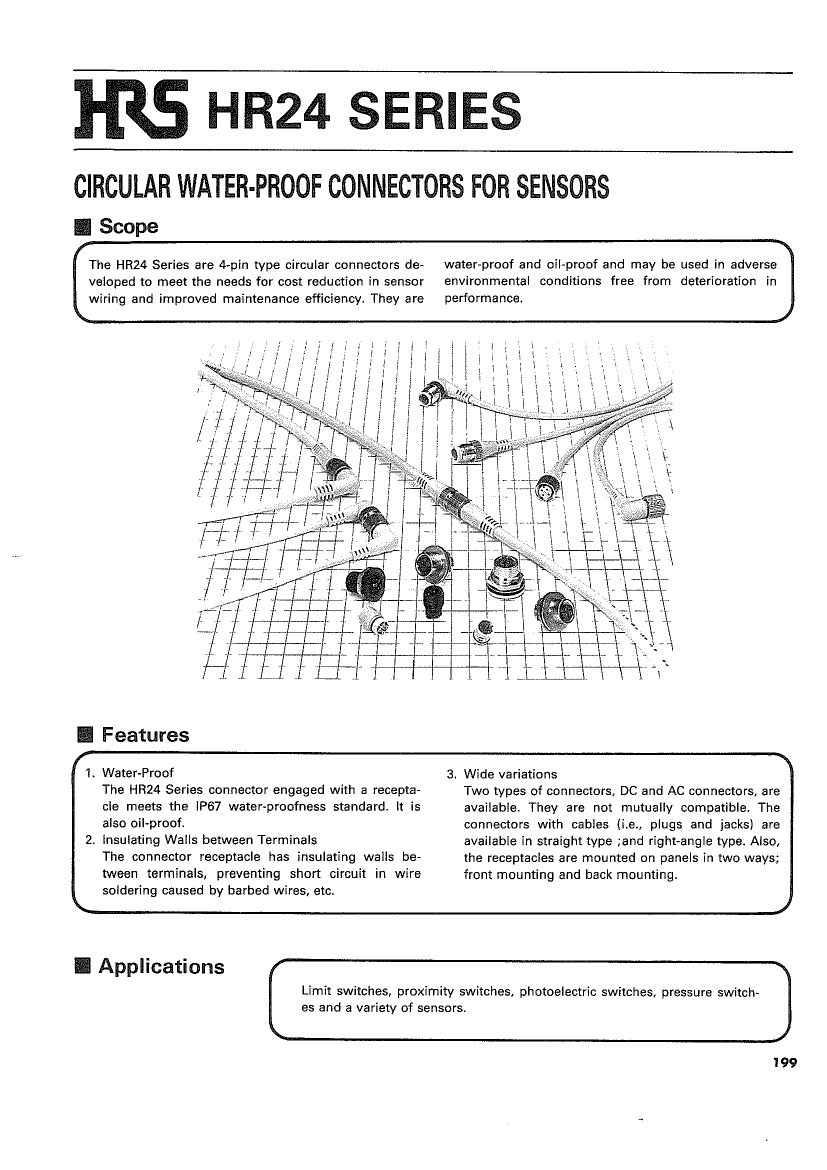

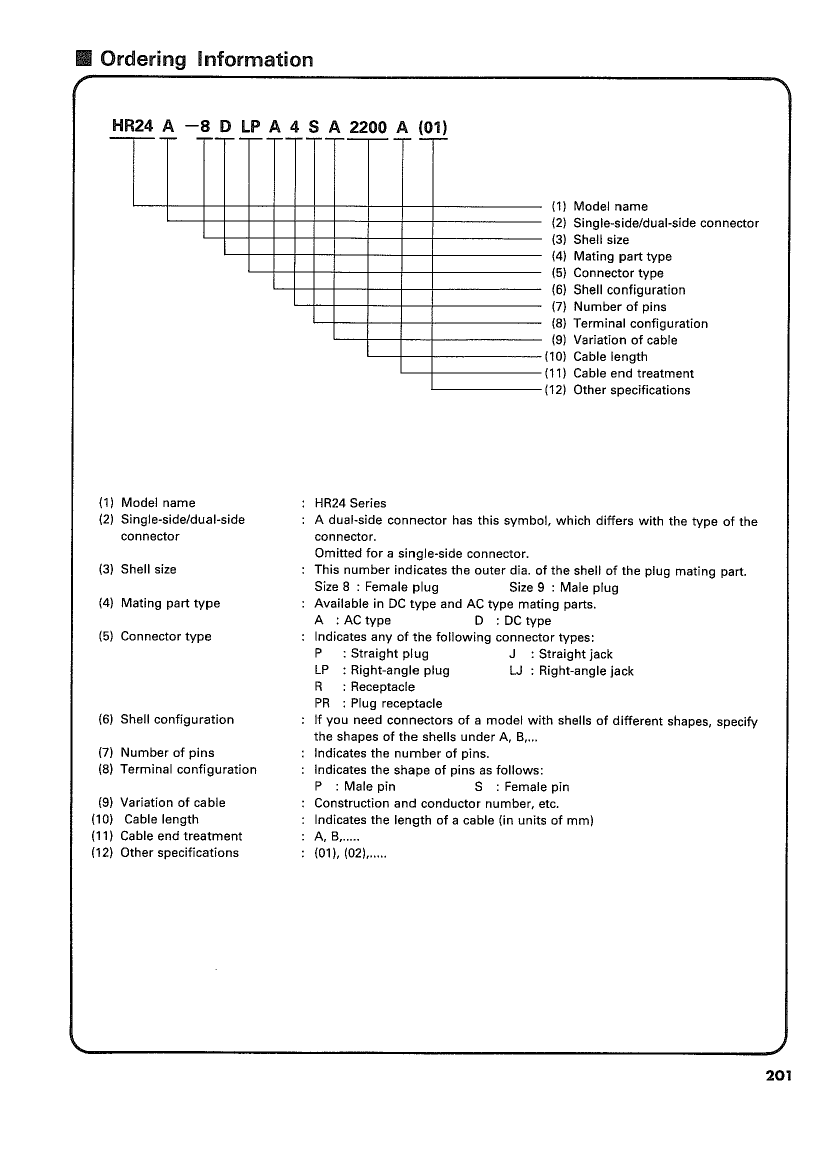

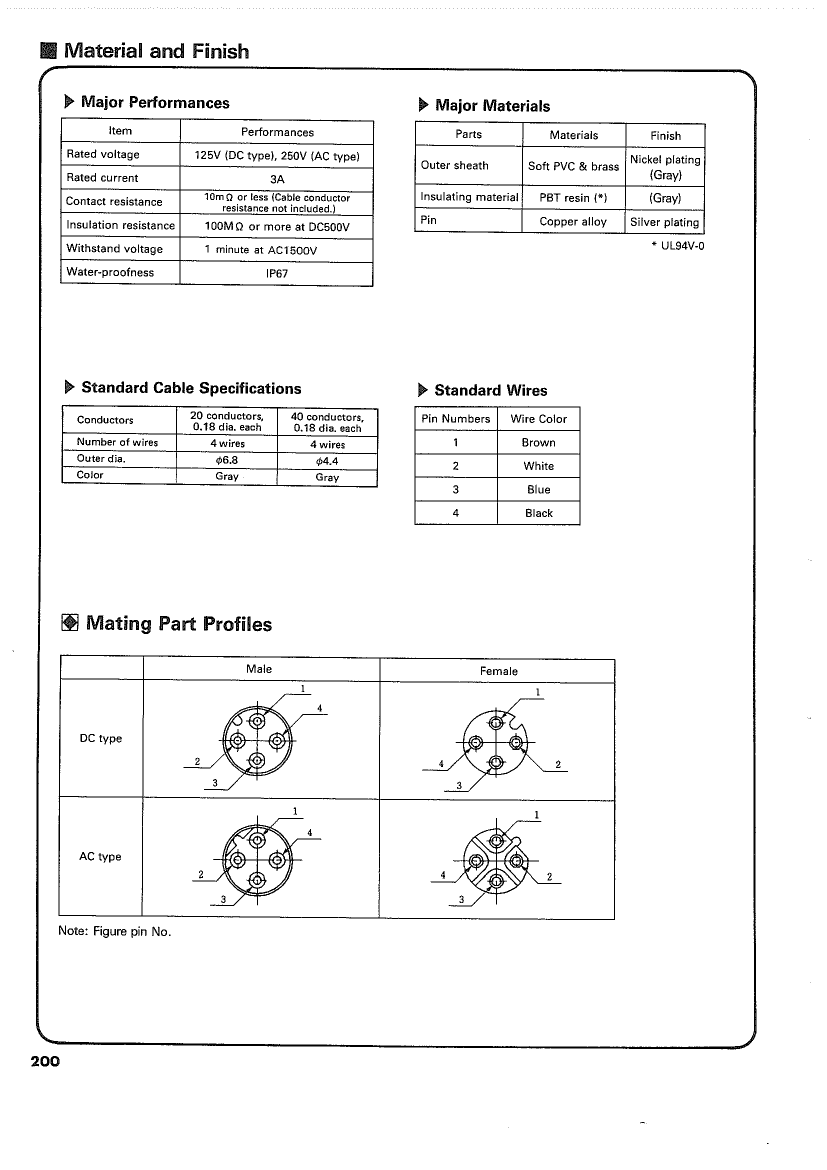

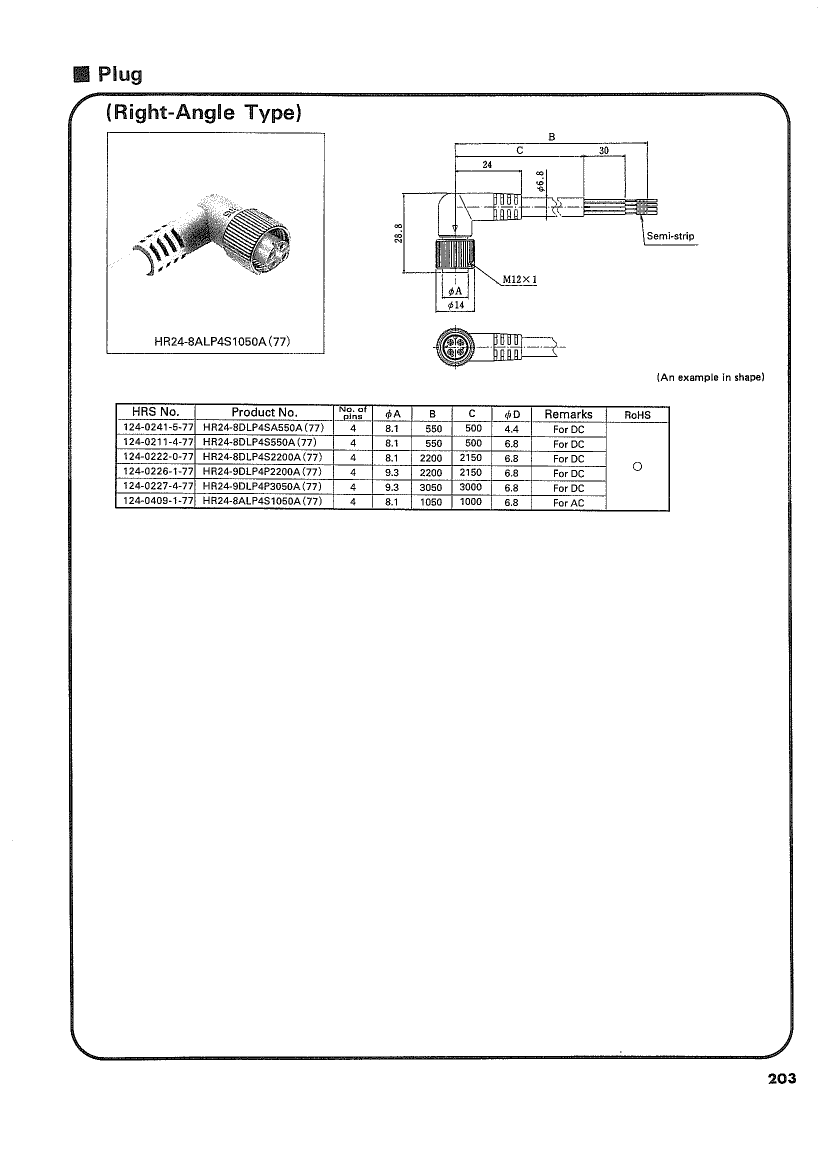

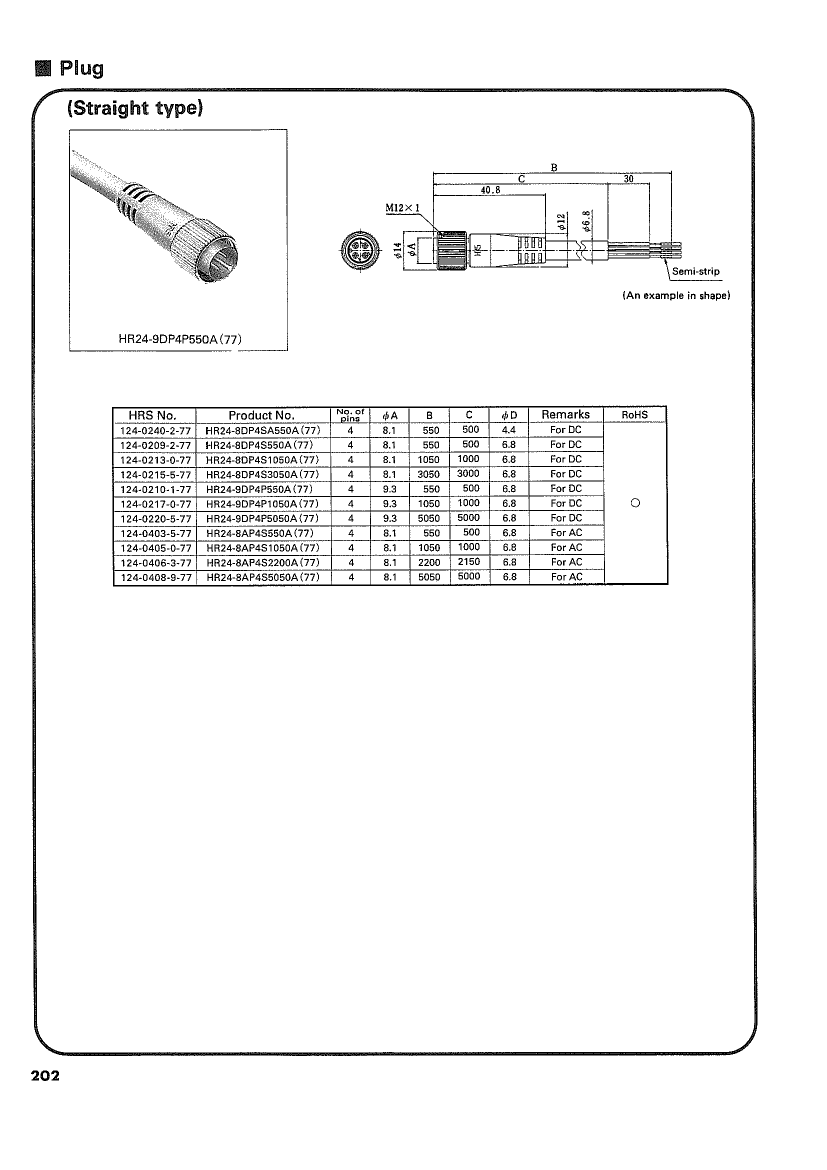

HR24 Series
Standard Package	1
Category	Connectors, Interconnects
Family	Circular Connectors
Packaging	Bulk
Connector Type	Plug, Female Sockets
Number of Positions	4
Shell Size - Inse	8
Shell Size, MIL	-
Mounting Type	Panel Mount, Bulkhead - Rear Side Nu
Terminati	Solder Cu
Fastening Type	Threaded
Orientati	Keyed
Ingress Protecti	IP67 - Dust Tight, Waterproof
Shell Material, Finish	Brass, Nickel Plated
Contact Finish	Gold
Features	-
Contact Finish Thickness	-
Current Rating	3A
Voltage - Rated	250VAC
Operating Temperature	-40°C ~ 85°C
Other Names	124-0051-0-78

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
