Round Water-resistant Connectors (M12 Smartclick)
XS5
CSM_XS5_DS_E_13_1
Round Water-resistive Smartclick

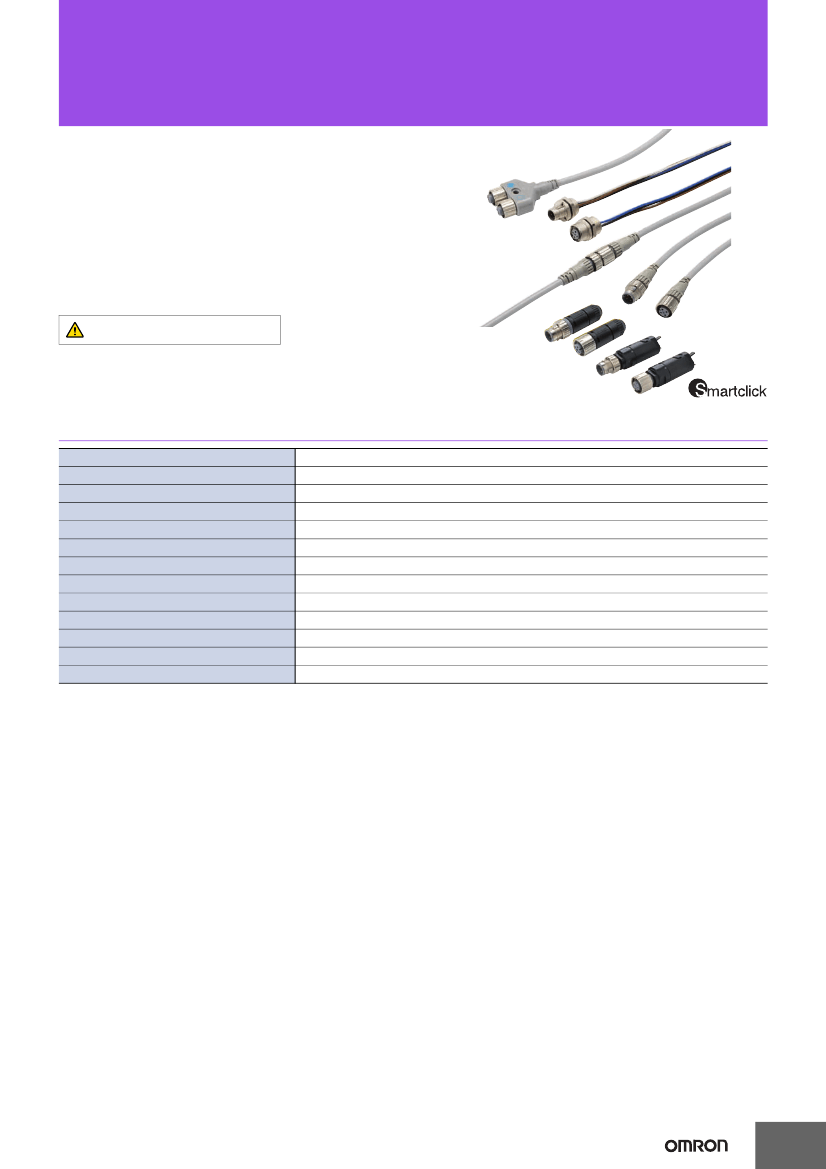

Connectors That Reduce Installation Work
• A newly developed lock mechanism that is compatible with round M12 connectors.
• Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock.
• A positive click indicates locking.
• Features the same degree of protection (IP67) as M12 connectors.
• A full line-up of models is planned.
• Connectors with Cables are UL approved.
Refer to
Safety Precautions
on page 24.
Ratings and Specifications
Rated current
Rated voltage
Contact resistance (connector)
Insulation resistance
Dielectric strength (connector)
Degree of protection
Insertion tolerance
Lock strength
Cable holding strength
Lock operating force
Ambient operating temperature range
Ambient humidity range
Number of pressure-weld repairs *1
*1. Only XS5C/G (IDC models)
*2. Refer to product specifications for details.
4A
250 VDC
40 mΩ max. (20 mV max., 100 mA max.)
1,000 MΩ min. (at 500 VDC)
1,500 VAC for 1 min (leakage current: 1 mA max.)
IP67 (IEC60529)
50 times min.
Tensile: 100 N/15 s, Torsion: 1 N·m/15 s
Tensile: 100 N/15 s, Torsion: 1 N·m/15 s (for cable diameter of 6 mm) *2
0.1 to 0.25 N·m
−25
to 70°C
20% to 85%
10 times max. (Limited to the same external diameter and wire diameter.)
1
XS5
Materials and Finishes
Model
Item
Material
Contacts
Finish
Fixtures
Fixtures (Lock) *
Pin block
O-ring
Overmolding/Cover
XS5F/H/W
Phosphor bronze
XS5R
Phosphor bronze
or Brass
XS5M/P
Phosphor bronze
XS5C/G
(Crimping, Soldering)
Brass
XS5C/G
(Screw-on)
Phosphor bronze
or Brass
XS5C/G
(IDC models)
Phosphor bronze
Nickel base, 0.15-
µm
gold plating
Nickel base, 0.4-µm gold plating
Nickel-plated zinc alloy
Stainless
PBT resin (UL94V-0)
Rubber
Soft PBT resin (UL94V-0)
---
---
PBT resin (UL94V-0)
UL AWM2464 CL3, 6 mm dia.,
Fire-retardant,
AWG20 (0.5mm
2
)
Robot cable
Structure: 0.08 mm/110 wires
Oil-resistant
6 mm dia.
Cable polyurethane
AWG20 (0.5mm
2
)
cable
Structure: 0.12 mm/45 wires
6.6 mm dia.
Spatter-resis-
AWG20 (0.5mm
2
)
tant Cable
Structure: 0.08 mm/100 wires
Seal resin
Power supply wires
*Only plug
---
---
Epoxy resin
(UL94V-0)
UL1007 AWG20
---
---
---
---
Connector Pinout Diagram (from Mating Side)
Item
No. of poles
4 poles
1
Male (plug) contacts
2
3
4
DC type
2
Female (socket) contacts
1
4
3
Connection Combinations
Smartclick Plug Connectors
OMRON model No.
Smartclick Socket XS5F, XS5C, XS5W (socket side),
Connectors
XS5R (socket side), XS5P
M12 Socket
Connectors
XS2F, XS2C, XS2W (socket side),
XS2R (socket side), XS2P
XS5H, XS5G, XS5W (plug side),
XS5R (plug side), XS5M
M12 Plug Connectors
XS2H, XS2G, XS2W (plug side),
XS2R (plug side), XS2M
❍
❍
: Connected by twisting.
❍
: Connected by screwing.
Note: The XS@M and XS@P cannot mate with each other.
❍
is a registered trademark of the OMRON Corporation.
2
XS5
XS5W

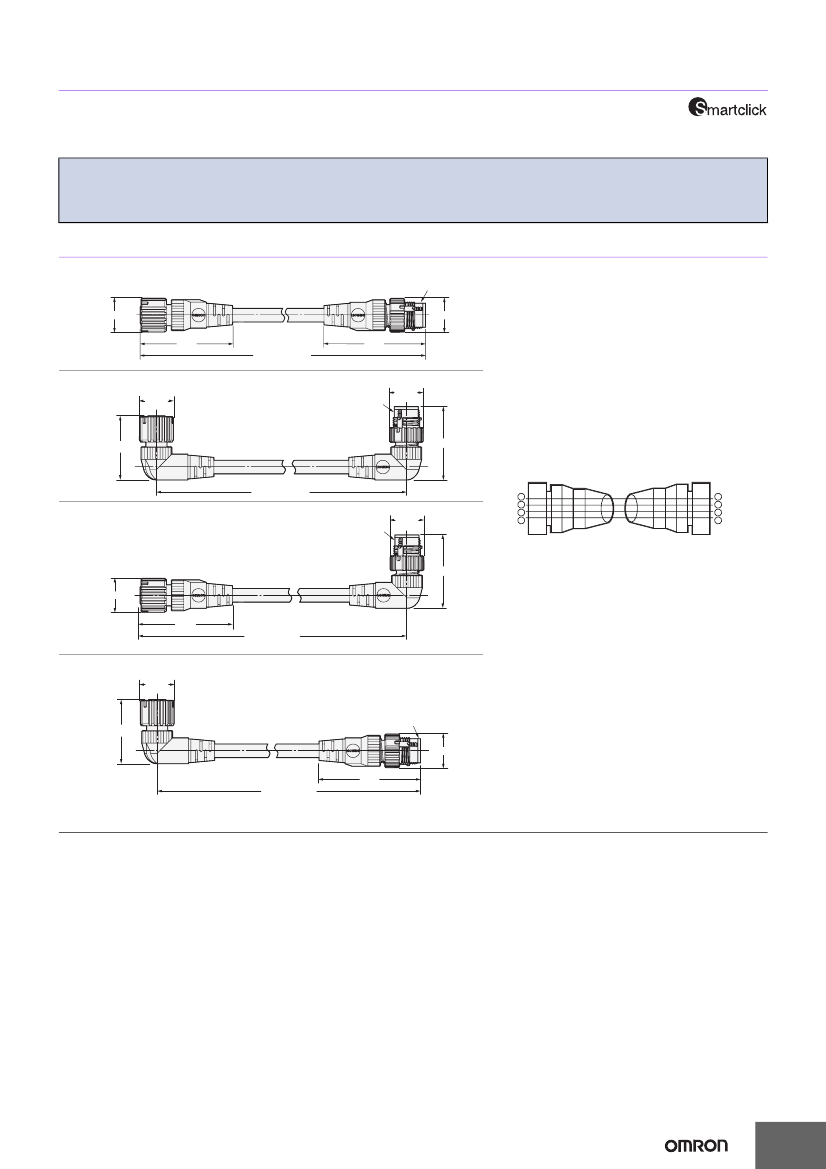

Dimensions
Straight/straight
Connectors Connected to Cable, Socket and Plug on Cable Ends
XS5W-D42@-@81-F
XS5W-D42@-@81-P
XS5W-D421-@81-SA
(Unit: mm)
●
Fire-retardant, Robot cable
●
Oil-resistant Polyurethane Cable
●
Spatter-resistant Cable
M12×1
14.9 dia.
14.9 dia.
40.7
L (Cable length)
44.7
Angled/angled
14.9 dia.
M12×1
14.9 dia.
28.3
32.3
Wiring Diagram for 4 Cores
Pin No.
L (Cable length)
1
2
3
4
Straight/angled
M12×1
14.9 dia.
Cable color of
core sheath
1
Brown
2
White
3
Blue
4
Black
32.3
14.9 dia.
40.7
L (Cable length)
Angled/straight
14.9 dia.
M12×1
28.3
14.9 dia.
44.7
L (Cable length)
Note:
Oil-resistant Polyurethane Cables (XS5W-D42@-@81-P) and Spatter-resistant Cable (XS5W-D421-@81-SA) have black covers.
Fire-retardant, Robot cable (XS5W-D42@-@81-F) have warm gray covers.
3
XS5
Model Number Legend
XS5W-D42@-@81-@@
1
2
3 4
5
6
7 8
9
Use this model number legend to identify products
from their model number. When ordering, use a mod-
el number from the table in
Ordering Information.
1. Type
W: Connectors connected to cable, socket and plug
on cable ends
2. Mating Section Form
D: DC
3. Connector Poles
4: 4 poles
4. Contact Plating
2: 0.4-µm gold plating
5. Cable Connection Direction
1: Straight/straight
2: Angled/angled
3: Straight (Socket)/angled (Plug)
4: Angled (Socket)/straight (Plug)
6. Cable Length
C: 1 m
G: 5 m
7. Connections
8:
A
Brown,
B
White,
C
Blue,
D
Black (Numbers
inside circles are terminal numbers)
8. Connectors on One End/Both Ends
1: Both ends
9. Cable Specifications
F: Fire-retardant, Robot cable
P: Oil-resistant Polyurethane Cable
SA: Spatter-resistant Cable
D: 2 m
J: 10m
E: 3 m
Ordering Information
Cable specifications
Cable
Cable outer
length L (m) diameter (mm)
1
2
Fire-retardant, Robot
cable
3
5
10
2
Oil-resistant Polyure-
thane Cable
Spatter-resistant
Cable
5
10
2
5
6.6
6
Straight/straight
Model
XS5W-D421-C81-F
XS5W-D421-D81-F
XS5W-D421-E81-F
XS5W-D421-G81-F
XS5W-D421-J81-F
XS5W-D421-D81-P
XS5W-D421-G81-P
XS5W-D421-J81-P
XS5W-D421-D81-SA
XS5W-D421-G81-SA
Straight (Socket)/
angled (Plug)
Model
XS5W-D423-D81-F
XS5W-D423-G81-F
XS5W-D424-D81-F
XS5W-D424-G81-F
---
XS5W-D422-D81-F
---
XS5W-D422-G81-F
---
---
---
---
---
---
Angled (Socket)/
straight (Plug)
1
5
1
5
---
---
5
Yes
Angled/angled
Minimum
order
10
UL
Cable specifications
Fire-retardant, Robot
cable
Cable
Cable outer
length L (m) diameter (mm)
2
5
6
Minimum
order
5
UL
Yes
4
XS5
XS5F
Dimensions
Straight
Connector Connected to Cable, Socket on One Cable End
XS5F-D42@-@80-F
XS5F-D42@-@80-P
XS5F-D421-@80-SA
(Unit: mm)
L (Cable length)
40.7
●
Fire-retardant, Robot cable
●
Oil-resistant Polyurethane Cable
●
Spatter-resistant Cable
14.9 dia.
M12
×
1
Wiring Diagram for 4 Cores
Pin No.
30
50
5
1
2
3
4
Angled
25.3
L (Cable length)
Cable color of
core sheath
Brown
White
Blue
Black
M12×1
28.3
30
50
5
14.9 dia.
Note:
Oil-resistant Polyurethane Cables (XS5F-D42@-@80-P) and Spatter-resistant Cable (XS5F-D421-@80-SA) have black covers. Fire-
retardant, Robot cable (XS5F-D42@-@80-F) have warm gray covers.
Model Number Legend
XS5F-D42@-@80-@@
1
2
3 4
5
6
7 8
9
Use this model number legend to identify products
from their model number. When ordering, use a mod-
el number from the table in
Ordering Information.
1. Type
F: Connector connected to cable,
socket on one cable end
2. Mating Section Form
D: DC
3. Connector Poles
4: 4 poles
4. Contact Plating
2: 0.4-µm gold plating
5. Cable Connection Direction
1: Straight
2: Angled
6. Cable Length
C: 1 m
D: 2 m
G: 5 m
J: 10 m
E: 3 m
8. Connectors on One End/Both Ends
0: One end
9. Cable Specification
F: Fire-retardant, Robot cable
P: Oil-resistant Polyurethane Cable
SA: Spatter-resistant Cable
7. Connections
8:
A
Brown,
B
White,
C
Blue,
D
Black (Numbers inside circles are
terminal numbers.)
Ordering Information
Cable specifications
Cable length L (m)
1
2
3
5
10
2
5
10
2
5
Cable outer
diameter (mm)
Straight Connectors
Angled Connectors
Model
XS5F-D421-C80-F
XS5F-D421-D80-F
XS5F-D421-E80-F
XS5F-D421-G80-F
XS5F-D421-J80-F
XS5F-D421-D80-P
XS5F-D421-G80-P
XS5F-D421-J80-P
XS5F-D421-D80-SA
XS5F-D421-G80-SA
XS5F-D422-C80-F
XS5F-D422-D80-F
XS5F-D422-E80-F
XS5F-D422-G80-F
XS5F-D422-J80-F
XS5F-D422-D80-P
XS5F-D422-G80-P
XS5F-D422-J80-P
Minimum
order
10
5
1
5
1
5
UL
Fire-retardant, Robot cable
Yes
6
Oil-resistant
Polyurethane Cable
---
Spatter-resistant
Cable
6.6
---
---
---
5
