BZV16/B0420/01: DescriptionMains Power Connector, 4A, 250VAC, Male, Solder Terminal; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BZV16/B0420/01 Overview

Mains Power Connector, 4A, 250VAC, Male, Solder Terminal

BZV16/B0420/01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
Reach Compliance Code	compliant
Other features	STANDARDS: IEC/EN; CSA; EN; UL; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	4A, 250VAC
Manufacturer's serial number	BZV
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

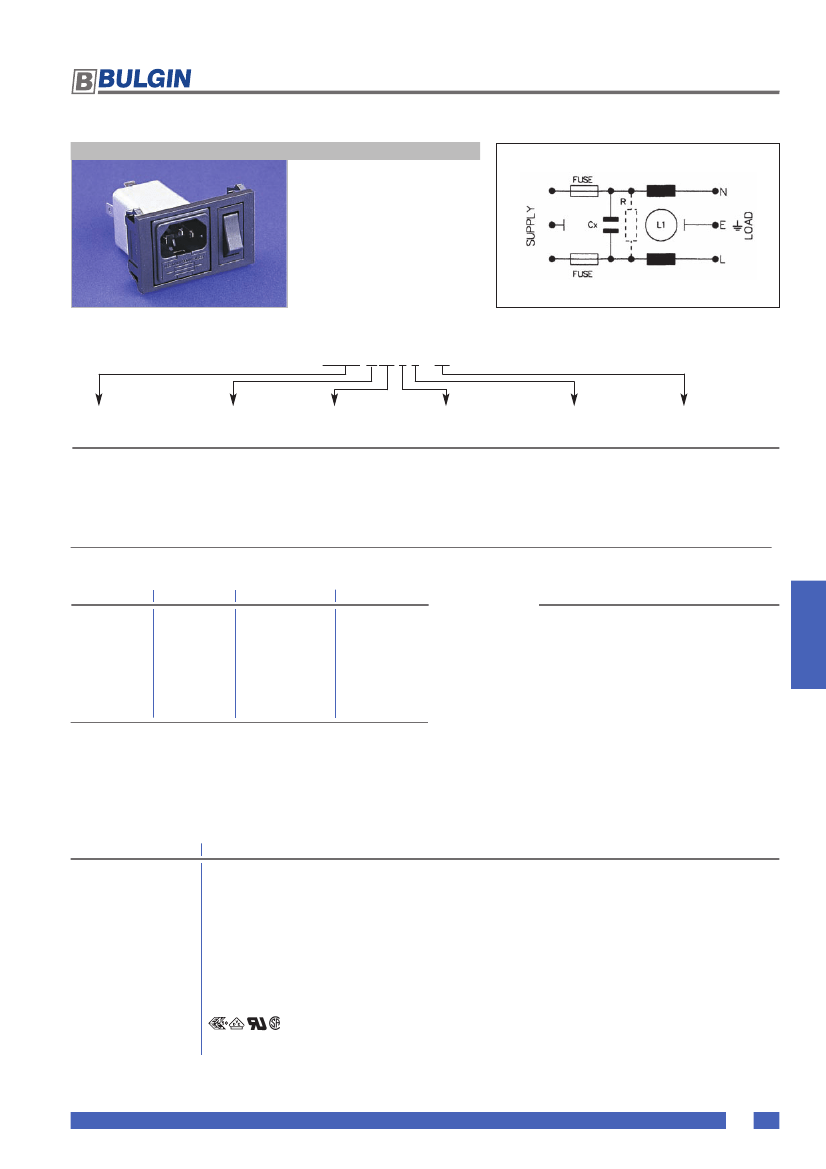

POLYSNAP

®

POWER INLET MODULES

C14 Inlet Twin Fuse - Medical Filter

EMI FILTER OPTIONS

For Polysnap modules BZV15,

BZV16, BZH13, BZH14,

BZH15, BZH16, BZH21,

BZH22, BVA15, BVA16,

BVB15, BVB16

PF0033 style twin fuse IEC

inlet

Using PS26/B style filter

Medical Attenuation Filter

Bxxxx/Bxx x x / xx

Polysnap Part No.

From Polysnap Selection

Filter Type

B = Medical

Rating

02 = 2A

04 = 4A

L/C Circuit

2 = Version 2

Additional

Components

0 = None

1 = Bleed (R) Resistor

Polysnap Part No.

From Polysnap Selection

Rating

2 AMP

“

4 AMP

“

Version

1

2

3

1

2

3

L1

Cx

Part No. Example

BZH15/B0221/01 =

BZH style Polysnap module with PF0033 twin

fused (5 x 20mm) IEC power inlet, filter rated at

2 x 1.8mH

1 x 15nF

2 x 0.7mH

1 x 15nF

2 amp, L/C circuit version 2 (L1 = 2 x 1.8mH, Cx

= 1 x 15nF), with bleed resistor fitted, 6.3mm

tabs and single pole switch.

Filter Specification

Max. Working Voltage:

Earth Leakage Current:

Temperature Range:

Max. Ambient Temp.:

(@ Full Load)

Test Voltage:

Approvals:

Attenuation Curves:

See PS26/B filter, page 144

250V a.c. 50-400Hz

<100µA (typically 5µA 250V. 50Hz)

–25ºC to +85ºC

40ºC (derate linearly to 0A @ 85ºC)

2700V d.c. 2 secs. Lines to Earth

1100V d.c. 2 secs. Live to Neutral

www.elektron-bulgin.com

129
