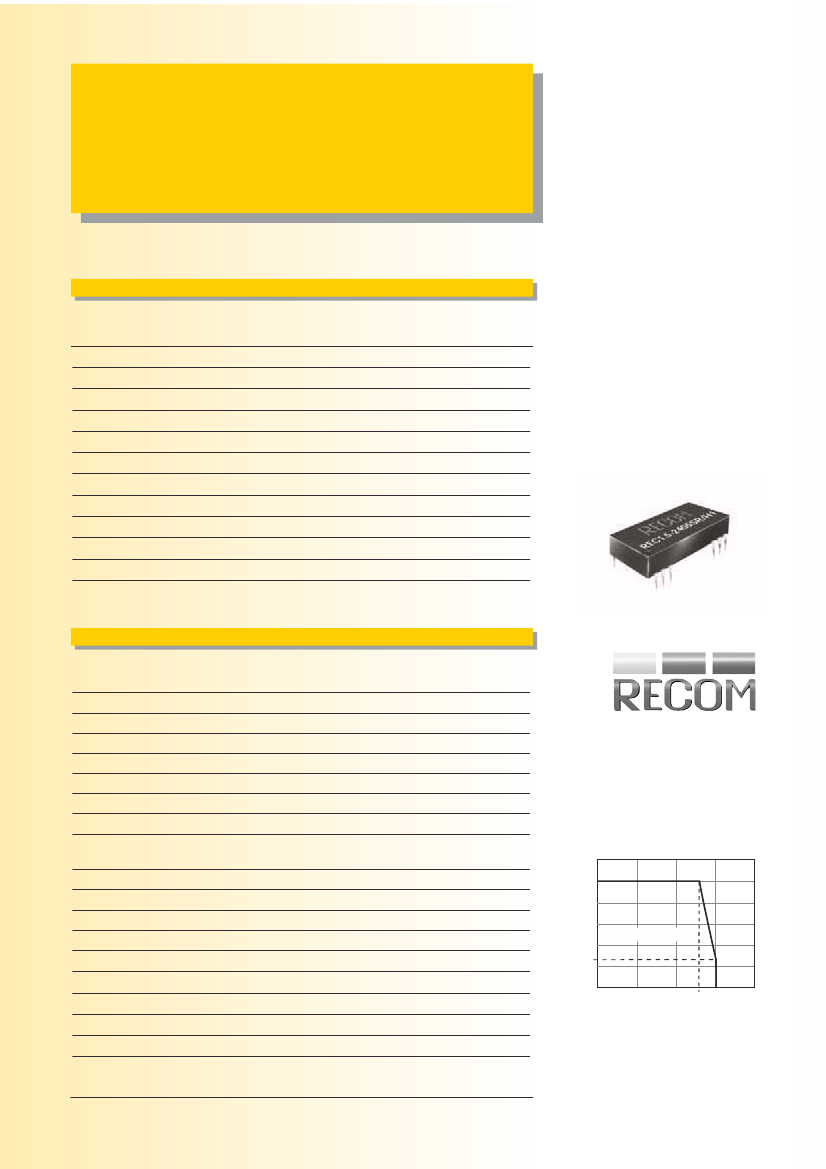

REC1.5-0505SRH1SMD: Description1.5/1.8 watt dip24 miniature & smd single output; File Size78KB，2 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/

Download Datasheet Compare View All

REC1.5-0505SRH1SMD Overview

1.5/1.8 watt dip24 miniature & smd single output

Preview

Download Datasheet

View All

Features

Regulated

Converters

●

1.5W/1.8W in Mini DIP and SMD Packages

1KVDC Isolation

Regulated Output

UL94V-0 Package Material

Continuous Short Circuit Protection

Internal SMD design

100% Burned In

Efficiency to 70%

ECONOLINE

DC/DC-Converter

REC1.5-

REC1.8-

SR/H1

Series

1.5/1.8 Watt

DIP24 minia-

ture

SMD

Single Output

Selection Guide

Part

Number

DIP24 miniature (/SMD)

REC1.5-xx3.3SR/H1

REC1.5-xx05SR/H1

REC1.5-xx09SR/H1

REC1.5-xx12SR/H1

REC1.5-xx15SR/H1

REC1.8-xx3.3SR/H1

REC1.8-xx05SR/H1

REC1.8-xx09SR/H1

REC1.8-xx12SR/H1

REC1.8-xx15SR/H1

Input

Voltage

(VDC)

5, 12, 24

Output

Voltage

(VDC)

3.3

Output

Current

(mA)

450

300

166

125

100

500

360

200

150

120

* add suffix "/SMD" for SMD package, e.g. REC1.5-0505SR/H1/SMD

* add suffix “/M“for Metal Case, e.g. REC1.5-0505SR/H1/M

Specifications

(Core Operating Area)

Input Voltage Range

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation (10% to 100% full load )

Output Ripple and Noise (at 20MHz BW)

Operating Frequency

Efficiency

No Load Power Consumption

Isolation Voltage

Rated Working Voltage

Isolation Capacitance

Isolation Resistance

Short Circuit Protection

Storage Temperature Range

Temperature Coefficient

Relative Humidity

Thermal Impedance

Package Weight

MTBF (+25°C)

(+80°C)

Natural convection

using MIL-HDBK 217F

July-2006

-40°C to +80°C (see Graph)

-50°C to +125°C

±0.02%/°C

95% RH

20°C/W for metal case

8.5g

Detailed information see

Application Notes chapter “MTBF”

±15% max

±3% max.

±0.4% max

±0.8% max.

100mVp-p max.

85kHz min.

65% min.

200mW max.

(tested for 1 second)

(long term isolation)

1000VDC min.

see Application Notes

20pF min. / 60pF max.

1 GΩ min.

Output Power (%)

100

Derating-Graph

(Ambient Temperature)

Continuous

Safe Operating Area

-40

50 80 100

150

Operating Temperature °C

}

1000 x 10

hours

150 x 10

hours

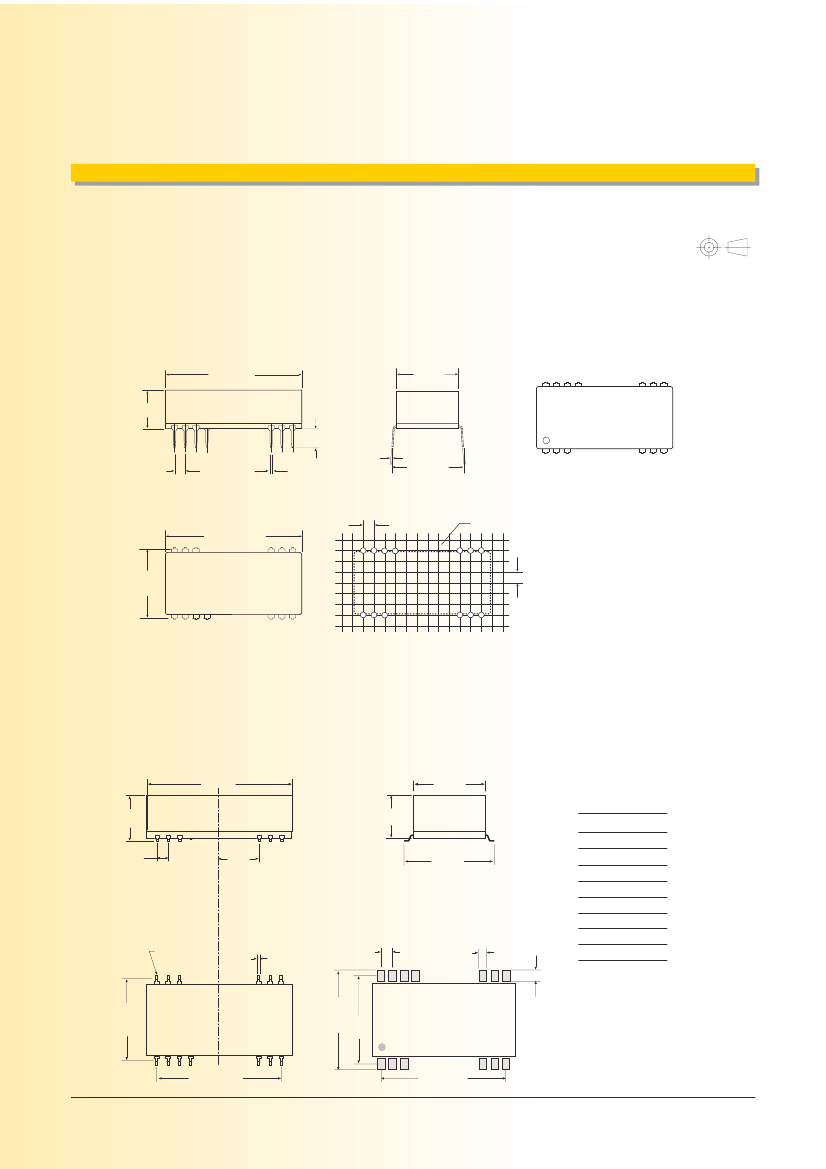

www.recom-international.com
