AT27283S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> AT27283S

AT27283S: DescriptionCAPACITOR, VARIABLE, SAPPHIRE, 500 V, 0.4 pF - 2.5 pF, VERTICAL ADJUSTER, SURFACE MOUNT; CategoryPassive components capacitor; File Size81KB，3 Pages; ManufacturerRakon Limited

Download Datasheet Parametric View All

AT27283S Overview

CAPACITOR, VARIABLE, SAPPHIRE, 500 V, 0.4 pF - 2.5 pF, VERTICAL ADJUSTER, SURFACE MOUNT

AT27283S Parametric

Parameter Name	Attribute value
Objectid	1482621268
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Regulator direction	VERTICAL
Maximum capacitance	2.5 pF
Minimum capacitance	0.4 pF
Capacitor type	VARIABLE CAPACITOR
dielectric materials	SAPPHIRE
Installation features	SURFACE MOUNT
multiple turns	1
Rated (DC) voltage (URdc)	500 V
surface mount	YES
Terminal shape	GULL WING

Preview

Download Datasheet

View All

TRIMMER CAPACITORS

Gigahertz trimmers

GIGAHERTZ TRIMMER CAPACITORS

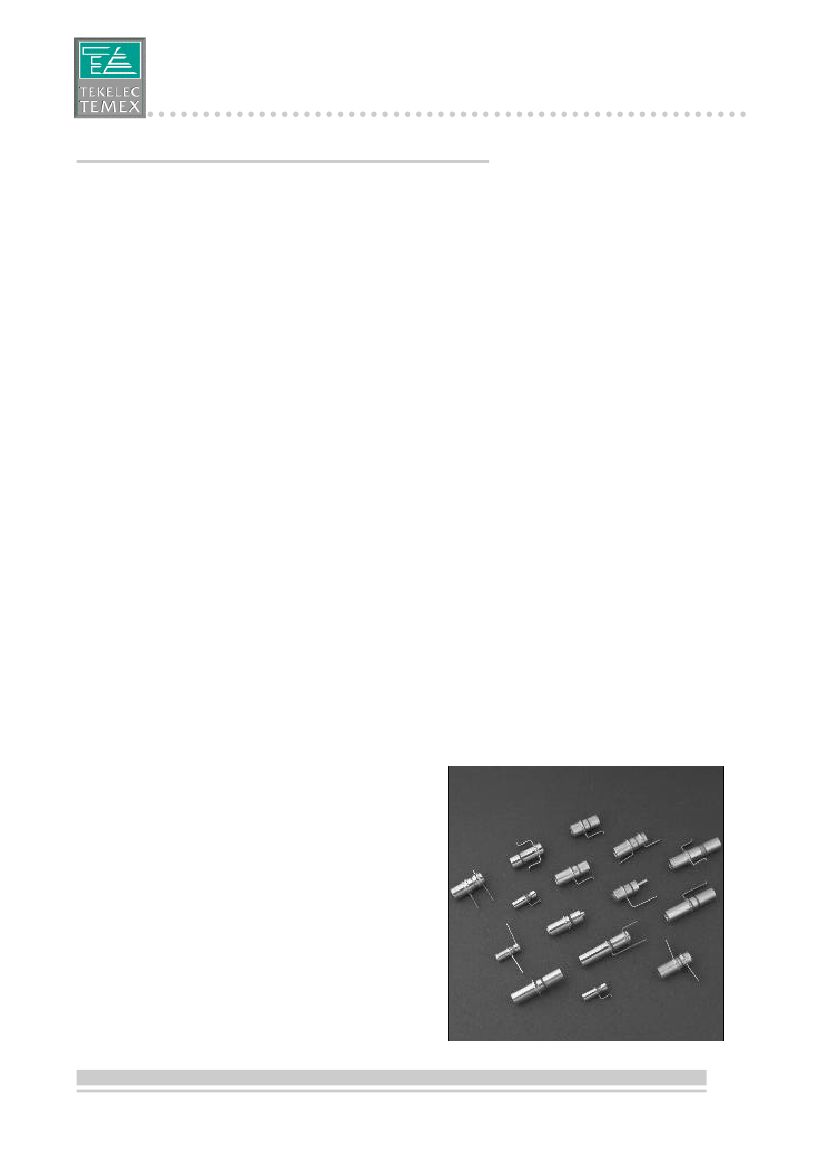

Description

•

Gigahertz trimmers

are tiny trimmer capacitors which provide a straight-forward technique for ﬁne

tuning RF and microwave circuits by eliminating time consuming methods of abrasive trimming, cut

and try adjustment techniques, and inter-change of ﬁxed capacitors.

• The design involved the need from a virtually indestructible miniature trimmer with superior electrical

characteristics.

• Gigahertz trimmers whistand the rigors of soldering heat, excessive tuning and rough handling. As a

result of the excellent dielectric and insulation properties of the sapphire housing, high breakdown

voltage is achieved. Incorporating the self-locking constant torque drive mechanism which eliminates

the need for external bushing slots, the new Gigahertz trimmers offer many improvements: a ﬁxed

length, increased Q, essentially zero tuning noise and reduced susceptibility to solder ﬂux intrusion

during installation.

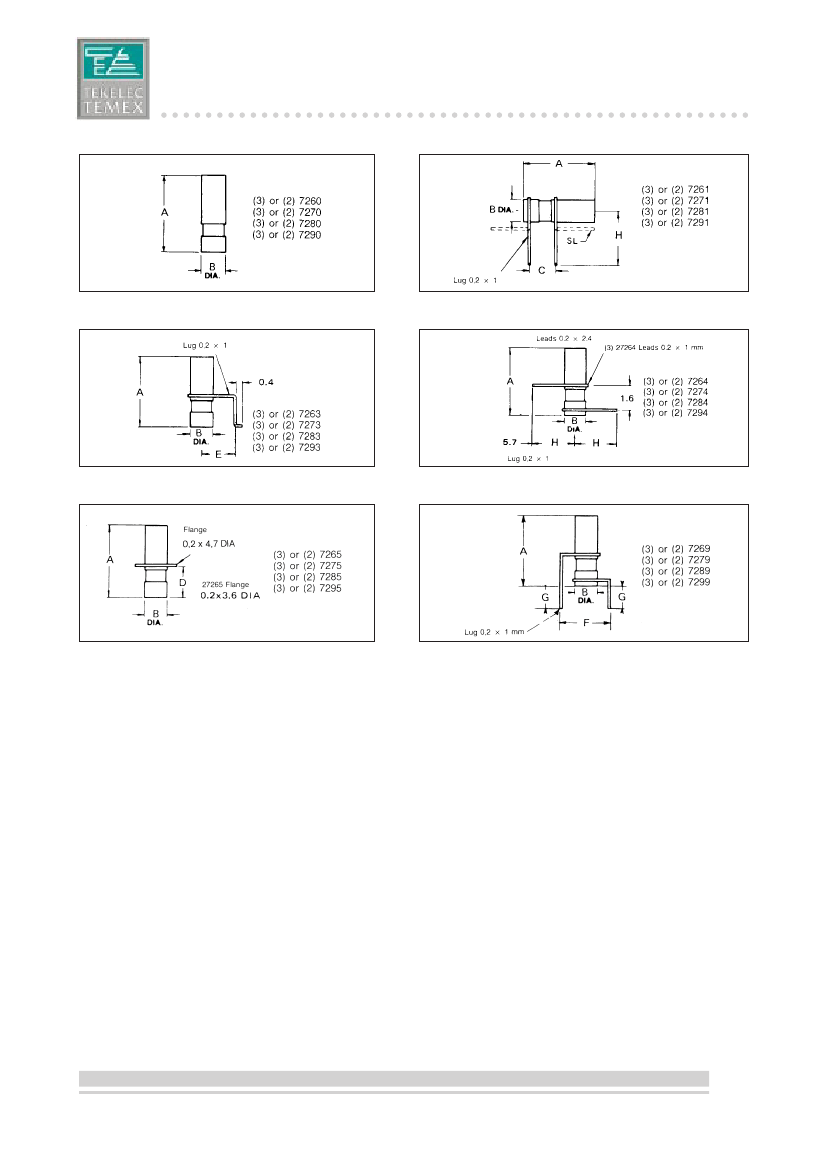

• A variety of mounting styles is available for vertical, printed circuit, panel, cavity and strip-line

applications.

• Gigahertz trimmers can be delivered with permanent sealing cap which resists intrusion of solder ﬂux

and cleaning agents and allows easy access to the tuning rotor.

Features

•

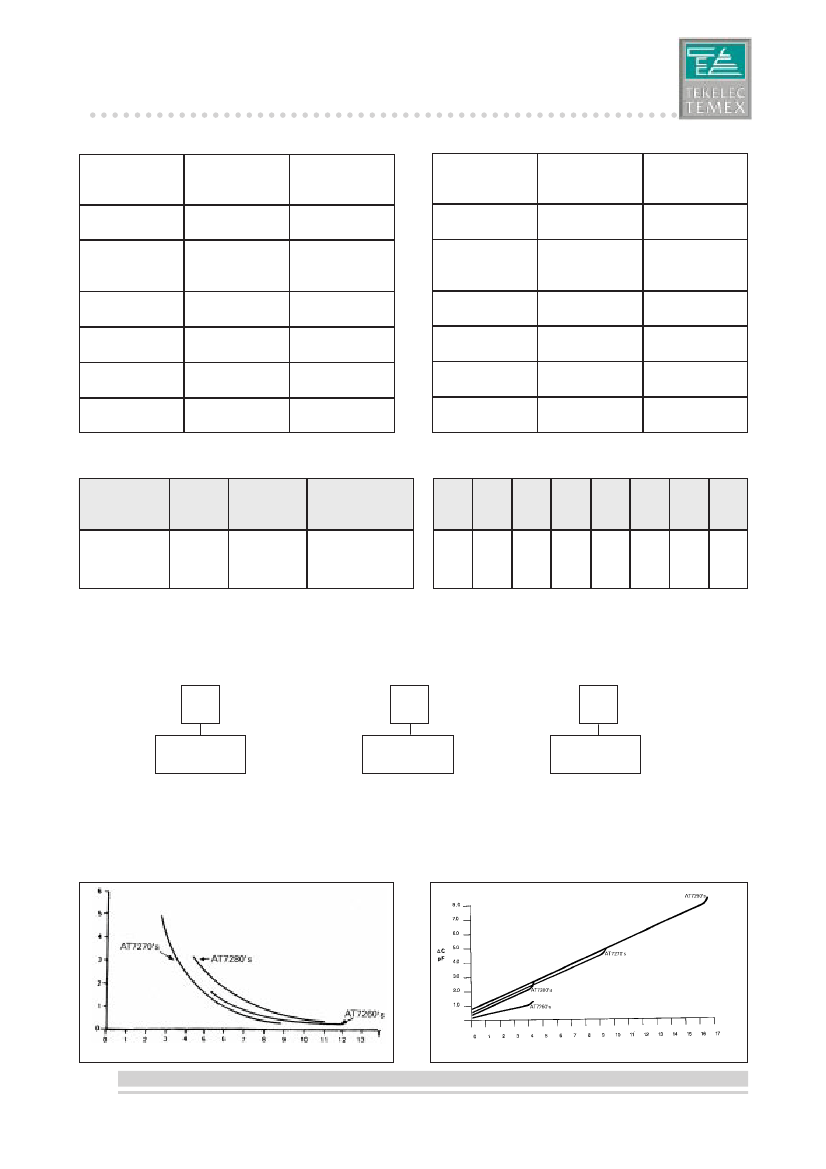

Very high Q

Excellent tuning stability and low dynamic noise

Two temperature coefficients available

Working voltage 500 VDC, test 1000 VDC

High ratio capacitance / volume

•

Removable or permanent sealing caps

Meets MIL-C-14 409

Meets ESA/SCC 3010

French military QPL

Non-magnetic version

Applications

•

Impedance matching

Crystal and resonator trimming

Interstage coupling

Gap trimming in microstrip

Filter tuning

Cavity tweaking

Ampliﬁer adjustment
