EB83-S0L1840X Overview

conn edgeboard dual 36pos 5A

EB83-S0L1840X Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Is SamacsysN
Board mount optionsPEG
body width0.34 inch
subject depth0.46 inch
body length3.66 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationNOT APPLICABLE
Contact completed and terminatedNOT APPLICABLE
Contact materialNOT APPLICABLE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
Durability500 Cycles
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.156 inch
Match contact row spacing0.2 inch
Installation option 1HOLE .125-.137
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.08 mm
Plating thickness10u inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.156 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts36
Base Number Matches1
EB8
www.vishay.com
Vishay Dale
Edgeboard Connectors, Dual Readout
FEATURES
• 0.156" C-C x 0.200" grid (3.96 mm x 5.08 mm)
• Greater design latitude
3 body materials: diallyl phthalate, phenolic and glass-filled
polyester
6 contact termination styles, 8 body sizes, 7 mounting
styles
• Bifurcated bellows contacts provide 2 flexing contact
surfaces to assure positive contact
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• Polarization between contact positions in all sizes
• Selective gold plating
ELECTRICAL SPECIFICATIONS
Current Rating:
5 A
Test Voltage Between Contacts:
At sea level: 1800 V
RMS
At 70 000 feet (21 336 meters): 450 V
RMS
Insulation Resistance:
5000 M minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current (with
gold plating)
Operating Temperature:
-55 °C to +125 °C
Humidity:
96 h at 90 % relative humidity at +40 °C, dried at
room temperature for 3 h minimum, insulation resistance
was greater than 5000 M
Durability:
(with gold plating) after 500 cycles of insertion
and withdrawal of a 0.070" (1.78 mm) thick steel test
gauge, contact resistance less than 0.030 V at 5 A and
individual contact retention force when measured with 0.054"
(1.37 mm) thick steel test slug greater than ½ oz.
Shock:
three 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
Vibration:
2 h in each of 3 mutually perpendicular planes,
frequency sweep 10 cps to 55 cps at 0.06 double amplitude
with no loss of continuity
APPLICATIONS
For use with 0.062" (1.57 mm) printed circuit boards requiring
an edgeboard type connector on 0.156" (3.96 mm) centers
MATERIAL SPECIFICATIONS
Body:
“1” glass-filled diallyl phtalate per MIL-M-14, type SDG-F
green, flame retardant (UL 94 V-0)
“2” glass-filled phenolic per MIL-M-14, type MFH dark green,
flame retardant (UL 94 V-0)
“3” thermoplastic polyester, glass-filled, black, flame
retardant (UL 94 V-0)
“5” thermoplastic polyphenylene sulfied, glass-filled, brown,
flame retardant (UL 94 V-0)
Contacts:
phosphor bronze
Polarizing Key:
glass reinforced nylon, flame retardant
(UL 94H-B)
Contact Plating:
gold (see Ordering Information)
PHYSICAL SPECIFICATIONS
Contact Type:
bifurcated bellows
Number of Contacts:
6, 10, 12, 15, 18, 22, 24, 25 per side
Contact Spacing:
0.156" (3.96 mm) center to center
Card Thickness:
0.054" to 0.071" (1.37 mm to 1.80 mm)
Card Slot Depth:
dual readout = 0.330" (8.38 mm)
Note
• High temperature burn-in, edgeboard connectors, 0.156"
(3.96 mm) center to center are on
www.vishay.com/doc?36006
ORDERING INFORMATION
EB8
MODEL
1
BODY MATERIAL
Optional body
material
1 = diallyl phthalate
2 = phenolic
3 = glass-filled
polyester
5 = glass-filled
polyphenylene
sulfied
A
STANDARD
TERMINAL
VARIATIONS
A, C, D,
K, L, or E
22
CONTACTS
PER SIDE
6, 10, 12,
15, 18, 22,
24 or 25
SG
CONTACT PLATING
SG = selective gold plating
(0.00003" (0.000762 mm) minimum
thick) on contact area with gold flash
on terminal
SGF = selective gold plating
(0.000010" (0.000254 mm)
minimum thick) on contact area with
gold flash on terminal.
All gold plating over 0.00005"
(0.00127 mm) minimum nickel
underplate.
Contact factory for additional plating
options.
X
MOUNTING
VARIATIONS
A
POLARIZING
KEY POSITIONS
Key(s) are located to
right of position(s)
designated. Required
only when polarizing
keys are to be factory
installed

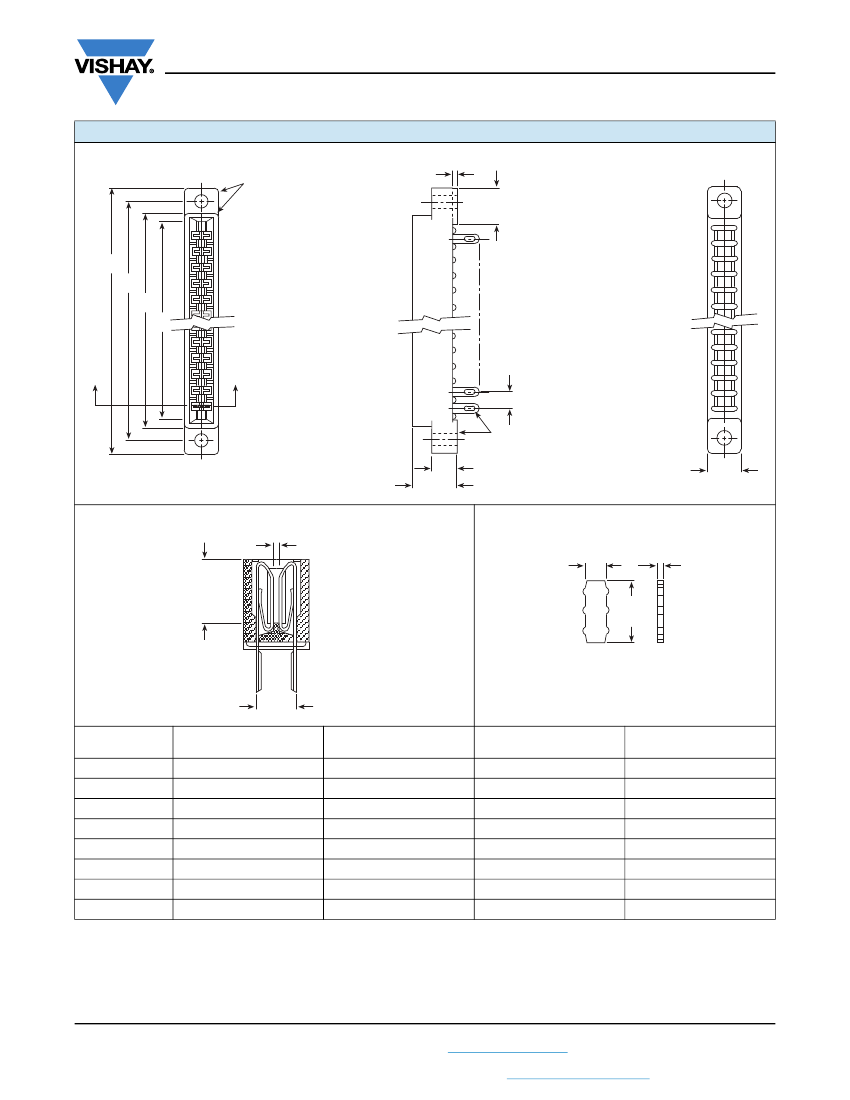

Revision: 19-Jul-2018
Document Number: 36005
1
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
