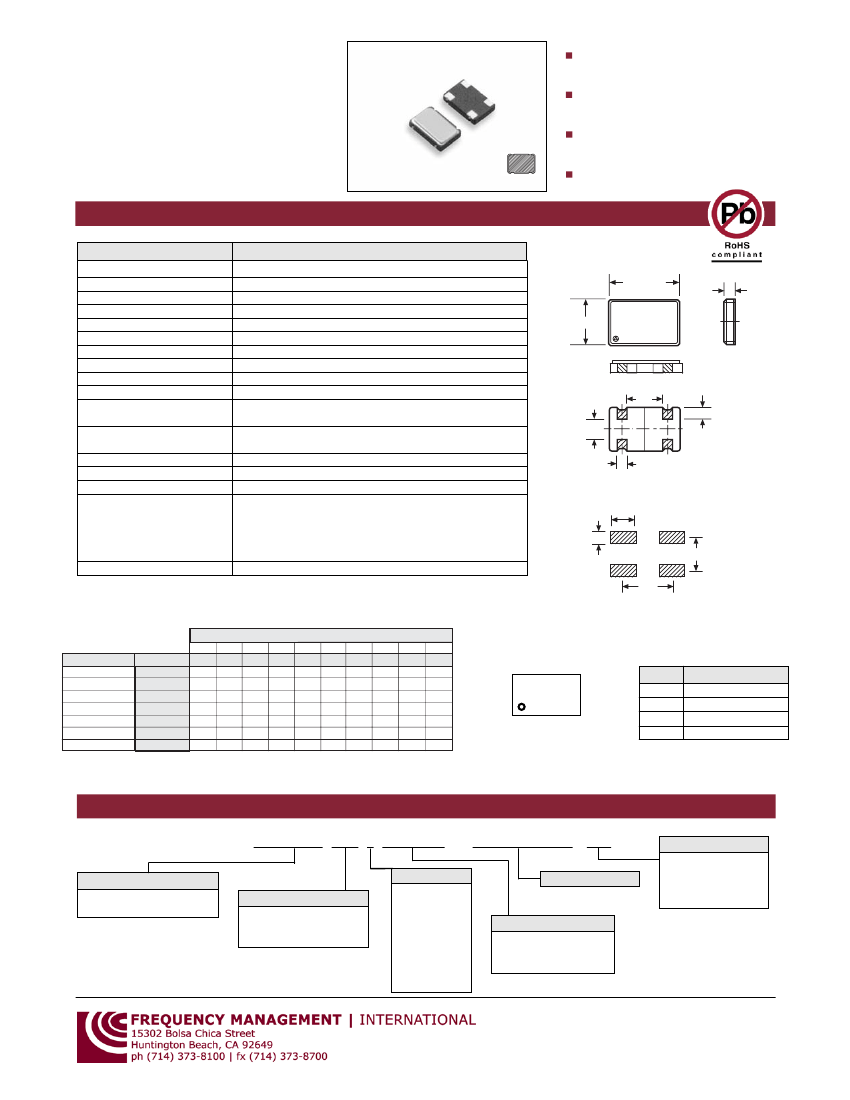

Prelim
FMTC5S3
SERIES
5.0 Vdc TCXO
Miniature, Low Profile
5.0 Vdc Supply Voltage
HCMOS / TTL Compatible
Clipped Sinewave
Actual Size
CERAMIC SMD 3.2x5
SPECIFICATIONS
09 - Issue 2 - 020309
Parameter
Frequency Range
Frequency Adjustment Range
Frequency Stability vs. Temp
Frequency Stability vs. Input V.
Frequency Stability vs. Load
Frequency Stability vs. Aging
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Symmetry (Duty Cycle)
Output “0” Level (V
OL
)
Output “1” Level (V
OH
)
Rise and Fall Time
Output Load
Jitter (typical)
Phase Noise (typical)
HCMOS/TTL Specification
10 - 26.0 MHz
None (Std.); ±3 ppm min. with MT Option
See Table; Standard, -30°C to +75°C
±0.5 ppm max.
±0.3 ppm max.
±1 ppm per year max.
-40 to +85°C
+5.0 Vdc (±0.25 Vdc)
20 mA max.
40/60% Std.
0.4 Vdc max. (TTL)
0.5 Vdc max. (HCMOS)
2.4 Vdc min. (TTL)
4.5 Vdc min. (HCMOS)
10 ns max. (5ns typical)
10 TTL / 15 pF HCMOS
< 10 pico seconds, one sigma
10 Hz
-75dBc/Hz
100 Hz
-110dBc/Hz
1kHz
-125dBc/Hz
10kHz
-130dBc/Hz
100kHz
-140dBc/Hz
±1 ppm max first year
CERAMIC SMD
5.0
±
0.2
1.0
MAX.
3.2
±
0.2
0.9
1
1.4
4
1.2
3
2.6
2
Recommended
Land Pattern
1.5
1.3
2.4
3.9
Aging @ 25°C
All specifications subject to change without notice.
FREQUENCY STABILITY vs. TEMPERATURE AVAILABLITY TABLE
Frequency Stability (±ppm)
1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 10.0 15.0
Temp. Range FM Code 015 020 025 030 035 040 045 050 100 150
0 to 50∞C
*
*
*
*
*
*
*
*
*
*
J
-10 to 60∞C
*
*
*
*
*
*
*
*
*
*
E
0 to 70∞C
*
*
*
*
*
*
*
*
*
A
-20 to 70∞C
*
*
*
*
*
*
*
*
B
-30 to 60∞C
*
*
*
*
*
*
*
F
-30 to 75∞C
*
*
*
*
*
*
S
-40 to 85∞C
*
*
*
*
*
C
* Denotes Availability
STANDARD MARKING
FMI XX.XX
XX.XXX FREQUENCY in MHz
PIN FUNCTION TABLE
Pin
1
2
3
4
Function
No Connect
Case Ground
Output
Supply Voltage (Vdd)
Standard Specifications for product indicated in
color
Dimensions: millimeters
PART DESCRIPTION SYSTEM
MARKING: See Page 52, Format A
Options
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMTC5S3 050 J SW / MT
-
XX.XXXXXXM
-
CM
Product Family
5.0 Vdc TCXO
Ceramic SMD
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
S -30 to 75 °C
X Custom
Frequency (MHz)
Frequency Stability
Choose FM Code from
Frequency Stability Table
(Code 050=5.0 ppm)
Specification Options
SW - Clipped Sinewave
MT - Mechanical Trim
BLANK- HCMOS/TTL
1-800-800-XTAL
[9825]
www.fmi-inc.com
40
