MFC-34CEC3

Description
Card Edge Connector, 34 Contact(s), 2 Row(s), 0.1 inch Pitch, Hole .125-.137,
CategoryThe connector    The connector
File Size158KB,2 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Download Datasheet Parametric View All

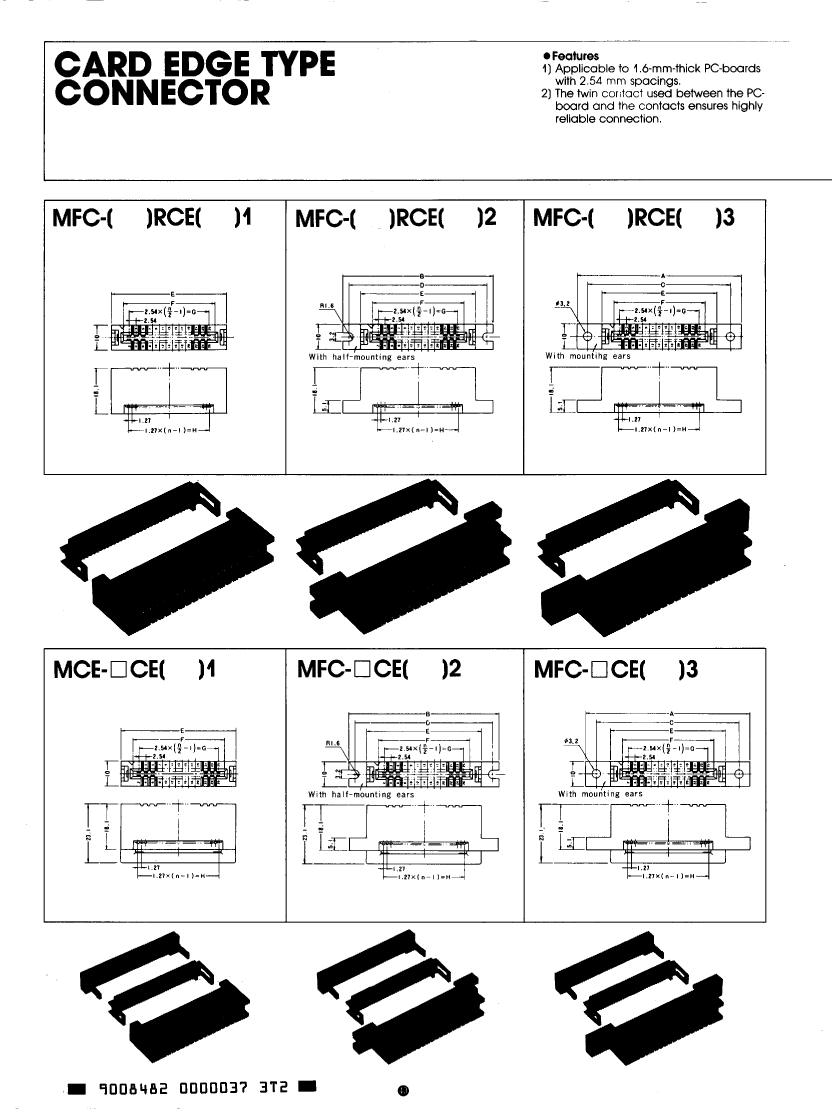

MFC-34CEC3 Overview

Card Edge Connector, 34 Contact(s), 2 Row(s), 0.1 inch Pitch, Hole .125-.137,

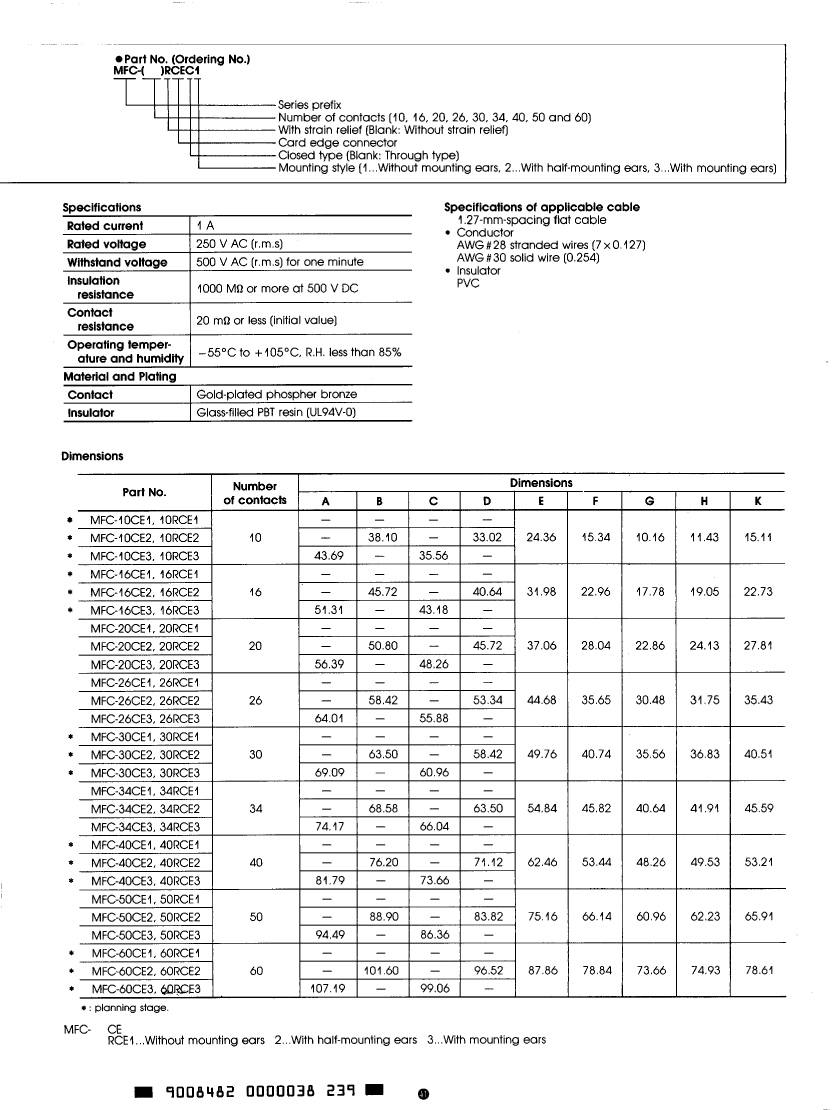

MFC-34CEC3 Parametric

Parameter NameAttribute value
Objectid301997399
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresWITH MOUNTING EARS&CLOSED
body width0.393 inch
subject depth0.909 inch
body length2.92 inch
Connector typeCARD EDGE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberMFC
Plug contact pitch0.1 inch
Installation option 1HOLE .125-.137
Installation option 2NON-THREADED
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Total number of contacts34
Maximum wire diameter28 AWG
Minimum wire diameter30 AWG
