LPS6235-563MQD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPS6235-563MQD

LPS6235-563MQD: DescriptionGeneral Purpose Inductor, 56uH, 20%, 1 Element, Ferrite-Core, SMD, 2424, CHIP, 2424, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size229KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

LPS6235-563MQD Overview

General Purpose Inductor, 56uH, 20%, 1 Element, Ferrite-Core, SMD, 2424, CHIP, 2424, HALOGEN FREE AND ROHS COMPLIANT

LPS6235-563MQD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1422713918
package instruction	2424
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	7.4
uppercase and lowercase codes	2424
structure	Shielded
core material	Ferrite
DC Resistance	0.28 Ω
Nominal inductance(L)	56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3.5 mm
Package length	6 mm
Package form	SMT
Package width	6 mm
method of packing	TR, Embossed Plastic, 13 Inch
Maximum rated current	1.07 A
Guideline	AEC-Q200
self resonant frequency	12 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

Document 587-1

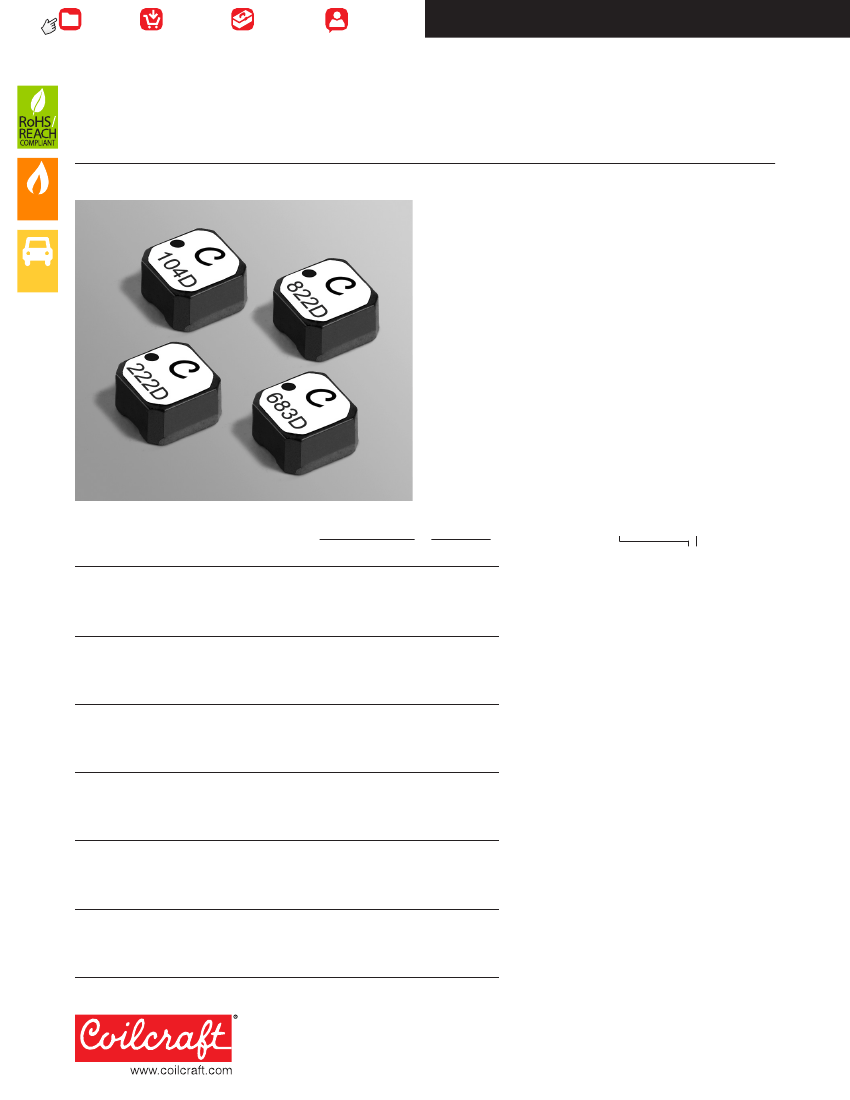

Shielded Power Inductors – LPS6235

Halogen

Free

• Low DCR; high current; shielded construction

• Perfect for backlight applications

Designer’s Kit C345

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See

www.coilcraft.com/coreloss

Environmental

RoHS compliant, halogen free

Terminations

RoHS compliant matte tin over nickel over silver.

Other terminations available at additional cost.

Weight

460 – 480 mg

Ambient temperature

–40°C to +85°C with (40°C rise)

Irms

current.

Maximum part temperature

+125°C (ambient + temp rise).

Derating.

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Packaging

350/7″ reel; 1500/13″ reel Plastic tape: 16 mm wide,

0.3 mm thick, 12 mm pocket spacing, 3.68 mm pocket depth

Recommended pick and place nozzle

OD: 6.2 mm; ID:

≤

3.1 mm

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Q200

85°C

AEC

Part number

Isat

(A)

DCR

SRF

Inductance

max

typ

10% 20% 30%

±20% (µH) (Ohms) (MHz) drop drop drop

0.075

0.095

0.100

0.110

0.125

0.140

0.145

0.180

0.245

0.280

0.345

0.315

0.375

0.435

0.535

0.820

1.20

1.60

2.00

2.20

2.70

3.40

4.60

5.42

6.70

9.50

14.5

16.4

21.4

24.5

29.5

10.8

10.0

9.0

8.3

7.3

5.6

4.4

3.6

3.1

2.8

2.5

2.2

1.9

1.7

1.5

1.1

0.94

0.86

0.80

0.70

0.61

2.6

2.5

2.3

1.9

1.7

1.6

1.3

1.1

1.0

0.90

0.46

0.44

0.37

0.31

0.26

0.22

0.20

0.17

0.16

0.14

0.12

0.11

0.090

0.080

0.070

0.060

0.057

0.052

0.050

2.7

2.6

2.4

2.2

2.0

1.8

1.7

1.4

1.2

1.0

0.94

0.52

0.48

0.43

0.36

0.29

0.25

0.22

0.19

0.18

0.17

0.13

0.12

0.11

0.090

0.077

0.070

0.065

0.060

0.055

2.8

2.7

2.5

2.3

2.0

1.9

1.7

1.5

1.2

1.1

0.96

0.55

0.54

0.51

0.45

0.37

0.30

0.26

0.23

0.21

0.19

0.18

0.14

0.13

0.11

0.10

0.084

0.080

0.069

0.067

0.060

Irms

(A)

20°C 40°C

rise rise

1.30

1.28

1.25

1.22

1.20

1.10

1.00

0.80

0.75

0.73

0.72

0.70

0.60

0.53

0.45

0.40

0.32

0.29

0.28

0.26

0.24

0.19

0.18

0.16

0.14

0.11

0.10

0.090

0.085

0.075

1.90

1.85

1.80

1.75

1.70

1.65

1.60

1.30

1.15

1.07

1.00

0.95

0.90

0.80

0.73

0.64

0.50

0.43

0.38

0.37

0.33

0.30

0.26

0.23

0.22

0.180

0.150

0.130

0.120

0.115

0.095

1. Please specify

termination

and

packaging

codes:

LPS6235-106MRC

Termination: R

= RoHS compliant matte tin over

nickel over silver.

Special order, added cost:

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481

embossed plastic tape (350 parts

per full reel). Quantities less than full

reel available: in tape (not machine

ready) or with leader and trailer ($25

charge).

= 13″ machine-ready reel. EIA-481

embossed plastic tape. Factory

order only, not stocked (1500 parts

per full reel).

= Less than full reel. In an effort to

simplify our part numbering system,

Coilcraft is eliminating the need for

multiple packaging codes. When

ordering, simply change the last let-

ter of your part number from B to C.

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an

Agilent/HP 4192A.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using Agilent/HP 8753ES or equivalent.

5. DC current at 25°C that causes the specified induc-

tance drop from its value without current.

Click for temperature derating information.

6. Current that causes the specified temperature rise from

25°C ambient. This information is for reference only and

does not represent absolute maximum ratings.

Click for temperature derating information.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components”

before soldering.

LPS6235-682MR_

6.8

LPS6235-822MR_

8.2

LPS6235-103MR_

10.0

LPS6235-123MR_

12.0

LPS6235-153MR_

15.0

LPS6235-183MR_

18.0

LPS6235-223MR_

22.0

LPS6235-333MR_

33.0

LPS6235-473MR_

47.0

LPS6235-563MR_

56.0

LPS6235-683MR_

68.0

LPS6235-823MR_

82.0

LPS6235-104MR_

100.0

LPS6235-124MR_

120.0

LPS6235-154MR_

150.0

LPS6235-224MR_

220.0

LPS6235-334MR_

330.0

LPS6235-474MR_

470.0

LPS6235-564MR_

560.0

LPS6235-684MR_

680.0

LPS6235-824MR_

820.0

LPS6235-105MR_ 1000.0

LPS6235-155MR_ 1500.0

LPS6235-185MR_ 1800.0

LPS6235-225MR_ 2200.0

LPS6235-335MR_ 3300.0

LPS6235-475MR_ 4700.0

LPS6235-565MR_ 5600.0

LPS6235-685MR_ 6800.0

LPS6235-825MR_ 8200.0

LPS6235-106MR_ 10000.0

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

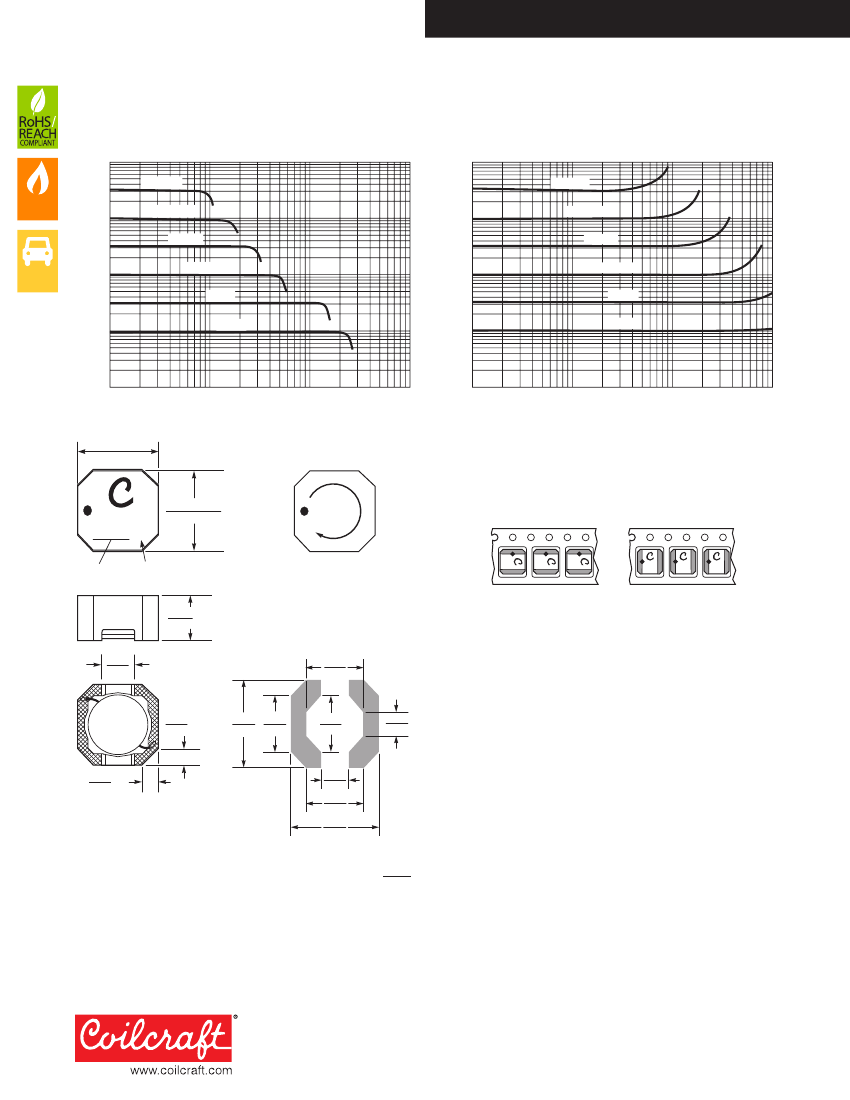

Document 587-1

Revised 11/29/21

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
