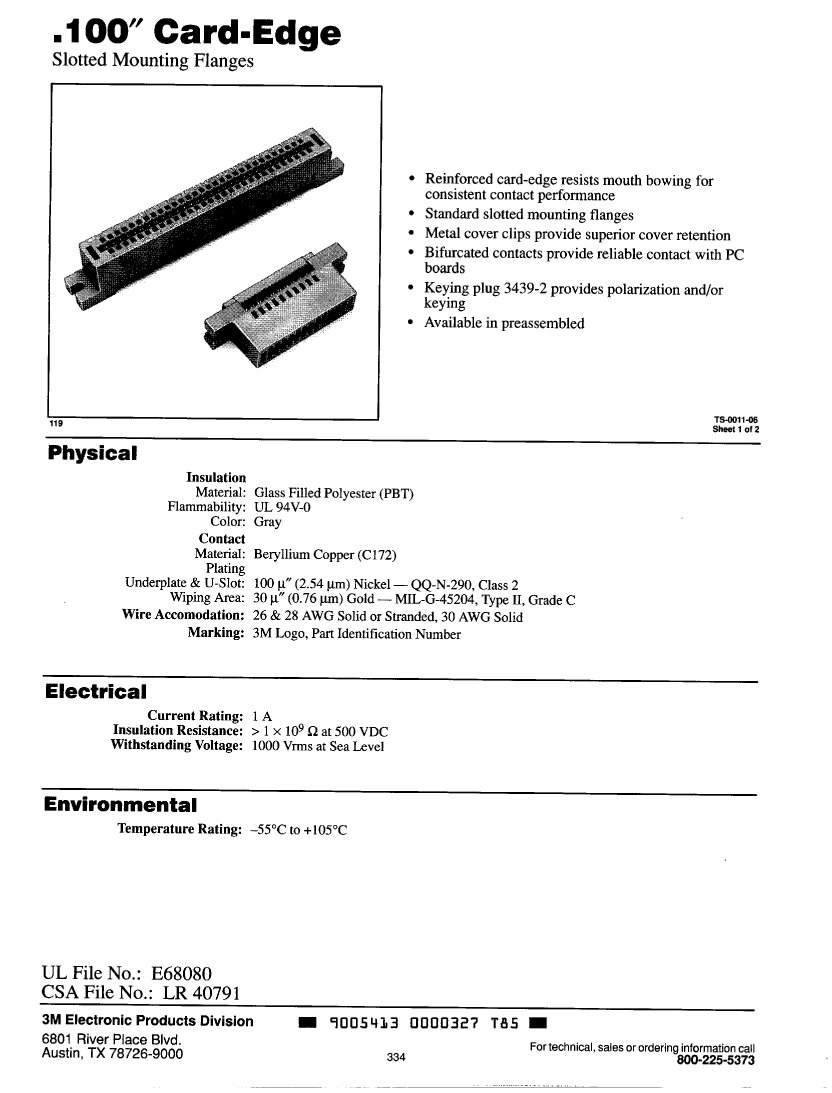

3415-0202 datasheet, PDF - EEWORLD Datasheet

3415-0202: DescriptionCard Edge Connector, 50 Contact(s), 2 Row(s), 0.1 inch Pitch, Gray Insulator; CategoryThe connector The connector; File Size149KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

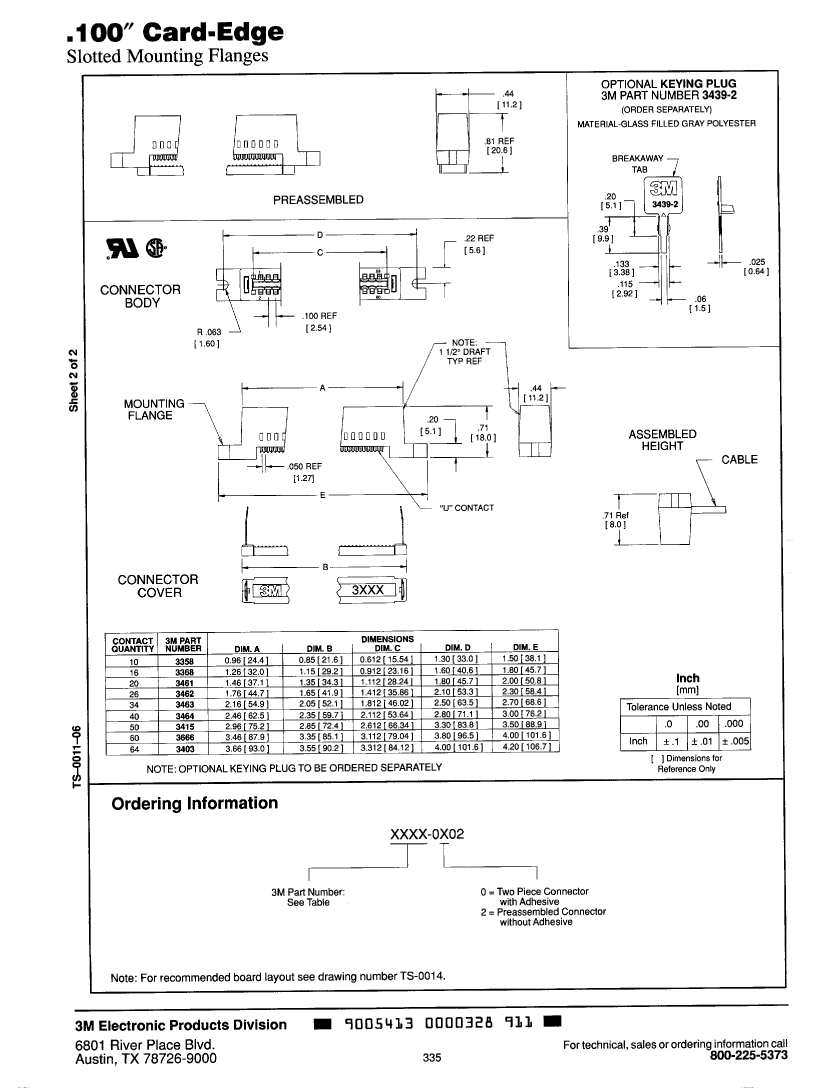

3415-0202 Overview

Card Edge Connector, 50 Contact(s), 2 Row(s), 0.1 inch Pitch, Gray Insulator

Parameter Name	Attribute value
Objectid	301998228
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	KEYING PLUG, OPT
Board mount options	MOUNTING FLANGE
body width	0.44 inch
subject depth	0.81 inch
body length	3.5 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3415
Plug contact pitch	0.1 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
Total number of contacts	50
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG
