CLOVER DISPLAY LTD.
LCD MODULE SPECIFICATION
Model: CV240160C - _ _ - _ _ - _ _ - _
Revision
Engineering
Date
Our Reference
01
Timmy Kwan
19 July 2010
4940
ADDRESS : ROOM 1006, 10/F WESTIN CENTRE, 26 HUNG TO ROAD, KWUN TONG,
KOWLOON, HONG KONG.
TEL
: (852) 2341 3238 (SALES OFFICE)
(852) 2342 8228 (GENERAL OFFICE)
FAX
: (852) 2357 4237 (SALES OFFICE)
(852) 2341 8785 (GENERAL OFFICE)
E-MAIL
URL
:
cdl@cloverdisplay.com
:
http://www.cloverdisplay.com
CLOVER DISPLAY LTD.
MODE OF DISPLAY
Display mode
STN :
□
Yellow green
□
Grey
□
Blue (negative)
□
FSTN positive
□
FSTN negative
Display condition
□
□
□
□
Reflective type
Transflective type
Transmissive type
Others
Viewing direction
□
□
□
□
6 O’ clock
12 O’ clock
3 O’ clock
9 O’ clock
CV240160C
LCD MODULE NUMBER NOTATION:
CV240160C- MY - S F - N 6 – T
|
(1)
| |
| |
| |
|
(2) (3) (4) (5) (6) (7)
-(8)
*(1)---Model number of standard LCD Modules
*(2)---Backlight type
N – No backlight
E – EL backlight
L – Side-lited LED backlight
M– Array LED backlight
C – CCFL
*(3)---Backlight color
N – No backlight
A – Amber
B – Blue
O– Orange
W–White
Y – Yellow green
*(4)---Display mode
T – TN
V – TN (Negative)
S – STN Yellow green
G – STN Grey
B – STN Blue (Negative)
F – FSTN
N – FSTN (Negative)
*(5)---Rear polarizer type
R – Reflective
F – Transflective
T – Transmissive
*(6)---Temperature range
N – Normal
W– Extended
*(7)---Viewing direction
6 – 6 O’clock
2 – 12 O’clock
3 – 3 O’clock
9 – 9 O’clock
*(8)---Special code for other requirements
(Can be omitted if not used)
T – Touch panel (Analog)
P – Touch panel (Digital)
SPEC. REV.01
PAGE
1 OF 24
CLOVER DISPLAY LTD.
GENERAL DESCRIPTION
Display mode
:
240 x 160 dots, graphic TAB LCD module
Interface
Driving method
Backlight
Controller IC
:
:
:
:
4 bit / 8 bit parallel
1/160 duty, 1/13 bias
Side-lited LED
RAIO RA8822 or equivalent
For the detailed information, please refer to the IC specifications.
CV240160C
MECHANICAL DIMENSIONS
Item
Outline Dimension
Viewing Area
Dot Pitch
Dot Size
Dimension
77.0 MAX.(L) x 54.2 MAX.(W) x 9.2 MAX.(H)
61.6(L)x42.5(W)
0.24(L)x0.24(W)
0.22(L)x0.22(W)
Unit
mm
mm
mm
mm
CONNECTOR PIN ASSIGNMENT
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
Symbol
RS
WR
RD
CS1
VLCD
VDD
VSS
VEE
DB0
DB1
DB2
DB3
Data bus
Function
Register select
Write signal
Read signal
Chip enable
Contrast adjustment for LCD
Supply voltage for logic
Ground
Supply voltage for LCD
Pin No.
13
14
15
16
17
18
19
20
21
22
23
24
Symbol
DB4
DB5
DB6
DB7
CS2
BSY
INT
RST
BL+
BL-
NC
NC
Chip enable
Busy signal
Interrupt signal
Reset
Supply voltage for backlight
Supply voltage for backlight (-VE)
No connection
No connection
Data bus
Function
SPEC. REV.01
PAGE
2 OF 24
CLOVER DISPLAY LTD.

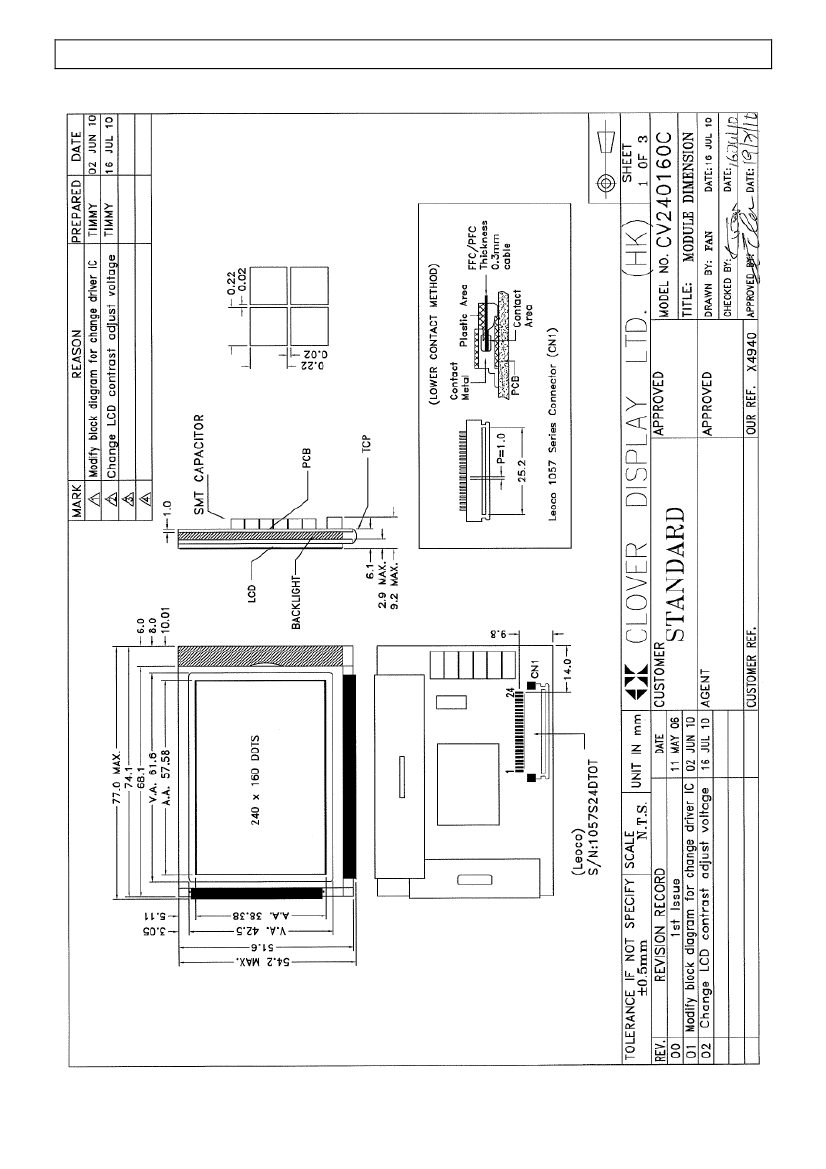

COUNTER DRAWING OF MODULE DIMENSION
CV240160C
SPEC. REV.01
PAGE
3 OF 24
CLOVER DISPLAY LTD.

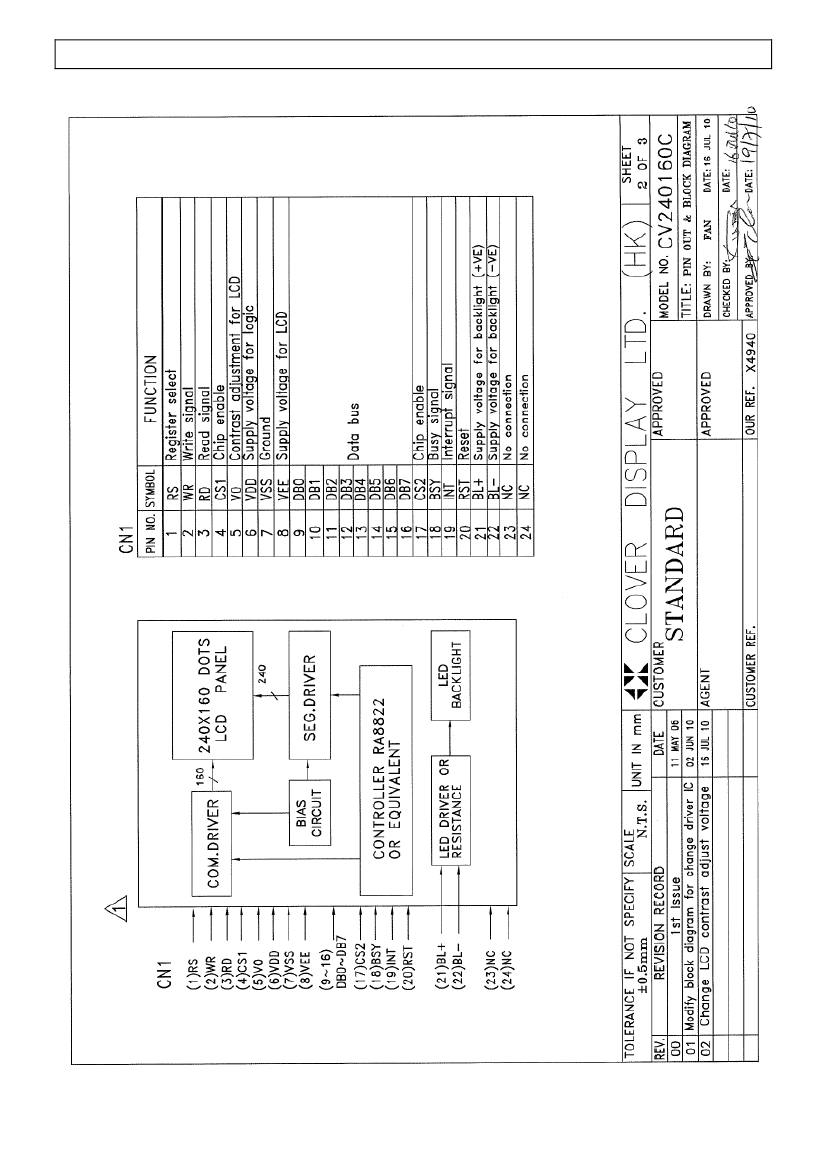

COUNTER DRAWING OF PIN OUT & BLOCK DIAGRAM
CV240160C
SPEC. REV.01
PAGE
4 OF 24
