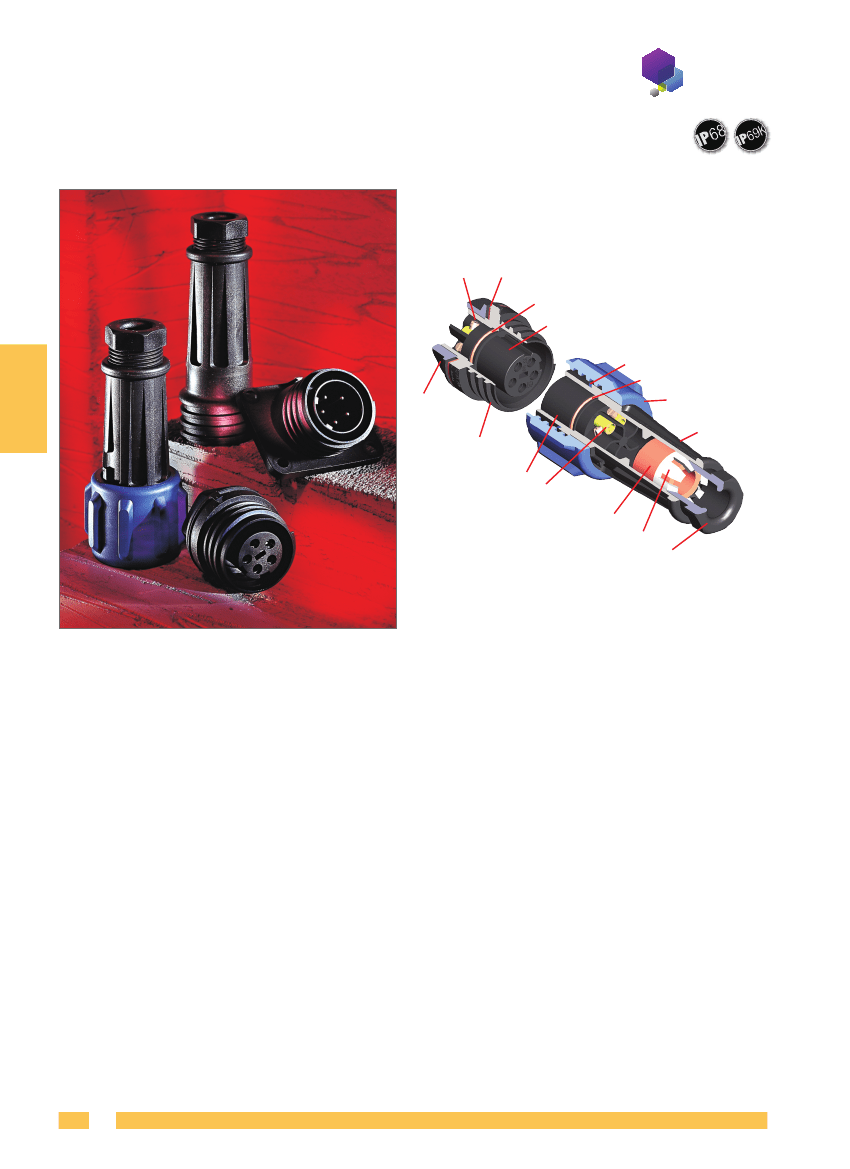

900 Series Buccaneer
®
Terminals
Sealing Gasket
O Ring
Contact Insert
BUCCANEER POWER
O Ring
O Ring
Retaining
Nut
Panel Body
Contact Insert
Terminals
Cable Gland
Gland Cage
Gland Nut
Locking Ring
Main Body
IP68 rating tested at 1.054kg/sq cm (15lb/sq in)
10m depth for 2 weeks
IP69K rating tested to DIN 40050-9
32A, 600V ac/dc rating
2, 3, 4, 5, 7 and 10 pole
Plug or socket connection in each body style
Water and dustproof to IP68 when mated
‘Scoop proof’ contacts
Field termination - screw terminations
Positive locating keyways - cannot be
mis-connected
Sealing caps available to maintain IP68 rating of
unmated connectors
Leading earth contact for 3, 4, 5 and 7 pole versions
Trailing Neutral on 5 pole
Compact design
Easy assembly - no special tools required
Single or 3 phase applications
Bulkhead moulding available for use with flange
mounting body for 45˚ or 90˚ mounting (order each
separately)
Cost effective solution
Cable accomodation 7-22mm O/D
Two cable connector versions for 15mm and 22mm
(maximum) cable diameters
Separate strain relief on large cable version
UL, CSA and VDE approvals
20
www.bulgin.com
bulgin
a brand of Elektron Technology
BUCCANEER FOR POWER
900 Series Buccaneer
®

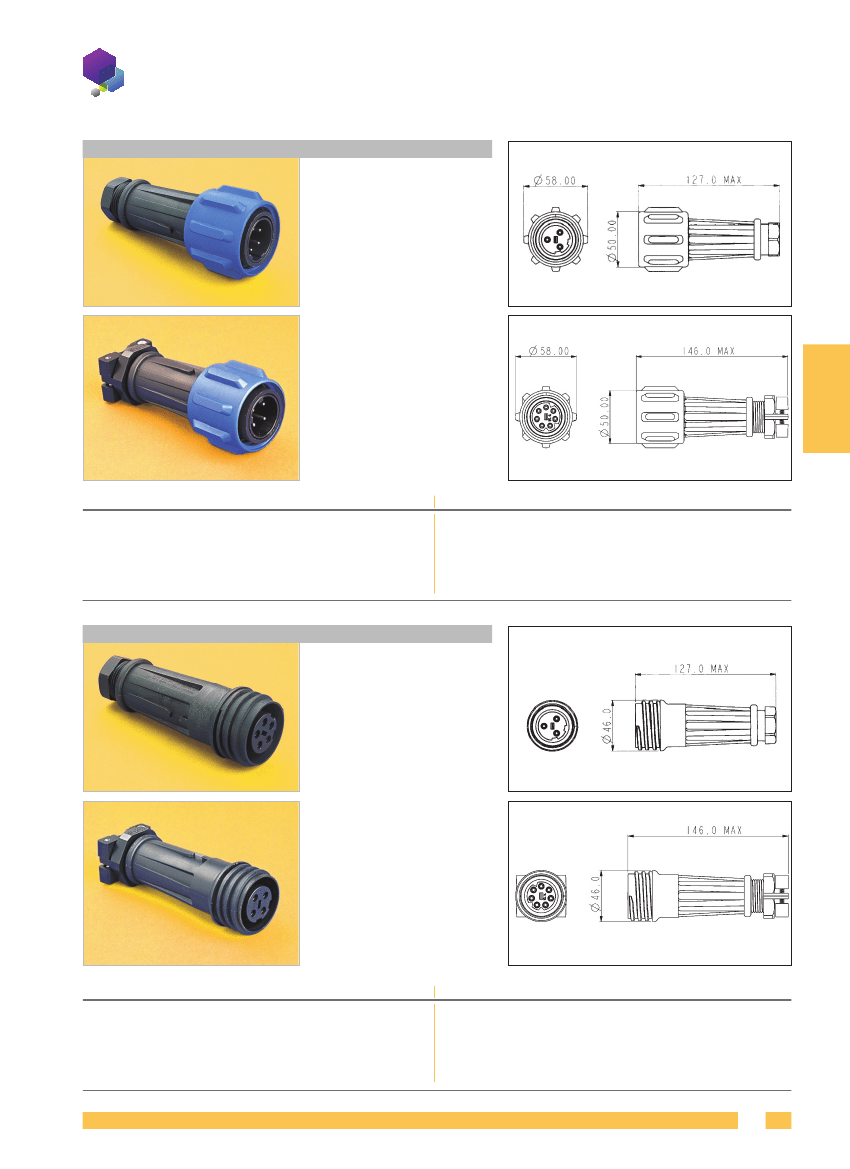

FLEX CABLE CONNECTOR
Mates with in-line flex or
panel mounting versions
Positive, fast acting locking
ring - can be turned with a
gloved hand
Plug or socket versions
PX0 Series13-15mm cable
dia. as standard, 7-13mm
with additional gland pack
PXA Series 20-22mm cable
dia. as standard, 14-20mm
with additional gland pack
Strain Relief Clamp
(PXA Series only)
PX0911
PXA911
Standard Cable
PX0911/02/P
PX0911/03/P
PX0911/04/P
PX0911/05/P
PX0911/07/P
PX0911/10/P
Large Cable
PXA911/02/P
PXA911/03/P
PXA911/04/P
PXA911/05/P
PXA911/07/P
PXA911/10/P
Description
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
Standard Cable
PX0911/02/S
PX0911/03/S
PX0911/04/S
PX0911/05/S
PX0911/07/S
PX0911/10/S
Large Cable
PXA911/02/S
PXA911/03/S
PXA911/04/S
PXA911/05/S
PXA911/07/S
PXA911/10/S
Description
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket
IN-LINE FLEX CABLE CONNECTOR
Mates with either PX0911 or
PXA911 connectors
Plug or socket versions
PX0 Series 13-15mm cable
dia. as standard, 7-13mm
with additional gland pack
PXA Series 20-22mm cable
dia. as standard, 14-20mm
with additional gland pack
Strain Relief Clamp
(PXA Series only)
PX0921
PXA921
Standard Cable
PX0921/02/P
PX0921/03/P
PX0921/04/P
PX0921/05/P
PX0921/07/P
PX0921/10/P
Large Cable
PXA921/02/P
PXA921/03/P
PXA921/04/P
PXA921/05/P
PXA921/07/P
PXA921/10/P
Description
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
Standard Cable
PX0921/02/S
PX0921/03/S
PX0921/04/S
PX0921/05/S
PX0921/07/S
PX0921/10/S
Large Cable
PXA921/02/S
PXA921/03/S
PXA921/04/S
PXA921/05/S
PXA921/07/S
PXA921/10/S
Description
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket
www.bulgin.com
21
BUCCANEER POWER
BUCCANEER FOR POWER
900 Series Buccaneer
®
PANEL MOUNTING CONNECTOR
Mates with PX0911 and
PXA911 connectors
Single hole fixing
Anti-rotation key
High grade sealing gasket
3-7mm panel thickness
PX0931
bulgin
a brand of Elektron Technology
Panel Mounting
BUCCANEER POWER
PX0931/02/P
PX0931/03/P
PX0931/04/P
PX0931/05/P
PX0931/07/P
PX0931/10/P
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
PX0931/02/S
PX0931/03/S
PX0931/04/S
PX0931/05/S
PX0931/07/S
PX0931/10/S
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket

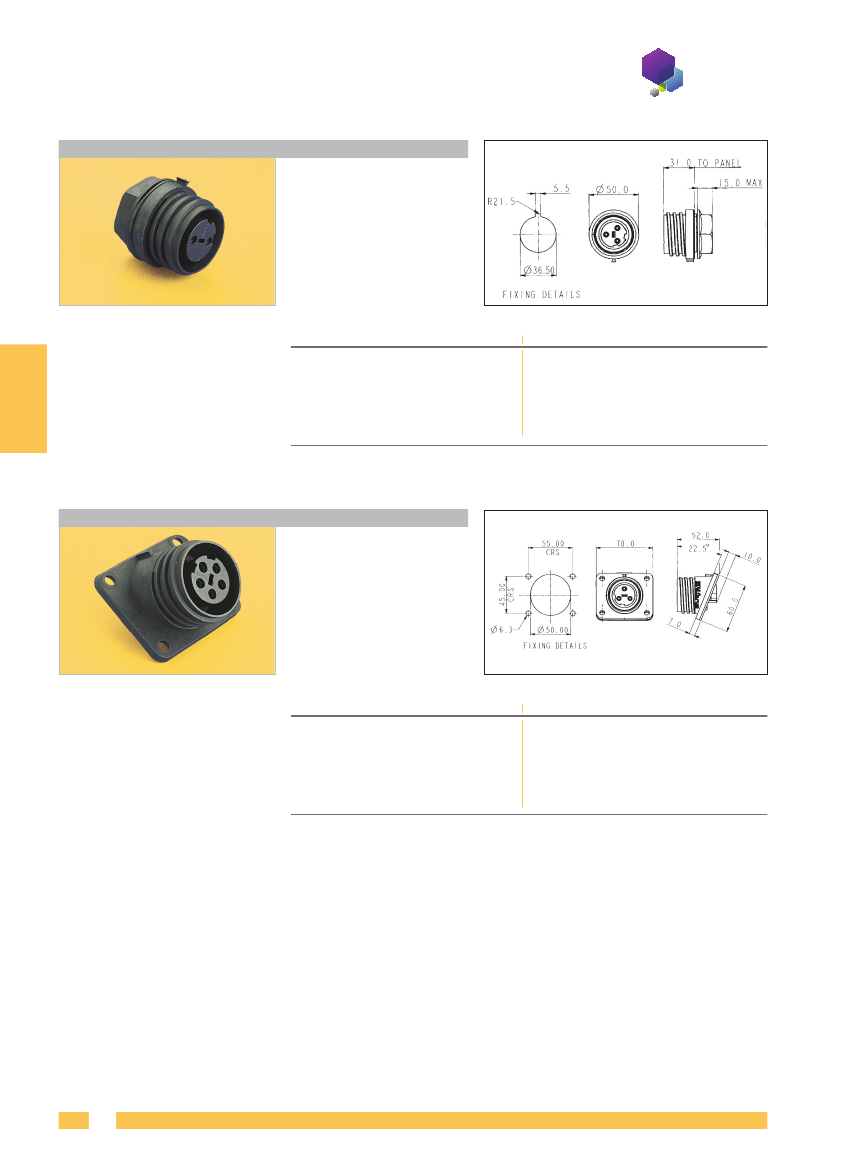

FLANGE MOUNTING CONNECTOR
Mates with PX0911 and
PXA911 connectors
Supplied with high grade
sealing gasket
Supplied with sealing
grommets for panel fixing
screws (M6 thread
recommended)
PX0941
Flange Mounting
PX0941/02/P
PX0941/03/P
PX0941/04/P
PX0941/05/P
PX0941/07/P
PX0941/10/P
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
PX0941/02/S
PX0941/03/S
PX0941/04/S
PX0941/05/S
PX0941/07/S
PX0941/10/S
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket
22
www.bulgin.com
bulgin
a brand of Elektron Technology
BUCCANEER FOR POWER
900 Series Buccaneer
®

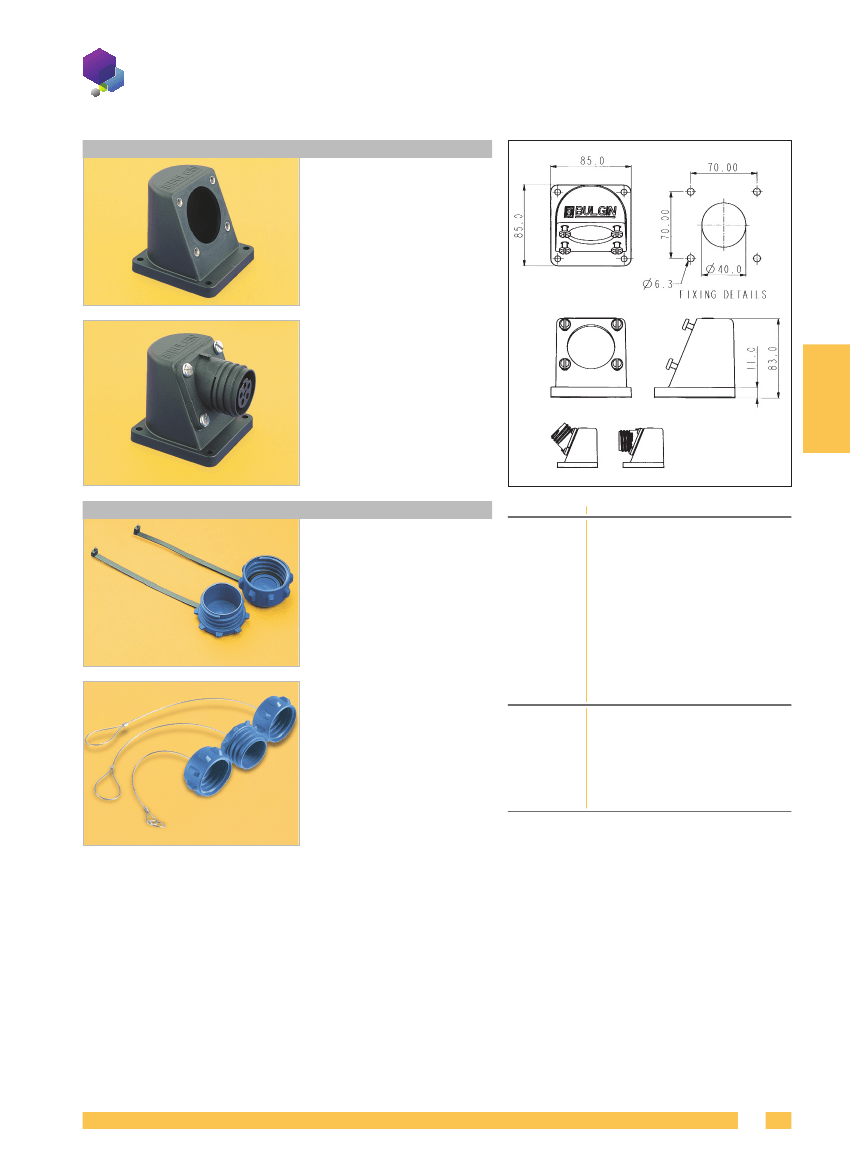

ADDITIONAL BULKHEAD ADAPTOR MOULDING
For use with flange mounting
connector PX0941, to give
45˚ or 90˚ angle
Supplied with high grade
sealing gasket
Supplied with sealing
grommets for panel fixing
screws (M6 thread
recommended)
PX0950
PX0950 & PX0941
ACCESSORIES
Sealing caps to maintain IP68
& IP69K rating of unmated
connectors, with plastic straps
Sealing Caps
PX0960
PX0970
PX0990
PX0991
PX0992
Sealing cap for use with PX0911/xx/x and
PXA911/xx/x
Sealing cap for use with all other styles
Heavy duty sealing cap for use with
PX0911/xx/x and PXA911/xx/x
Heavy duty sealing cap for use with
PX0921/xx/x and PXA921/xx/x
Heavy duty sealing cap for use with PX0931
and PX0941
PX0960, PX0970
Heavy duty sealing caps to
maintain IP68 & IP69K rating
of unmated connectors, with
stainless steel straps
Gland Packs
PX0980
Pack of 3 additional cable glands for
PX0911 and PX0921 to suit cable sizes;
11-13mm, 9-11 and 7-9mm dia.
Pack of 3 additional cable glands for
PXA911 and PXA921 to suit cable sizes;
18-20mm, 16-18 and 14-16mm dia.
PXA980
PX0990, PX0991, PX0992
www.bulgin.com
23
BUCCANEER POWER
BUCCANEER FOR POWER
900 Series Buccaneer
®

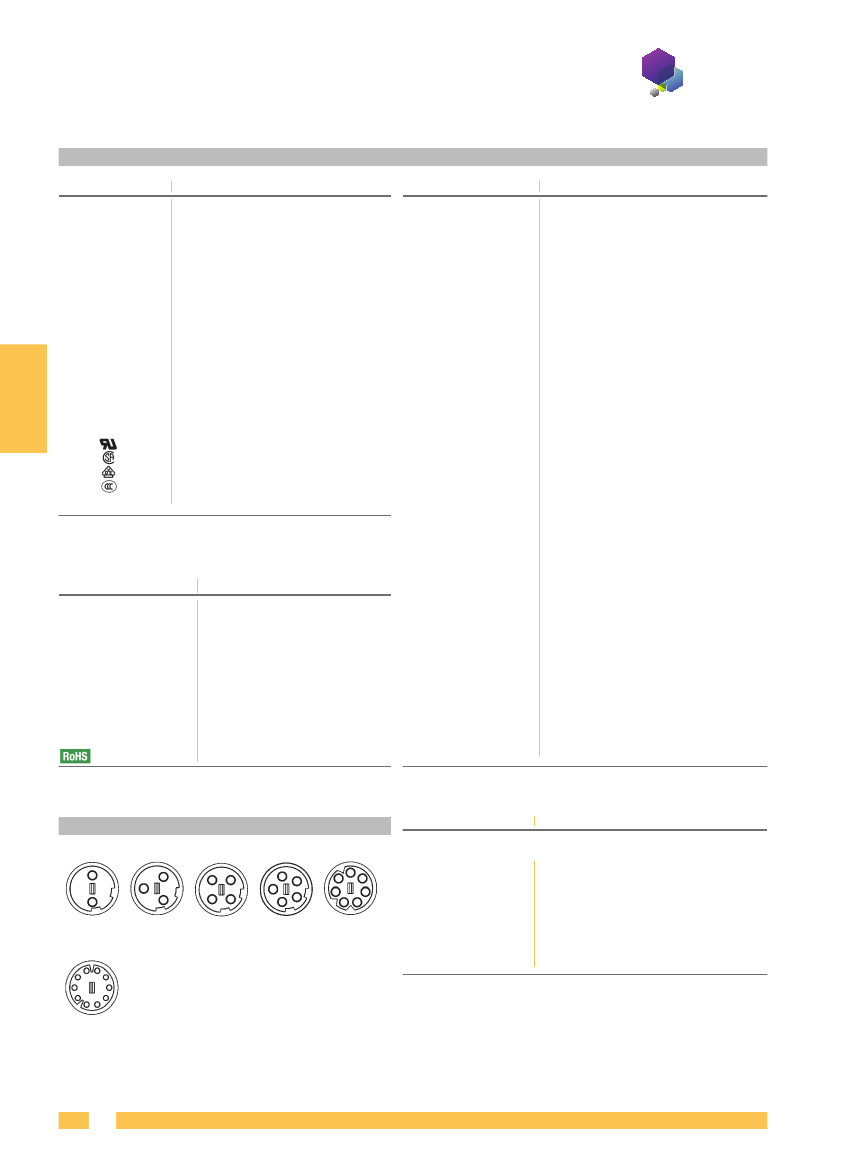

SPECIFICATION
Electrical:
No Poles:
Current Rating:
Voltage Rating:
Contact Resistance:
Insulation Resistance:
2, 3
4, 5
7
10
†
Mechanical:
Sealing:
bulgin
a brand of Elektron Technology
32A
32A
32A
10A
30A, CSA 25A, CSA 25A, CSA*
600V ac/dc 600V ac/dc 430V ac/dc 250V ac/dc
<10m (initial)
>10
6
M (@ 500V dc)
2.2kV ac min
6kV
–40°C to +85°C
Termination:
Contact Accommodation:
Cable Acceptance:
IP68, EN60529 :1992 tested @
1.054kg/sq.cm. (15lb/sq.in.) 10m depth for
2 weeks
IP69K, DIN 40050-9
PX0911-PX0921 13 - 15mm O/D standard,
7-13mm with gland pack
PXA911-PXA921 20 - 22mm O/D standard,
14 - 20mm with gland pack
2-7 pole - 2.5 to 4mm
2
(13 to10AWG)
conductor, single or multi stranded
10 pole - 0.75 to 2mm
2
(14 to 18AWG)
conductor, single or multi stranded
Axial screw terminals
22mm dia, 150N
15mm dia, 150N
7mm dia, 80N
BUCCANEER POWER
Dielectric strength:
AC Breakdown voltage:
Operating
Temperature Range:
Approvals:
UL
CSA
VDE
CCC
E214972
1211899
40003148
2011020203500396 – 10 Amp Rated
2011020203500396 – 32 Amp Rated
*with 75ºC min. rated cable
†
approvals pending for 10 Pole version
Cable Retention force:
Material:
Body Mouldings:
Flammability Rating:
UV Resistance:
Contacts:
O Rings:
Panel Sealing Gasket:
Polyamide
UL94V-0
To EN50021: 1999
Machined Solid Brass, Nickel plated
Nitrile
Silicone Rubber
Compliant
Gland Nut Torques:
PX0 range
13-15mm (Yellow - std.)
11-13mm (black)
9-11mm (white)
7-9mm (dark grey)
PXA range
20-22mm (Yellow - std.)
18-20mm (black)
16-18mm (white)
14-16mm (dark grey)
Tightening Torques:
Panel mount nut
Flange & Bulkhead
fixing screws
Inserts into Bodies
Term screws - 2 to 5 poles
Term screws - 7 pole
Term screws - 10 pole
Rear thread PX0931 series
3.16Nm
3.16Nm
3.16Nm
3.16Nm
3.16Nm
3.16Nm
3.16Nm
3.16Nm
(28
(28
(28
(28
(28
(28
(28
(28
lbf.in.)
lbf.in.)
lbf.in.)
lbf.in.)
lbf.in.)
lbf.in.)
lbf.in.)
lbf.in.)
2.25Nm (20 lbf.in.)
0.9Nm (8 lbf.in.)
1.13Nm (10 lbf.in.) to 1.36Nm (12 lbf.in.)
1.0Nm (9 lbf.in.) max
0.4Nm (3.5 lbf.in.) max
0.25Nm (2.2 lbf.in.) max
M36 x 2-6g
CONTACT LAYOUT
Dimensions:
Overall dimensions of connectors when mated together
PX0911 + PX0921
PXA911 + PXA921
PX0911 + PX0931
PXA911 + PX0931
230 mm max.
270 mm max.
135 mm max. (to panel)
175 mm max. (to panel)
145 mm max. (to panel, mid point on flange)
174 mm max. (to panel, mid point on flange)
2 pole
3 pole
4 pole
5 pole
7 pole
PX0911 + PX0941
PXA911 + PX0941
10 pole
24
www.bulgin.com
