EN3® SERIES WEATHERTIGHT CONNEC TORS
NEW PRODUCT BULLETIN 602
Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA.
EN3® SERIES WEATHERTIGHT CONNEC TORS
NEW PRODUCT BULLETIN 602

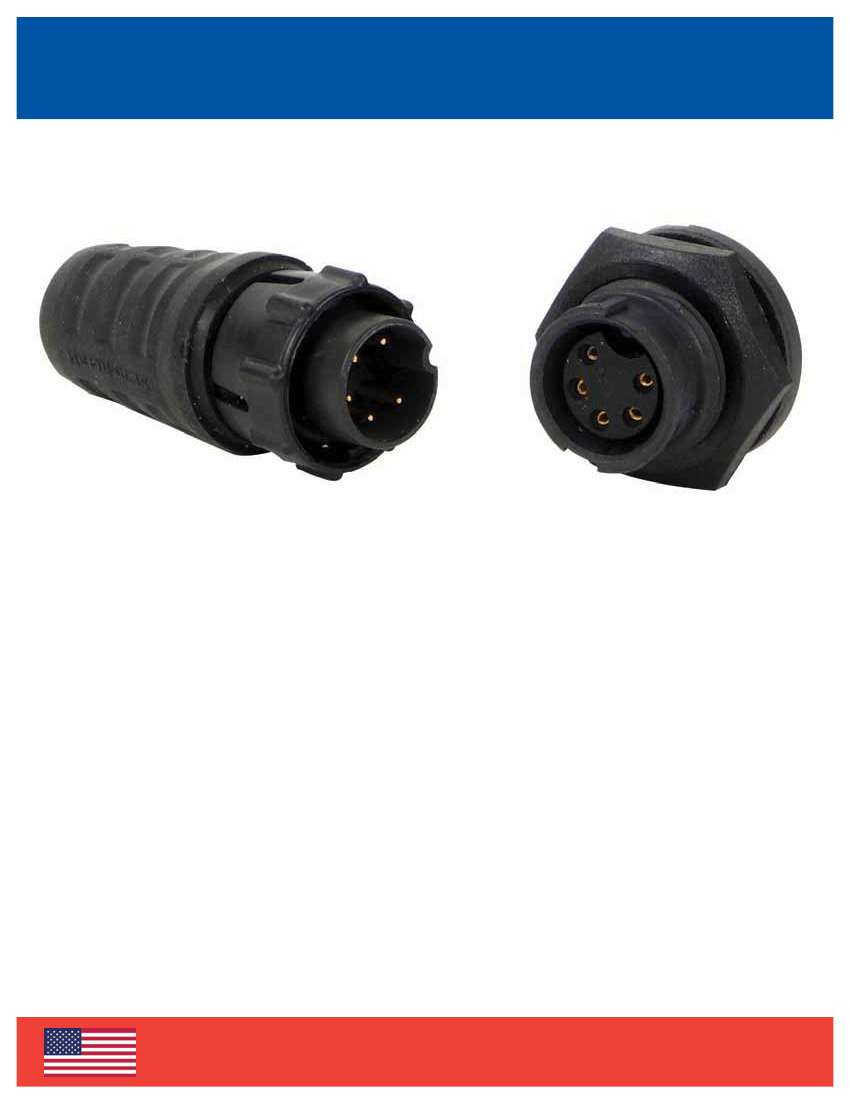

FEATURES & BENEFITS
• Sealed to IP68 NEMA 250 (6P)
• Patented grommet & o-ring free design
• Available in ribbed or
winged coupling ring
• Cable, panel & cable to cable options
• Gold plated contacts standard
• Solder, crimp & PC contact options
• Straight & right angle PC contact
panel connectors
APPLICATIONS
• Any sealed data transmission
• Military or industrial
GPS location devices
• Instrumentation
• Medical data carts
• Marine Applications
• Transportation
• General industrial
electronic applications
Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA.
EN3® SERIES WEATHERTIGHT CONNEC TORS
NEW PRODUCT BULLETIN 602
S p e c i f i c at i o n S
MECHANICAL SPECIFICATIONS
Life:
Vibration:
Shock:
Hex Nut Torque:
Coupling Locking Style
Back Shell Style:
Minimum 600 insertion / withdrawal cycles
Mil-Std 202 Method 201
Mil-Std 202 Method 213B, condition K
All series hex nut to withstand 8-10 in-lb tightening torque.
Bayonet with ribbed coupling nut (winged coupling nut optional)
Boot
ELECTRICAL SPECIFICATIONS
Voltage Rating:
Current Rating:
Insulation Resistance:
Contact Resistance:
250 V AC/DC
13.0 A – 2 or 3 #16 contacts accepts 16 through 18 AWG
7.5 A – 2 through 6 #20 contacts accepts 20 through 22 AWG
6.5 A – 7 or 8 #20 contacts accepts 20 through 22 AWG
3 A – 9 through 18 #26 contacts accepts 26 through 28 AWG
100 MΩ min
20 mΩ max
-40ºC to +65ºC (-40ºF to +149°F)
Mil-Std 202 Method 106F
Mil-Std 202 Method 302 condition B
Mil-Std 202 Method 107G
Mil-Std 202 Method 101D condition B
IEC 60529 IP16/IP18
IEC 60529 IP66/IP68
IEC 60529 IP68
NEMA 250 (6P)
CFR 46 Part 110.20
ENvIRONMENTAL SPECIFICATIONS
Operating Temperature Rating:
Moisture Resistance:
Insulation Resistance:
Thermal Shock:
Salt Atmosphere (Corrosion):
Weathertight:
MATERIAL SPECIFICATIONS
Panel connector shells & locking disk: Thermoplastic UL94V-0
Connector shell interior:
Elastomeric, Black UL 94HB
Contacts:
Copper Alloy, Gold over Nickel Plate
MOLdEd CABLE ASSEMBLIES
Weathertight:
IEC 60529 IP66/IP68
IEC 60529 IP68
NEMA 250 (6P)
CFR 46 Part 110.20
UL File E319753 ; 2-8 pin cord, in-line and panel only
CERTIFICATIONS
Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA.
EN3® SERIES WEATHERTIGHT CONNEC TORS
NEW PRODUCT BULLETIN 602
coRD connec toRS
c aBLe to c aBLe connec toRS
en3® RiGHt anGLe 2-8 poSition MoLDeD connec toRS
Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA.
EN3® SERIES WEATHERTIGHT CONNEC TORS
NEW PRODUCT BULLETIN 602
paneL connec toRS
EN3 SERIES 2-8 POSITION
STANDARD SOLDER CUP
ALL POSITIONS FACE RADICALLY OUTWARD
EN3P8MX SHOWN
EN3 SERIES 9-18 POSITION
STANDARD SOLDER CUP
ALL POSITIONS FACE UPWARD
EN3P18M26X SHOWN
OPTION “C”
EN3 SERIES 2-8 POSITION
CRIMP TERMINALS
EN3P2MCX SHOWN
OPTION “S”
EN3 SERIES 9-18 POSITION ONLY
STANDARD SOLDER CUP
EN3P18M26SX SHOWN
OPTION “C”
EN3 SERIES 9-18 POSITION
CRIMP TERMINALS
EN3P2M26CX SHOWN
OPTION “P”
EN3 SERIES 2-8 POSITION
PC TERMINALS
EN3P2MPX SHOWN
OPTION “P”
EN3 SERIES 9-18 POSITION
PC TERMINALS
EN3P9M26PX SHOWN

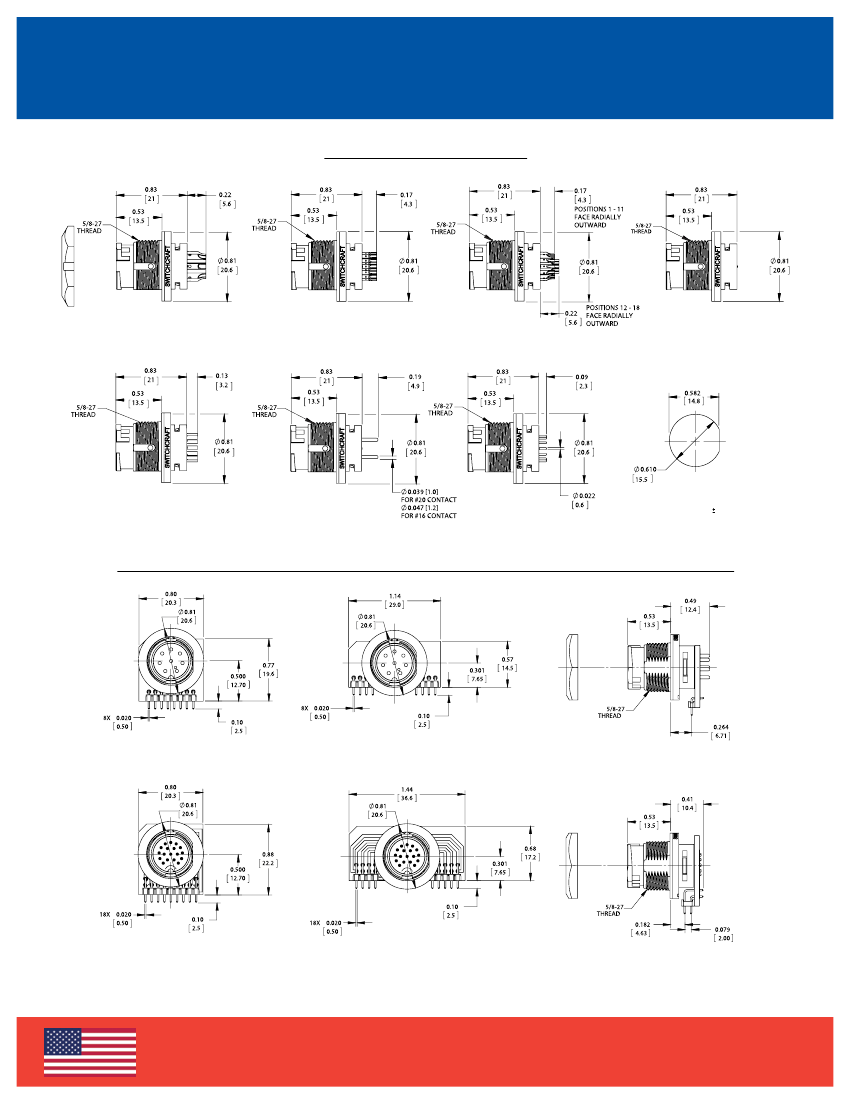

RECOMMENDED PANEL CUT-OUT
0.188 MAX PANEL THICKNESS 0.003”[0.08MM]
MOUNTING NUT
8-10 INCH-LBS MAX TORQUE

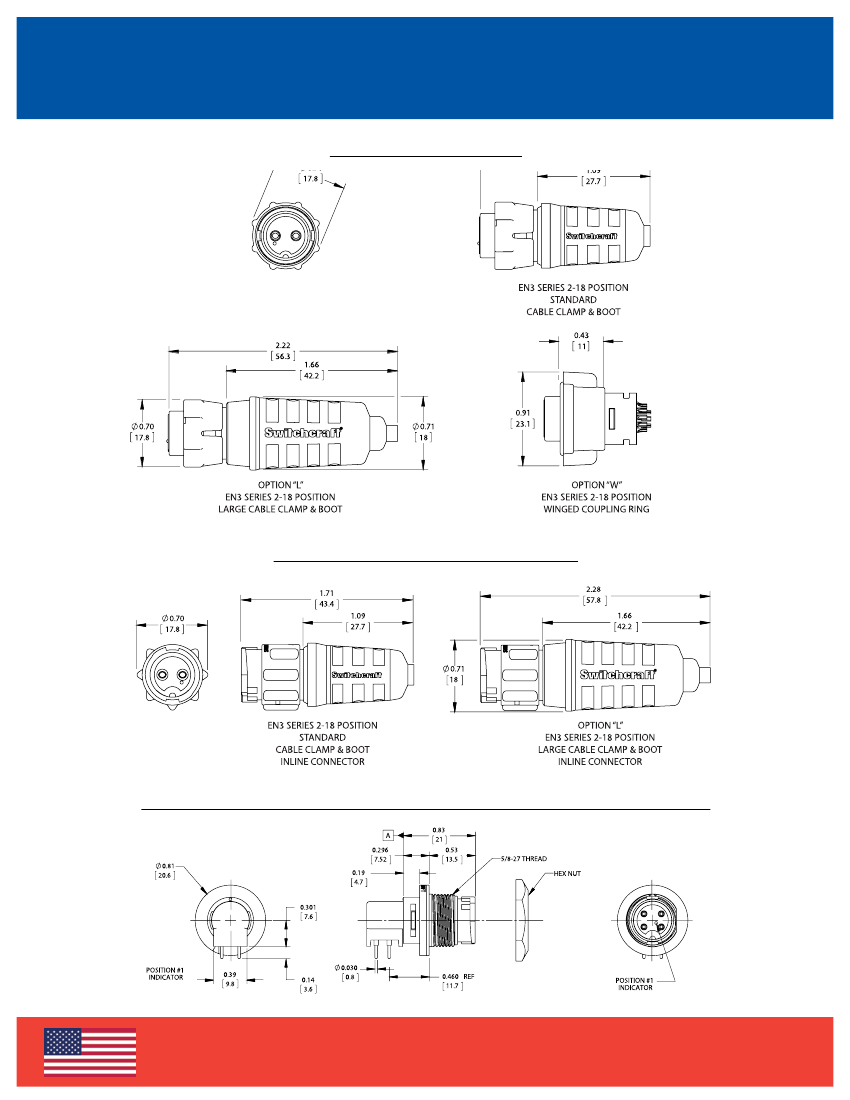

RiGHt anGLe pc BoaRDS 2-18 contac t paneL connec toRS
OPTION “N”
EN3 SERIES 2-8 POSITION
NARROW PCB
EN3P8MRAPCBN SHOWN
(NOT AVAILABLE IN FEMALE 7 & 8 POSITION)
OPTION “W”
EN3 SERIES 2-8 POSITION
WIDE PCB
EN3P8MRAPCBW SHOWN
(NOT AVAILABLE IN FEMALE 7 & 8 POSITION)
OPTION “N”
EN3 SERIES 9-18 POSITION
NARROW PCB
EN3P18MRAPCBN SHOWN
OPTION “W”
EN3 SERIES 9-18 POSITION
WIDE PCB
EN3P18MRAPCBW SHOWN
Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA.
