5962-9090102MKX datasheet, PDF

5962-9090102MKX: DescriptionRegistered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CERPACK-24; Categorylogic logic; File Size193KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

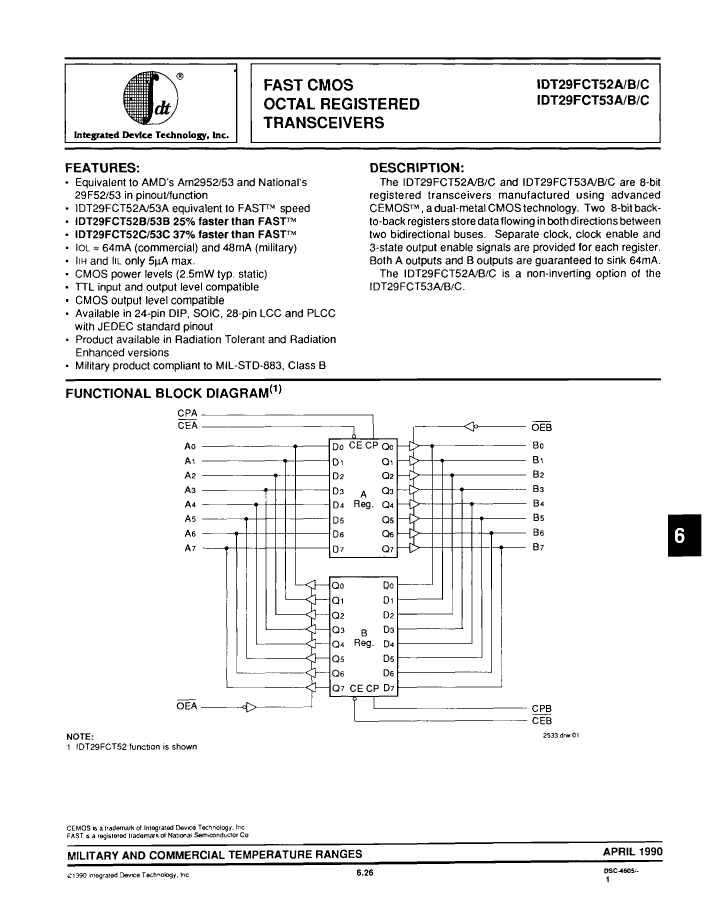

5962-9090102MKX Overview

Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CERPACK-24

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,

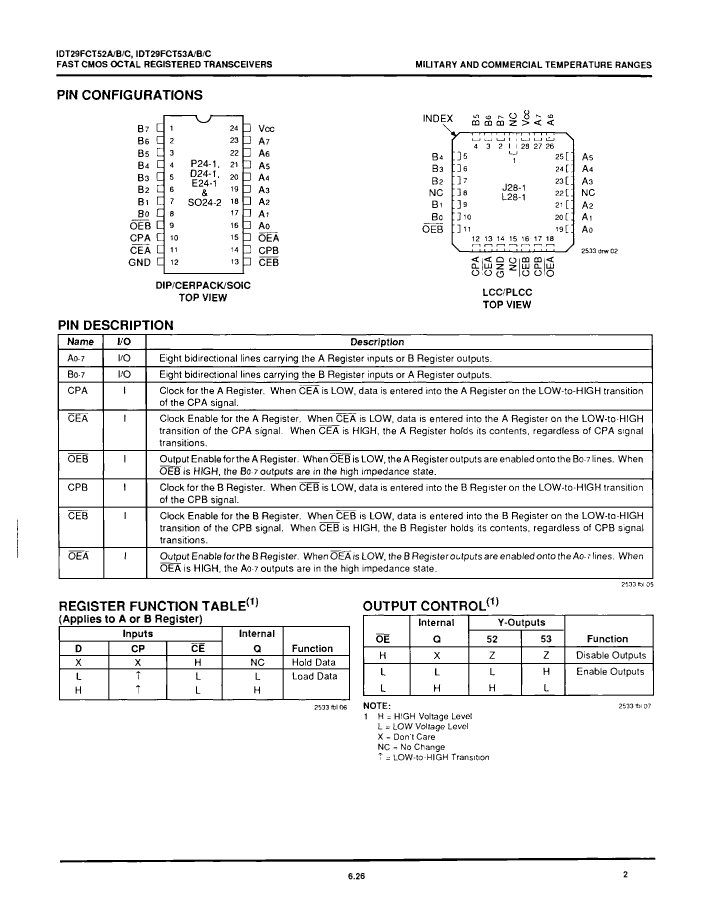

Contacts	24
Reach Compliance Code	unknow
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE
series	FCT
JESD-609 code	e0
length	15.748 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2

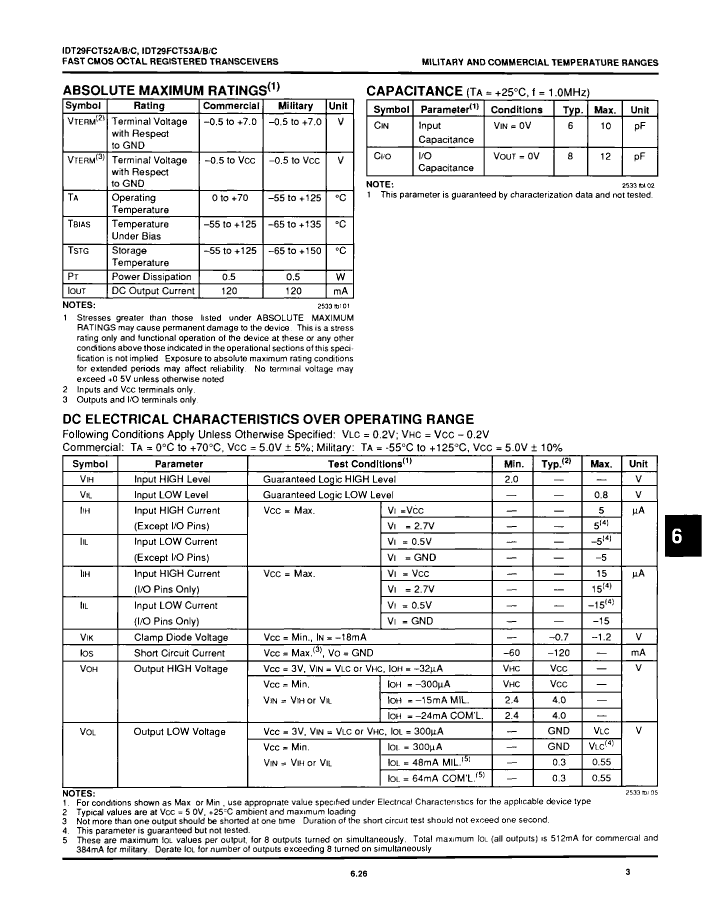

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package form	FLATPACK

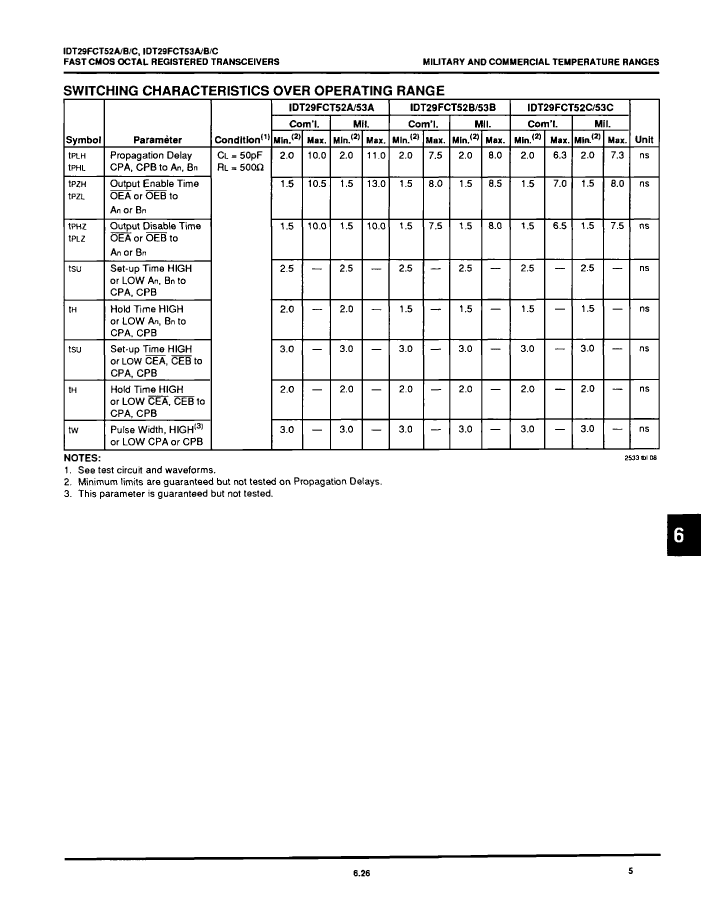

propagation delay (tpd)	8 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.286 mm

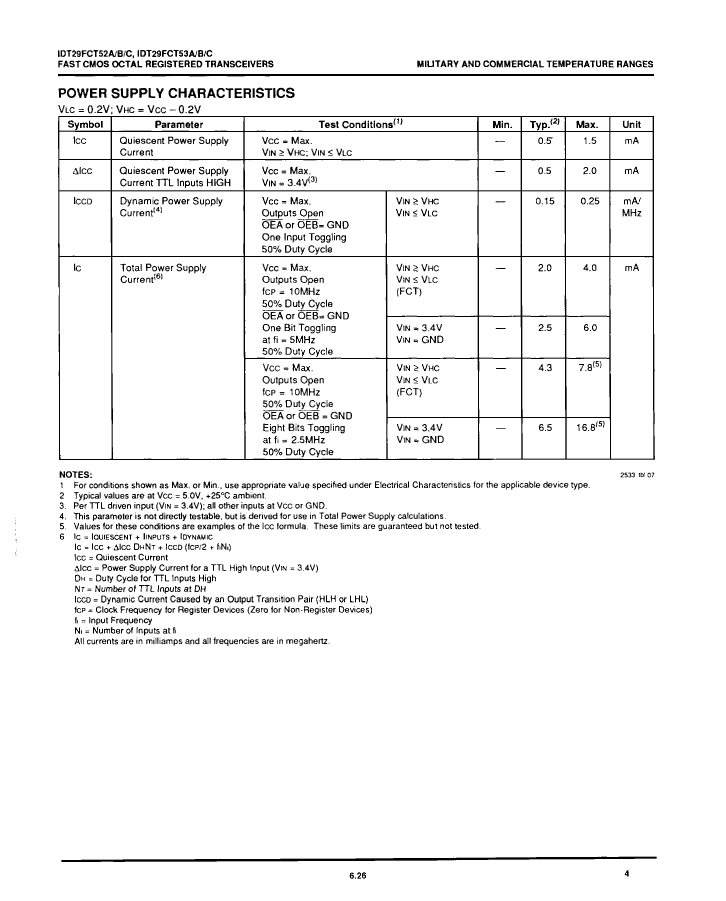

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	9.144 mm
Base Number Matches	1
