DS1-316-2AR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> DS1-316-2AR

DS1-316-2AR: DescriptionIC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size30KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

DS1-316-2AR Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

DS1-316-2AR Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	.01uF CAPACITOR
body width	0.4 inch
subject depth	0.165 inch
body length	0.8 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Dielectric withstand voltage	1000VAC V
Shell material	EPOXY
Insulation resistance	5000000000 Ω
Manufacturer's serial number	DS
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	85 °C
Minimum operating temperature	10 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

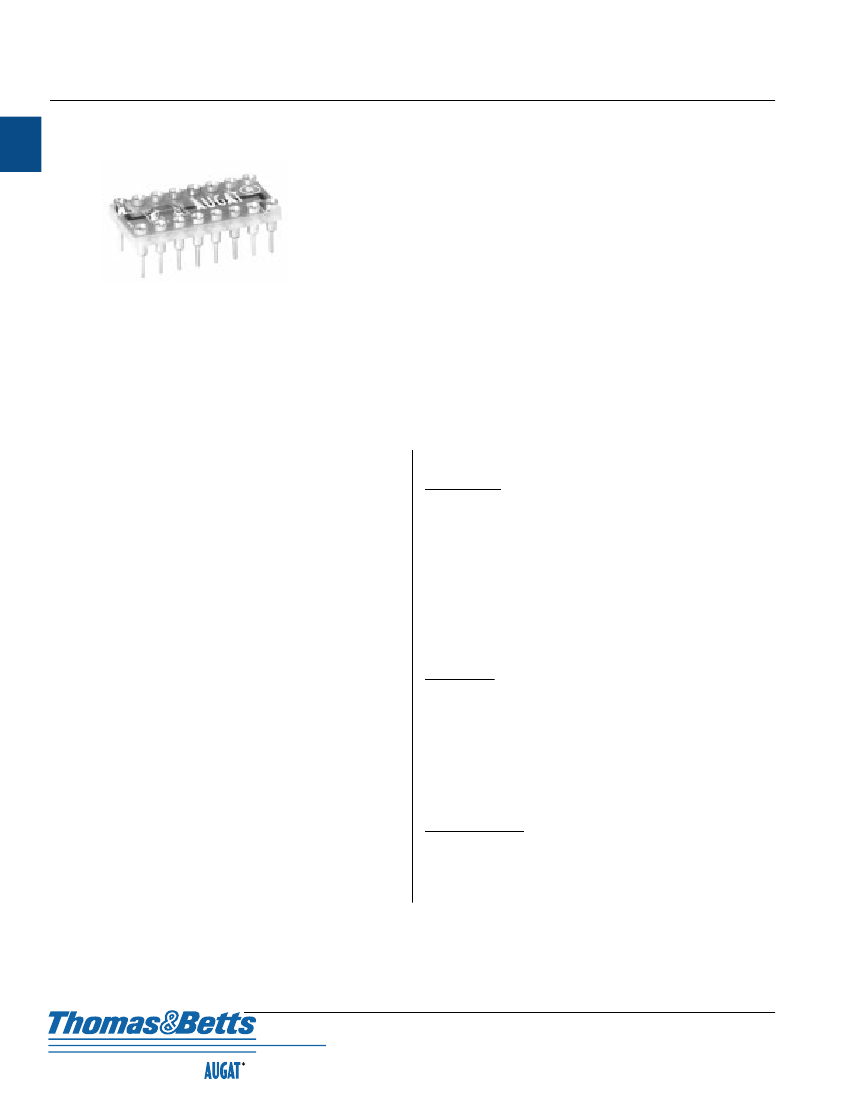

DS Series

Capacitor Socket With Four-Finger Contact

DS1-316-1AR

FEATURES:

Augat has combined its four-finger high reliability contact with a surface

mount capacitor and a circuit assembly to create a full line of decoupling

(dual-in-line) sockets.

• Available in three lead termination styles, .125" (3,18) PC tail,

.180" (4,57) PC tail and 3-level solderless wire wrap

• Reduces PCB utilized space by 12% to 15%

• Allows handling, inventory and installation of one component

instead of two

• Available in three capacitor values: .01µF, .10µF and .33µF

• Optional assignment of voltage and ground available for custom

decoupling requirements, consult factory

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005.1, Cond. II

Shock .............................. Passed MIL-STD-1344, Method 2004.1, Cond. C

Durability ...................... Passed 50 cycles

Normal Force ................ 115 Grams (4.1 0z.) min. with .018" (0,46) dia.

polished steel pin (typ.)

Inner Contact

Retention .................... 7.5 Lbs. per line average

Solderability .................. Passed MIL-STD-202, Method 208

Insertion Force .............. 179 Grams (6.3 oz.) average with .018" (0,46) dia.

polished steel pin

Withdrawal Force .......... 63 Grams (2.2 oz.) average with .018" (0,46) dia.

polished steel pin

ELECTRICAL

Contact Resistance ........ 10 Milliohms

Contact Rating .............. 3 Amps

Capacitance .................... 1.0 pF per MIL-STD-202F, Method 305

(adjacent contacts max.)

Insulation Resistance .... 5,000 Megohms @ 500 VDC per MIL-STD-1344,

Method 3003.1

Dielectric Withstanding

Voltage ...................... 1,000 VAC RMS per MIL-STD-1344,

Method 3001.1

ENVIRONMENTAL

Moisture Resistance ...... Passed MIL-STD-202, Method 106

Temperature Cycling .... Passed MIL-STD-1344, Method 1003.1, Cond. A

Operation Temp.* .......... +10°C to +85°C

* This temperature range applies to the capacitor only

APPLICATION DIMENSIONS:

• PCB Hole Size Range: .055"

.003" (1,40

0,08) Solderless wrap

.035"

.003" (0,89

0,08) PC solder termination

• IC Pin Dimension Range: .016" to .021" (0,41 to 0,53) dia.

.105" (2,67) min. length

MATERIAL SPECIFICATIONS:

Insulator ........................ Glass epoxy

Outer Sleeve .................. Machined brass/formed copper,

tin/lead or gold plated

Inner Contact .................. Beryllium copper, gold over nickel

or tin/lead plated

Quality & Innovation From The

Product Group

A20

Thomas & Betts

1555 Lynnfield Road

Memphis, TN 38119

(901) 682-8221 FAX (901) 537-8805
