VG95234 M
Straight Plug with EMI/RFI Backshell,
Grounding Fingers, Wire Sealing Grommet
and Heat Shrink Boot Lip
Contact
Arrangement
1
- Standard AWG Contacts
(Omit for Metric)
VG95234
Connectors
Basic Part Number
VG95234
M
32-6
P
1
N
Alternate Insert
Positions
N-X-Y
M
- Straight
Plug with EMI
Backshell/Shrink
Boot Adapter and
Grounding Fingers
1
L5
L6
P
- Pin contacts
S
- Socket contacts
D4
D6
D5
D7
D3
K
3.5
±0.2
L7
L1
D1
APPLICATION NOTES
1.
2.
Straight plug connector with EMI backshell and boot adapter.
Standard crimp contact material consists of copper alloy with
silver plating. Please see pages 16-17 for additional contact
information.
Insert arrangements IAW VG95234. Please see pages 10-15.
4.
5.
6.
Standard insert is synthetic rubber, oil and low temperature
resistant (-55°C to +125°C) IAW MIL-R-3065.
Stainless steel and marine bronze shells are available in Series
ITS products. Please consult factory.
All dimensions are metric unless otherwise noted.
3.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
40
EMI/RFI Backshell, Wire Sealing Grommet
and Heat Shrink Boot Lip

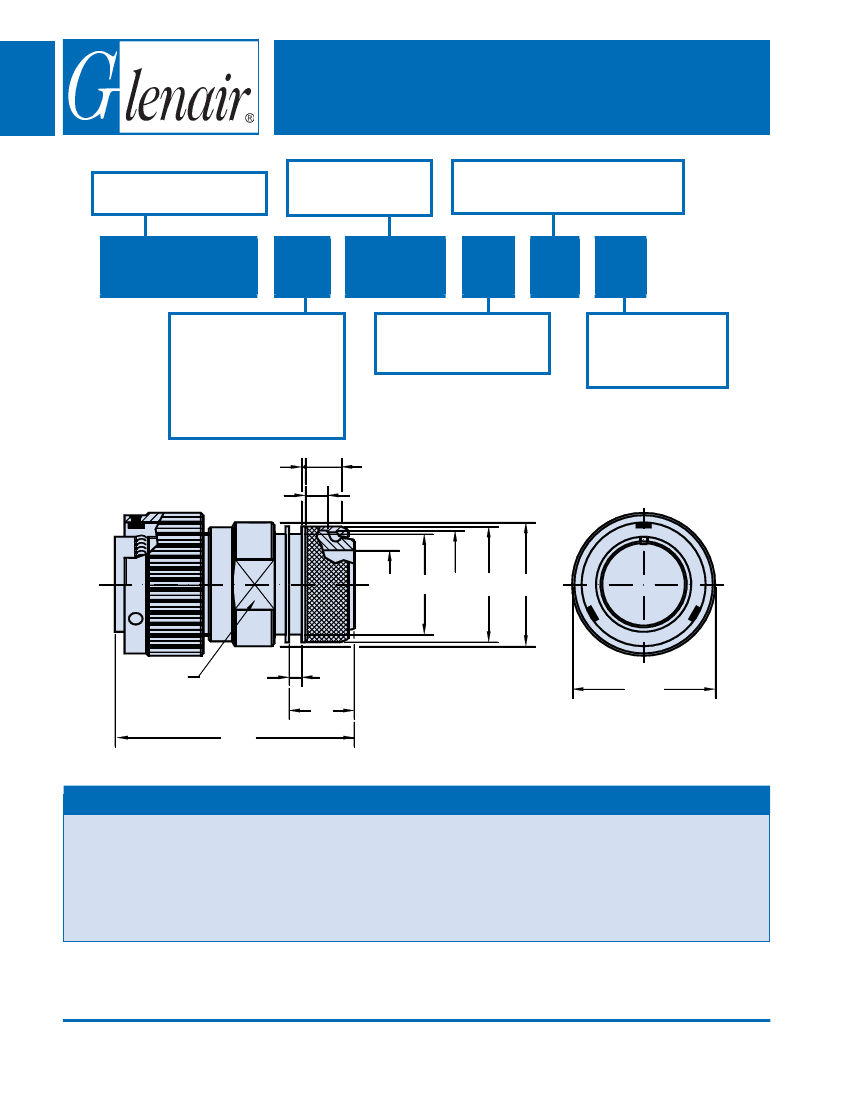

DIMENSIONS
Shell
Size
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
D1
Max
22.8
29.2
32.0
32.0
36.5
39.9
43.1
46.6
53,4
60.1
66.3
D3
Max
22
25
28
28
31
35
38
41
48
54
61
D4
Min
8.6
10.6
13.5
13.5
14.6
18.5
20.8
24.6
27.0
33.3
38.5
D5
M16+1
M20+1
M23+1
M23+1
M26+1
M30+1
M32+1
M36+1
M39+1
M45+1
M52+1
D6
Max
16.3
20.0
23.0
23.0
24.5
28.5
30.5
34.5
37.5
44.0
51.0
D7
±0.5
18.5
22.0
25.0
25.0
28.0
32.0
34.0
38.0
41.0
48.0
55.0
K
Key
20
23
26
26
38
32
36
39
46
52
58
L1
Max
55
57
60
70
70
70
70
70
70
70
80
L5
Min
4.5
5.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
L6
+1
-0
7
7
8
8
10
10
10
10
10
10
10
L7
+1
-0
17
17
18
18
18
18
18
18
18
18
18
Weight
gr.
Max
40
45
55
65
75
85
100
115
130
170
190
MATERIALS
SHELLS
Aluminum Alloy
IAW QQ-A-591 Shells
Stainless Steel
Coupling Pins
Stainless Steel Spring
INSERTS (Temperature Range)
High Insulation Synthetic Rubber
-55°C/+125°C
STANDARD FINISH
(For QQ-A-591 Aluminum Shells)
Requirements
Thermal Shock
Salt Spray After
Thermal Shock
Electrical Conductivity
Abrasion Resistance
Cadmium with Olive
Drab Passivation
IAW QQ-P-416
-55°C + 125°C
500 hour
Very Good
Very Good
CRIMP CONTACTS
Copper Alloy with Silver Plating Over Nickel
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
41
VG95234
Connectors
VG95234 M
Straight Plug with Grounding Fingers,
