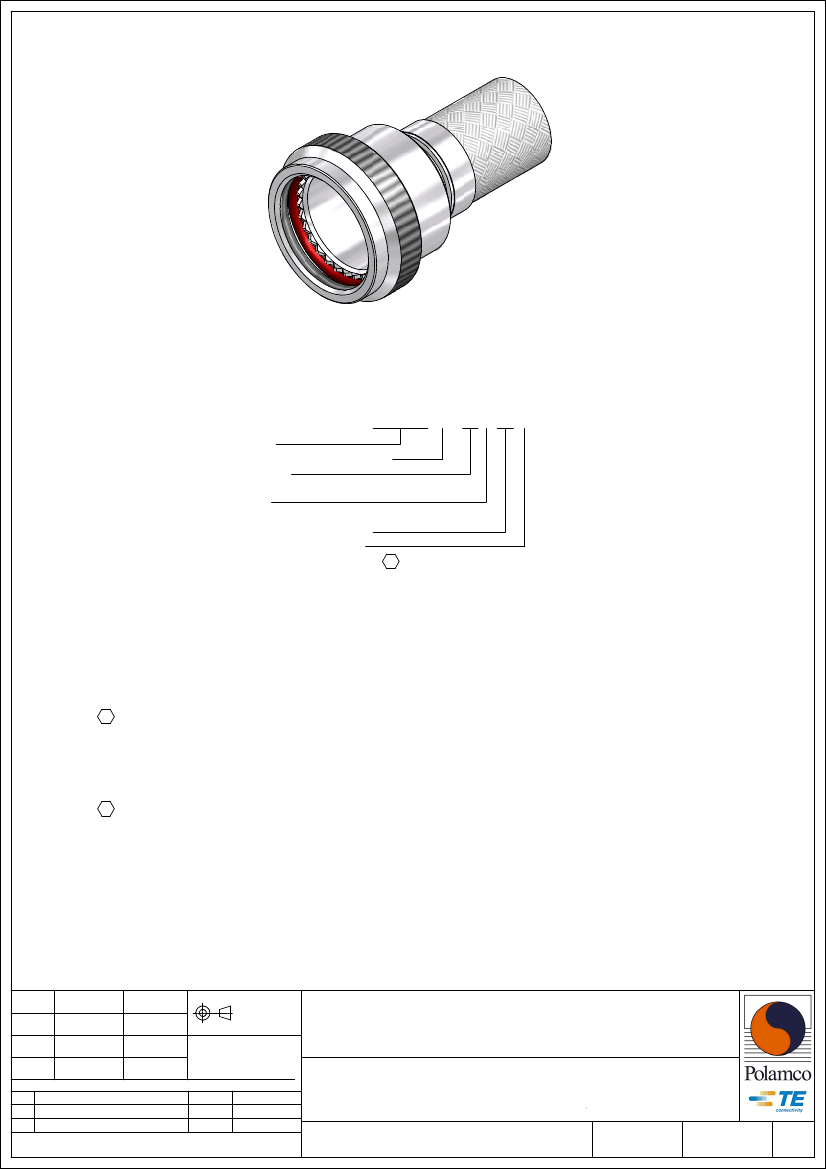

CODE 41 - BRAID TAIL BACKSHELL
204M016-19B08
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
ENTRY SIZE (TABLE 2)
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-204M012-19B08).
4. WHEN ENTRY SIZE EXCEEDS "MAX ENTRY", A 2 PIECE BACKSHELL (TYPE 2) IS SUPPLIED.
5. BRAID TERMINATION RING MAY BE SUPPLIED AS TINEL-LOCK SHAPE MEMORY
RING AT MANUFACTURERS OPTION.
6. BACKSHELL MATES TO MIL-DTL-38999 SERIES I & II, CLASS E & T, MS27466,MS27467, MS27468,
MS27472, MS27473, MS27474, MS27479, MS27480, MS27481, MS27484, MS27497, MS27652,
MS27653, MS27654, MS27656 CONNECTORS.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
17/04/2015
17/04/2015
27/04/2015
01/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
M REVISED PER ECN AD930
N
REVISED PER ECO-15-012000
DATE
01/09/2015
APPROVED
H.SMITH
MIL-DTL-38999 SERIES I & II
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
DRAWING NO:
DRAWING REV:
SHT
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
TE CAGE CODE: 06090
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
POLAMCO/TE CAGE CODE: U5792
If this document is printed it becomes uncontrolled. Check for the latest revision
204M0XX
N
1

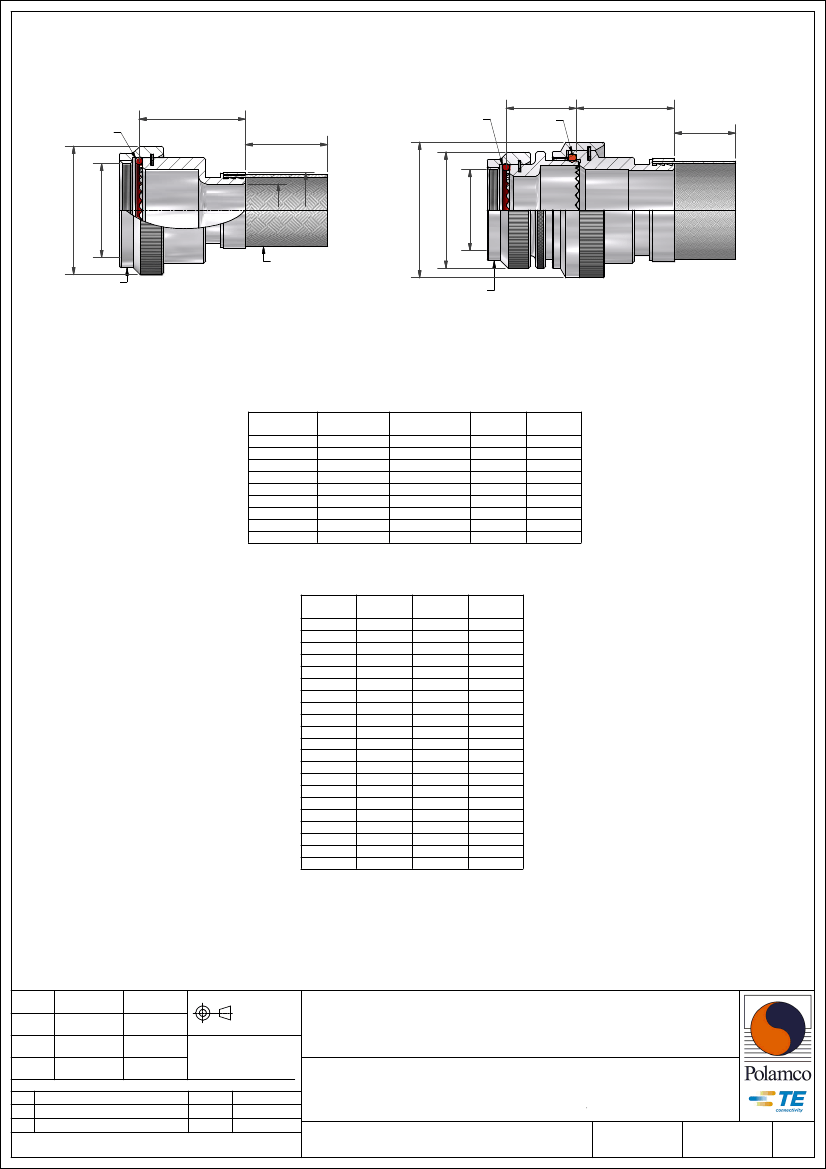

IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
16,80
25,50
SILICONE O-RING
152,40 MIN
SILICONE
O-RING
SILICONE
O-RING
23,50
152,40 MIN
A THREAD
A THREAD
ØZ
ØY
ØK
ØB
ØB
XXXX
TINNED COPPER
SHIELD
PART MARK
HERE
PART MARK
HERE
TABLE 1
ORDER
NUMBER
08
10
12
14
16
18
20
22
24
SHELL SIZE
SER 1 / SER 2
09 / 08
11 / 10
13 / 12
15 / 14
17 / 16
19 / 18
21 / 20
23 / 22
25 / 24
A
THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
ØB
MAX
18,3
21,5
24,5
27,8
30,8
34,1
37,3
40,5
43,7
XXXX
MAX
ENTRY
04
06
08
10
12
13
15
17
18
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
20
21
22
24
28
ØK
MAX
NA
NA
21,0
21,0
21,0
24,5
24,5
29,0
32,5
32,5
35,5
35,5
37,0
37,0
40,0
40,0
43,5
48,5
48,5
52,1
58,5
ØZ
REF
4,77
6,35
7,92
9,52
11,12
12,70
14,27
15,87
17,47
19,05
20,62
22,23
23,82
25,40
26,98
28,60
31,80
33,34
35,00
38,10
44,45
ØY
REF
13,1
13,1
13,1
17,9
17,9
17,9
17,9
24,2
24,2
24,2
24,2
30,6
30,6
30,6
33,2
33,2
42,0
42,0
42,0
42,0
49,0
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
17/04/2015
17/04/2015
27/04/2015
01/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
M REVISED PER ECN AD930
N
REVISED PER ECO-15-012000
DATE
01/09/2015
APPROVED
H.SMITH
MIL-DTL-38999 SERIES I & II
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
DRAWING NO:
DRAWING REV:
SHT
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
TE CAGE CODE: 06090
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
POLAMCO/TE CAGE CODE: U5792
If this document is printed it becomes uncontrolled. Check for the latest revision
204M0XX
N
2
