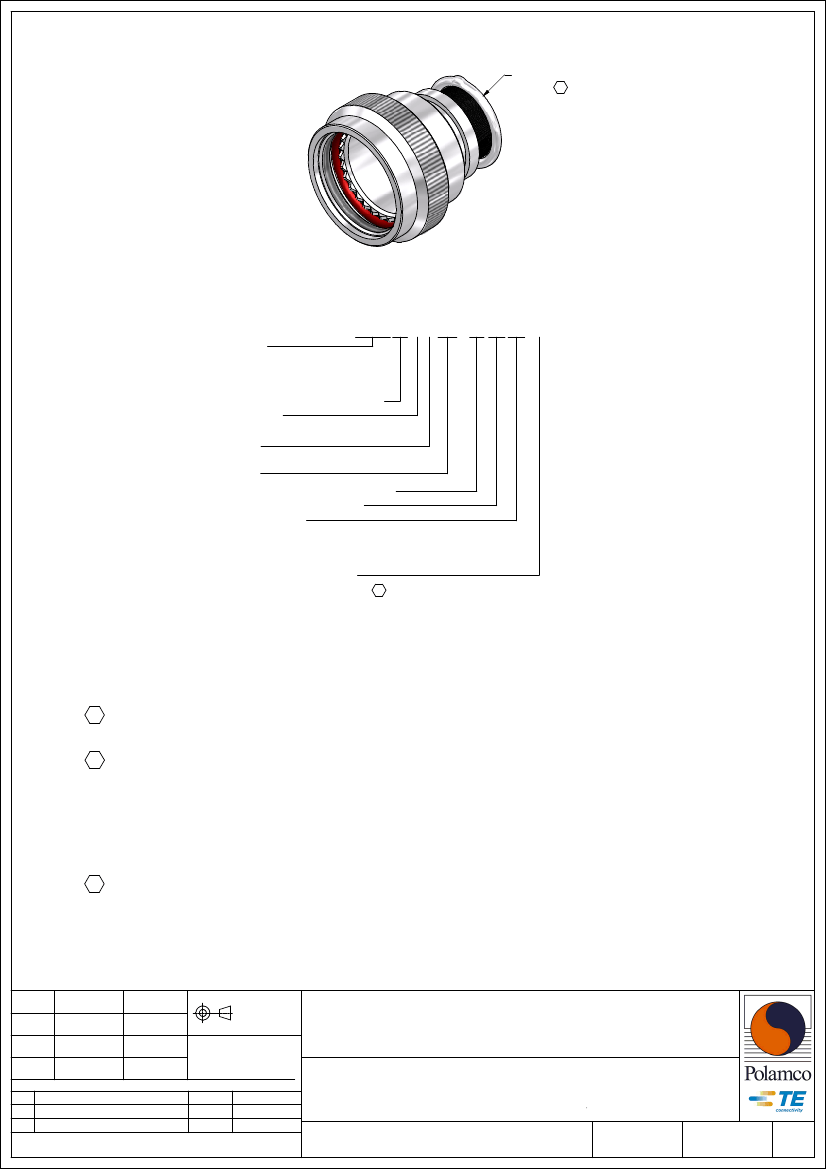

TINEL LOCK RING
3
CODE 47 - TINEL-LOCK BACKSHELL
TXR47AB00-1608AI
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
ORDER NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
REFER TO CH00-0250-008 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR47AB00-1206).
RING SHALL BEAR NO MARKING.
5. WHEN ENTRY SIZE EXCEEDS "MAX ENTRY", A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO VG96912 CONNECTORS, FOR EXAMPLE AMPHENOL SJT SERIES.
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
10/06/2015
10/06/2015
26/06/2015
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D REVISED PER DCR R060313
E
REVISED PER ECO-15-009991
DATE
22/05/2006
07/07/2015
APPROVED
MPIOZET
H.SMITH
VG96912
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR47
E
1
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
16,80
`
0,50
SILICONE
O-RING
26,80
6,20
26,50
A THREAD
A THREAD
ØK
ØS
ØY
ØZ
ØB
ØB
XXXX
PART MARK
HERE
XXXX
5
PART MARK
HERE

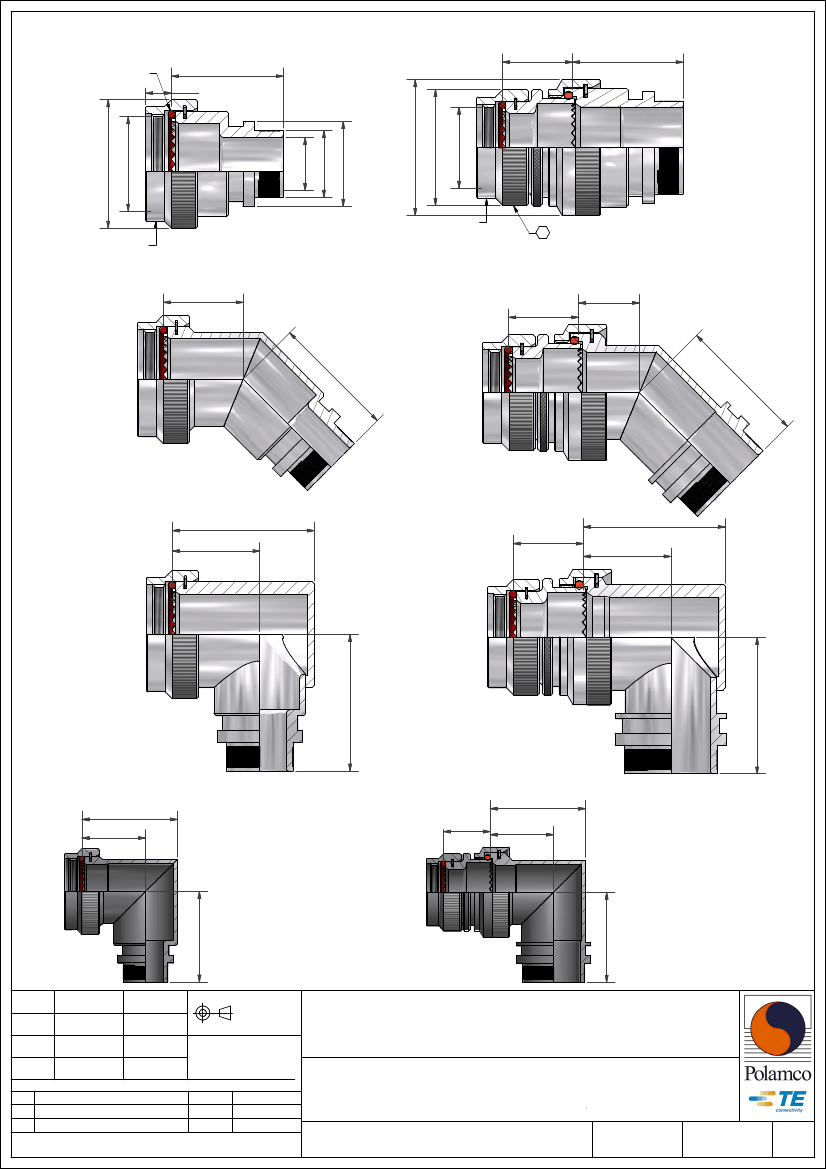

STRAIGHT BACKSHELL - TYPE 1
C
STRAIGHT BACKSHELL - TYPE 2
F
16,80
`
0,50
D
G
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
W
T
16,80
`
0,50
M
H
E
If this document is printed it becomes uncontrolled. Check for the latest revision
90° BACKSHELL - TYPE 1
W
T
16,80
`
0,50
M
H
90° BACKSHELL - TYPE 2
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DATE
10/06/2015
10/06/2015
26/06/2015
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D REVISED PER DCR R060313
E
REVISED PER ECO-15-009991
DATE
22/05/2006
07/07/2015
APPROVED
MPIOZET
H.SMITH
VG96912
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
J
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR47
E
2
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ORDER
NO.
08
10
12
14
16
18
20
22
24
SHELL
SIZE
08
10
12
14
16
18
20
22
24
A THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
ØB
MAX
18,3
21,5
24,5
27,8
30,8
34,1
37,3
40,5
43,7
MAX
ENTRY
04
07
08
10
12
14
16
18
20
C
±0,5
16,4
17,2
17,6
18,5
19,2
19,6
20,4
20,8
21,7
D
±0,5
26,8
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
W
±0,5
21,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
T
±0,5
14,0
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
E
±0,5
26,2
28,0
29,5
31,0
32,7
34,3
35,8
37,4
38,9
W
±0,5
21,3
24,4
28,4
31,2
34,3
38,6
40,8
43,8
46,5
T
±0,5
16,4
17,3
19,5
21,0
22,8
25,3
26,1
27,6
29,1
E
±0,5
26,4
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
ØY
± 0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
ØK
MAX
NA
21,0
21,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
F
±0,5
NA
12,5
12,5
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
G
±0,5
NA
27,5
27,5
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
H
±0,5
NA
24,0
24,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
M
±0,5
NA
15,5
15,5
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
J
±0,5
NA
28,0
28,0
28,0
29,5
31,0
32,7
34,3
35,8
37,4
38,9
42,0
46,0
H
±0,5
NA
24,3
24,3
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
50,0
53,5
M
±0,5
NA
17,2
17,2
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
31,0
33,0
J
±0,5
NA
28,2
28,2
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
42,0
46,0
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
10/06/2015
10/06/2015
26/06/2015
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D REVISED PER DCR R060313
E
REVISED PER ECO-15-009991
DATE
22/05/2006
07/07/2015
APPROVED
MPIOZET
H.SMITH
VG96912
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR47
E
3
