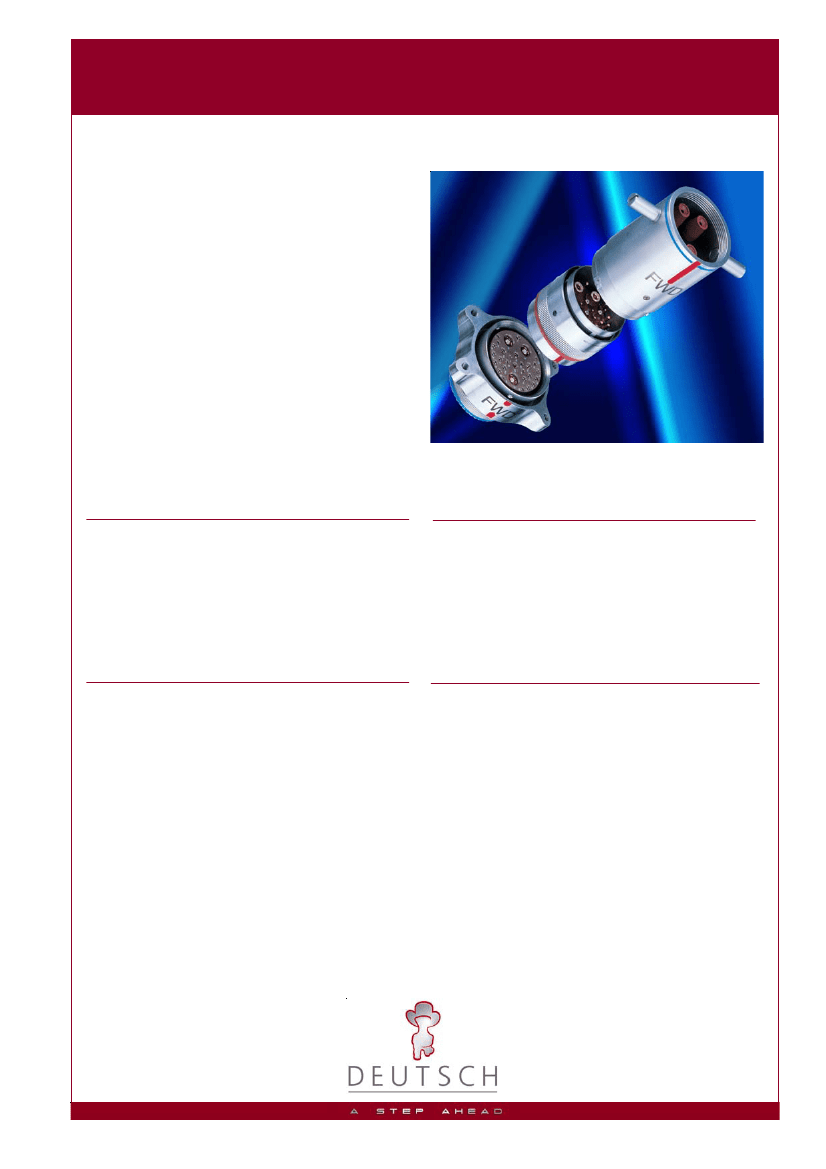

MIL-STD-1760 Type 2 (MIL-DTL-83538)
Stores Management Systems
The 1760 Type 2 differs from the Type 1 in that
it is specifically designed for rail launch
applications. Type 2 blindmate comprises
launcher receptacle, buffer, missile receptacle
and protective cap and is designed for a quick
coupling of stores where access is restricted.
The buffer provides protection for the
launcher receptacle from the missile efflux and
is replaceable as necessary. The buffer has
fixed pin contacts and is supplied with a full
complement of contacts.
Special buffer adaptors are available for
connection of various configurations of stores
aircraft - please consult Deustch.
FEATURES
Bayonet locking for easy coupling
Replaceable buffer
Full EMC shielding
Full environmental performance
Adaptors for multi-configurations
Corrosion resistant construction
BENEFITS
Blindmate capability
Assured performance in all conditions
Repeatable performance
Easy disconnect/connect
COMPANY QUALITY APPROVALS
Civil Aviation Authority A8-1
BS EN ISO 9001
Military Spec Approvals 38999
BS9000 and CECC
Underwriters Laboratories
GENERAL SPECIFICATION
Material:
Shell/coupling ring:
Plating:
Contacts:
Material:
Type:
Insulators:
Interface Seal:
Temperature:
Durability:
Stainless Steel
Nickel plating
Gold plated Copper Alloy
Crimp
Thermoplastic
Fluorinated Silicone
-55°C to +175°C
No electrical or mechanical defects
after 500 cycles
As per Mil-DTL-83538
As per Mil-DTL-83538
With 30 years experience in designing and
manufacturing at its own facilities, Deutsch UK
can provide interconnection solutions for the most
demanding of environments
Deutsch UK
Castleham Industrial Estate
4 Stanier Road, St Leonard-On-Sea
East Sussex TN38 9RF England
Telephone +44 (0) 1424 852721
Fax
+44 (0) 1424 851726
Email
marketing@deutsch.net
www.deutsch.net
Vibration:
Thermal Shock:
ORDERING INFORMATION
Product
Name
Deutsch Part No.
Mil Reference
Launcher
Receptacle
604250
MIL-DTL-83538/4
Special
Transition
Buffer
610172
Mil-DTL-83538/11
Stores
Receptacle
604282
MIL-DTL-83538/1
Launcher
Receptacle
Protective Cap
604271
MIL-DTL-83538/8
Stores
Receptacle
Locking Nut
604287
MIL-DTL-82538/6
Standard
Buffer
604255
MIL-DTL-83538/3
Stores
Receptacle
Protective Cap
604281
MIL-DTL-83538/7
Reverse
Buffer
605782
Awaiting allocation
Protective Cap
Installation &
Removal Tool
610173
MIL-DTL-83538/12
Product
Name
Deutsch Part No.
Mil Reference
Product
Name
Deutsch Part No.
Mil Reference
No Volts
Test Plug
610174
MIL-DTL-82538/13
Cable
Bushing
604266
MIL-DTL-82538/10
Cable
Adaptor
604268-xx*
MIL-DTL-82538/9
Note:
*The Cable Adaptor is
available in sizes 9 to 23
where xx is the cable size
CONTACTS, TOOLING & FILLER PLUGS
Contact Size
& Type
20 Pin
20 Socket
16 Pin
16 Socket
12 Shielded Pin
12 Shielded Socket
12 Coax Pin
12 Coax Socket
10 Pin
10 Socket
8 Twinax Pin
8 Twinax Socket
8 Twinax Pin
(Speedy Crimp)
8 Twinax Socket
(Speedy Crimp)
8 Twinax Socket
(Speed Crimp
Short-Lenght)
Deutsch
Part Number
39841-20
39843-20
39841-16
39843-16
62290-211
602272-416
604727
604728
602078-10
602079-10
602081-A*
602091-A*
602080-A*
602090-A*
602069-A*
awaiting
allocation
Ctr TDB-CT-08
Int TDB-CT-08
Outer M22520/5-01
Military Spec.
Part Number
Crimping
Tool
Crimping Tool
Locator
M22520/1-04
M22520/1-04
M22520/1-04
M22520/1-04
M22520/2-34
M22520/31-02
Not applicable
M2252/5-03
Integral with tool
Integral with tool
K709
Y631 Close B
Y631 Close A
Integral with tool
Integral with tool
Y631 Close A
Insert/Extract
Tool
M18969/14-02
M18969/14-02
M18969/14-03
M18969/14-03
M18969/14-04
M18969/14-04
M18969/14-04
M18969/14-04
M18969/14-05
M18969/14-05
M18969/14-06
M18969/14-06
M18969/14-06
M18969/14-06
M18969/14-06
Filler
Plugs
600300-20
600300-20
600300-16
600300-16
602064
602065
602064
602065
602068
602068
602066
602067
602066
602067
602067
gkkbg
k m gr
r mm
m kf
r frr b
gtfn
M22520/1-01
M39029/58-363
M22520/1-01
M39029/56-351
M22520/1-01
M39029/58-364
M22520/1-01
M39029/56-352
M39029/28-211 Inner M22520/2-01
M39029/75-416 Outer M22520/31-01
Inner Soldered
M39029/102-558
M39029/103-559 Outer M22520/5-01
1716 P-I
M39029/58-528
DMC
M39029/56-527
Ctr M22520/2-01
M39029/90-529
Int M22520/5-01
M39029/91-530
Outer M22520/5-01
Note:
Filller plugs must be ordered seperately as they are not supplied with the connectors
*Size 8 contacts are delivered with a contact sealing boot
Subject to change without prior notification
©2007 Deutsch UK 1760-TYPE2 issue 3a 08/07
