5962-8868002LA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8868002LA

5962-8868002LA: DescriptionUVPROM, 2KX8, 35ns, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24; Categorystorage storage; File Size330KB，9 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8868002LA Overview

UVPROM, 2KX8, 35ns, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24

5962-8868002LA Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	WDIP,
Contacts	24
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	35 ns
Other features	POWER SWITCHED PROM
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	31.877 mm
memory density	16384 bi
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

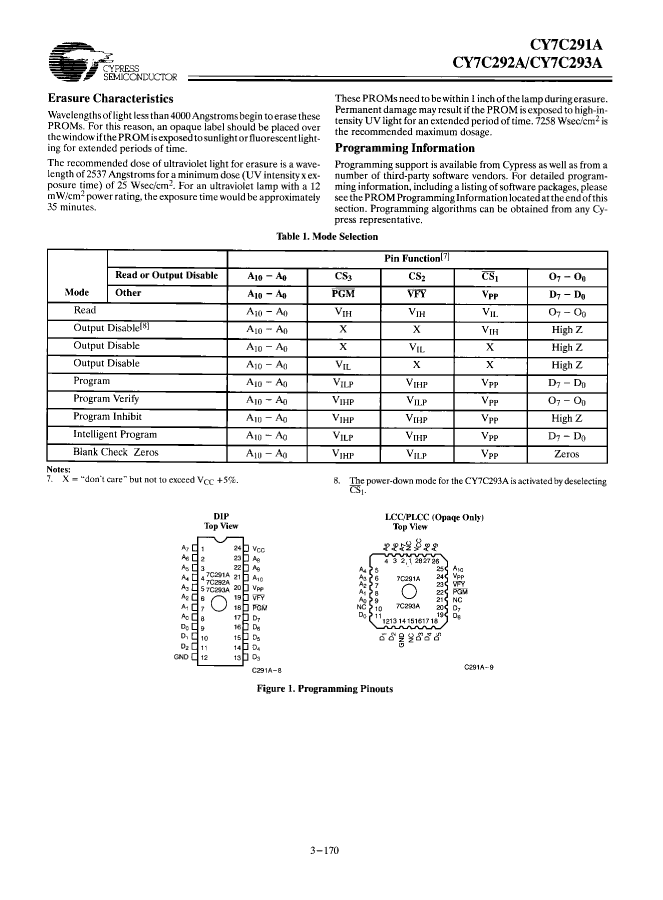

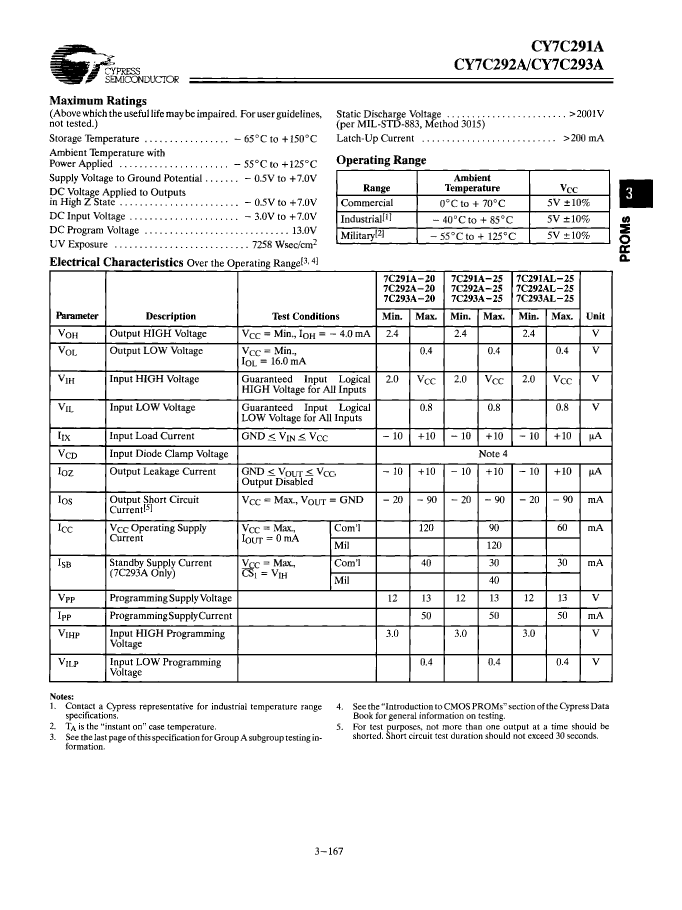

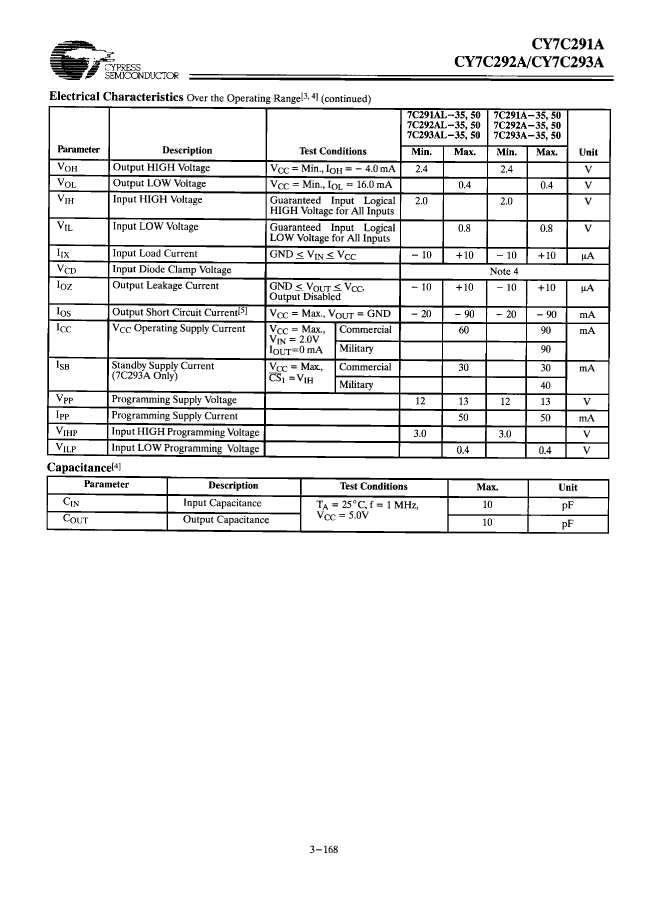

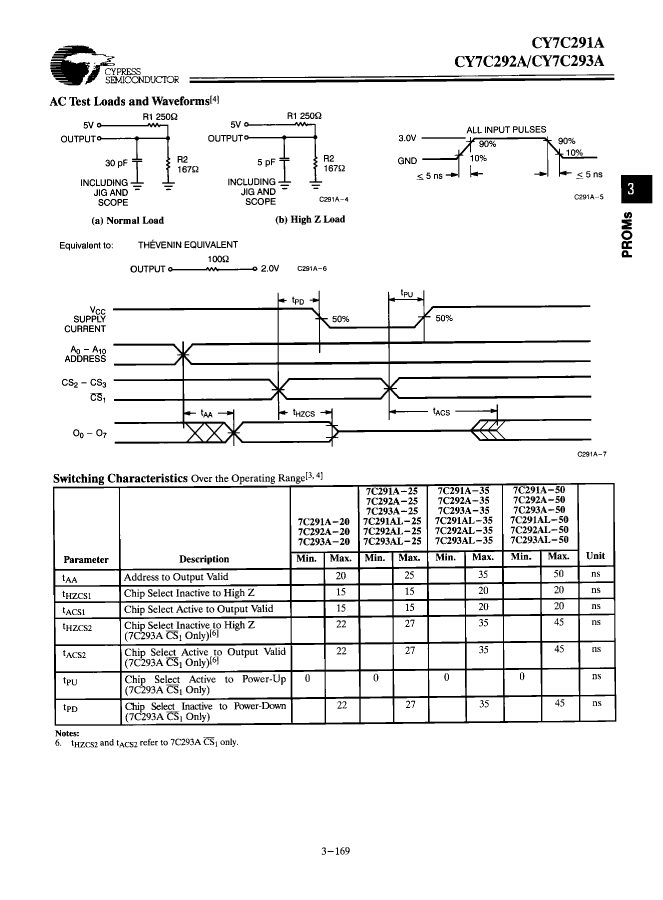

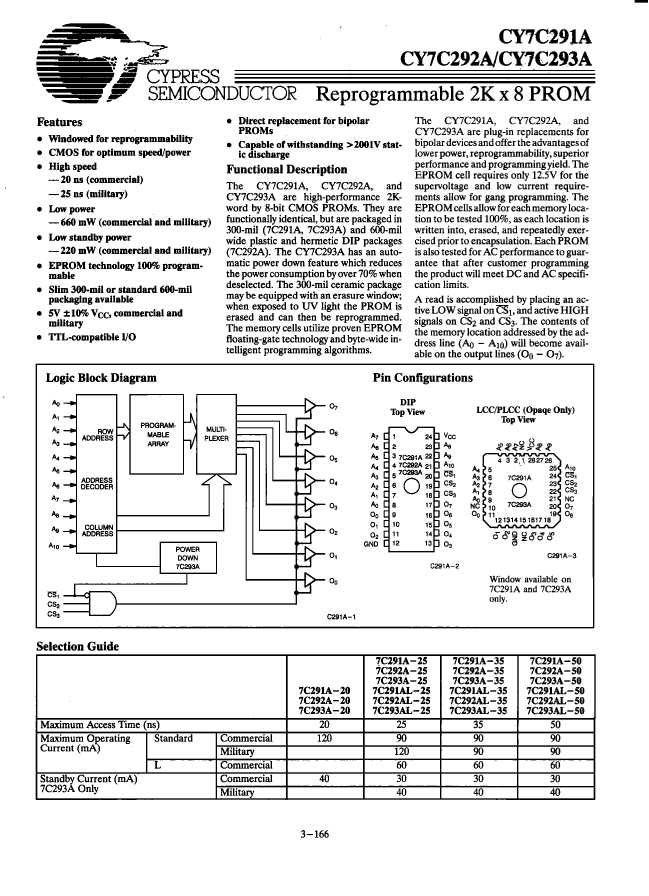

Preview

Download Datasheet

View All

5962-8868002LA Related Products

	5962-8868002LA	5962-8868003LA	5962-8868001LA	5962-8868004LA	5962-8873403LA
Description	UVPROM, 2KX8, 35ns, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24	UVPROM, 2KX8, 30ns, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24	UVPROM, 2KX8, 50ns, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24	UVPROM, 2KX8, 25ns, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24	OTP ROM, 2KX8, 35ns, CMOS, CDIP24, CERAMIC, DIP-24
Parts packaging code	DIP	DIP	DIP	DIP	DIP
package instruction	WDIP,	WDIP,	WDIP,	WDIP,	CERAMIC, DIP-24
Contacts	24	24	24	24	24
Reach Compliance Code	unknow	unknown	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	35 ns	30 ns	50 ns	25 ns	35 ns
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0
length	31.877 mm	31.877 mm	31.877 mm	31.877 mm	31.877 mm
memory density	16384 bi	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	UVPROM	UVPROM	UVPROM	UVPROM	OTP ROM
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	24	24	24	24	24
word count	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	WDIP	WDIP	WDIP	WDIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Other features	POWER SWITCHED PROM	POWER SWITCHED PROM	POWER SWITCHED PROM	POWER SWITCHED PROM	-
Base Number Matches	1	1	1	1	-
