KMM53616004BK-5 datasheet, PDF

Datasheet> All Categories > storage> storage> KMM53616004BK-5

KMM53616004BK-5: DescriptionEDO DRAM Module, 16MX36, 50ns, CMOS, SIMM-72; Categorystorage storage; File Size664KB，19 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KMM53616004BK-5 Overview

EDO DRAM Module, 16MX36, 50ns, CMOS, SIMM-72

KMM53616004BK-5 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	603979776 bit
Memory IC Type	EDO DRAM MODULE
memory width	36
Number of functions	1
Number of ports	1
Number of terminals	72
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX36
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	4096
Maximum standby current	0.012 A
Maximum slew rate	1.32 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
Base Number Matches	1

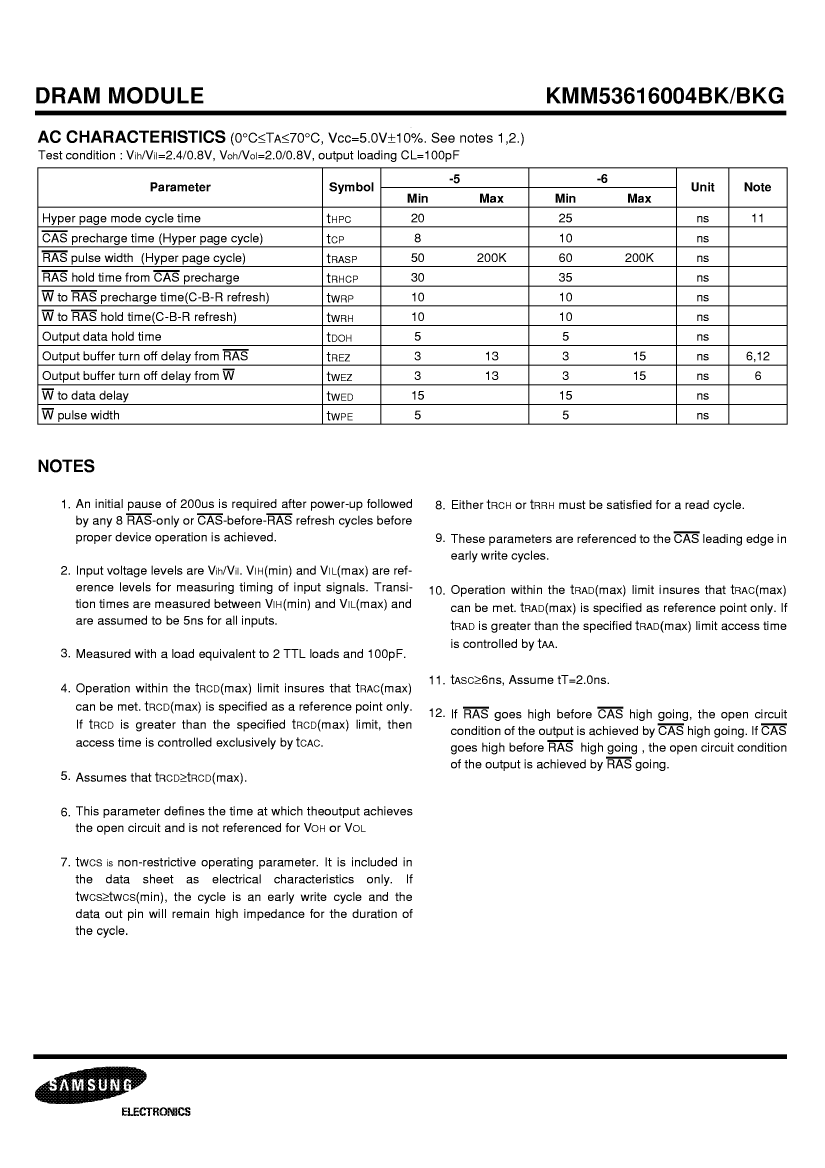

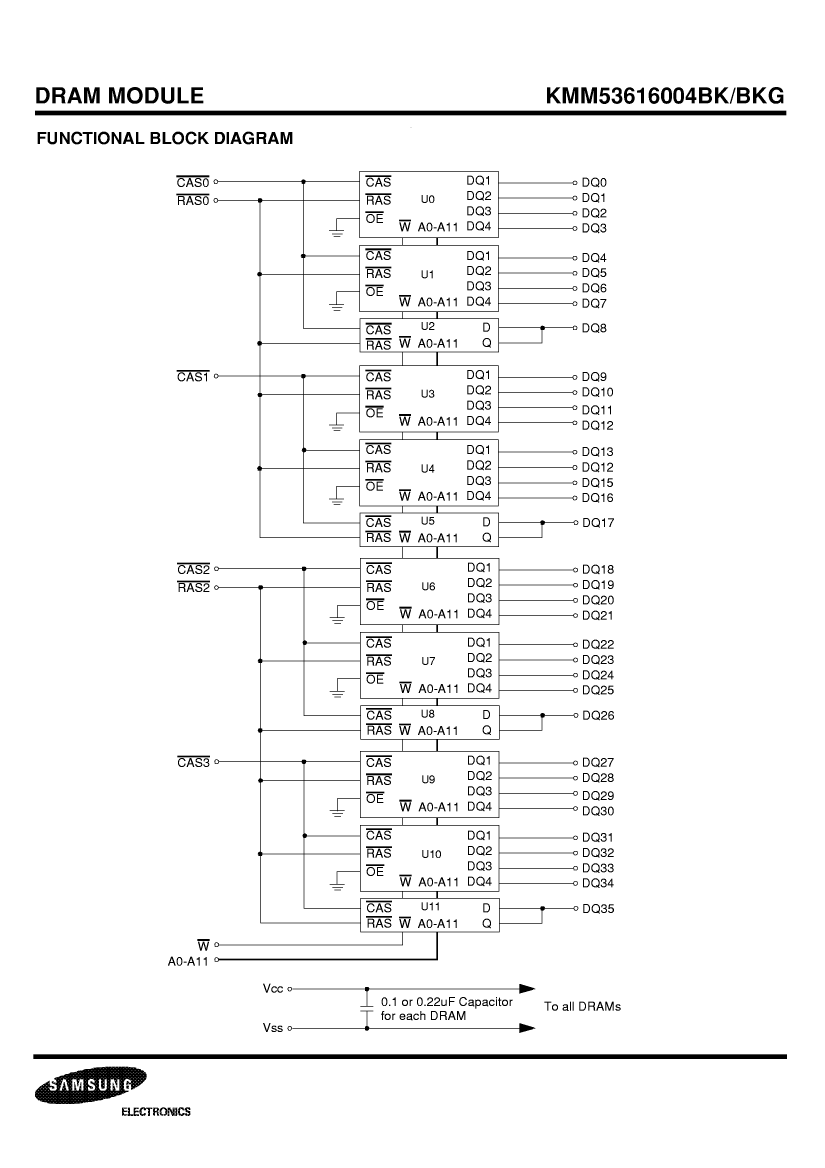

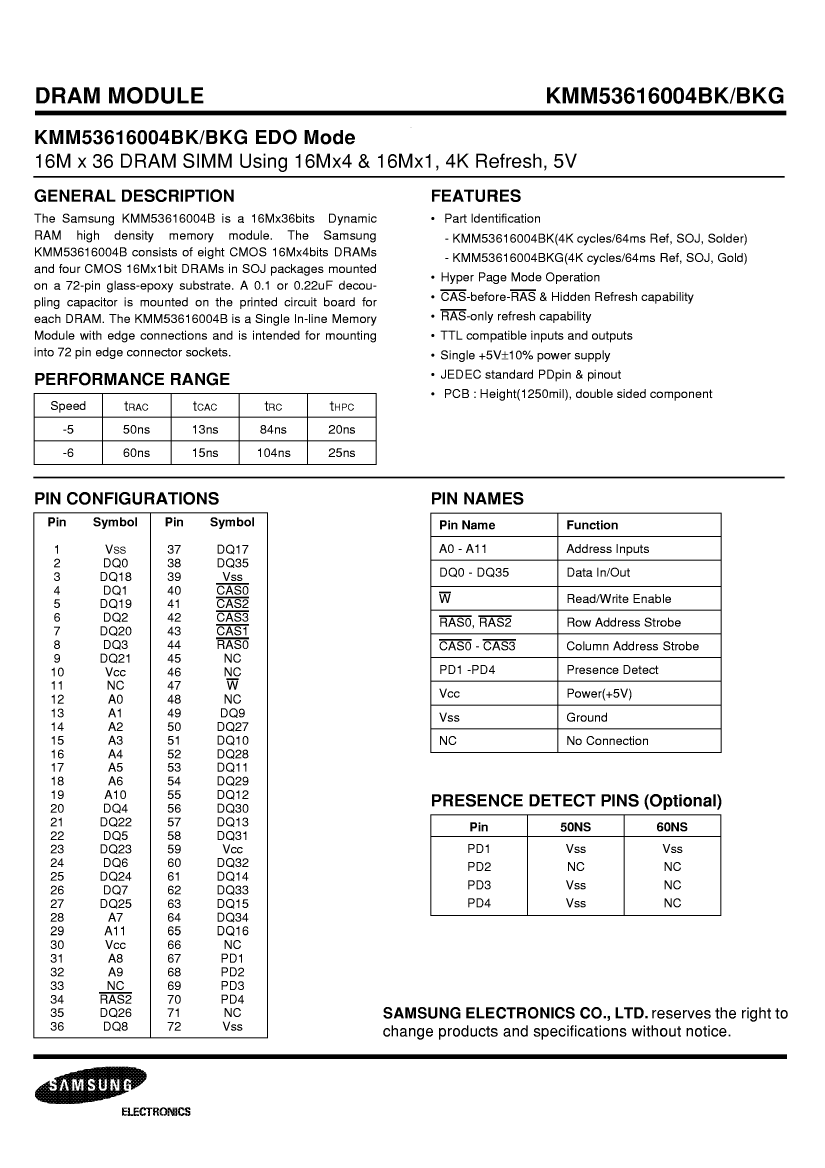

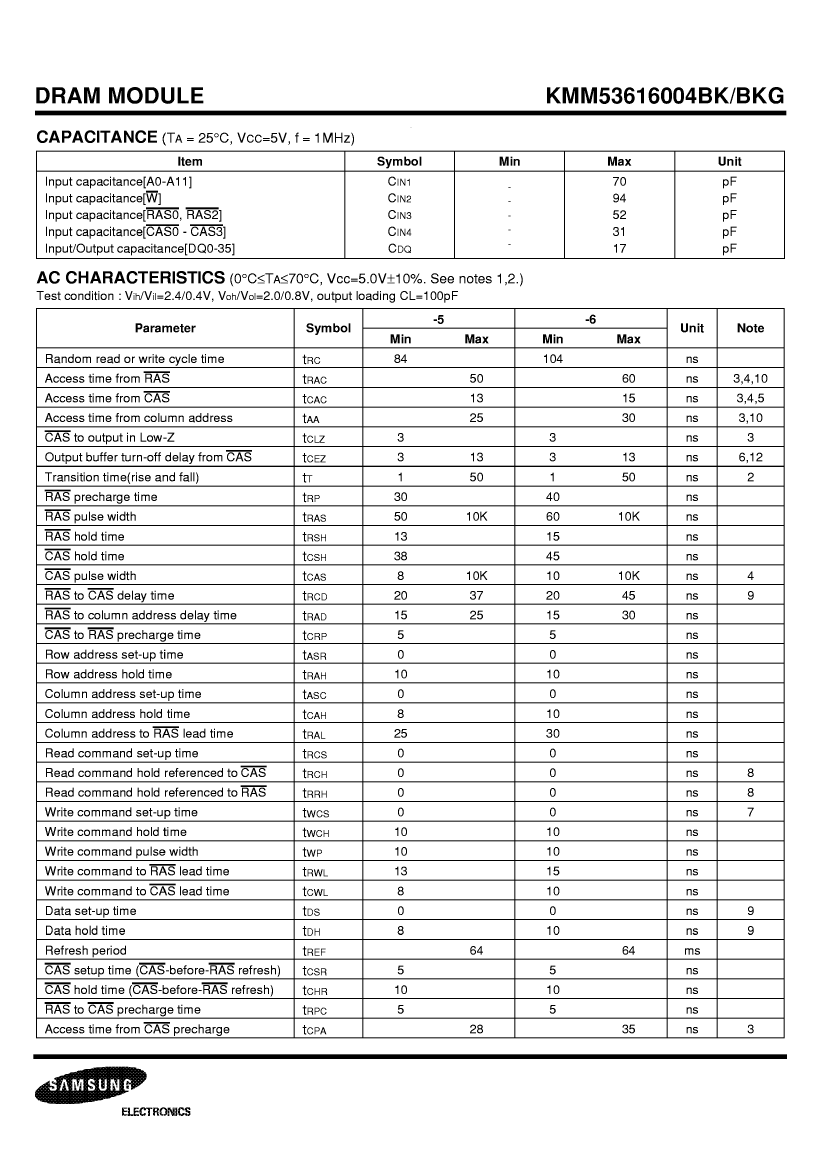

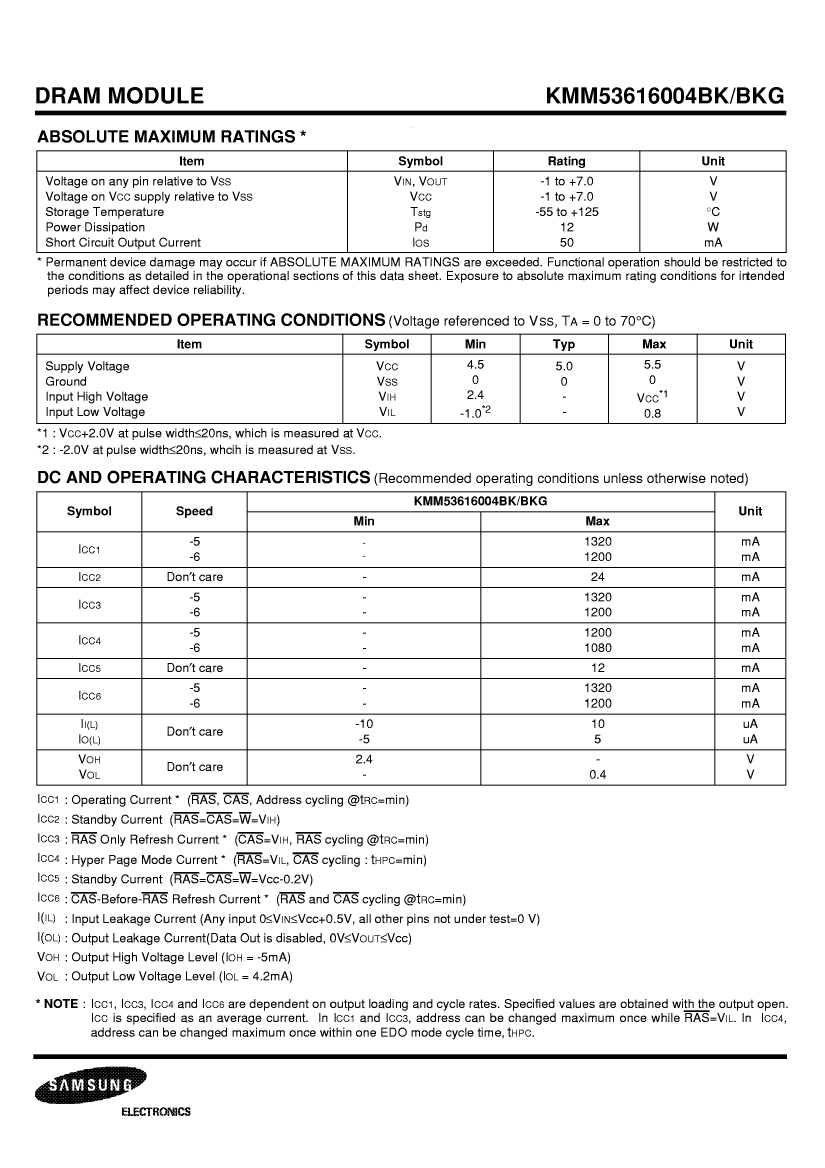

Preview

Download Datasheet

View All

KMM53616004BK-5 Related Products

	KMM53616004BK-5	KMM53616004BKG-6	KMM53616004BKG-5	KMM53616004BK-6
Description	EDO DRAM Module, 16MX36, 50ns, CMOS, SIMM-72	EDO DRAM Module, 16MX36, 60ns, CMOS, SIMM-72	EDO DRAM Module, 16MX36, 50ns, CMOS, SIMM-72	EDO DRAM Module, 16MX36, 60ns, CMOS, SIMM-72
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	SIMM	SIMM	SIMM	SIMM
package instruction	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72
Contacts	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	50 ns	60 ns	50 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	603979776 bit	603979776 bit	603979776 bit	603979776 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	36	36	36	36
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	72	72	72	72
word count	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	16MX36	16MX36	16MX36	16MX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096
Maximum standby current	0.012 A	0.012 A	0.012 A	0.012 A
Maximum slew rate	1.32 mA	1.2 mA	1.32 mA	1.2 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1
