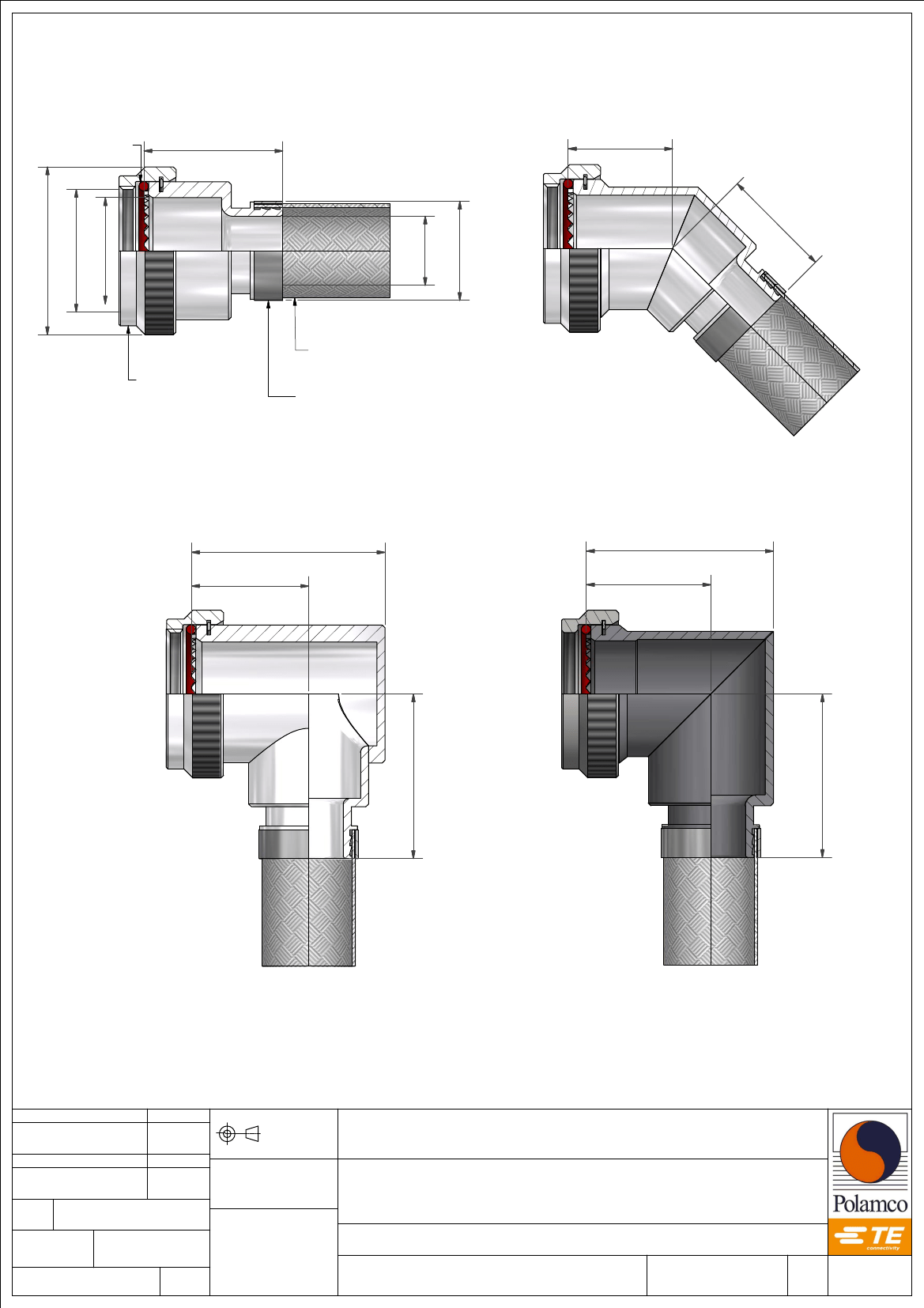

ANGLE 1
25,50
ANGLE 2
C
SILICONE
O-RING
D
A THREAD
G
XXXX
PART MARK AND
BATCH NUMBER HERE
B
6 INCH (150,00MM)
TINNED COPPER SCREENBRAID
SEE PART BREAKDOWN FOR MORE OPTIONS
ALUMINIUM / IRIDITE FINISH
MAGNA-FORM CRIMP RING
E
K
KS
H
T
ES
90 BACKSHELL - ANGLE 3
ALUMINIUM ALLOY
F
90 BACKSHELL - ANGLE 3
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
J.CLARK
DATE
06/07/2018
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
70F SERIES
BRAID TAIL BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
17/12/2010
DOC
TYPE
Customer Drawing
DCR
ISSUE/REV
DA
6361
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-DTL-38999 SERIES II
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
SHT DRAWING NO:
NCAGE CODE U5792
1 P11210
F
TABLE 1
SHELL
SIZE
08
10
12
14
16
18
20
22
24
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19*
20**
21**
22**
24*
G
MIN
4,77
6,35
7,92
9,52
11,12
12,70
14,27
15,87
17,47
19,05
20,62
22,23
23,82
25,40
26,98
28,60
30,20
31,80
33,34
35,00
38,10
H
MAX
13,60
13,60
13,60
18,40
18,40
18,40
18,40
24,70
24,70
24,70
24,70
31,10
31,10
31,10
33,70
33,70
36,90
42,50
42,50
42,50
42,50
A
THREAD
7/16-28 UNEF
9/16-24 UNEF
11/16-24 UNEF
13/16-20 UNEF
15/16-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
B
MAX
18,3
21,5
24,5
27,8
30,8
34,1
37,3
40,5
43,7
T
MIN
6,6
10,1
12,9
16,1
19,3
21,7
24,9
28,1
31,3
TABLE 3
CODE
1-C
1-B
1-ZB
1-ZK
1-ZN
4-J
2-Z
MATERIAL / FINISH
ALUMINIUM / ELECTROLESS NICKEL
ALUMINIUM / CADMIUM OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT BLACK OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC NICKEL BLACK PASSIVATE OVER ELECTROLESS NICKEL
STAINLESS STEEL / PASSIVATE
NICKEL ALUMINIUM BRONZE / SHOT BLAST
SEE SS0076 FOR FULL RANGE OF FINISH OPTIONS
C
0,5
16,4
17,2
17,6
18,5
20,2
19,6
20,4
20,8
21,7
D
MAX
17,1
18,2
18,6
19,5
20,3
20,8
21,7
22,0
22,9
E
MAX
22,7
26,2
29,2
32,2
35,7
39,7
42,2
45,2
48,2
F
MAX
24,0
25,7
27,2
28,7
30,4
32,0
33,6
35,1
36,6
K
0,5
15,0
17,0
18,0
20,0
21,5
23,0
25,0
26,0
28,0
ES
MAX
21,3
24,4
28,4
31,2
34,3
38,6
40,8
43,8
46,5
KS
0,5
16,4
17,3
19,5
21,0
22,8
25,3
26,1
27,6
29,1
TABLE 4
SUFFIX
-DB
-N
-12
MODIFICATION OPTIONS
DOUBLE BRAID
NICKEL PLATED BRAID
NON-STANDARD BRAID LENGTH (IN INCHES)
* - NOT AVAILABLE IN DB MODIFICATION
** - ADD 2,10 TO F MAX FOR DB MODIFICATION
70F1-16-08-1-C
SERIES
CONNECTOR INTERFACE
ANGLE
SHELL SIZE (TABLE 1)
ENTRY SIZE (TABLE 2)
MATERIAL (TABLE 3)
FINISH (TABLE 3)
BRAID TAIL MODIFICATION (TABLE 4)
OMIT FOR STANDARD (6" SINGLE LAYER TINNED COPPER)
DRAWN
J.CLARK
DATE
06/07/2018
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
70F SERIES
BRAID TAIL BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
17/12/2010
DOC
TYPE
Customer Drawing
DCR
ISSUE/REV
DA
6361
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-DTL-38999 SERIES II
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
SHT DRAWING NO:
NCAGE CODE U5792
2 P11210
