CD470860

Description
POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts
CategoryAnalog mixed-signal IC    Trigger device
File Size105KB,4 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Download Datasheet Parametric Compare View All

CD470860 Overview

POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts

CD470860 Parametric

Parameter NameAttribute value
MakerPOWEREX
package instructionFLANGE MOUNT, R-XUFM-X5
Contacts5
Reach Compliance Codeunknown
Other featuresUL RECOGNIZED
Shell connectionISOLATED
ConfigurationSINGLE WITH BUILT-IN SERIES DIODE
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage3 V
Quick connection descriptionG
Description of screw terminalsA-K-AK
JESD-30 codeR-XUFM-X5
Maximum leakage current15 mA
On-state non-repetitive peak current1800 A
Number of components1
Number of terminals5
Maximum on-state current80000 A
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current95 A
Off-state repetitive peak voltage800 V
Repeated peak reverse voltage800 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
Trigger device typeSCR
Base Number Matches1
CD42__60A
CD47__60A

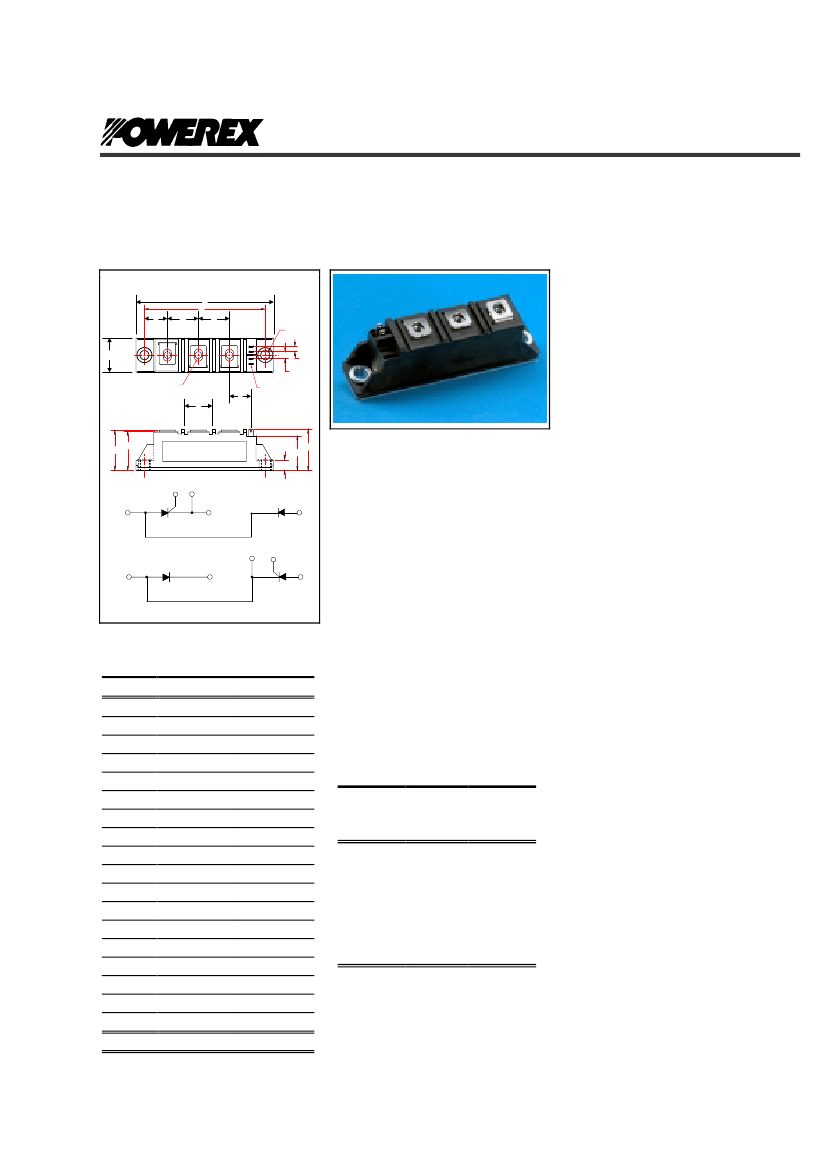

Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272
POW-R-BLOK
Dual SCR/Diode Isolated Module
60 Amperes / Up to 1600 Volts
TM
OUTLINE DRAWING
A
C
F
G
H
T
2
3
B
1
45 76
Description:
Powerex SCR/Diode Modules are
designed for use in applications
requiring phase control and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
TM
POW-R-BLOK
has been tested and
recognized by the Underwriters
Laboratories.
CD42__60A, CD47__60A
Dual SCR/Diode Isolated
TM
POW-R-BLOK Module
60 Amperes / Up to 1600 Volts
J
K
"S" FASTON TAB
"U" THREAD
L
R
D
M
LABEL
N
P
Q
Features:
T
T
T
T
Electrically Isolated Heatsinking
DBC Alumina (Al
2
O
3
) Insulator
Copper Baseplate
Low Thermal Impedance
for Improved Current Capability
T
UL Recognized (E78240)
4
5
2
~
~
1
1
CD42
+
CD47
7
6
-
-
3
3
+
CONNECTION DIAGRAM
2
Benefits:
T
No Additional Insulation
Components Required
T
Easy Installation
T
No Clamping Components
Required
T
Reduce Engineering Time
CD42, CD47 Outline Dimensions
Dimension
A
B
C
D
F
G
H
J
K
L
M
N
P
Q
R
S
T
U
Inches
3.62
0.83
3.15
1.18
0.59
0.79
0.79
0.16
0.23
0.61
1.14
0.25
0.94
1.18
0.71
0.11 x .03
0.25
M5
Millimeters
92
21
80
30
15
20
20
4
5.8
15.5
29
6.3
24
30
18
2.8 x 0.8
6.3
M5
Ordering Information
:
Select the complete nine digit module
part number from the table below.
Example: CD421660A is a 1600Volt,
40 Ampere Dual SCR/Diode Isolated
TM
POW-R-BLOK
Module
Applications:
T
T
T
T
T
T
T
T
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Lighting Control
Heat & Temperature Control
Welders
Type
CD42
CD47
Voltage
Volts
(x100)
08
12
16
Current
Amperes
(x 1)
60
Note: Dimensions are for reference only.
Revision Date: 01/26/2002

CD470860 Related Products

CD470860 CD421260 CD420860 CD421660 CD4260A CD471660 CD471260
Description POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 60 Amperes / Up to 1600 Volts
Maker POWEREX - POWEREX - - POWEREX POWEREX
package instruction FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 - FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5
Contacts 5 5 5 5 - 5 5
Reach Compliance Code unknown unknow unknow unknow - unknow unknow
Other features UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED - UL RECOGNIZED UL RECOGNIZED
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED - ISOLATED ISOLATED
Configuration SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE - SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE
Maximum DC gate trigger current 150 mA 150 mA 150 mA 150 mA - 150 mA 150 mA
Maximum DC gate trigger voltage 3 V 3 V 3 V 2.5 V - 2.5 V 3 V
Quick connection description G G G G-GR - G-GR G
Description of screw terminals A-K-AK A-K-AK A-K-AK A-K-AK - A-K-AK A-K-AK
JESD-30 code R-XUFM-X5 R-XUFM-X5 R-XUFM-X5 R-XUFM-X5 - R-XUFM-X5 R-XUFM-X5
Maximum leakage current 15 mA 15 mA 15 mA 20 mA - 20 mA 15 mA
On-state non-repetitive peak current 1800 A 1800 A 1800 A 1360 A - 1360 A 1800 A
Number of components 1 1 1 1 - 1 1
Number of terminals 5 5 5 5 - 5 5
Maximum on-state current 80000 A 80000 A 80000 A 60000 A - 60000 A 80000 A
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C - 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C - -40 °C -40 °C
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED - UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT - FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified Not Qualified - Not Qualified Not Qualified
Maximum rms on-state current 95 A 95 A 95 A 95 A - 95 A 95 A
Off-state repetitive peak voltage 800 V 1200 V 800 V 1600 V - 1600 V 1200 V
Repeated peak reverse voltage 800 V 1200 V 800 V 1600 V - 1600 V 1200 V
surface mount NO NO NO NO - NO NO
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED - UNSPECIFIED UNSPECIFIED
Terminal location UPPER UPPER UPPER UPPER - UPPER UPPER
Trigger device type SCR SCR SCR SCR - SCR SCR
