• 1N5283 THRU 1N5314 AVAILABLE IN
JANHC AND JANKC
PER MIL-PRF-19500/463
• CURRENT REGULATOR CHIPS
• ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE
• ELECTRICALLY EQUIVALENT TO 1N5283 THRU 1N5314
• CONSTANT CURRENT OVER WIDE VOLTAGE RANGE
• COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES,
WITH THE EXCEPTION OF SOLDER REFLOW
CD5283
thru
CD5314
MAXIMUM RATINGS
Operating Temperature: -55°C to +175°C
Storage Temperature: -55°C to +175°C
Peak Operating Voltage: 100 VOLTS
ELECTRICAL CHARACTERISTICS
@ 25°C, unless otherwise specified
13 MILS
MAXIMUM
LIMITING
VOLTAGE
@ lL = 0.8 lp (min)
VL (VOLTS)
1.00
1.00
1.00
1.00
1.00
1.05
1.05
1.05
1.10
1.13
1.15
1.20
1.25
1.29
1.35
1.40
1.45
1.50
1.55
1.60
1.65
1.75
1.85
1.95
2.00
2.15
2.25
2.35
2.50
2.60
2.75
2.90
2.75
2.35
1.95
1.60
1.35
1.00
0.870
0.750
0.560
0.470
0.400
0.335
0.290
0.240
0.205
0.180
0.155
0.135
0.115
0.105
0.092
0.074
0.061
0.052
0.044
0.035
0.029
0.024
0.020
0.017
0.014
0.012
TYPE
NUMBER
NOM
CD5283
CD5284
CD5285
CD5286
CD5287
CD5288
CD5289
CD5290
CD5291
CD5292
CD5293
CD5294
CD5295
CD5296
CD5297
CD5298
CD5299
CD5300
CD5301
CD5302
CD5303
CD5304
CD5305
CD5306
CD5307
CD5308
CD5309
CD5310
CD5311
CD5312
CD5313
CD5314
0.22
0.24
0.27
0.30
0.33
0.39
0.43
0.47
0.56
0.62
0.68
0.75
0.82
0.91
1.00
1.10
1.20
1.30
1.40
1.50
1.60
1.80
2.00
2.20
2.40
2.70
3.00
3.30
3.60
3.90
4.30
4.70
REGULATOR CURRENT
lp (mA) @ VT = 25V
(Note 3)
MIN
0.198
0.216
0.243
0.270
0.297
0.351
0.387
0.423
0.504
0.558
0.612
0.675
0.738
0.819
0.900
0.990
1.08
1.17
1.26
1.35
1.44
1.62
1.80
1.98
2.16
2.43
2.70
2.97
3.24
3.51
3.87
4.23
MAX
0.242
0.264
0.297
0.330
0.363
0.429
0.473
0.517
0.616
0.682
0.748
0.825
0.902
1.001
1.100
1.210
1.32
1.43
1.54
1.65
1.76
1.98
2.20
2.42
2.64
2.97
3.30
3.63
3.96
4.29
4.73
5.17
MINIMUM
DYNAMIC
IMPEDANCE
@VT = 25V
ZT (MΩ)
(Note 1)
25.0
19.0
14.0
9.0
6.6
4.10
3.30
2.70
1.90
1.55
1.35
1.15
1.00
0.880
0.800
0.700
0.640
0.580
0.540
0.510
0.475
0.420
0.395
0.370
0.345
0.320
0.300
0.280
0.265
0.255
0.245
0.235
MINIMUM
KNEE
IMPEDANCE
@VK = 6.0 V
ZK (MΩ)
(Note 2)
BACKSIDE IS CATHODE
A = Anode
DESIGN DATA
METALLIZATION:
Top: (Anode).......................Al
Back: (Cathode)..................Au
AL THICKNESS.......25,000
Å
Min
GOLD THICKNESS...4,000
Å
Min
CHIP THICKNESS.............10
Mils
TOLERANCES:
ALL Dimensions
+ 2 mils, Except Anode Pad
Where Tolerance is + 0.1 mils.
NOTE 1
NOTE 2
NOTE 3
ZT is derived by superimposing A 90Hz RMS signal equal to 10% of VT on VT.
ZK is derived by superimposing A 90Hz RMS signal equal to 10% of VK on VK.
IP is read using a pulse measurement, 10 milliseconds maximum.
22 COREY STREET, MELROSE, MASSACHUSETTS 02176
PHONE (781) 665-1071
FAX (781) 665-7379
WEBSITE: http://www.cdi-diodes.com
E-mail: mail@cdi-diodes.com
28 MILS
CD5283
TC,TEMPERATURE COEFFICIENT (% / °C)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-0.1
-0.2
-0.3
-0.4
-0.5
0.2
0.3
0.4
0.5
0.6
0.7
thru
CD5314
0.8 0.9 1.0
2.0
3.0
4.0
5.0
lp. NOMINAL PINCH-OFF CURRENT (mA)

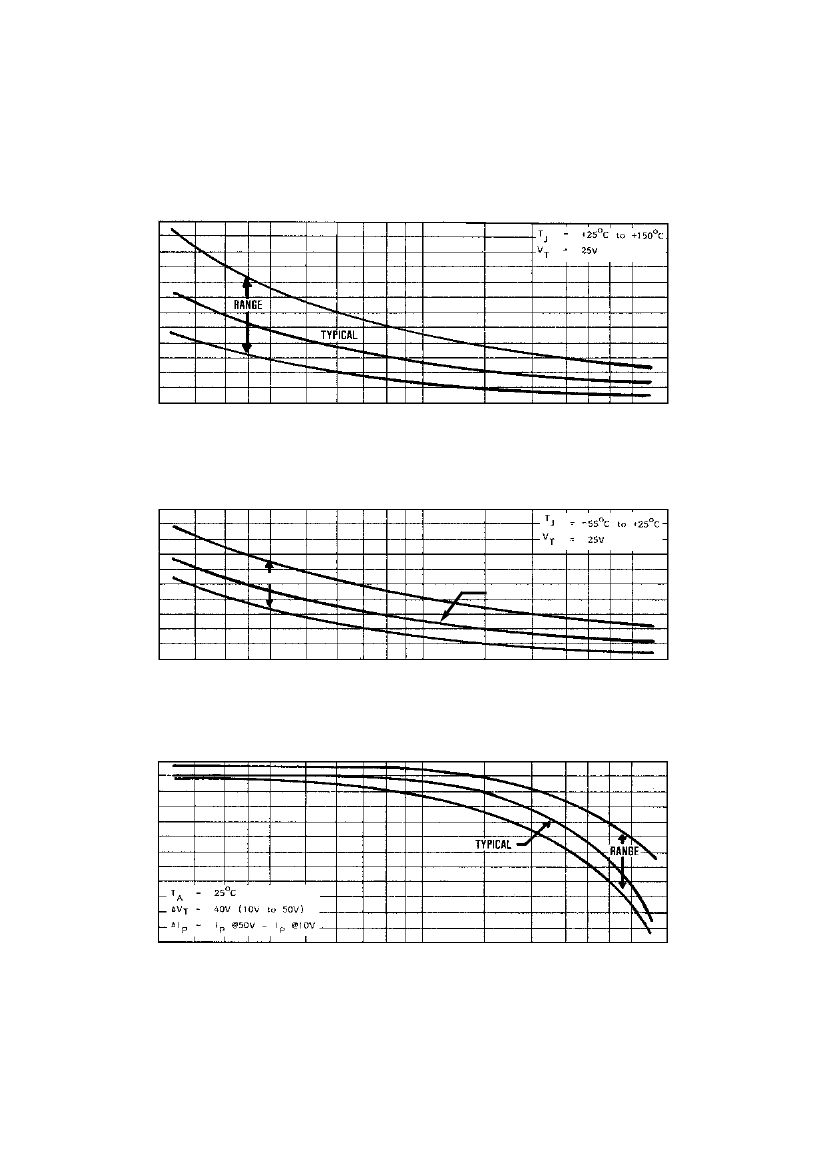

FIGURE 2 TEMPERATURE COEFFICIENT
TC,TEMPERATURE COEFFICIENT
1.0
0.8
0.6
0.4
0.2
0
-0.2
-0.4
-0.6
-0.8
-1.0
0.2
0.3
0.4
0.5
0.6
0.7
0.8 0.9 1.0
2.0
3.0
4.0
5.0
RANGE
TYPICAL
lp. NOMINAL PINCH-OFF CURRENT (mA)
FIGURE 3 TEMPERATURE COEFFICIENT
0.1
0
∆lp,CURRENT
CHANGE (mA)
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1.0
-1.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8 0.9 1.0
2.0
3.0
4.0
5.0
lp NOMINAL PINCH-OFF CURRENT (mA)
FIGURE 4 TEMPERATURE COEFFICIENT
