EB4, EB8
www.vishay.com
Vishay Dale
Edgeboard Connectors, 200 °C Burn-In Connectors, Dual Readout

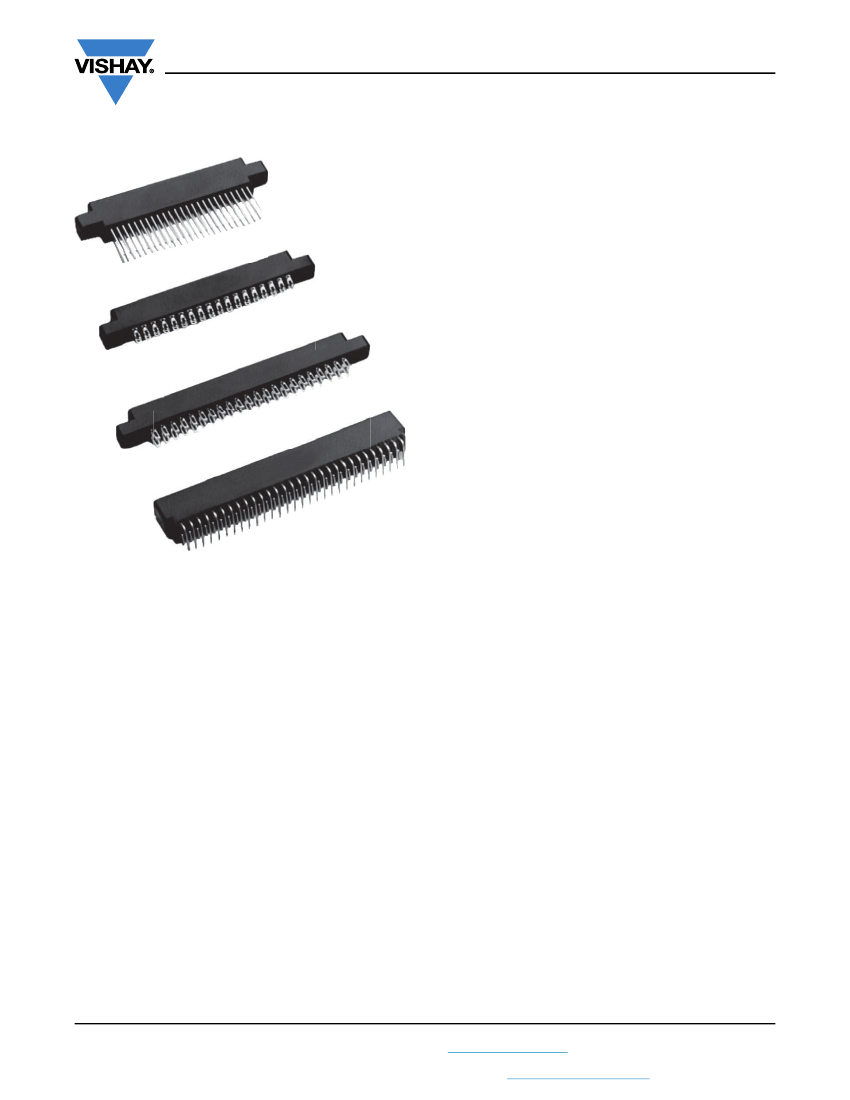

FEATURES
• EB4, 0.100" (2.54 mm) C-C and EB8, 0.156" (3.96 mm)
C-C
• Right angle styles included for all models
• High temperature, glass reinforced PPS connector bodies
-200 °C
• High reliability copper-nickel-tin alloy contacts
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• High reliability bifurcated bellows contacts
• Gold plated contacts
• Card extender style terminals standard
• Variety of mounting styles available
APPLICATIONS
High temperature, long life connectors specifically designed
for burn-in oven and automatic temperature testing
applications.
Available in a wide range of sizes. Priced affordably and
competitively.
SPECIAL NOTE
When operating units at elevated temperatures, solder
having a melting point 50 °C above the operating
temperature should be used. Contact factory for specific
solder information.
ELECTRICAL SPECIFICATIONS
Current Rating:
EB4 = 3 A; EB8 = 5 A
Test Voltage Between Contacts:
At sea level: EB4 = 650 V
RMS
; EB8 = 1800 V
RMS
At 70 000 feet (21 336 meters): EB4 = 275 V
RMS
;
EB8 = 450 V
RMS
Insulation Resistance:
5000 M minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current
Humidity:
48 h at 95 % relative humity at +90 °C, insulation
resistance 5000 M
Shock:
three 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
MATERIAL SPECIFICATIONS
Body Material:
200 °C connectors: Fiberglass reinforced
polyphenylene sulfide, +200 °C operating temperature,
flame retardant (UL 94 V-0)
Contacts:
Copper-nickel-tin alloy per ASTM B 740
Plating:
Gold plating (0.00003" (0.000762 mm) thick), over
0.00005" (0.00127 mm) minimum nickel underplate
Revision: 19-Jul-2018
Document Number: 36006
1
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
EB4, EB8
www.vishay.com
Vishay Dale
DIMENSIONS
in inches (millimeters)
EB4 0.100" (2.54 mm) C-C
0.060
(1.52)
R Typ.
A
B
C
0.100
(2.54)
Typ.
D
E
0.050
(1.27)
Typ.
0.287
(7.29)
0.342 (8.69)
Typ.
0.060 (1.52) Typ.
0.250
(6.35)
Typ.
0.430
(10.92)
Typ.
0.610 (15.49)
Typ.
0.180
(4.57)
Typ.
0.365
(9.27)
MODEL -
PART NUMBER
EB45-P6G
EB45-P10G
EB45-P12G
EB45-P15G
EB45-P18G
EB45-P20G
EB45-P22G
EB45-P25G
EB45-P28G
EB45-P30G
EB45-P31G
EB45-P35G
EB45-P36G
EB45-P40G
EB45-P43G
EB45-P44G
EB45-P48G
EB45-P49G
EB45-P50G
EB45-P60G
EB45-P65G
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
15
18
20
22
25
28
30
31
35
36
40
43
44
48
49
50
60
65
A
1.435 (36.45)
1.835 (46.61)
2.035 (51.69)
2.335 (59.31)
2.635 (66.93)
2.835 (72.01)
3.035 (77.09)
3.335 (84.71)
3.635 (92.33)
3.835 (97.41)
3.935 (99.95)
4.335 (110.11)
4.435 (112.65)
4.835 (122.81)
5.135 (130.43)
5.235 (132.97)
5.635 (143.13)
5.735 (145.67)
5.835 (148.21)
6.835 (173.61)
7.335 (186.31)
B
1.175 (29.85)
1.575 (40.00)
1.775 (45.08)
2.075 (52.70)
2.375 (60.32)
2.575 (65.40)
2.775 (70.48)
3.075 (78.10)
3.375 (85.72)
3.575 (90.80)
3.675 (93.34)
4.075 (103.50)
4.175 (106.04)
4.575 (116.20)
4.875 (123.82)
4.975 (126.36)
5.375 (136.52)
5.475 (139.06)
5.575 (141.60)
6.575 (167.00)
7.075 (179.70)
C
0.700 (17.78)
1.100 (27.94)
1.300 (33.02)
1.600 (40.64)
1.900 (48.26)
2.100 (53.34)
2.300 (58.42)
2.600 (66.04)
2.900 (73.66)
3.100 (78.74)
3.200 (81.28)
3.600 (91.44)
3.700 (93.98)
4.100 (104.14)
4.400 (111.76)
4.500 (114.30)
4.900 (124.46)
5.000 (127.00)
5.100 (129.54)
6.100 (154.94)
6.600 (167.64)
D
0.860 (24.84)
1.260 (32.00)
1.460 (37.08)
1.760 (44.70)
2.060 (52.32)
2.260 (57.40)
2.460 (62.48)
2.760 (70.10)
3.060 (77.72)
3.260 (82.80)
3.360 (85.34)
3.760 (95.50)
3.860 (98.04)
4.260 (108.20)
4.560 (115.82)
4.660 (118.36)
5.060 (128.52)
5.160 (131.06)
5.260 (133.60)
6.260 (159.00)
6.760 (171.70)
E
0.750 (19.05)
1.150 (29.21)
1.350 (34.29)
1.650 (41.91)
1.950 (49.53)
2.150 (54.61)
2.350 (59.69)
2.650 (67.31)
2.950 (74.93)
3.150 (80.01)
3.250 (82.55)
3.650 (92.71)
3.750 (95.25)
4.150 (105.41)
4.450 (113.03)
4.550 (115.57)
4.950 (125.73)
5.050 (128.27)
5.150 (130.81)
6.150 (156.21)
6.650 (168.91)
CARD SLOT
DEPTH
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “E” for card extender, “K” for Wire Wrap™ or “3R” for right angle terminals
= Indicate “X” for standard mounting, “XF” for flush mounting or “XS” for side mounting
Revision: 19-Jul-2018
Document Number: 36006
2
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
EB4, EB8
www.vishay.com
Vishay Dale
DIMENSIONS
in inches (millimeters)
EB8 0.156" (3.96 mm) C-C
0.060
(1.52)
R Typ.
0.030 (0.762)
A
B
C
D
0.156 (3.96) Typ.
0.250 (6.35)
EB75 = 0.440 (11.18)
EB85 = 0.460 (11.68)
E
MODEL -
PART NUMBER
EB85-P6G
EB85-P10G
EB85-P12G
EB85-P15G
EB85-P18G
EB85-P22G
EB85-P24G
EB85-P25G
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
15
18
22
24
25
A
B
C
D
E
CARD SLOT
DEPTH
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
1.780 (45.21)
2.410 (61.21)
2.720 (69.09)
3.190 (81.03)
3.660 (92.96)
4.280 (108.71)
4.590 (116.59)
4.750 (120.65)
1.531 (38.89)
2.156 (54.76)
2.469 (62.71)
2.937 (74.60)
3.406 (86.51)
4.031 (102.39)
4.344 (110.34)
4.500 (114.30)
1.240 (31.50)
1.864 (47.35)
2.176 (55.27)
2.644 (67.16)
3.112 (79.04)
3.736 (94.89)
4.051 (102.90)
4.207 (106.86)
1.100 (27.94)
1.724 (43.79)
2.036 (51.71)
2.504 (63.60)
2.972 (75.49)
3.596 (91.34)
3.911 (99.34)
4.067 (103.30)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “A” for solder eyelet or “E” for card extender.
Note:
Dimensions are the same for “A” or “E” styles
= Indicate “X” for standard mounting or “XS” for side mounting
Revision: 19-Jul-2018
Document Number: 36006
3
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
EB4, EB8
www.vishay.com
Vishay Dale
MOUNTING STYLES
in inches (millimeters)
Wire Wrap™
Permanent Mounting
Oven Wall
EB4 0.100" (2.54 mm) C-C
Component
Under Test
Wire Wrap™
Leads
0.062 (1.57)
Thick
Standard High
Temperature
Connector
200 °C WIRE WRAP™ MODEL NUMBERS
EB45-PK22GX
EB45-PK25GX
EB45-PK28GX
EB45-PK30GX
EB45-PK31GX
Right Angle
PC Board Mounting
EB45-PK22GX
EB45-PK25GX
EB45-PK28GX
EB45-PK30GX
EB45-PK31GX
EB45-PK35GX
EB45-PK36GX
EB45-PK40GX
EB45-PK43GX
EB45-PK44GX
Standard High
Temperature
Connector
(EB4X-P3R25GXS*)
Input Board
EB45-PK48GX
EB45-PK49GX
EB45-PK50GX
EB45-PK60GX
EB45-PK65GX
EB4 0.100" (2.54 mm) C-C
Oven Wall
Component
Under Test
200 °C RIGHT ANGLE MODEL NUMBERS
EB45-P3R10GXS
EB45-P3R12GXS
EB45-P3R15GXS
EB45-P3R18GXS
EB45-P3R20GXS
Hard Wire
Permanent Mounting
EB45-P3R22GXS
EB45-P3R25GXS*
EB45-P3R28GXS
EB45-P3R30GXS
EB45-P3R31GXS
Oven Wall
EB45-P3R35GXS
EB45-P3R36GXS
EB45-P3R40GXS
EB45-P3R43GXS
EB45-P3R44GXS
EB45-P3R48GXS
EB45-P3R49GXS
EB45-P3R50GXS
EB45-P3R60GXS
EB45-P3R65GXS
EB8
0.156" (3.96 mm) C-C
Component
Under Test
Wire Leads
Standard High
Temperature
Connector
0.062 (1.57)
Thick
200 °C HARD WIRE MODEL NUMBERS
EB85-PA6GX
EB85-PA10GX
EB85-PA12GX
EB85-PA15GX
EB85-PA24GX
EB85-PA22GX
EB85-PA24GX
EB85-PA25GX
Revision: 19-Jul-2018
Document Number: 36006
4
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
EB4, EB8
www.vishay.com
Vishay Dale
EB4 0.100" (2.54 mm) C-C
EB8 0.156" (3.96 mm) C-C
MOUNTING STYLES
in inches (millimeters)
Card Extender Mounting For
Fast Change of Test Setups
Component
Under Test
0.062 (1.57)
Thick
Oven Wall
Standard High
Temperature
Connector
Card
Extender
Standard
Connector
Card Extender
Contacts
200 °C CARD EXTENDER MODEL NUMBERS
EB45-PE10GX
EB45-PE12GX
EB45-PE15GX
EB45-PE18GX
EB45-PE20GX
EB45-PE22GX
EB45-PE25GX
EB45-PE28GX
EB45-PE30GX
EB45-PE31GX
EB45-PE35GX
EB45-PE36GX
EB45-PE40GX
EB45-PE43GX
EB45-PE44GX
EB45-PE48GX
EB45-PE49GX
EB45-PE50GX
EB45-PE60GX
EB45-PE65GX
EB85-PE6GX
EB85-PE10GX
EB85-PE12GX
EB85-PE15GX
EB85-PE18GX
EB85-PE22GX
EB85-PE24GX
EB85-PE25GX
MOUNTING VARIATIONS
in inches (millimeters)
EB4 0.100" (2.54 mm) C-C, EB6 0.125" (3.17 mm) C-C
Type “X”
Clearance Hole
Raised Mounting Flange
0.060
(1.52)
Ref.
0.125
(3.17)
Dia.
0.430
(10.92)
0.250
(6.35)
0.610
(15.49)
Ref.
Type “XF”
Clearance Hole
Flush Mounting Flange
0.060
(1.52)
Ref.
Type “XS”
Right Angle
Mounting Flange
0.060
(1.52)
Ref.
Type “XFS”
Right Angle
Mounting Flange
0.060
(1.52)
Ref.
0.125 (3.17)
Dia.
0.125
(3.17)
Dia.
0.125
(3.17)
0.430
(10.92)
0.610
(15.49)
Ref.
0.125
(3.17)
Dia.
0.610
(15.49)
Ref.
0.250
(6.35)
0.250
(6.35)
0.610
(15.49)
Ref.
0.125 (3.17)
0.250 (6.35)
EB8 0.156" (3.96 mm) C-C
Type “XS”
Side Mounting
0.128 (3.25)
Dia.
0.440
(11.18)
0.125 (3.17)
0.250 (6.35)
Ref.
Revision: 19-Jul-2018
Document Number: 36006
5
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
