64P253E3

Description
Potentiometer, Cermet, 0.5W, 25000ohm, 112V, 10% +/-Tol, -100,100ppm/Cel, 3838,
CategoryPassive components    The resistor
File Size115KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

64P253E3 Overview

Potentiometer, Cermet, 0.5W, 25000ohm, 112V, 10% +/-Tol, -100,100ppm/Cel, 3838,

64P253E3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid952598758
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL8
structureTrimmer
Lead diameter0.5 mm
Lead length5 mm
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height5.2 mm
Package length9.7 mm
Package formPCB Mount
Package width9.7 mm
method of packingBulk
Rated power dissipation(P)0.5 W
resistance25000 Ω
Resistor typePOTENTIOMETER
rotation angle7560 deg
seriesMODEL 64
size code3838
technologyCERMET
Temperature Coefficient100 ppm/°C
Tolerance10%
Operating Voltage112 V

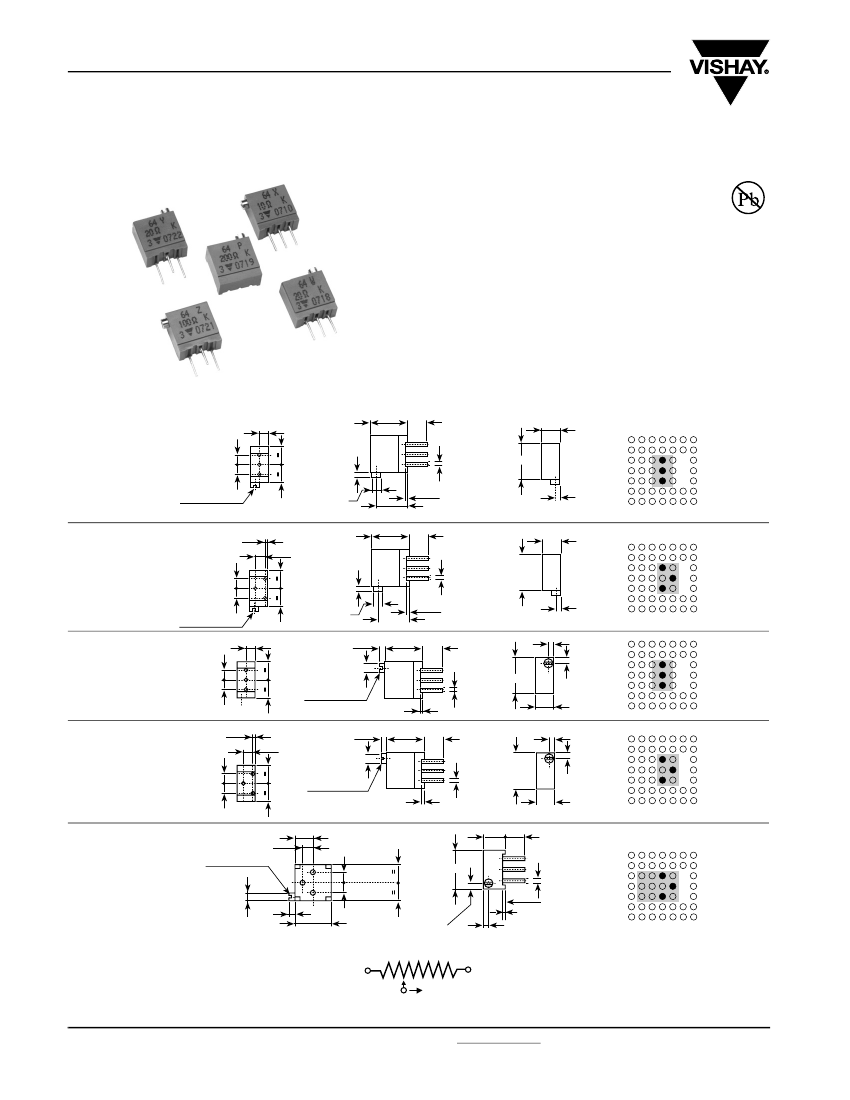

64
Vishay Spectrol
3/8" Square (10 mm)
Multi-Turn Cermet Trimmer
FEATURES
Industrial Grade
0.5 W at 70 °C
Tests according to CECC 41 000
Contact resistance variation < 1 % typical
RoHS
COMPLIANT
The Model 64 is a small size trimmer - 3/8" x 3/8" x 3/16" -
answering PC board mounting requirements.
Five versions are available which differ by the position of the
control screw in relation to the PC board plane and by the
spacing of the terminals.
Excellent operational stability is provided by the use of a
cermet element.
DIMENSIONS
in millimeters
9.8 max
5±1
5 max
a
b
c
1.3
0.5
1.2 ± 0.2
7.9 ± 0.2
9.8 max
5±1
Terminal Spacing
on a 2.54 PCB
64X
2.54
2.54
2.3 ± 0.2*
ø 0.5
9.7 max
a
b
c
slot 0.6 x 0.6
ø 2.2
64Z
2.54
0.6 ± 0.2*
5 max
2.54*
2.54*
a
b
c
1.3
0.5
ø 0.5
9.7 max
a
b
c
ø 2.2
slot 0.6 x 0.6
7.9 ± 0.2
2.3 ± 0.2*
ø 2.2
2.54*
2.54*
slot 0.6 x 0.6
1.3
9.8 max
1.2 ± 0.2
5±1
1.2 ± 0.1
1.6 ± 0.1
a
b
c
0.5
5 max
9.7 max
ø 0.5
64W
a
b
c
64Y
0.6 ± 0.2*
2.54
ø 2.2
2.54*
2.54*
1.3
9.8 max
5±1
1.2 ± 0.1
1.6 ± 0.1
9.7 max
ø 0.5
a
b
c
a
b
c
slot 0.6 x 0.6
0.5
5 max
5.2 max
5±1
2.54*
64P
slot 0.6 x 0.6
4.8 ± 0.2*
9.7 max
2.54*
2.54*
c
b
a
ø 0.5
Base level
ø 2.2
1.3
9.7 max
1.3 ± 0.1
1.2 ± 0.1
0.5
c
b
a
CIRCUIT DIAGRAM
a
(1)
b
(2)
cw
c
(3)
* to be measured at base level
Tolerance unless otherwise specified ± 0.5
For technical questions, contact: sfer@vishay.com
Document Number: 57028
Revision: 04-Sep-07
www.vishay.com
76
