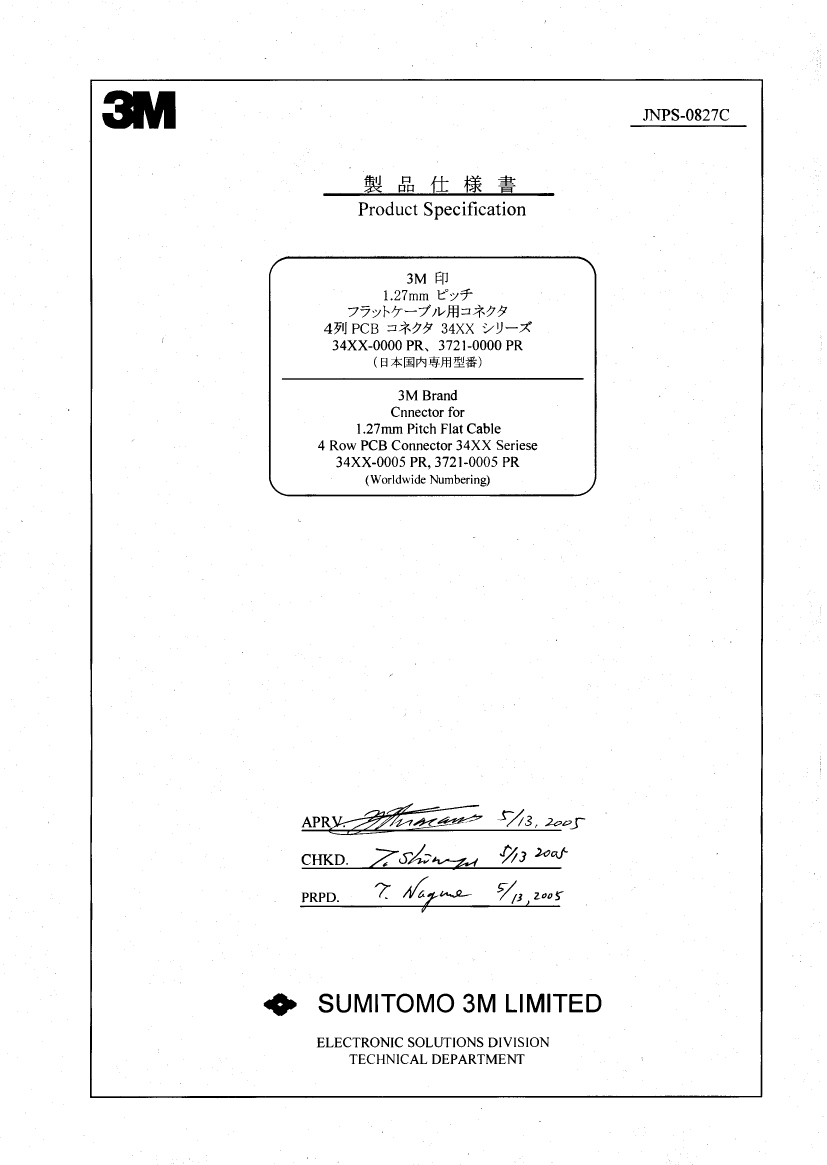

JNPS-0827
目 次 ／
CONTENTS
頁
/ PAGE
機½
················································································································· 1
FUNCTION············································································································ 5
C
1.
2.
適合対象
········································································································· 1
COMPATIBLE OBJECTS ····················································································· 5
3.
関連仕様図
····································································································· 1
RELATED SPECIFICATION DRAWINGS ························································ 5
4.
関連規格類
····································································································· 1
RELATED TEST STANDARDS ········································································· 5
5.
適用
················································································································· 2
APPLICATION ······································································································ 6
6.
品質特性
······································································································· 3
QUALITY PERFORMANCE················································································· 7
7.
½品上めっき仕様識別表示
·········································································· 4
PLATING SPEC INDICATION ON CONNECTOR·············································· 8
8.
包装＆表示
····································································································· 4
PACKAGE & IDENTIFICATION ········································································· 8
9.
保管
················································································································· 4
STORAGE·············································································································· 8
i
JNPS-0827
1.
FUNCTION
C
This connector is one of board mount connectors designed for IDC (Insulation Displacement
Connector) connection with 1.27mm pitch flat cable. This connector has 4 rows of plural U-elements at
topside and 4 rows of contact tails at bottom side. Then, this connector has the function of electrical
connection between cable and PC board.
2.
COMPATIBLE OBJECTS
2-1 WIRE ACCOMODATION
28 AWG Stranded *corresponding with UL Style 2651
2-2 COMPATIBLE BOARD
Thickness: 1.6mm
±
0.2mm
Through hole diameter:
φ0.8mm ±
0.1mm
* Refer to the drawing 3U-0010-2261-6.
3.
RELATED SPECIFICATION DRAWINGS
See the drawings described in JNPD-0827.
4.
RELATED TEST STANDARDS
MIL-STD-202
JEIDA-38-1984
JIS C 0050
JNTM-0039, JNTM-0040
*JNTM: Test Method Standard of Sumitomo 3M for Electronic and Electrical Component Parts.
５
JNPS-0827
5.
APPLICATION
PRODUCT NUMBER INFORMATION (Worldwide Numbering)
C
34XX – 000 5 PR
PLATING SUFFIX
PR : U-ELEMENT AREA / Nickel Plating
TAIL AREA / Gold Flash Plating
TAIL LENGTH
5:
2.8mm (0.11")
CONTACT QUANTITY
3474: 10P
3402: 34P
3721: 16P*
3418: 40P
3422: 20P
3426: 50P
3434: 26P
* 16 Pos. : 3721-0000 PR (not 34XX-0000 PR)
PRODUCT SERIES NAME
34 : 4 Row PCB Connector
(Note) These products have two kinds of numbering, Japanese Special Numbering and Worldwide Numbering.
Japanese Special Numbering is used in Japanese specification and Worldwide Numbering is used in English
specification.
Reference :
PRODUCT NUMBER INFORMATION (
Japanese Special Numbering)
34XX – 00 0 0 PR
PLATING SUFFIX
PR : U-ELEMENT AREA / Nickel Plating
TAIL AREA / Gold Flash Plating
TAIL LENGTH
0:
0:
2.8mm (0.11")
TAIL STYLE
Standard (Straight)
CONTACT QUANTITY
3474: 10P
3402: 34P
3721: 16P*
3418: 40P
3422: 20P
3426: 50P
3434: 26P
* 16 Pos. : 3721-0000 PR (not 34XX-0000 PR)
PRODUCT SERIES NAME
34 : 4 Row PCB Connector
６
JNPS-0827
6.
QUALITY PERFORMANCE
6-1 RATING
ITEM
CURRENT
VOLTAGE
TEMPERATURE
RATING
1.0A
AC: 250V Max.
Max.
/ DC: 300V Max.
C
-55°C ~ 105°C
6-2 PHYSICAL SPECIFICATIONS
TEST
DESCRIPTION
REQUIREMENT
Electrical discontinuity:
Less than 1µs
* The value in (
TEST CONDITION
Sweep Freq.: 10∼55Hz, Amplitude:
1.52mm(or 98 m/s
2
), Sweep Cycle:
1min., Sweep time: 2 hours Sweep in
each direction: (X,Y,Z)
) is reference.
RELATED
STANDARD
MIL-STD-
202F 101A
VIBRATION
MECHANICAL
SHOCK
Electrical discontinuity:
Less than 1µs
Wetting: 95% Min.
or
Zero cross time:
3 seconds Max.
Connector should not have
any defect portions after test.
490 m/s
2
, 11ms, Half sine shock pulse.
3 times / X,Y,Z directions (Total 18
times)
Solder: Sn-3Ag-0.5Cu
- Wetting Measurement:
245°C, 3 seconds
- Wetting Balance Method:
245°C
Dip soldering:
260°C, 10 seconds, 2 times or
263°C, 5 seconds, 2 times
* without Pre-heating
Soldering Iron:
Dependence on soldering conditions.
* It need the evaluation
under actual conditions.
MIL-STD-
202E 213B
SOLDERABILITY
JNTM-0039
JIS C 0050
SOLDERING HEAT
RESISTANCE
JNTM-0040
７
