BC 857B B5003

Description
transistor pnp 100ma 45v sot-23
Categorysemiconductor    Discrete semiconductor
File Size861KB,11 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BC 857B B5003 Overview

transistor pnp 100ma 45v sot-23

BC 857B B5003 Parametric

Parameter NameAttribute value
Datasheets
BC856 - BC860
Product Photos
SOT-23-3
PCN Obsolescence/ EOL
BAS 70x 21/Oct/2008
Standard Package1
CategoryDiscrete Semiconductor Products
FamilyTransistors (BJT) - Single
PackagingCut Tape (CT)
Transistor TypePNP
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)45V
Vce Saturation (Max) @ Ib, Ic650mV @ 5mA, 100mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce220 @ 2mA, 5V
Power - Max330mW
Frequency - Transiti250MHz
Mounting TypeSurface Mou
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackagePG-SOT23-3
Other NamesBC857BB5003BC857BB5003INCT
BC857...-BC860...

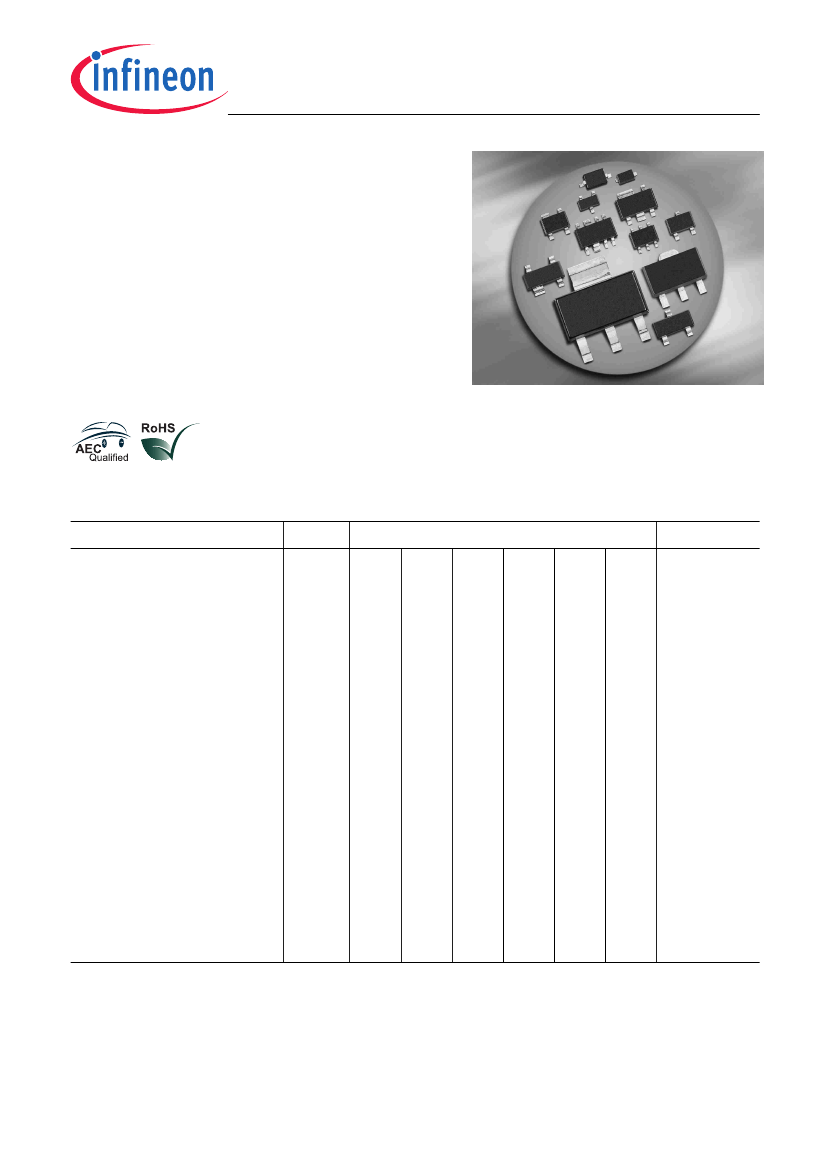

PNP Silicon AF Transistor
For AF input stages and driver applications
High current gain
Low collector-emitter saturation voltage
Low noise between 30 hz and 15 kHz
Complementary types:
BC847...-BC850... (NPN)
Pb-free (RoHS compliant) package
Qualified according AEC Q101
1)
1
BC857BL3
is not qualified according AEC Q101
Type
BC857A
BC857B
BC857BL3*
BC857BW
BC857C
BC857CW
BC858A
BC858B
BC858BW
BC858C
BC858CW
BC859C
BC860B
BC860BW
BC860CW
Marking
3Es
3Fs
3F
3Fs
3Gs
3Gs
3Js
3Ks
3Ks
3Ls
3Ls
4Cs
4Fs
4Fs
4Gs
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
1=B
Pin Configuration
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
2=E
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
3=C
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Package
SOT23
SOT23
TSLP-3-1
SOT323
SOT23
SOT323
SOT23
SOT23
SOT323
SOT23
SOT323
SOT23
SOT23
SOT323
SOT323
* Not qualified according AEC Q101
1
2011-09-19
