CD621415A

Description
POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts
CategoryAnalog mixed-signal IC    Trigger device
File Size110KB,5 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Download Datasheet Parametric Compare View All

CD621415A Overview

POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts

CD621415A Parametric

Parameter NameAttribute value
package instructionFLANGE MOUNT, R-XUFM-X5
Contacts5
Reach Compliance Codeunknow
Other featuresUL RECOGNIZED
Shell connectionISOLATED
ConfigurationSINGLE WITH BUILT-IN SERIES DIODE
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage4 V
Quick connection descriptionG-GR
Description of screw terminalsA-K-AK
JESD-30 codeR-XUFM-X5
Maximum leakage current50 mA
On-state non-repetitive peak current5100 A
Number of components1
Number of terminals5
Maximum on-state current150000 A
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current250 A
Off-state repetitive peak voltage1400 V
Repeated peak reverse voltage1400 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
Trigger device typeSCR
Base Number Matches1
CD62__15A
CD67__15A
Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272
POW-R-BLOK
Dual SCR/Diode Isolated Module
150 Amperes / Up to 1600 Volts
TM

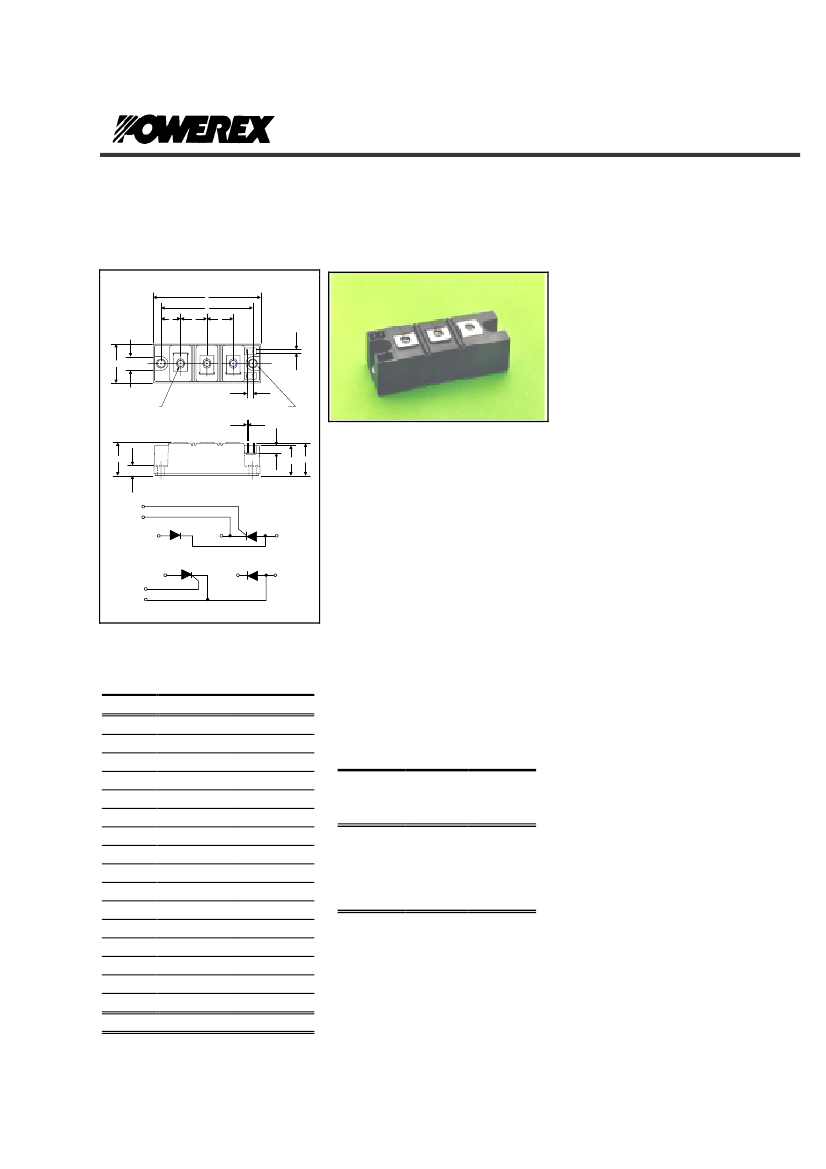

OUTLINE DRAWING
A
D
E
F
F
Description:
Powerex SCR/Diode Modules are
designed for use in applications
requiring phase control and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
TM
POW-R-BLOK
has been tested and
recognized by the Underwriters
Laboratories.
CD62__15A, CD67__15A
Dual SCR/Diode Isolated
TM
POW-R-BLOK Module
150 Amperes / Up to 1600 Volts
7
6
B
G
S
1
2
3
5
M
4
"J" (3)
R
F
"K" (2)
N
C
H
P
Q
Features:
T
T
T
T
T
Electrically Isolated Heatsinking
DBC Alumina (Al
2
O
3
) Insulator
Glass Passivated Chips
Metal Baseplate
Low Thermal Impedance
for Improved Current Capability
T
Quick Connect Gate Terminal
with Provision for Keyed Mating
Plug
T
UL Recognized (E78240)
-
CD67
-
5
3
3
6
7
4
CD62
2
~
+
1
2
~
1
CONNECTION DIAGRAMS
+
Ordering Information
:
CD62__15A, CD67__15A
Outline Dimensions
Dimension
A
B
C
D
E
F
G
H
J
K
M
N
P
Q
R
S
Inches
3.70
1.38
1.18
3.15
0.67
0.91
0.57
0.35
M6
0.26
.020
0.28
1.10
1.14
0.03
0.11
Millimeters
94
35
30
80
17
23
14.5
9
M6
6.5
5
7
28
29
0.8
2.8
Select the complete nine digit module
part number from the table below.
Example: CD621615A is a 1600Volt,
150 Ampere SCR/Diode Isolated
TM
POW-R-BLOK
Module
Benefits:
T
No Additional Insulation
Components Required
T
Easy Installation
T
No Clamping Components
Required
T
Reduce Engineering Time
Type
CD62
CD67
Voltage
Volts
(x100)
08
12
14
16
Current
Amperes
(x 10)
15
Applications:
T
T
T
T
T
T
T
T
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Lighting Control
Heat & Temperature Control
Welders
Note: Dimensions are for reference only.
Revision Date: 12/04/2002

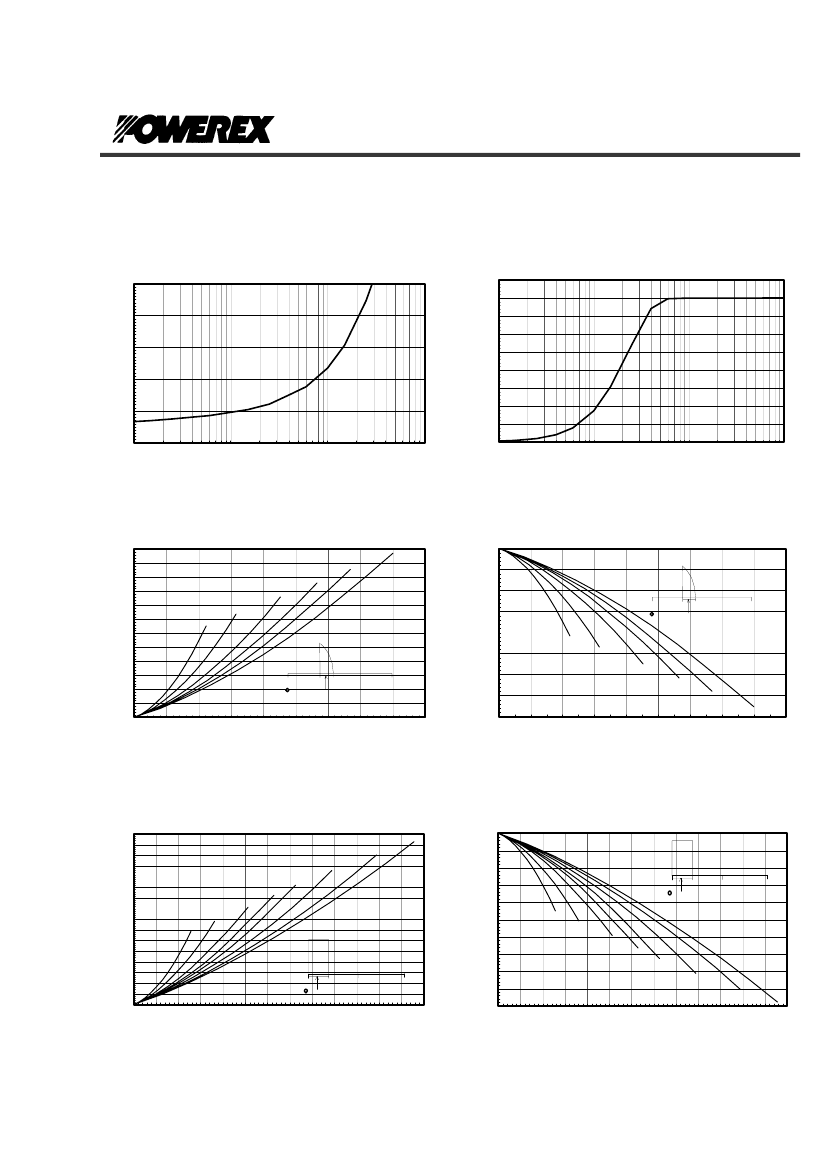

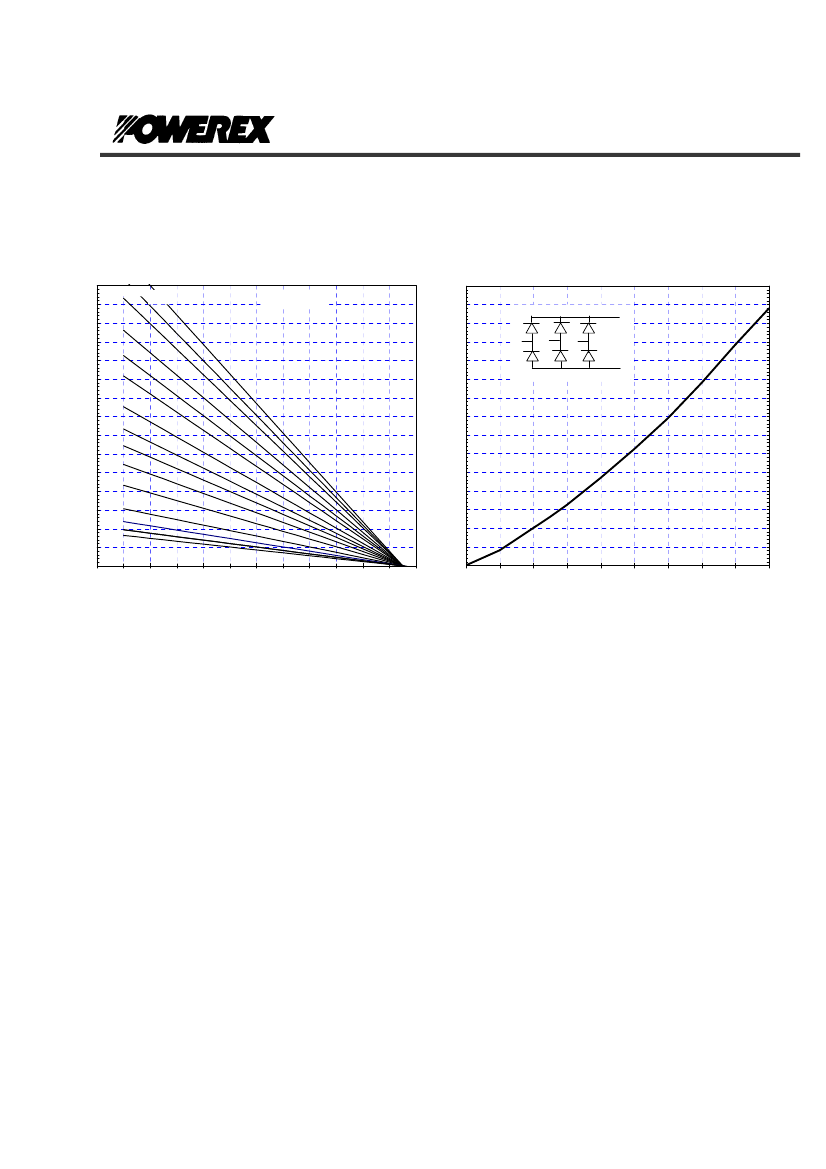

CD621415A Related Products

CD621415A CD621615A CD620815A CD621215A CD6215A CD670815A CD671215A CD671415A CD671615A
Description POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts
package instruction FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 - FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5 FLANGE MOUNT, R-XUFM-X5
Contacts 5 5 5 5 - 5 5 5 5
Reach Compliance Code unknow unknow unknow unknow - unknow unknow unknow unknow
Other features UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED - UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED - ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE - SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE SINGLE WITH BUILT-IN SERIES DIODE
Maximum DC gate trigger current 150 mA 150 mA 150 mA 150 mA - 150 mA 150 mA 150 mA 150 mA
Maximum DC gate trigger voltage 4 V 4 V 4 V 4 V - 4 V 4 V 4 V 4 V
Quick connection description G-GR G-GR G-GR G-GR - G-AK G-AK G-AK G-AK
Description of screw terminals A-K-AK A-K-AK A-K-AK A-K-AK - A-K-AK A-K-AK A-K-AK A-K-AK
JESD-30 code R-XUFM-X5 R-XUFM-X5 R-XUFM-X5 R-XUFM-X5 - R-XUFM-X5 R-XUFM-X5 R-XUFM-X5 R-XUFM-X5
Maximum leakage current 50 mA 50 mA 50 mA 50 mA - 50 mA 50 mA 50 mA 50 mA
On-state non-repetitive peak current 5100 A 5100 A 5100 A 5100 A - 5100 A 5100 A 5100 A 5100 A
Number of components 1 1 1 1 - 1 1 1 1
Number of terminals 5 5 5 5 - 5 5 5 5
Maximum on-state current 150000 A 150000 A 150000 A 150000 A - 150000 A 150000 A 150000 A 150000 A
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C - 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C - -40 °C -40 °C -40 °C -40 °C
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED - UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 250 A 250 A 250 A 250 A - 250 A 250 A 250 A 250 A
Off-state repetitive peak voltage 1400 V 1600 V 800 V 1200 V - 800 V 1200 V 1400 V 1600 V
Repeated peak reverse voltage 1400 V 1600 V 800 V 1200 V - 800 V 1200 V 1400 V 1600 V
surface mount NO NO NO NO - NO NO NO NO
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED - UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location UPPER UPPER UPPER UPPER - UPPER UPPER UPPER UPPER
Trigger device type SCR SCR SCR SCR - SCR SCR SCR SCR
Maker - POWEREX POWEREX POWEREX - - POWEREX POWEREX POWEREX
