310-025103-012: DescriptionNarrow Band Low Power Amplifier,; CategoryWireless rf/communication Radio frequency and microwave; File Size551KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

310-025103-012 Overview

Narrow Band Low Power Amplifier,

310-025103-012 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	SMA-F
structure	COAXIAL
Gain	14 dB
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Terminal surface	NICKEL
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

Filtered

Low Noise Ampli er

SPECTRUM MICROWAVE

P/N: 310-025103-012

For GPS Applications

1227 MHz/1575 MHz

This series of Low Noise Amplifiers provides a filtered,

low-noise gain solution ideal for applications where higher

reliability is critical. These filtered low noise amplifiers are

designed to reduce out-of-band interference while achieving

high dynamic range.

A pair of diplexed 3-pole ceramic filters select only the

desired GPS signals while the low-noise gain stage

maintains the receiving system’s sensitivity.

The LNA rejects undesired signals by at least 40 dB at

1050, 1410, and 1710 MHz. See the graphs on Page 2

for return loss, rejections, and gain of a typical unit.

The preamplifier is powered by DC voltage applied to

the center conductor of the output connector. Optionally,

the unit can be powered through an external DC bias

connector.

P/N: 310-025103-012

Typical Performance Speci cations

Frequency.

. . . . . . . . . . . . 1575.42 MHz (L1)

1227.60 MHz (L2)

Bandwidth

. . . . . . . . . . . . 30 MHz min.

Noise gure

. . . . . . . . . . . 2.5 dB max.

VSWR

. . . . . . . . . . . . . . . 1.5:1 max.

Gain

. . . . . . . . . . . . . . . . 14 dB min.

Gain Flatness

. . . . . . . . . . +/-0.5 dB

Rejection

. . . . . . . . . . . . . 40 dB @ 1050, 1410, 1710 MHz

Bias

. . . . . . . . . . . . . . . . . Coaxial Bias

DC Power

. . . . . . . . . . . . 16-32 VDC

Temperature Range

. . . . . .

-40˚C

+71˚C

All specifications above measured at

25˚C

Features and Bene ts



Noise figure 1.6 dB typical



Double-diplexed preamp filters



Lightweight aluminum housing



Dual band (L1 and L2) performance



Coaxial and external bias options



Environmental sealing available



Application specific packages available



Suitable for new L2-C signals



L5 configurations available upon request

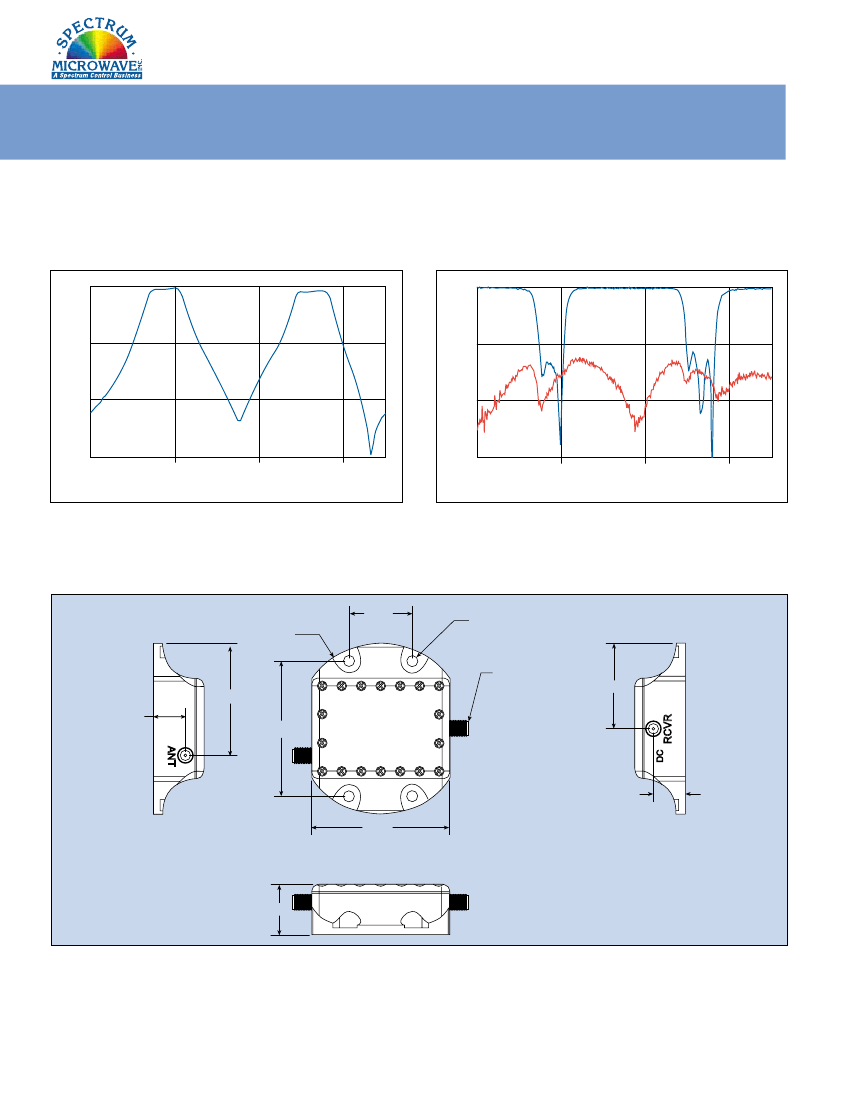

Dimensions and Connections



Antenna port J1



Receiver port J2



SMA type female connectors



2.20"ø x 0.080"H excluding connectors

Chassis is machined aluminum with a nickel plate finish.

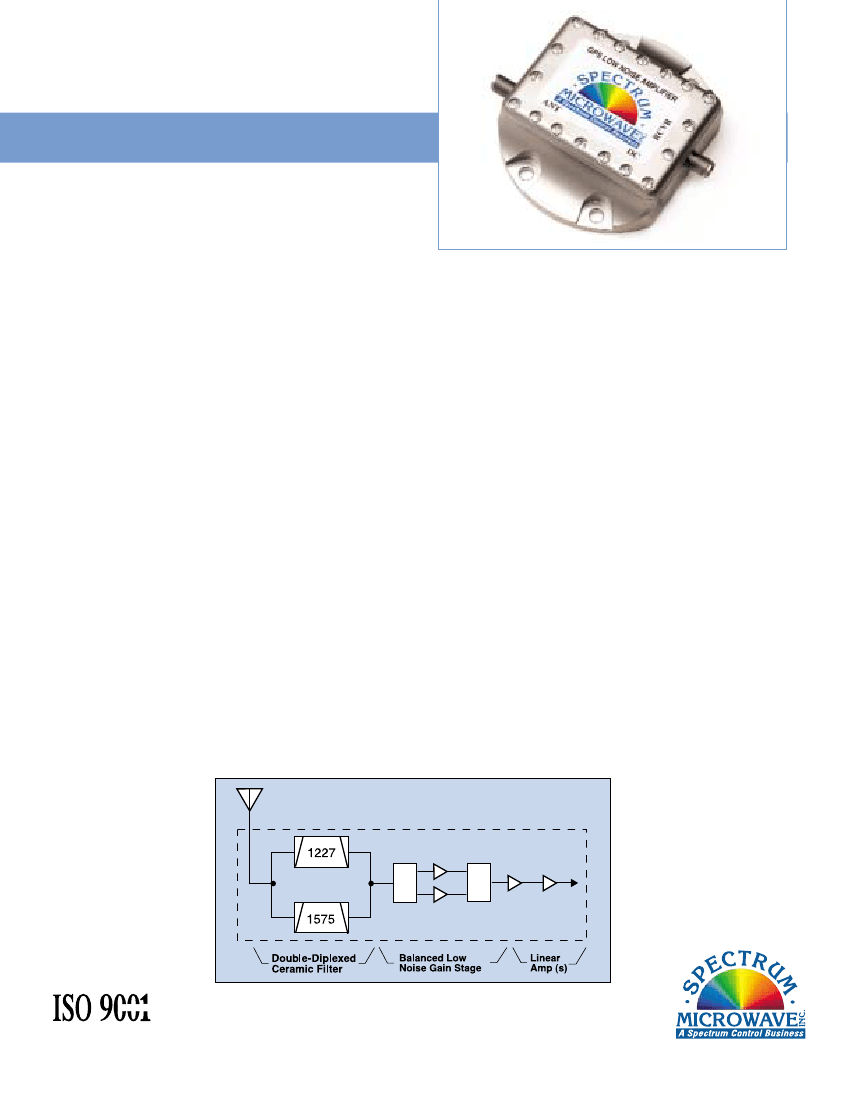

Block Diagram

CERTIFIED

SPECTRUM MICROWAVE

• 38166 Old Stage Road • Delmar, Delaware 19940 • Phone: 302-846-2750 • Fax: 302-846-3888

SPECTRUM MICROWAVE

• 2707 Black Lake Place • Philadelphia, Pennsylvania 19154 • Phone: 215-464-4000 • Fax: 215-464-4001

www.SpectrumMicrowave.com
