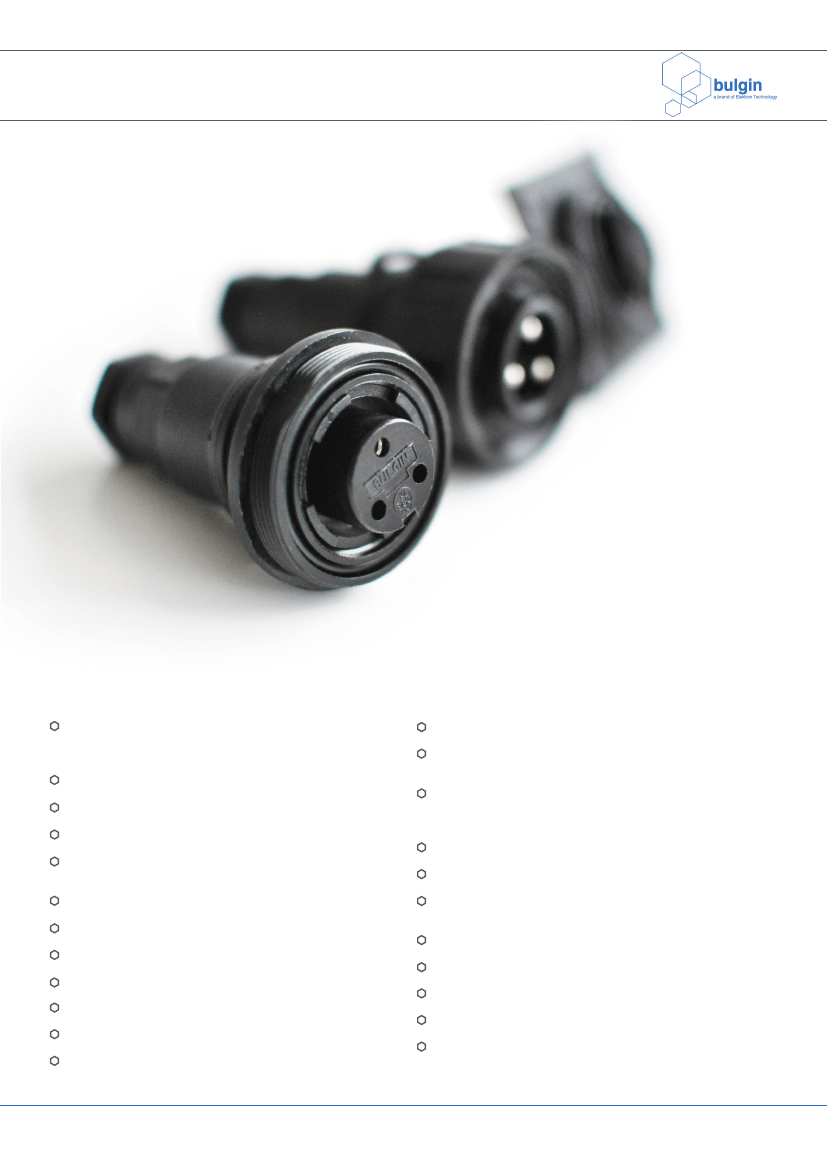

Standard Buccaneer
BUCCANEER FOR POWER
IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m
depth for 2 weeks and 9.84kg/sq cm (140lb/sq in)
100m depth for 12 hours
IP69K, Tested in accordance with DIN 40050/Part 9 IP6k9k
Water and dustproof to IP68 when mated
2, 3, 4, 6, 7, 9, 12 and 25 pole
12A, 277V ac/dc 2 pole screw terminal, 3 pole screw
terminal and crimp contacts
10A, 277V ac/dc 4 pole screw terminal
5A, 277V ac/dc 6 and 7 pole screw terminal
5A, 150V ac/dc 9 pole crimp contacts
5A, 50V ac/dc 12 pole crimp and solder contacts
1A, 50V ac/dc 25 pole crimp and solder contacts
Plug or socket connection in each body style
Compact design
Diameter over coupling ring 38mm
Sealing caps available to maintain IP68 rating of
unmated connectors
7 body styles - flex cable, in-line flex cable, panel
mount (front), panel mount (rear), PCB mount,
bulkhead and flange mount
Leading earth contact for 3 pole socket version
Positive locating keyways - cannot be mis-connected
Easy assembly - no special tools required on screw
terminal versions
Cable range from 3.5mm - 9mm
Colour coded identification variants
Pre-wired, overmoulded cable assemblies
CCC, UL, CSA and VDE approvals
EN60068-2-52 Test Kb Salt Mist (Cyclic)
Marine Severity Level 1
Circular Power Connectors 21

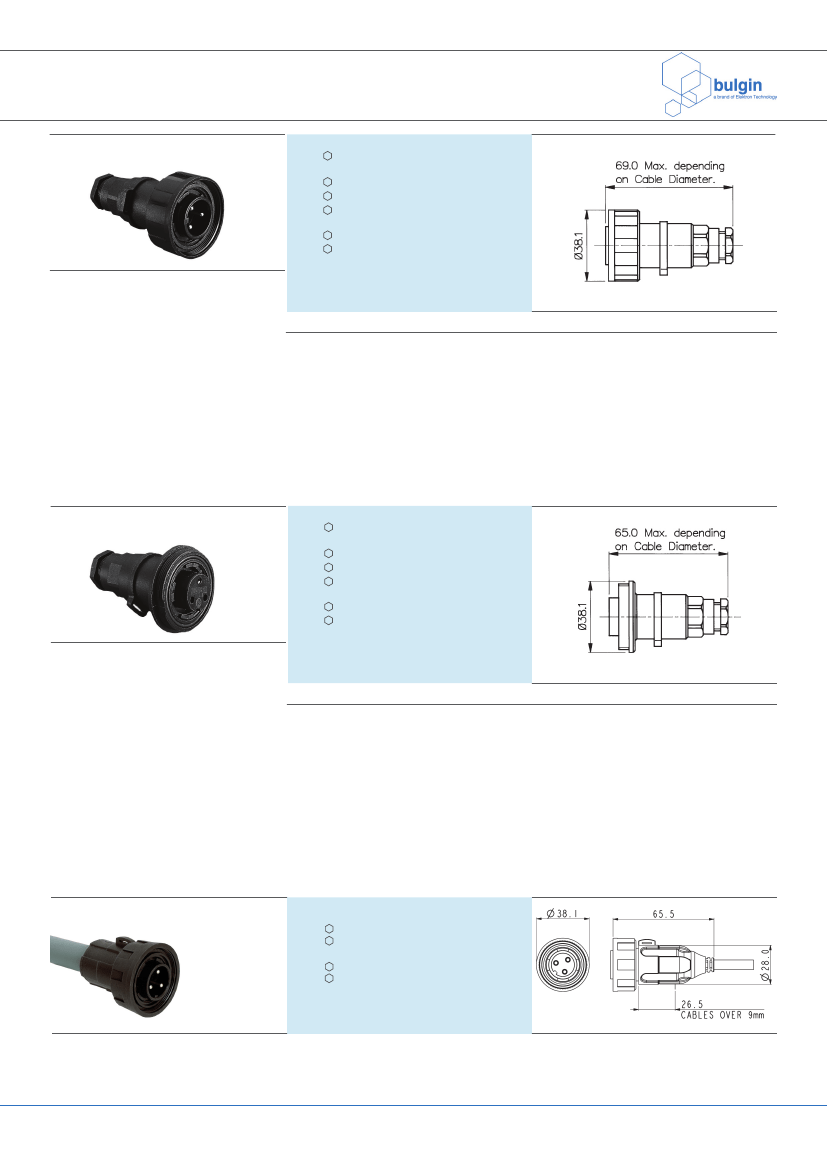

Standard Buccaneer
Flex Cable Connector
Mates with In-Line Flex or
Panel Mounting Versions
Screw Locking Ring
Pin or Socket Versions
Leading Earth on 3 pole
connectors
Poles 2, 3, 4, 6, 7, 9, 12, 25
Standard Cable Acceptance
(2 to 9 pole) 6-8mm, 3.5-9mm
with alternative glands
BUCCANEER FOR POWER
PX0731
Poles
2
3
3
4
6
7
9
12
25
Termination
Screw
Screw
Crimp
Screw
Screw
Screw
Crimp
Crimp/Solder
Crimp/Solder
Pin Contacts
PX0736/P
PX0731/P
PX0776/P
PX0748/P
PX0739/P
PX0745/P
PX0728/P
PX0794/P
PX0820/P
Socket Contact
PX0736/S
PX0731/S
PX0776/S
PX0748/S
PX0739/S
PX0745/S
PX0728/S
PX0794/S
PX0820/S
Contacts
Supplied Fitted
Supplied Fitted
Supplied Loose
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Loose
Order Separately
Order Separately
Inline Flex Cable Connector
PX0732
Mates with In-Line Flex or
Panel Mounting Versions
Screw Locking Ring
Pin or Socket Versions
Leading Earth on 3 pole
connectors
Poles 2, 3, 4, 6, 7, 9, 12, 25
Standard Cable Acceptance
(2 to 9 pole) 6-8mm, 3.5-9mm
with alternative glands
Poles
2
3
3
4
6
7
9
12
25
Termination
Screw
Screw
Crimp
Screw
Screw
Screw
Crimp
Crimp/Solder
Crimp/Solder
Pin Contacts
PX0737/P
PX0732/P
PX0778/P
PX0749/P
PX0740/P
PX0746/P
PX0729/P
PX0795/P
PX0821/P
Socket Contact
PX0737/S
PX0732/S
PX0778/S
PX0749/S
PX0740/S
PX0746/S
PX0729/S
PX0795/S
PX0821/S
Contacts
Supplied Fitted
Supplied Fitted
Supplied Loose
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Loose
Order Separately
Order Separately
Pre Wired Flex Cable Connector
Overmoulded cable assemblies
Up to 14mm dia cable with
PVC or PU jackets
P
X0700flexcableconnector
M
ateswithin-lineflex
connector and all panel
connectors
PX0700
22 Circular Power Connectors

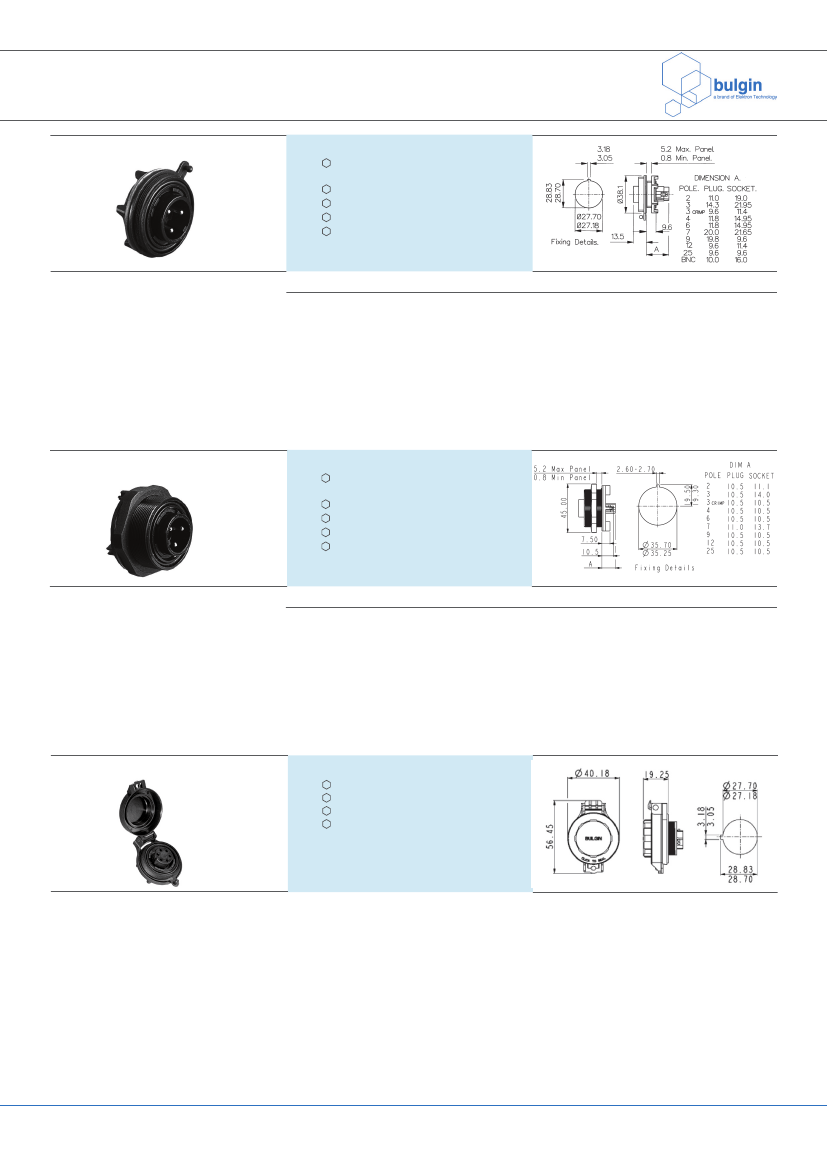

Standard Buccaneer
Front Panel Mounting Connector
Mates with Flex Cable
Connector
Front panel mounting
Single Hole Fixing
Pin or Socket Versions
Poles 2, 3, 4, 6, 7, 9, 12, 25
PX0730/P
BUCCANEER FOR POWER
Poles
2
3
3
4
6
7
9
12
25
Termin ation
Screw
Screw
Crimp
Screw
Screw
Screw
Crimp
Crimp/Solder
Crimp/Solder
Pin Contacts
PX0735/P
PX0730/P
PX0779/P
PX0747/P
PX0738/P
PX0744/P
PX0727/P
PX0796/P
PX0822/P
Socket Contact
PX0735/S
PX0730/S
PX0779/S
PX0747/S
PX0738/S
PX0744/S
PX0727/S
PX0796/S
PX0822/S
Contacts
Supplied Fitted
Supplied Fitted
Supplied Loose
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Loose
Order Separately
Order Separately
Rear Panel Mounting Connector
Mates with Flex Cable
Connector
Rear panel mounting
Single Hole Fixing
Pin or Socket Versions
Poles 2, 3, 4, 6, 7, 9, 12 or 25
PX0709/x/xx
Poles
2
3
3
4
6
7
9
12
25
Spring Loaded Sealing Cap
Termination
Screw
Screw
Crimp
Screw
Screw
Screw
Crimp
Crimp/Solder
Crimp/Solder
Pin Contacts
PX0709/P/02
PX0709/P/03
PX0708/P/03
PX0709/P/04
PX0709/P/06
PX0709/P/07
PX0708/P/09
PX0708/P/12
PX0708/P/25
Socket Contact
PX0709/S/02
PX0709/S/03
PX0708/S/03
PX0709/S/04
PX0709/S/06
PX0709/S/07
PX0708/S/09
PX0708/S/12
PX0708/S/25
Contacts
Supplied Fitted
Supplied Fitted
Supplied Loose
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Loose
Order Separately
Order Separately
IP54 rated
Spring loaded
Clip shut to seal
For use with front of panel
mounting connector types
PX0713
Circular Power Connectors 23

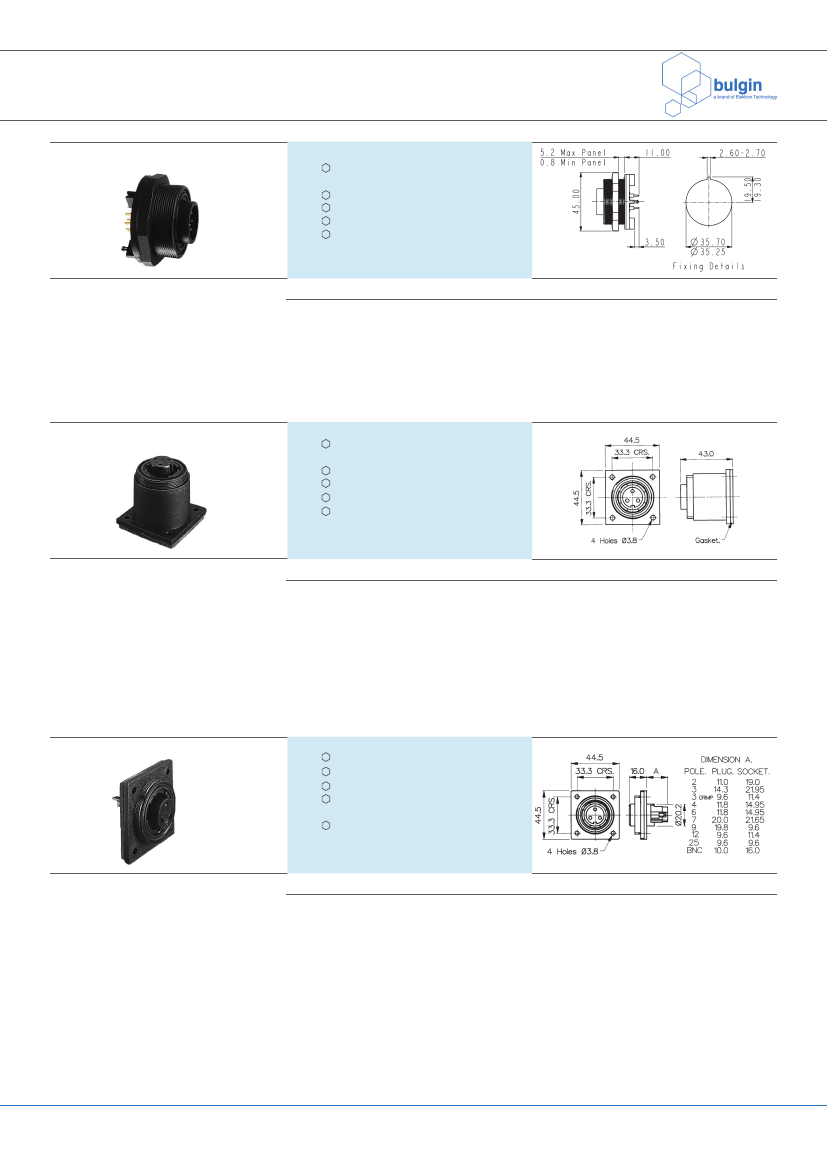

Standard Buccaneer
PCB Mounting Connector
Mates with Flex Cable
connector
Rear panel mounting
No. poles: 3, 4, 6, 9, 12 or 25
Pin or socket versions
Pre-loaded Gold Plated
contacts
PX0707/P/12
BUCCANEER FOR POWER
Poles
3
4
6
9
12
25
Termination
PCB
PCB
PCB
PCB
PCB
PCB
Pin Contacts
PX0707/P/03
PX0707/P/04
PX0707/P/06
PX0707/P/09
PX0707/P/12
PX0707/P/25
Socket Contact
PX0707/S/03
PX0707/S/04
PX0707/S/06
PX0707/S/09
PX0707/S/12
PX0707/S/25
Contacts
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Fitted
Bulkhead Flange Mounting Connector
Mates with Flex Cable
Connector
Screw Fixing Flange
Pin or Socket Versions
Poles 2, 3, 4, 6, 7, 9, 12, 25
Supplied with sealing gasket
and screw sealing grommets
PX0756/S
Poles
2
3
3
4
6
7
9
12
25
Termination
Screw
Screw
Crimp
Screw
Screw
Screw
Crimp
Crimp/Solder
Crimp/Solder
Pin Contacts
PX0757/P
PX0756/P
PX0787/P
PX0761/P
PX0758/P
PX0760/P
PX0762/P
PX0798/P
PX0823/P
Socket Contact
PX0757/S
PX0756/S
PX0787/S
PX0761/S
PX0758/S
PX0760/S
PX0762/S
PX0798/S
PX0823/S
Contacts
Supplied Fitted
Supplied Fitted
Supplied Loose
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Loose
Order Separately
Order Separately
Low Profile Flange Mounting Connector
Screw Flange Fixing
Pin or Socket Versions
Poles 2, 3, 4, 6, 7, 9, 12, 25
Mates with Flex Cable
Connector
Supplied with sealing gasket
and screw sealing grommets
PX0765/S
Poles
2
3
3
4
6
7
9
12
25
Termination
Screw
Screw
Crimp
Screw
Screw
Screw
Crimp
Crimp/Solder
Crimp/Solder
Pin Contacts
PX0764/P
PX0765/P
PX0781/P
PX0766/P
PX0767/P
PX0768/P
PX0769/P
PX0797/P
PX0824/P
Socket Contact
PX0764/S
PX0765/S
PX0781/S
PX0766/S
PX0767/S
PX0768/S
PX0769/S
PX0797/S
PX0824/S
Contacts
Supplied Fitted
Supplied Fitted
Supplied Loose
Supplied Fitted
Supplied Fitted
Supplied Fitted
Supplied Loose
Order Separately
Order Separately
24 Circular Power Connectors

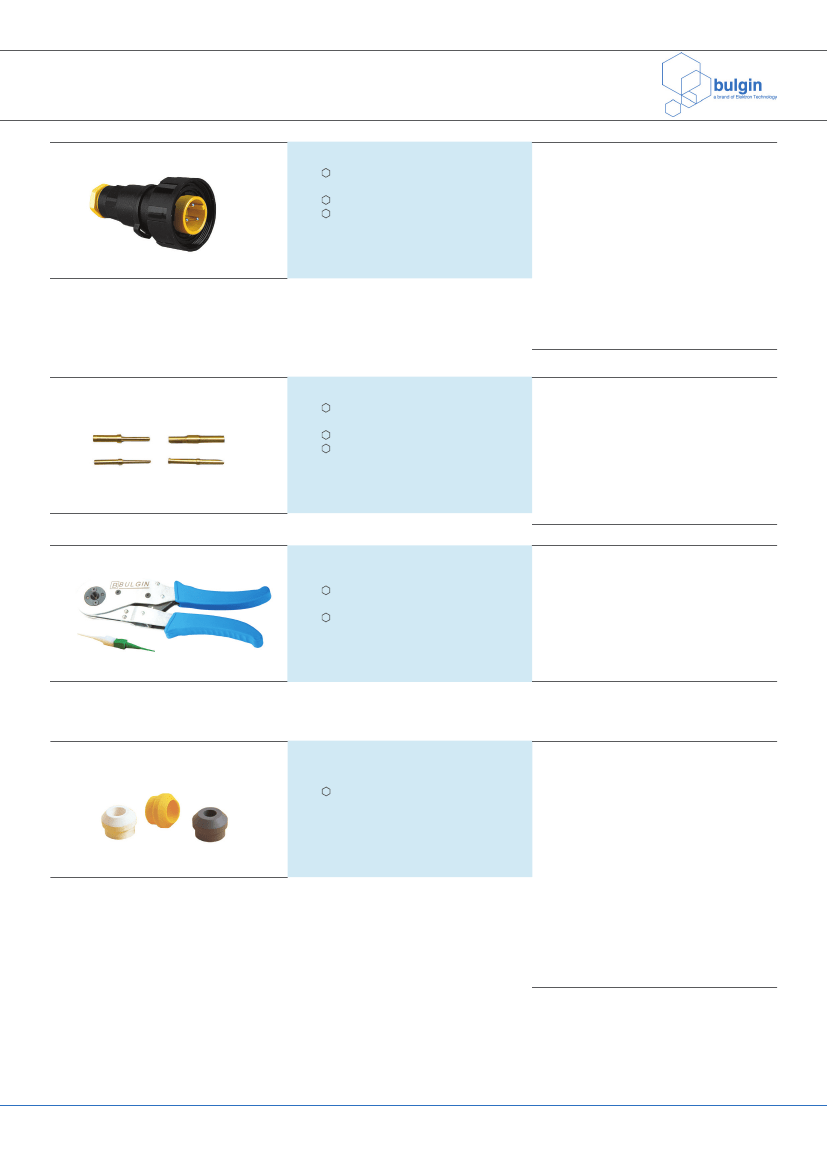

Standard Buccaneer
Accessories
Coloured Contact Inserts
With or without matching
gland nut
P
ositivevisualidentification
Available in; Black, Blue,
Green, Grey, Light Grey,
Red, White and Yellow
Coloured Inserts
Contact Inserts Colour Options
Blank
BL
GN
GY
LG
RD
WH
YL
BUCCANEER FOR POWER
PartNoSuffixColour
Black
Blue
Green
Grey
Light Grey
Red
White
Yellow
Insert/Gland Nut Combinations
1
2
Insert and Gland Nut Coloured
Insert Only Coloured
E.g. PX0731/P/YL1 = Yellow insert and gland nut
Contacts for 12 and 25 Pole Inserts
Crimp or Solder Pins
and Sockets
Gold Plated
Current ratings:
12 way: 5A, 50V
25 way: 1A, 50V
12 and 25 way contacts
Contacts - Solder & Crimp for 12 and 25 pole
Contacts (for 25 pole)
(Supplied in packs of 10)
Pins
Sockets
Contacts (for 12 pole)
(Supplied in packs of 10)
Pins
Sockets
Solder
SA3180/1
Crimp
SA3180
SA3179
Crimp
SA3348
SA3347
SA 3179/1
Solder
SA3348/1
SA3347/1
Assembly Tools
Crimp Tools for 3, 9,12 and
25 pole crimp contacts
Insertion/Extraction Tool for 25
pole contacts
PNo 14025 and 13027
Tools
Crimp Tool (25 pole)
Crimp Tool (12 pole)
Positioner (12 pole)
Crimp Tool (9 pole)
Crimp Tool (3 pole)
3 pole positioner
Insertion/Extraction Tool (25 pole)
Insertion/Extraction Tool (12 pole)
Insertion/Extraction Tool (3 pole)
PNo. 14025/1AMP
PNo. 14025
PNo. 14025/5AMP
PNo. 13826
PNo. 14232
PNo. 14232/1
PNo. 13027
PNo. 13027/1
PNo. 13027/3
Cable Glands
Pack of alternative cable
glands to suit cables from 3.5
to 9mm dia.
Cable Acceptance - Alternatives
Gland
Diameter
6-8mm
3.5-5mm
5-7mm
7-9mm
Gland Pack
Gland
Part No.
12023
SA3426
12023/1
12023/2
SA3253
Gland
Colour
Additional
Suffix
Black
Standard for 2-12 pole
Grey
Suffix/04†
White
Suffix/05
Yellow
Suffix/07*
Pack of 3 glands to suit cables
3.5-5mm, 5-7mm & 7-9mm dia†
SA3253
*Note:7-9mmglandstandardfor25way,nosuffixrequired.
†Includes additional black gland cage for 3.5-5mm dia.
cable range.
Toorderconnectorwithalternativecableglandaddsuffixto
part no. e.g. PX0731/P/07 = PX0731 3 pin connector with
cable gland to suit 7-9mm dia. cable.
Cable Acceptance - Standard as supplied
No. Contacts
2-12 Pole
25 Pole
Cable Diameter or Type
6-8mm
7-9mm
Circular Power Connectors 25
