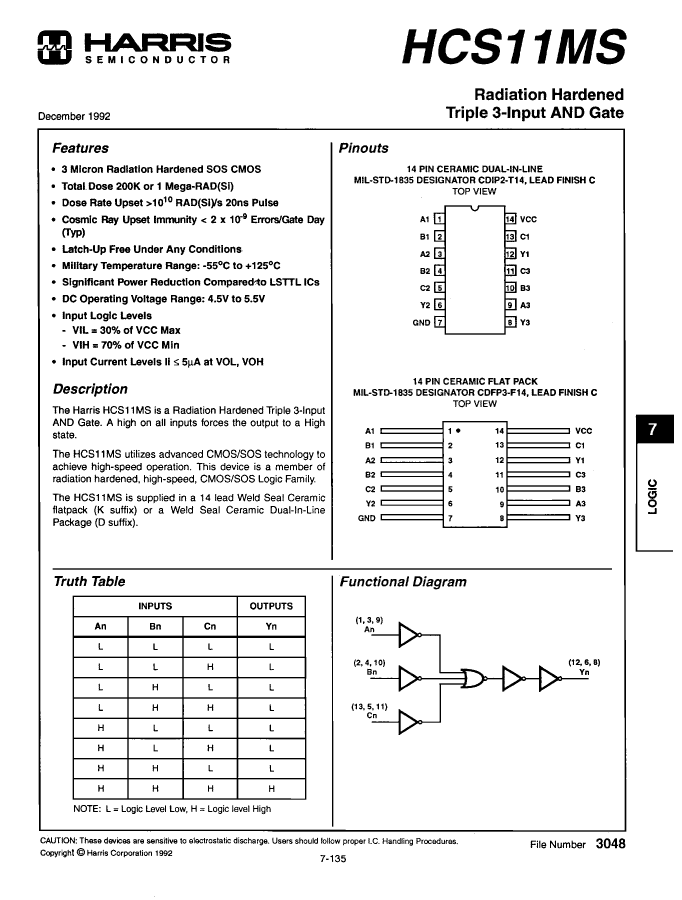

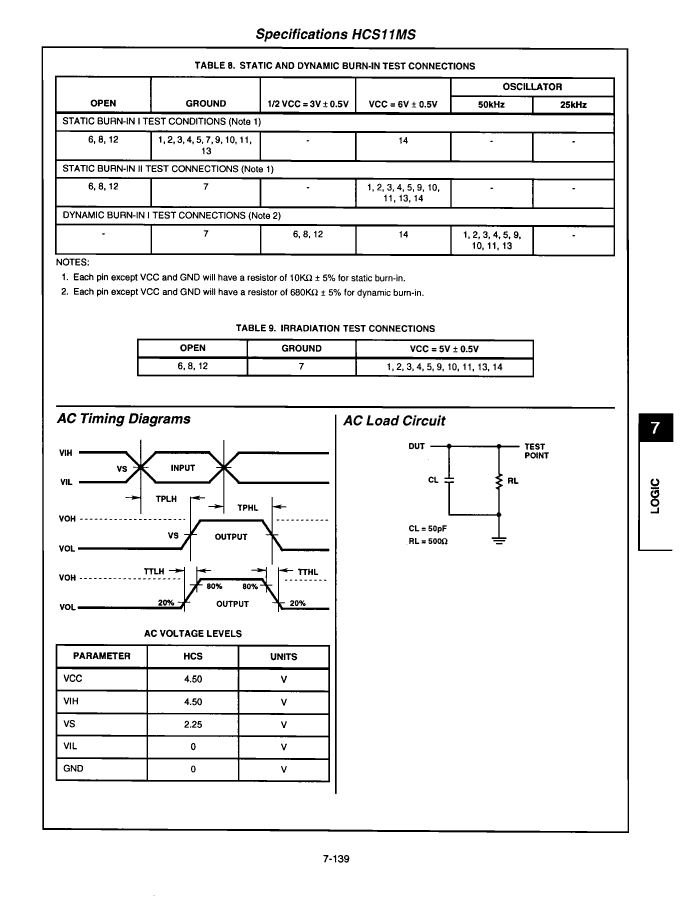

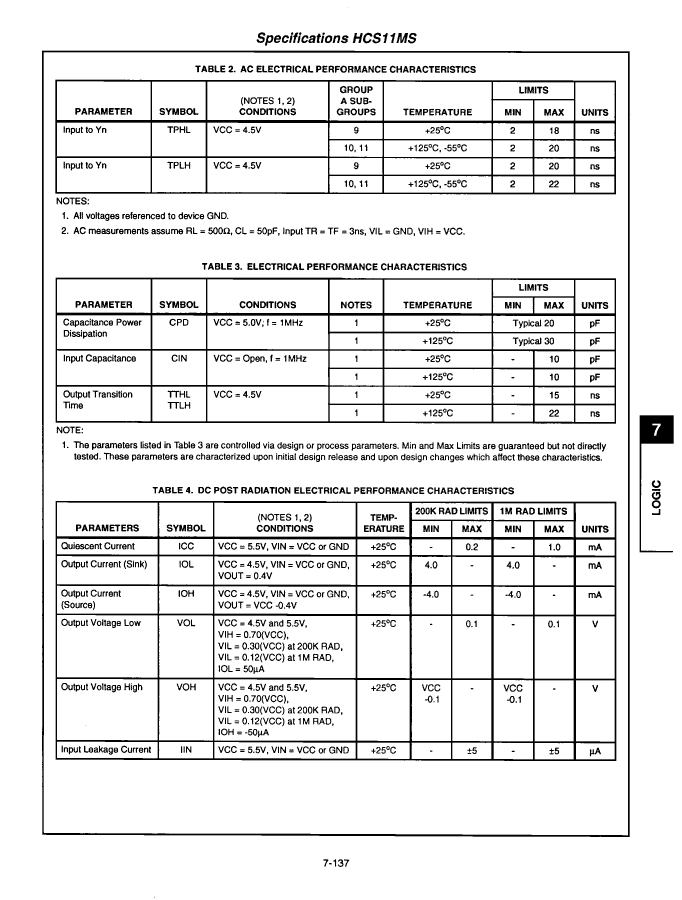

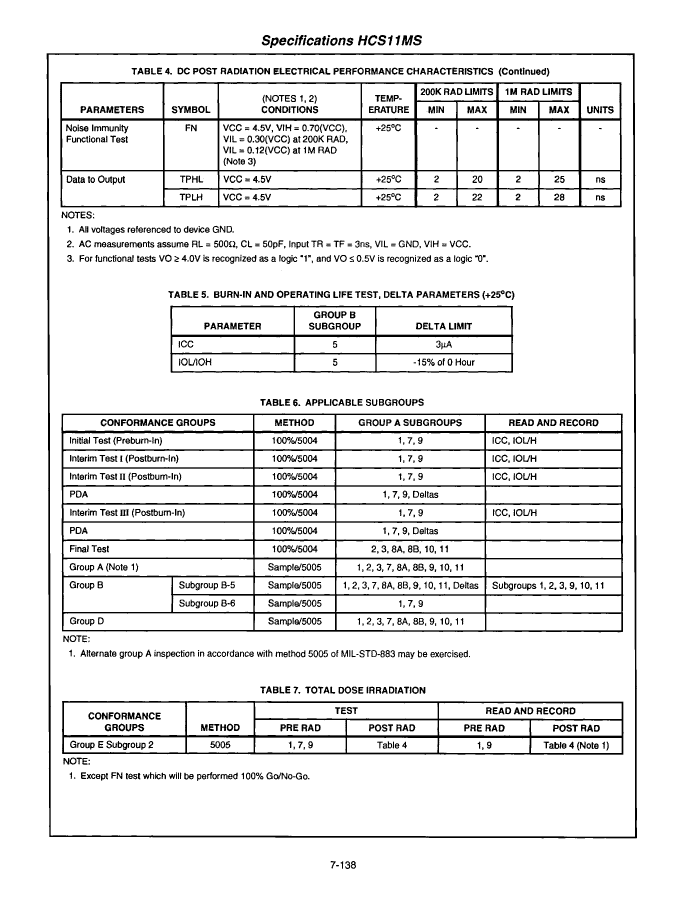

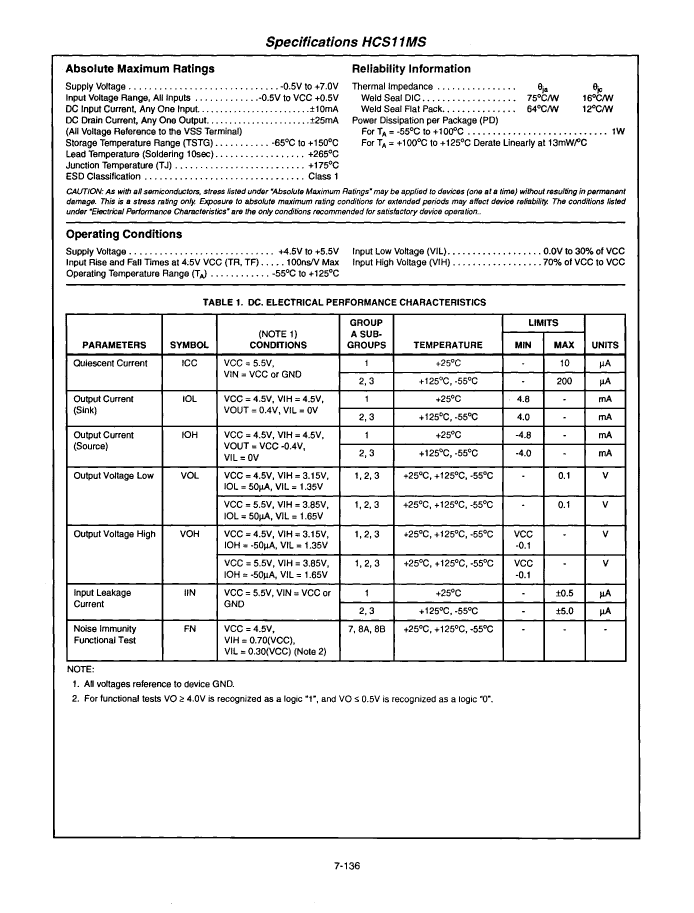

5962R9572001VCX: DescriptionAND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, CDIP14; Categorylogic logic; File Size215KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9572001VCX Overview

AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, CDIP14

5962R9572001VCX Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY
series	HC/UH
JESD-30 code	R-CDIP-T14
Logic integrated circuit type	AND GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9572001VCX Related Products

	5962R9572001VCX	5962R9572001VXX	HCS11DMSH	HCS11KMSH
Description	AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, CDIP14	AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, CDFP14	AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, CDIP14	AND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, CDFP14
Reach Compliance Code	unknow	unknown	unknown	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDIP-T14	R-CDFP-F14	R-CDIP-T14	R-CDFP-F14
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE
Number of functions	3	3	3	3
Number of entries	3	3	3	3
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	FLATPACK
propagation delay (tpd)	20 ns	20 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL
