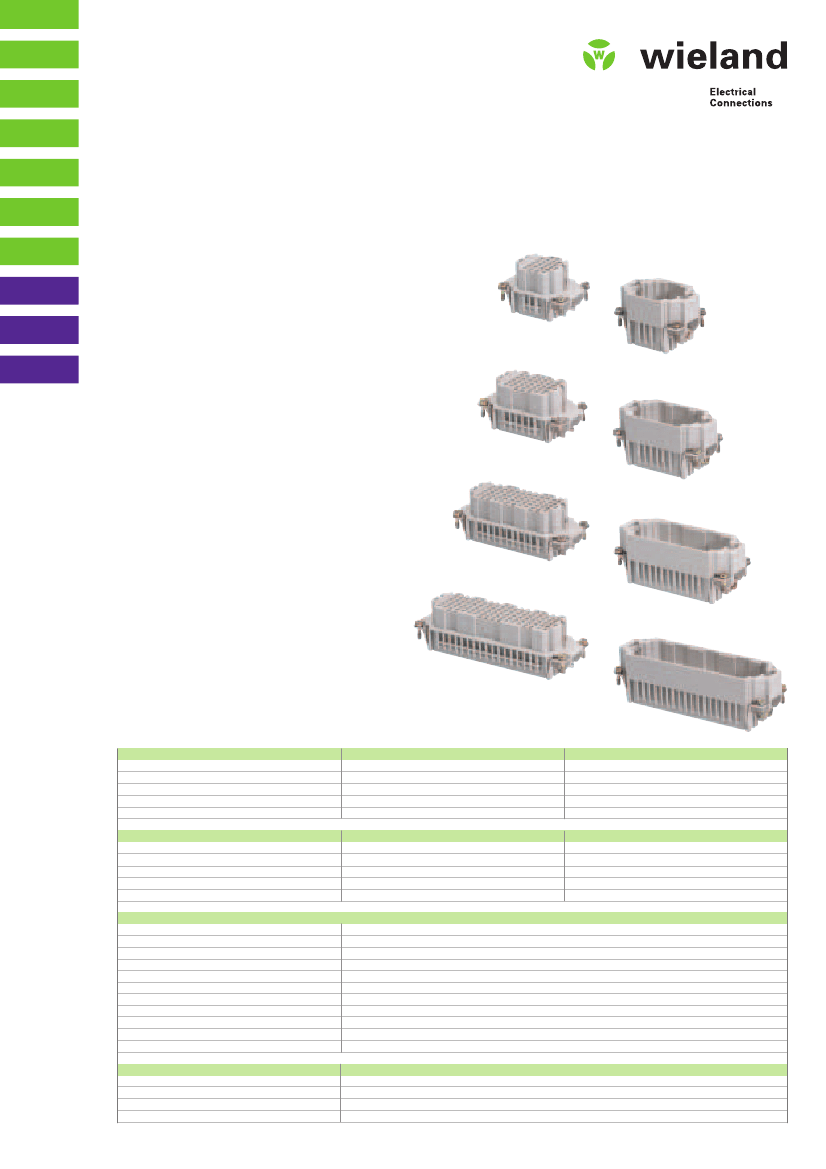

Industrial multipole connectors
revos
revos
DD
More contacts for less room
The new
revos
DD
contact inserts complement
the product range of
revos
industrial multipole
connectors with a high contact density series.
The inserts fit the
revos
BASIC
housing sizes 6/6H-,
10/10H-, 16/16H-, 24/24H. Connection is made by
using the proven turned crimp contacts Ø 1.6 mm
and ranges from 0.14 - 2.5 mm
2
at a rated voltage
of 250 V.
CUSTOMER INFORMATION
Features
K
Number of poles: 24, 42, 72, 108 poles + ground
K
For use in
revos
BASIC
housings,
sizes: 6/6H-, 10/10H-, 16/16H-, 24/24H
K
Rated voltage 250V
K
Rated current 10A
Your benefits
K
High contact density in the most
confined spaces
K
Crimp connections suitable for
automated cable pre-assembly
K
Very space-saving and compact design
Description
revos
DD
contact inserts with crimp connection
24 pole + PE
42 pole + PE
72 pole + PE
108 pole + PE
Contacts
mm
2
0,14-0,37
0,5
0,75-1
1,5
2,5
AWG
26-22
20
18
16
14
Type
Female insert
DD BUC 24 1,5 25
DD BUC 42 1,5 25
DD BUC 72 1,5 25
DD BUC 108 1,5 25
Part No.
73.800.2453.0
73.800.4253.0
73.800.7253.0
73.800.0853.0
Box Qty Type
Male insert
5
DD STC 24 1,5 25
5
DD STC 42 1,5 25
5
DD STC 72 1,5 25
5
DD STC 108 1,5 25
Part No.
73.810.2453.0
73.810.4253.0
73.810.7253.0
73.810.0853.0
Box Qty
5
5
5
5
Female
Female
Female
Female
Female
contact,
contact,
contact,
contact,
contact,
Ag
Ag
Ag
Ag
Ag
02.125.4129.8
02.125.4229.8
02.125.4329.8
02.125.4429.8
02.125.4529.8
100
100
100
100
100
Male
Male
Male
Male
Male
contact,
contact,
contact,
contact,
contact,
Ag
Ag
Ag
Ag
Ag
05.544.4129.8
05.544.4229.8
05.544.4329.8
05.544.4429.8
05.544.4529.8
100
100
100
100
100
Technical data (apply to both male and female inserts)
Electrical ratings
Rated voltage acc. to EN 60664-1
250V
Rated voltage acc. to UL/CSA
600V
Rated current
10A (UL: 8,5A)
Rated impulse voltage
4kV
Degree of pollution
2 (3 in housings with IP rating 54 or better)
Material for insulating housing
Thermoplastic; fiber-glass reinforced; flammability according to UL94-V0
Color
gray (similar to RAL 7032)
Temperatur range
-40°C to +100°C (120°C for short periods of time)
Connection technology
Crimp connection
Approvals
UL in preparation
Accessories
Crimping tool
Crimping die
Contact positioner
Extraction tool
Type
“B”
“1”
Part No.
95.101.0800.0
05.502.2100.0
05.502.3100.0
05.502.0710.0
Box Qty
1
1
1
1
0177.1 MC 08/06
Head office:
Wieland Electric GmbH
Brennerstraße 10-14
D-96052 Bamberg
Sales and Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax
+49 (951) 93 24-198
www.wieland-electric.com
www.gesis.com
info@wieland-electric.com

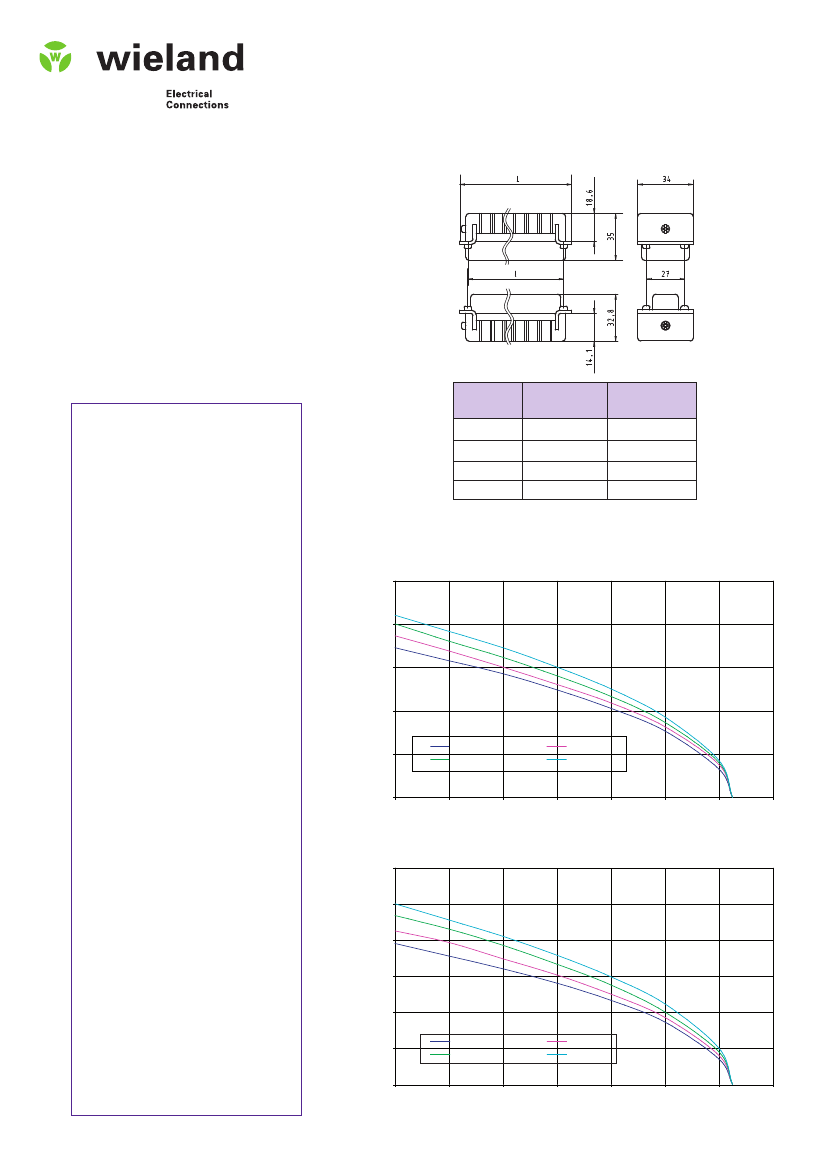

Dimensions
AT Wieland
Components and system components
for the control cabinet
• DIN rail terminal blocks
– with screw connection
– with spring clamp connection
– with IDC connection
• Safety
– Safety relays
– Modular safety systems
• Fieldbus components
• Interface
– Power supplies
– Overvoltage protection
– Measuring and monitoring relays
– Time and switching relays
– Coupling relays/solid state relays
– Analog modules
– Passive interfaces
Components and system components
for field applications
• Remote automation
– Remote power distribution
– Remote fieldbus interface
• Industrial multipole connectors
– Modular multipole connectors
– High-density multipole connectors
– High-current multipole connectors
– Multipole connectors for
hazardous areas
– Bushings for control cabinets
– D-Sub connectors
• Round connectors
Empty housings and appliance
connectors/terminal strips
AT Schleicher
• PLC systems and CNC based control
systems
• Operator panels
• Application engineering &
system solutions
• Customized products
BIT Wieland
• Building installation systems
– Mains connectors IP20/IP65...IP68
– Bus connectors
– Combined connectors
– Low-voltage connectors
– Flexible flat cable systems
– Distribution systems
– Switching devices for EIB/KNX, LON,
Ethernet, radio control
– DIN rail terminal blocks for
electrical installations
– Overvoltage protection
PCB connectors Wieland
• PC board terminals/PC board connectors
– with screw connection
– with spring clamp connection
– with TOP connection
Number
of poles
24
42
72
108
L±0,5(mm)
50,5
63,5
84
110,5
l±0,5(mm)
44
57
77,5
104
Derating
revos
25
DD
250 V / 10 A / 1,5 mm
2
Current carrying capacity [A]
20
15
10
5
24-pole
72-pole
42-pole
108-pole
0
0
20
40
60
80
100
120
140
Ambient temperature [°C]
revos
30
DD
250 V / 10 A / 2,5 mm
2
Current carrying capacity [A]
25
20
15
10
24-pole
72-pole
42-pole
108-pole
5
0
0
20
40
60
80
100
120
140
Ambient temperature [°C]
