TC1054-2.85VCT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TC1054-2.85VCT

TC1054-2.85VCT: DescriptionFixed Positive LDO Regulator, 2.8V, 0.12V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN; CategoryPower/power management The power supply circuit; File Size2MB，11 Pages; ManufacturerTelCom Semiconductor, Inc. (Microchip Technology); Websitehttp://www.telcom-semi.com/

Download Datasheet Parametric Compare View All

TC1054-2.85VCT Overview

Fixed Positive LDO Regulator, 2.8V, 0.12V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN

TC1054-2.85VCT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TelCom Semiconductor, Inc. (Microchip Technology)
package instruction	SOT-23A, 5 PIN
Reach Compliance Code	unknown
Adjustability	FIXED
Maximum drop-back voltage 1	0.12 V
Nominal dropback voltage 1	0.12 V
Maximum absolute input voltage	7 V
Maximum input voltage	6 V
Minimum input voltage	3.8 V
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
Maximum grid adjustment rate	0.02144%
Maximum load regulation	0.057%
Number of functions	1
Output times	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.05 A
Maximum output voltage 1	2.87 V
Minimum output voltage 1	2.73 V
Nominal output voltage 1	2.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum voltage tolerance	5%
Base Number Matches	1

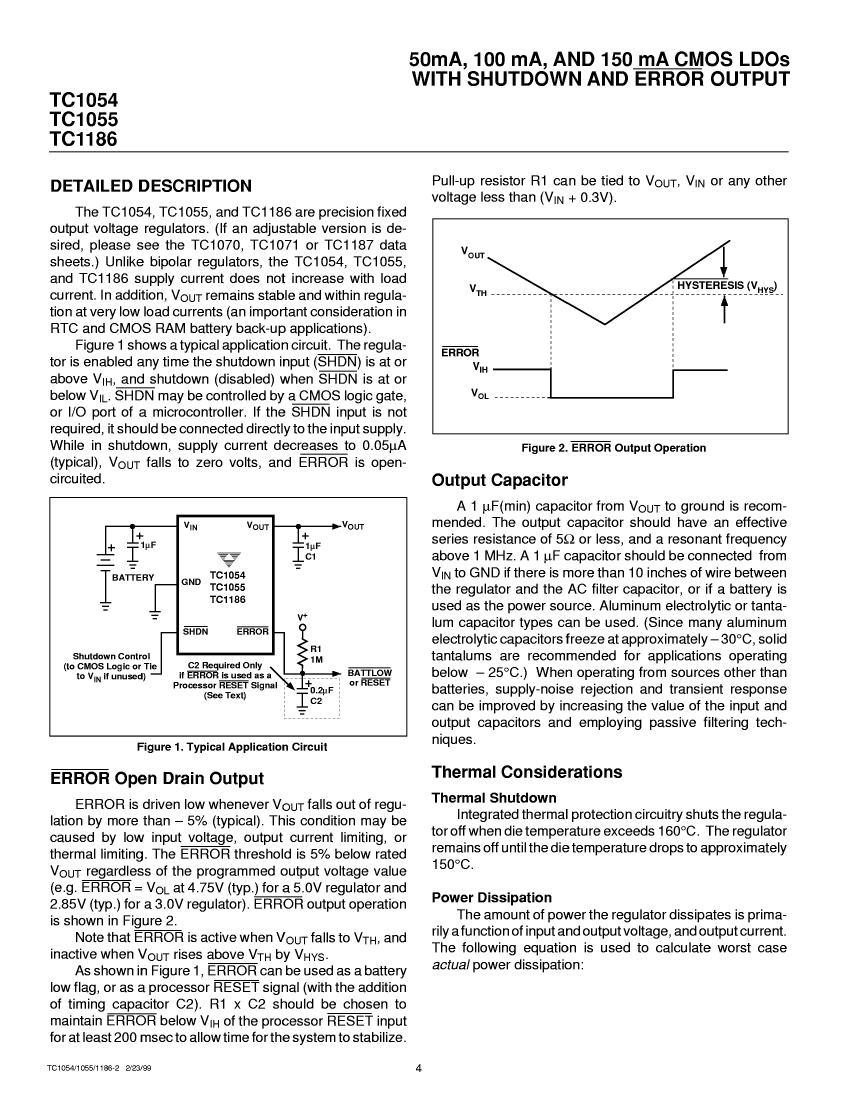

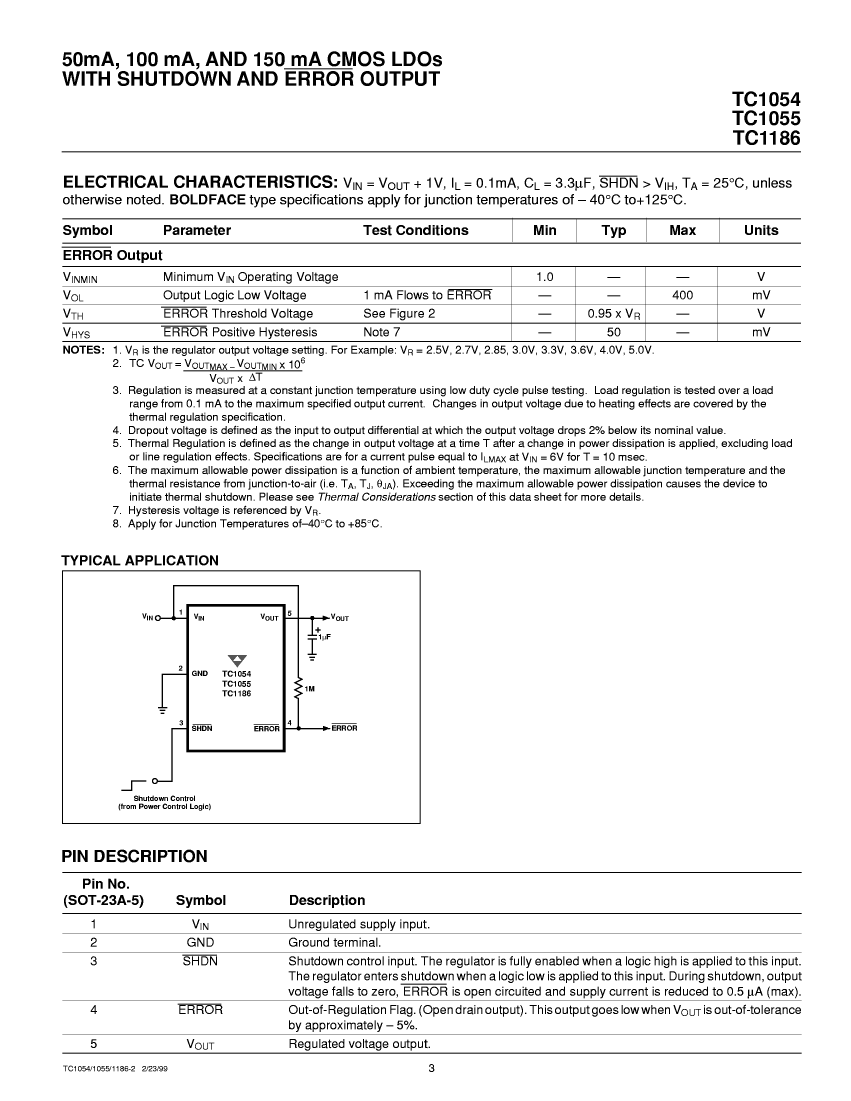

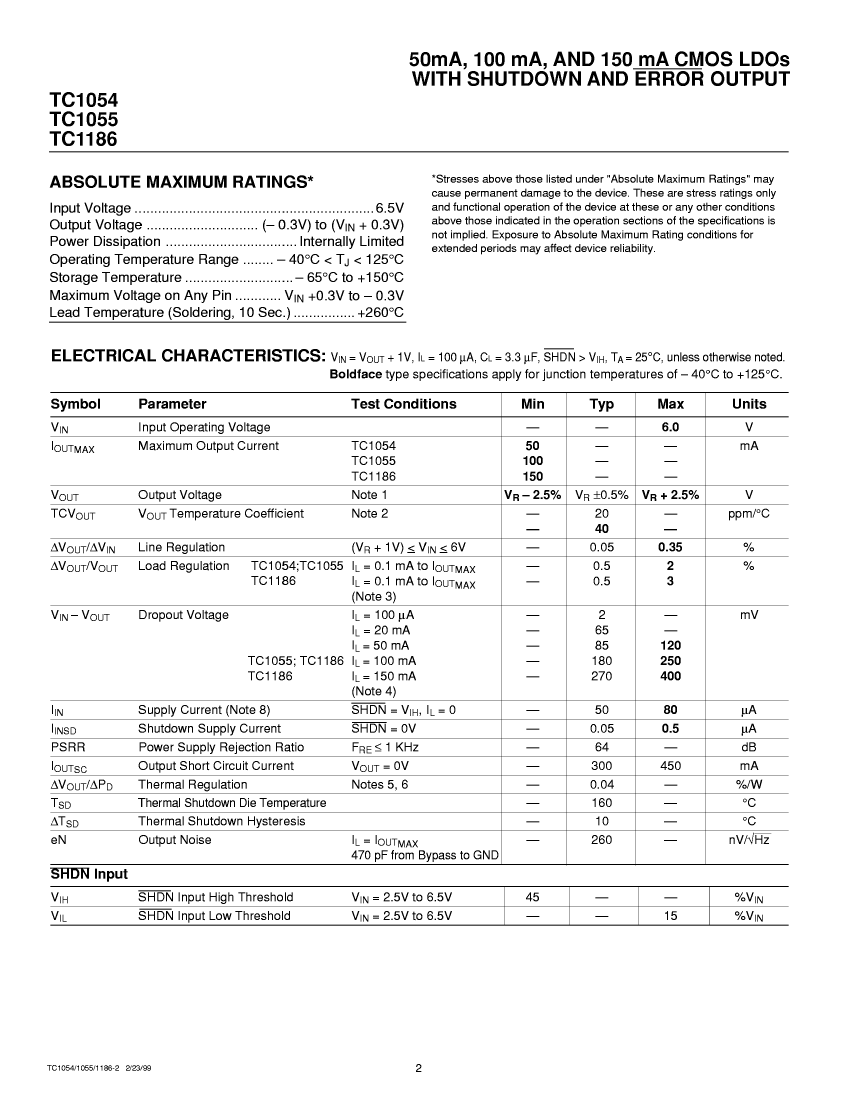

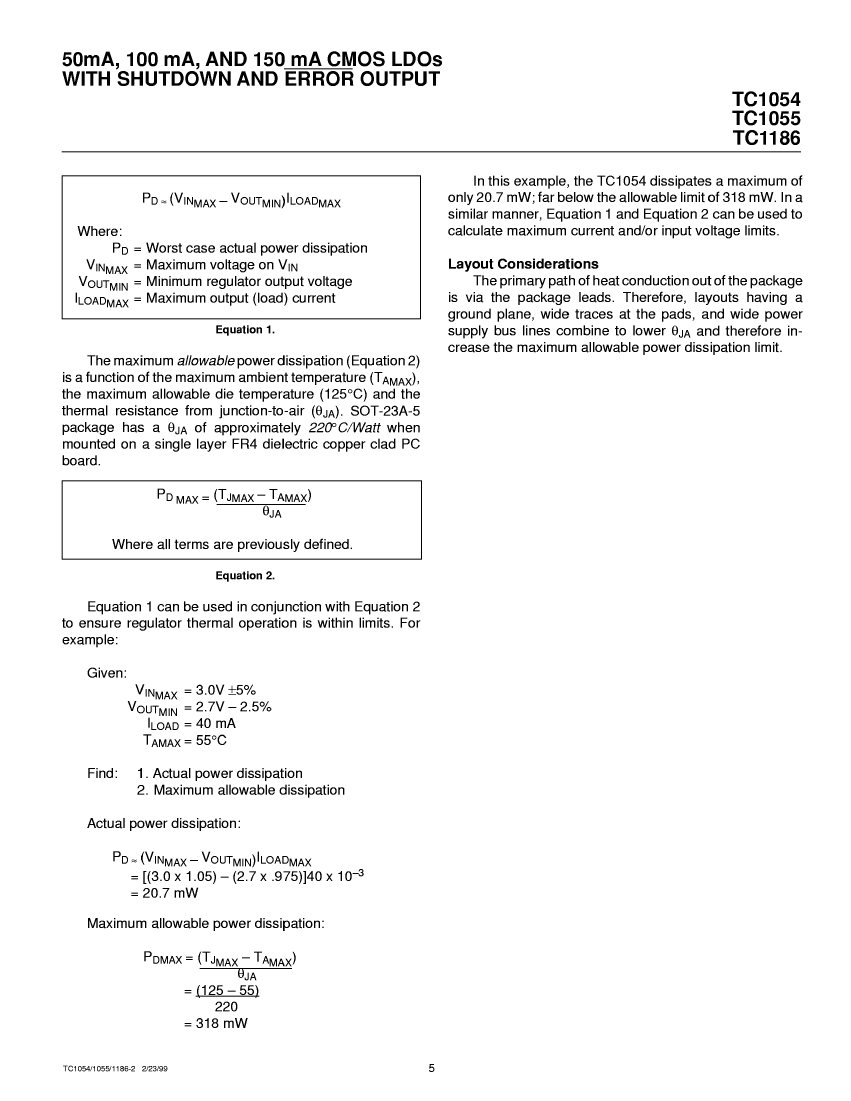

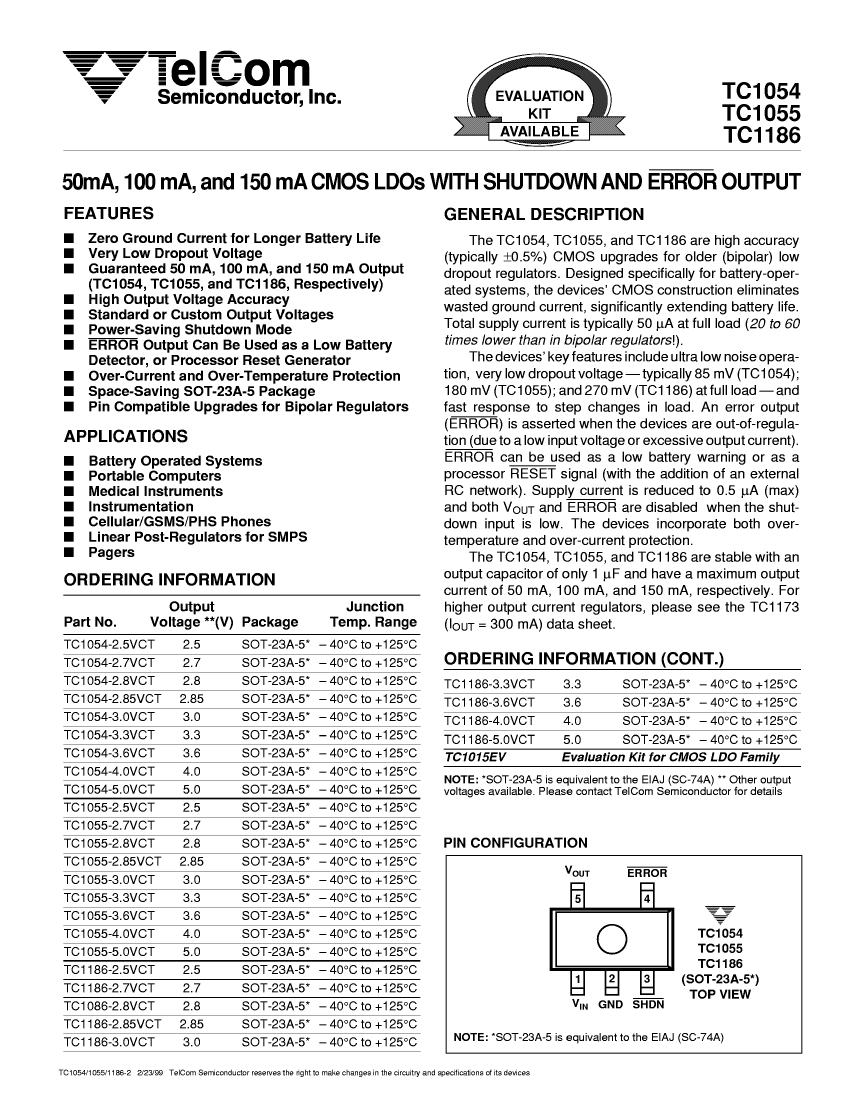

Preview

Download Datasheet

View All

TC1054-2.85VCT Related Products

	TC1054-2.85VCT	TC1054-3.6VCT	TC1055-3.6VCT	TC1054-2.8VCT	TC1054-4.0VCT	TC1055-4.0VCT	TC1055-2.85VCT	TC1055-2.8VCT	TC1186-2.8VCT
Description	Fixed Positive LDO Regulator, 2.8V, 0.12V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 3.6V, 0.12V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 3.6V, 0.25V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 2.8V, 0.12V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 4V, 0.12V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 4V, 0.25V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 2.8V, 0.25V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 2.8V, 0.25V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 2.8V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN
package instruction	SOT-23A, 5 PIN	SOT-23A, 5 PIN	SOT-23A, 5 PIN	SOT-23A, 5 PIN	SOT-23A, 5 PIN	SOT-23A, 5 PIN	SOT-23A, 5 PIN	SOT-23A, 5 PIN	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum drop-back voltage 1	0.12 V	0.12 V	0.25 V	0.12 V	0.12 V	0.25 V	0.25 V	0.25 V	0.4 V
Maximum input voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum input voltage	3.8 V	4.6 V	4.6 V	3.8 V	5 V	5 V	3.8 V	3.8 V	3.8 V
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5	5	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.05 A	0.05 A	0.1 A	0.05 A	0.05 A	0.1 A	0.1 A	0.1 A	0.15 A
Maximum output voltage 1	2.87 V	3.69 V	3.69 V	2.87 V	4.1 V	4.1 V	2.87 V	2.87 V	2.87 V
Minimum output voltage 1	2.73 V	3.51 V	3.51 V	2.73 V	3.9 V	3.9 V	2.73 V	2.73 V	2.73 V
Nominal output voltage 1	2.8 V	3.6 V	3.6 V	2.8 V	4 V	4 V	2.8 V	2.8 V	2.8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	-	-
Maker	TelCom Semiconductor, Inc. (Microchip Technology)	-	TelCom Semiconductor, Inc. (Microchip Technology)	-	-	-	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)
Adjustability	FIXED	FIXED	FIXED	-	FIXED	FIXED	FIXED	-	-
Nominal dropback voltage 1	0.12 V	0.12 V	0.25 V	-	0.12 V	0.25 V	0.25 V	-	-
Maximum absolute input voltage	7 V	7 V	7 V	-	7 V	7 V	7 V	-	-
JESD-609 code	e0	e0	e0	-	e0	e0	e0	-	-
Maximum grid adjustment rate	0.02144%	0.01764%	0.01764%	-	0.014%	0.014%	0.02144%	-	-
Maximum load regulation	0.057%	0.072%	0.072%	-	0.08%	0.08%	0.057%	-	-
Output times	1	1	1	-	1	1	1	-	-
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C	-	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-	-
encapsulated code	TSOP	TSOP	TSOP	-	TSOP	TSOP	TSOP	-	-
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	-	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	-	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	-	0.95 mm	0.95 mm	0.95 mm	-	-
Maximum voltage tolerance	5%	5%	5%	-	5%	5%	5%	-	-
Base Number Matches	1	1	1	1	1	1	-	-	-
