3414.0120.36: DescriptionElectric Fuse, Super Fast Blow, 2.5A, 32VDC, Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size318KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3414.0120.36 Overview

Electric Fuse, Super Fast Blow, 2.5A, 32VDC, Surface Mount, ROHS COMPLIANT

3414.0120.36 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.06
Fusing characteristics	SUPER FAST
body width	0.55 mm
body height	0.15 mm
Body length or diameter	1.05 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	1.05mm x 0.55mm x 0.15mm
Pre-discharge time - minutes	5000 ms
Rated current	2.5 A
Rated voltage (DC)	32 V
Guideline	CCC; CSA; UL
surface mount	YES
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

Non resettable fuses

USF 0402

www.schurter.com/pg0_2

Surface Mount Fuse, 1.05 x 0.55 mm, Super-Quick-Acting FF, 32 VDC

UL 248-14 · 32 VDC · Super-Quick-Acting FF

Description

Standards

Approvals

- UL characteristic

- Directly solderable on printed circuit boards

- UL 248-14

- CSA C22.2 no. 248.14

- UL File Number: E41599

Applications

- Semiconductor Protection

- Digital Consumer Electronics

- Cellular Phone

General Product Information

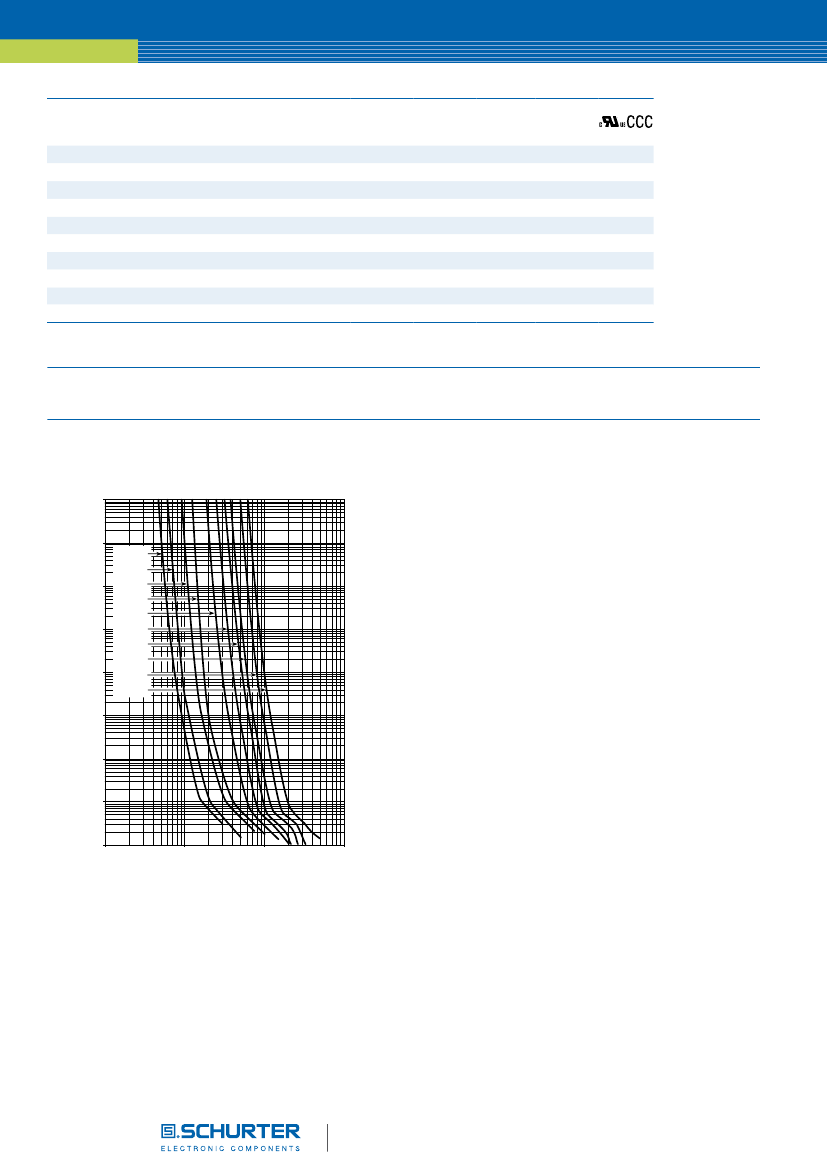

Time-Current Curves see last page

Packaging Details

Approvals: www.schurter.com/approvals

RoHS: http://www.schurter.com/rohs

CHINA-RoHS: www.schurter.com/china-rohs

Webstore: www.schurterinc.com/estore/search.ihtml

References

Weblinks

Technical Data

Rated Voltage

Rated Current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Housing

Material: Terminals

Unit Weight

Storage Conditions

Product Marking

24 - 32 VDC

0.375 - 5 A

35 A

Super-Quick-Acting FF

PCB,SMT

-55 °C to 125 °C

55/125/21 acc. to IEC 60068-1

Thermoset

Gold-Plated Copper Alloy

0.004 g

0 °C to 60 °C, max. 70% r.h.

Letter (see variants)

Length 1.05 mm

Soldering Methods

Solderability

Resistance to Soldering Heat

Flammability

Reflow

245 °C / 3 sec acc. to IEC 60068-2-58,

Test Td

260 °C / 10 sec acc. to IEC 60068-2-58,

Test Td

min. UL 94V-1

(acc. to EIA/IS-722, Test 4.12)

Dimensions

1.05

0.475

0.55

0.15

0.584

0.558

0.381

0.8

0.4

0.3

0.53

Solder pads

Pre-Arcing Time

Rated Current In

0.375 A - 5 A

.0 x In min

4 h

2.0 x In max

5 s

Fuses

3414.0120.36 Related Products

	3414.0120.36	3414.0123.36	3414.0124.36	3414.0112.36	3414.0117.36	3414.0121.36	3414.0119.36	3414.0114.36	3414.0115.36	3414.0113.36
Description	Electric Fuse, Super Fast Blow, 2.5A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 4A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 5A, 24VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 0.375A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 1.5A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 3A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 2A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 0.75A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 1A, 32VDC, Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 0.5A, 32VDC, Surface Mount, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.06	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.113	RATED BREAKING CAPACITY AT 24 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.088	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.003	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.029	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.098	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.044	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.009	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.016	RATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.004
Fusing characteristics	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST
body width	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm
body height	0.15 mm	0.15 mm	0.15 mm	0.15 mm	0.15 mm	0.15 mm	0.15 mm	0.15 mm	0.15 mm	0.15 mm
Body length or diameter	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm	1.05mm x 0.55mm x 0.15mm
Pre-discharge time - minutes	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms
Rated current	2.5 A	4 A	5 A	0.375 A	1.5 A	3 A	2 A	0.75 A	1 A	0.5 A
Rated voltage (DC)	32 V	32 V	24 V	32 V	32 V	32 V	32 V	32 V	32 V	32 V
Guideline	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL	CCC; CSA; UL
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Base Number Matches	1	1	1	1	1	1	1	1	1	1
