Series 970 PowerTrip™ Connectors and Accessories
Receptacle Connectors

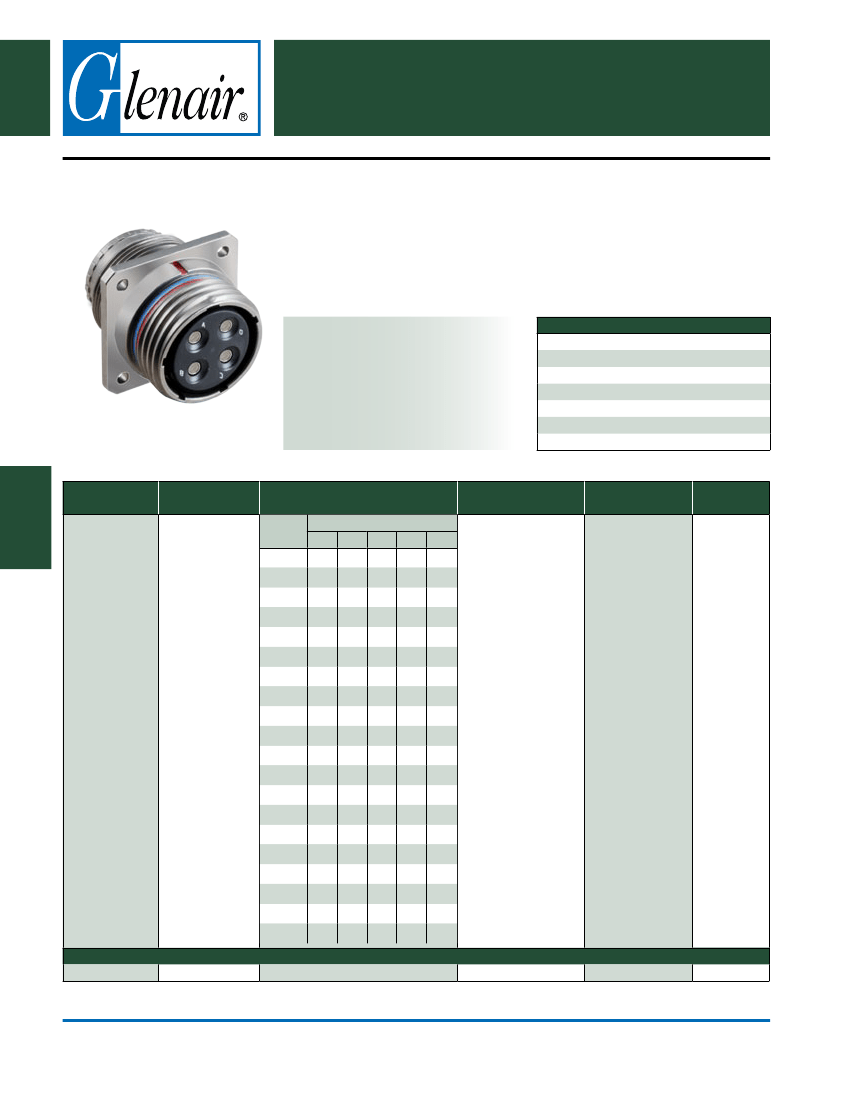

970-003 Square Flange Receptacle
970-003 square flange receptacles
Series 970 PowerTrip™ extreme environment receptacle connectors are intended for
high current applications where size 8 AWG to size 1/0 AWG wires are used. These
connectors feature high ampacity LouverBand contacts. Coupling threads are triple-start
ACME type. EMI protected with ground spring on mating plug and splined backshell
interface. Standard contacts are silver plated high conductivity copper alloy, or choose
gold-plated contacts for improved corr osion protection. Fluorosilicone rubber gaskets
and grommet provide watertight sealing. Contacts are packaged with connector.
Receptacle
Connectors
•
•
•
•
SHELL MATL
AND FINISH
Aluminum,
Electroless
Nickel Finish
EMI Protected
High Ampacity Contacts
Submersible
Harsh Environment
HoW To oRDER
2000 VAC Sea Level DWV Rating
-65°C to +200°C Operating Temperature
6 Feet Water Immersion, 48 Hours
65 dB min. Attenuation, up to 10GHz
2000 Cycles Mating Durability
MIL-S 901 Grade A High-Impact Shock
43 g Random Vibration
KEY
PoSITIoN
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
PRoDUCT FACTS
D
SERIES
Square Flange
Panel Mount
Receptacle with
Crimp Contacts
970-003
ME
Contact Size and Qty
Contact
#16 #12 #8
Arr.
#4 #1/0
2
2
2
3
4
2
4
3
3
2
3
5
4
3
5
2
3
4
4
2
3
2
5
3
3
4
5
2
SHELL SIZE - INSERT
ARRANGEMENT
CoNTACT TYPE
MoUNTING
AND PLATING
HoLE oPTIoN
Pin Contacts, Silver
Plating*
Pin Contacts, Gold
Plating
Socket Contacts,
Silver Plating*
Socket Contacts,
Gold Plating
Pin Connector,
without Contacts
Socket Connector,
without Contacts
* Size 12 and 16
contacts are gold-
plated. Size 8, 4 and
1/0 are silver plated.
P1
18-2
18-4
20-3
MT
20-4
Aluminum,
Nickel-PTFE
20-5
Finish
20-7
24-2
NF
Aluminum,
24-3
Olive Drab
24-5
Cadmium
24-6
ZR
24-A6
Aluminum,
28-4
Black Zinc-
Nickel Finish
28-9
32-2
Z1
32-3
Passivated
Stainless Steel
32-4
32-5
32-6
36-4
40-5
MT
Thru-Hole
Clinch Nuts
Installed in
Mounting Holes
for Back Panel
Mounting.
N
T
-1
P2
-2
-3
S1
-4
-5
S2
A
B
-6
970-003
© 2013 Glenair, Inc.
24-5
Sample Part Number
P1
N
-1
Printed in U.S.A.
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
20
E-Mail: sales@glenair.com

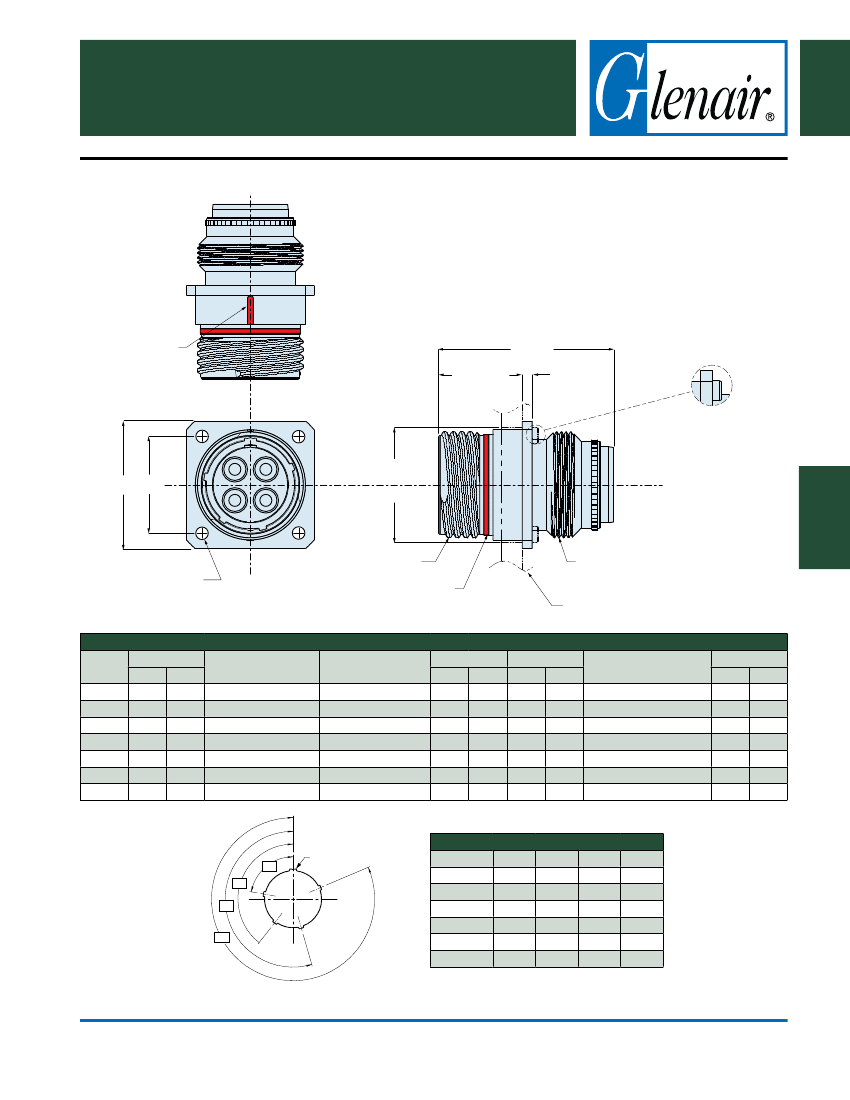

970-003 Square Flange Receptacle
970-003 square flange receptacle
RED MASTER KEY
LOCATION STRIPE
1.002/.972
(25.45/24.69)
2.070
(52.58)
MAX
.130/.100
(3.30/2.54)
MOUNTING HOLE OPTION T
CLINCH NUT, 4 PLCS,
SELF-LOCKING, STAINLESS
STEEL
A
D
TYP TYP
F
MOUNTING
HOLE
CUTOUT
ØE
B
MATING THREAD
RED FULL MATE
INDICATOR STRIPE
C
ACCESSORY THREAD
.250 (6.35) MAXIMUM
MOUNTING PANEL
THICKNESS
Shell
Size
18
20
24
28
32
36
40
In.
A
mm.
B
Mating Thread
C
Accessory Thd
DIMENSIoNS
In.
D
mm.
25.78
28.96
32.54
39.83
44.04
50.39
56.74
1.015
1.140
1.281
1.568
1.734
1.984
2.234
ø E
In. mm.
.146
.146
.146
.170
.170
.170
.170
3.71
3.71
3.71
4.32
4.32
4.32
4.32
E
Clinch Nut Thd
6-32 UNC-2B
6-32 UNC-2B
6-32 UNC-2B
8-32 UNC-2B
8-32 UNC-2B
8-32 UNC-2B
8-32 UNC-2B
ø F
In. mm.
1.187
1.374
1.562
1.835
2.093
2.302
2.562
30.15
34.90
39.67
46.61
53.16
58.47
65.07
1.383
1.508
1.718
2.138
2.328
2.578
2.828
35.13 1.125-.1P-.3L-TS-2A
38.30 1.250-.1P-.3L-TS-2A
43.64
54.31
59.13
65.48
1.500-.1P-.3L-TS-2A
1.750-.1P-.3L-TS-2A
2.000-.1P-.3L-TS-2A
2.250-.1P-.3L-TS-2A
1.125-18 UNEF-2A
1.250-18 UNEF-2A
1.4375-18 UNEF-2A
1.8125-16 UN-2A
2.0625-16 UNS-2A
2.250-16 UN-2A
2.500-16 UN-2A
71.83 2.500-.1P-.3L-TS-2A
A°
B°
C°
D°
MASTER KEY
Position
1
2
3
4
5
6
KEY PoSITIoNS
A0
B0
C0
80
135
49
66
62
79
142
170
169
140
145
153
196
200
200
200
180
197
D0
293
310
244
257
280
272
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
21
E-Mail: sales@glenair.com
Receptacle
Connectors
