1613427 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1613427

1613427: Descriptionconn hsg rcpt 6pos inline pin; CategoryThe connector; File Size72KB，5 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1613427 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1613427	-	-	View	Buy Now

1613427 Overview

conn hsg rcpt 6pos inline pin

1613427 Parametric

Parameter Name	Attribute value
Datasheets
1613427
Standard Package	1
Category	Connectors, Interconnects
Family	Circular Connectors - Housings
Packaging	Bulk
Connector Type	Receptacle for Male Contacts
Number of Positions	6 (2 + 3 Power + PE)
Shell Size - Inse	M40-6
Shell Size, MIL	-
Contact Type	Crim
Contact Size	2.0mm (2), 3.6mm (4)
Mounting Type	Free Hanging (In-Line)
Fastening Type	Push-Twis
Orientati	N (Normal)
Shell Material, Finish	Gadolinium-Zinc
Ingress Protecti	IP67 - Dust Tight, Waterproof
Features	Shielded
Note	Contacts Not Provided

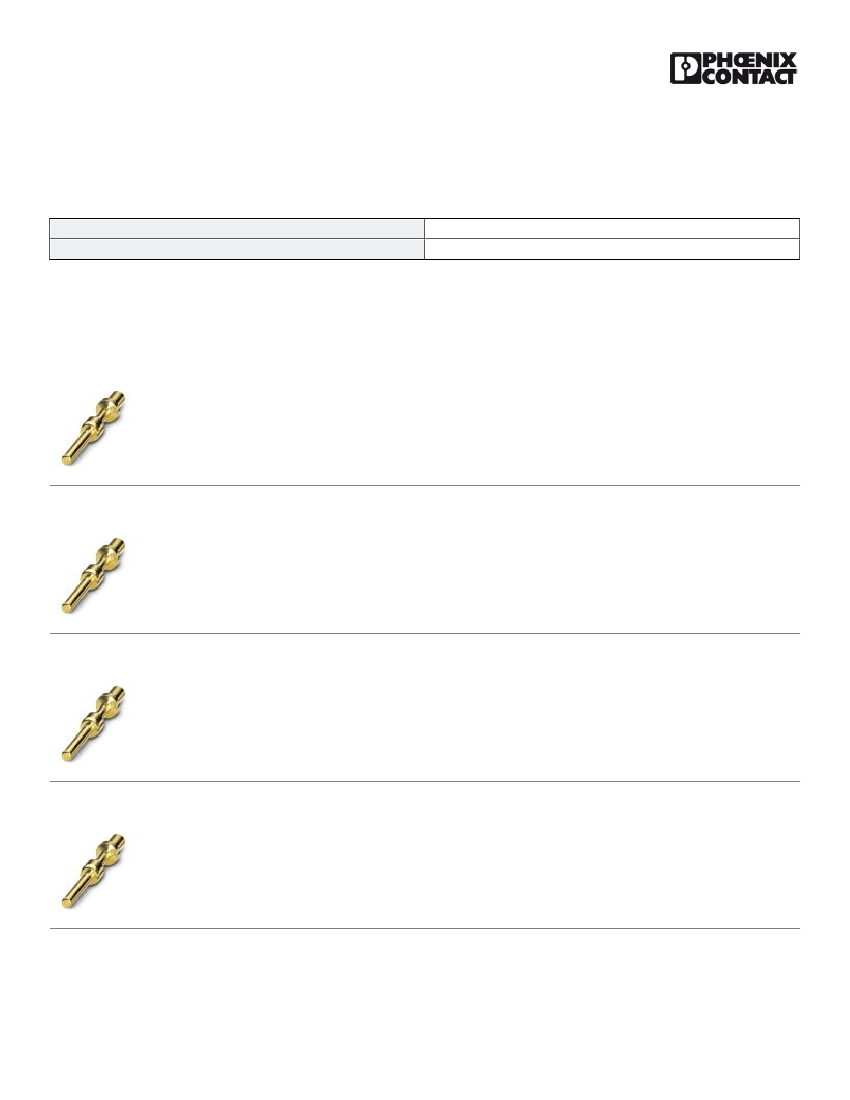

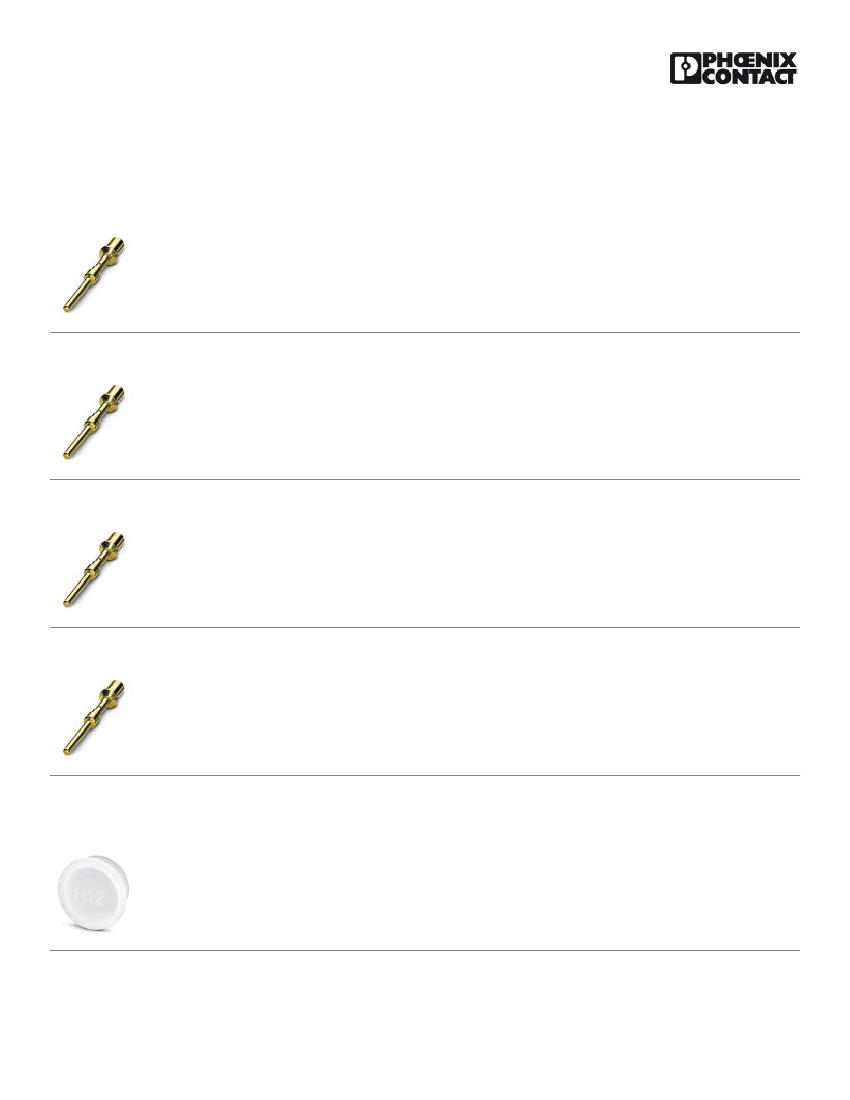

Associated Produc	1605754-ND - CONTACT PIN 3.6MM CRIMP TURNED1605749-ND - CONTACT PIN 3.6MM CRIMP TURNED1605741-ND - CONTACT PIN 2.0MM CRIMP TURNED1605736-ND - CONTACT PIN 2.0MM CRIMP TURNED1605738-ND - CONTACT PIN 2MM CRIMP TURNED1605739-ND - CONTACT PIN 2MM CRIMP TURNED1605750-ND - CONTACT PIN 3.6MM CRIMP TURNED1605752-ND - CONTACT PIN 3.6MM CRIMP TURNED
Other Names	SM-5EP1N8A9L34S

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1613427

Coupler connector - SM-5EP1N8A9L34S - 1613427

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://download.phoenixcontact.com)

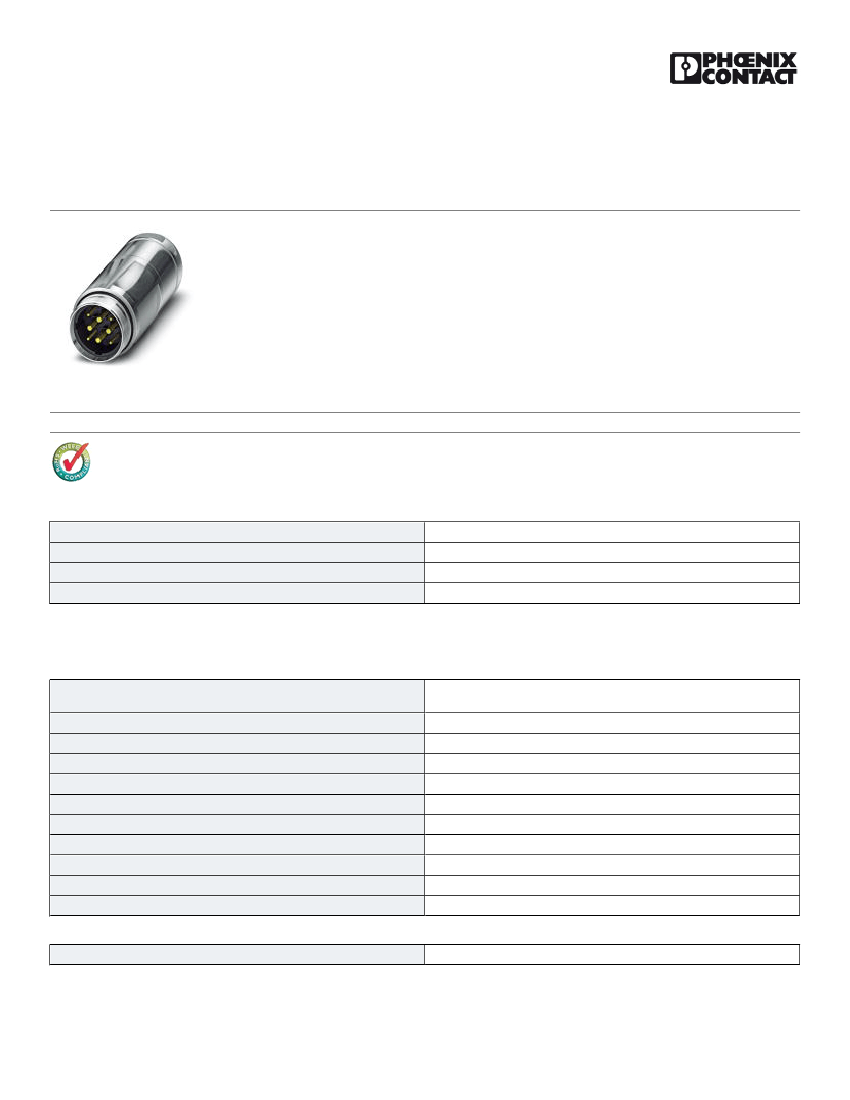

Coupler connector, straight, SPEEDCON locking, M40, Number of positions: 2+3+PE, Type of contact: Male

connector, Crimp connection, Shielded: Yes, Cable cross section: 20.5 mm...26.5 mm

The figure shows the 8-pos.

(4+3+PE) product version

Key commercial data

Packing unit

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

121.13 GRM

85366990

Germany

Technical data

General

Note

Type of locking

Coding

Contact connection method

Type of contacts

Number of positions

Contact diameter of power contacts

Nominal current per power contact at 25°C

Contact diameter of signal contacts

Nominal current per signal contact at 25°C

Conductor entry

Order information Order crimp contacts 2 x Ø 2 mm, 4 x Ø 3.6 mm

separately

SPEEDCON locking

Crimp connection

Male connector

3.6 mm

70 A

2 mm

30 A

20.5 mm ... 26.5 mm

Ambient conditions

Ambient temperature

-20 °C ... 125 °C

01.11.2013 Page 1 / 5
